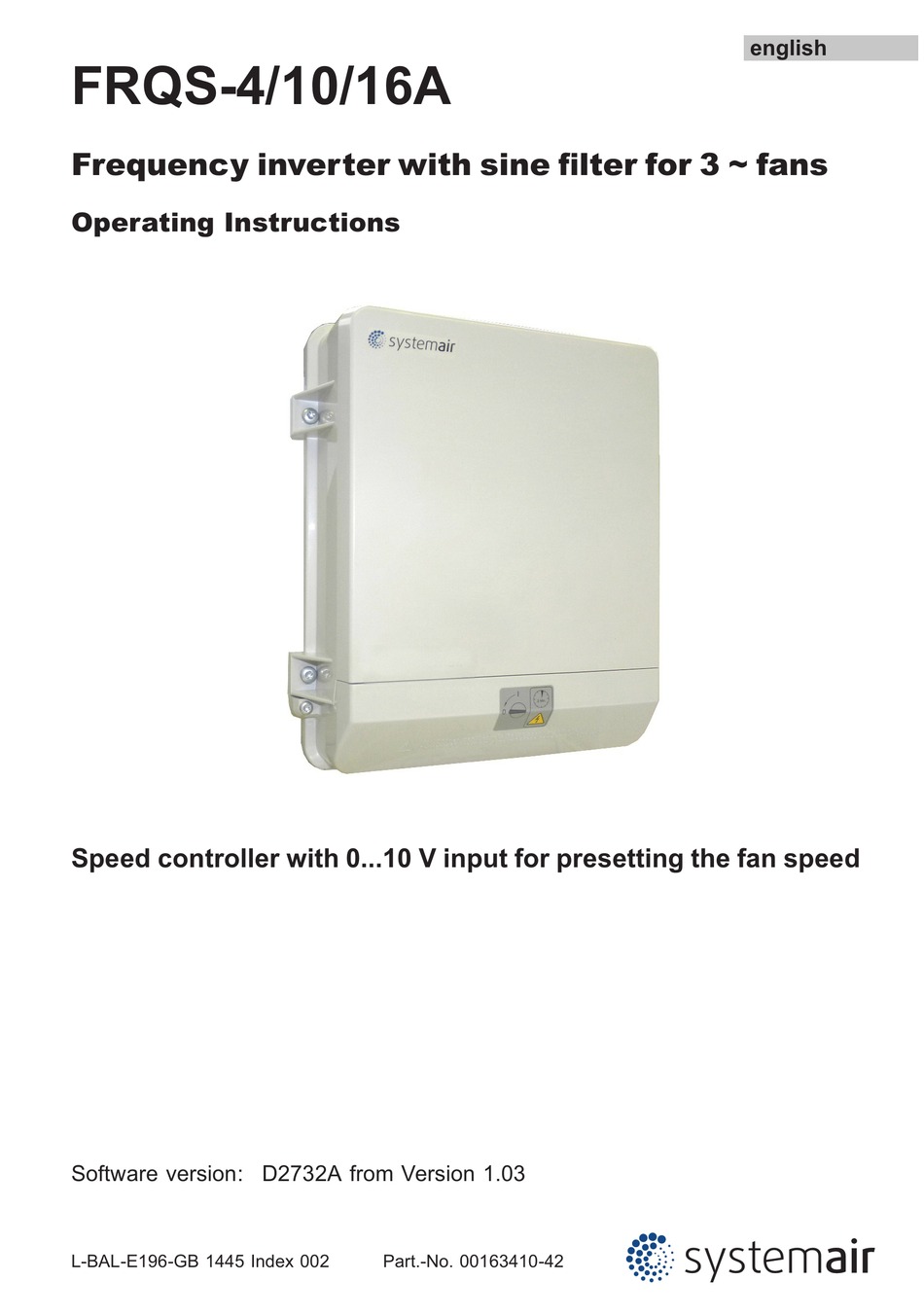

- Page 1 FRQS-4/10/16A Frequency inverter with sine lter for 3 ~ fans Operating Instructions Speed controller with 0...10 V input for presetting the fan speed Software version: D2732A from Version 1.03 L-BAL-E196-GB 1445 Index 002 Part.-No. 00163410-42...
-
Page 2: Table Of Contents
Operating Instructions FRQS-4/10/16A Content General notes .......... - Page 3 Operating Instructions FRQS-4/10/16A 5.2.3 Harmonics current for devices ≤ 16 A ....Mains connection ........
-
Page 4: General Notes
Operating Instructions FRQS-4/10/16A General notes 1 General notes 1.1 Structure of the operating instructions Before installation and start-up, read this manual carefully to ensure correct use! We emphasize that these operating instructions apply to specific units only, and are in no way valid for the complete system! Use these operating instructions to work safely with and on the device. -
Page 5: Intended Use
Operating Instructions FRQS-4/10/16A Safety instructions 2.1 Intended use The equipment is to be used solely for the purposes specified and confirmed in the order. Other uses which do not coincide with, or which exceed those specified will be deemed unauthorised unless contractually agreed. Damages resulting from such unau- thorised uses will not be the liability of the manufacturer. -
Page 6: Requirements Placed On The Personnel / Due Diligence
Operating Instructions FRQS-4/10/16A Safety instructions 2.4 Requirements placed on the personnel / due diligence Persons entrusted with the planning, installation, commissioning and maintenance and servicing in connection with the frequency inverter must have the corresponding qual- ifications and skills for these jobs. -
Page 7: Modifications / Interventions In The Device
Operating Instructions FRQS-4/10/16A Safety instructions with EN specifications shall therefore be observed even for testing and trial conditions (EN 50 178, Art. 5.2.11). Without earthing, dangerous voltages can be present on the motor housing. Waiting period at least 3 minutes! -
Page 8: Employment Of External Personnel
Operating Instructions FRQS-4/10/16A Product overview • All safety and warning notices attached to the device are never removed and remain legible. 2.9 Employment of external personnel Maintenance and service work are frequently carried out by external employees who often do not recognize the specific situations and the thus resulting dangers.These persons must be comprehensively informed about the hazards in their area of activity. -
Page 9: Storage
Operating Instructions FRQS-4/10/16A Mounting 3.5 Storage • The device must be stored in its original packaging in a dry and weather-proof room. • Avoid exposure to extreme heat and cold. • Avoid prolonged storage; we recommend a maximum of one year (consult the manufacturer before starting if stored for longer). -
Page 10: Minimum Space Requirement
Operating Instructions FRQS-4/10/16A Mounting 4.2 Minimum space requirement In order to ensure sufficient ventilation of the device, clearance on all sides of at least 50 mm has to be maintained to the housing walls, switch cabinet doors, wiring ducts, etc. -
Page 11: Electrical Installation
Operating Instructions FRQS-4/10/16A Electrical installation 5 Electrical installation 5.1 Safety precautions Danger due to electric current • Work on electric components may only be carried out by trained electricians or by persons instructed in electricity under the supervision of an electrician in accordance with electrical engineering regulations. -
Page 12: Harmonics Current For Devices ≤ 16 A
Operating Instructions FRQS-4/10/16A Electrical installation 5.2.3 Harmonics current for devices ≤ 16 A According to EN 61000-3-2 these devices are to be classified as “professional” devices. The application is therefore limited to use by trade, certain vocations or industries. Connection to a low voltage supply (public networks) is allowed insofar as this has been clarified with the respective energy supply company responsible. -
Page 13: Inverter Output
Operating Instructions FRQS-4/10/16A Electrical installation 5.5 Inverter output 5.5.1 Motor connection The motor leads are connected to the terminals: PE, U, V, W. Several fans can be connected to the controller-the maximum total current of all motors must not exceed the current rating for the controller. -
Page 14: U/F-Characteristic Curve
Operating Instructions FRQS-4/10/16A Electrical installation 5.5.3 U/f-characteristic curve Diagram setting signal and U/f curve (quadratic) = 50 Hz 100 % = 48.5 Hz edge = 0 % [Hz] start Analog In 1 0...10 V 0...20 mA 90 100 0...100 % PWM 01.02.2013... -
Page 15: Analog Input "E1" For Setting Fan Speed
Operating Instructions FRQS-4/10/16A Electrical installation When a connected thermostat or thermistor responds (interruption between the two terminals “TB/TP”) the device switches off and does not switch back on. Relais “K1” is de-energized, terminals “13” - “14” interrupted. The internal signal lamp flashes in code... -
Page 16: Output Voltage "10 V
Operating Instructions FRQS-4/10/16A Electrical installation 0...20 mA Control via external setting signal 0...20 mA D1 GND E1,1 E1,2 31.01.12 i_jumper_if_basic_0_20 0...20 mA 0...100 % PWM Control via external setting signal PWM D1 GND 10V D1 GND 10V 24V (10 V) -
Page 17: Voltage Supply For External Devices (+24V, Gnd)
Operating Instructions FRQS-4/10/16A Electrical installation 5.9 Voltage supply for external devices (+24V, GND) A voltage supply is integrated for external devices e. g. a sensor (max. current load technical data). In case of overload or short circuit (24 V – GND), the external power supply is shut down (multi-fuse). -
Page 18: Start-Up
Operating Instructions FRQS-4/10/16A Start-up 6 Start-up 6.1 Prerequisites for commissioning Attention! 1. You must mount and connect the device in accordance with the operating instructions. 2. Double check that all connections are correct. 3. The mains voltage must match the information on the rating plate. - Page 19 Operating Instructions FRQS-4/10/16A Diagnostics / Faults Reaction of Controller Relay Code Explanation Adjustment No enable = OFF de-energized, 13 - 14 Switch off by external contact ( Terminals “D1” - “24 V” (Digital In interrupted enable, device ON / OFF).
- Page 20 Operating Instructions FRQS-4/10/16A Diagnostics / Faults Reaction of Controller Relay Code Explanation Adjustment DC over voltage The modulation is switched off im- mediately at overvoltage, error Intermediate circuit voltage above message after 75 s. fixed limit for longer than 75s.
- Page 21 Operating Instructions FRQS-4/10/16A Diagnostics / Faults Reaction of Controller Relay Code Explanation Adjustment Sine filter to hot Switch off at to high temperature, restarting after cooling down. (only in version with integrated de-energized, 13 - 14 sine filter) Check temperature in controller, interrupted Check cooling of the controller.
-
Page 22: Enclosure
Operating Instructions FRQS-4/10/16A Enclosure 8 Enclosure 8.1 Technical data Type FRQS-4A FRQS-10A FRQS-16A 36231 36232 37275 Part-No. (308276-42) (308277-42) (308300-42) Rated current output {1} 10 A 16 A Rated current input {2} 3.8 A 9.4 A 15.2 A (I fundamental component @ 50 Hz) (3.5 A) - Page 23 Operating Instructions FRQS-4/10/16A Enclosure Digital input “D1” Input resistance: R approx. 4 kΩ Voltage range high level: 10..30 V DC Voltage range low level: 0..4 V DC Output 10 V 10 mA (short-circuit-proof) Max. contact rating of the internal 2 A / 250 VAC relay Max.
-
Page 24: Max. Load Dependent On Ambient Temperature And Line Voltage
Operating Instructions FRQS-4/10/16A Enclosure 8.1.1 Max. load dependent on ambient temperature and line voltage. The maximum permissible temperature for the rated current at rated voltage is specified as rated temperature. Since the dissipation of the power loss (heat development) in the device is decisively dependent on the ambient temperature, the max. -
Page 25: Connection Diagram
Operating Instructions FRQS-4/10/16A Enclosure 8.2 Connection diagram FRQS-4/10/16A Temperaturfühler TP = Thermistors Thermostatschalter 0...20 mA TB = Thermostats 15...28 V PWM Kontaktbelastung 0...10 V Contact rating (10 V PWM) max. AC 250 V 2 A D1 GND 10V 24V E1,1 E1,2... -
Page 26: Unit Type Stdt
Operating Instructions FRQS-4/10/16A Enclosure 8.2.1 Connection suggestion for several motors with motor protection unit type STDT • Full motor protection by switch-off when activating the attached thermostat switches “TB” . Reset after malfunction by key press. • Line protection: A thermal over current sensor and a magnetic short circuit releasing elements are the parts of the integral line protection. -
Page 27: Manufacturer Reference
Operating Instructions FRQS-4/10/16A Enclosure 8.4 Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: Systemair Industrievägen 3 73930 Skinnskatteberg...
