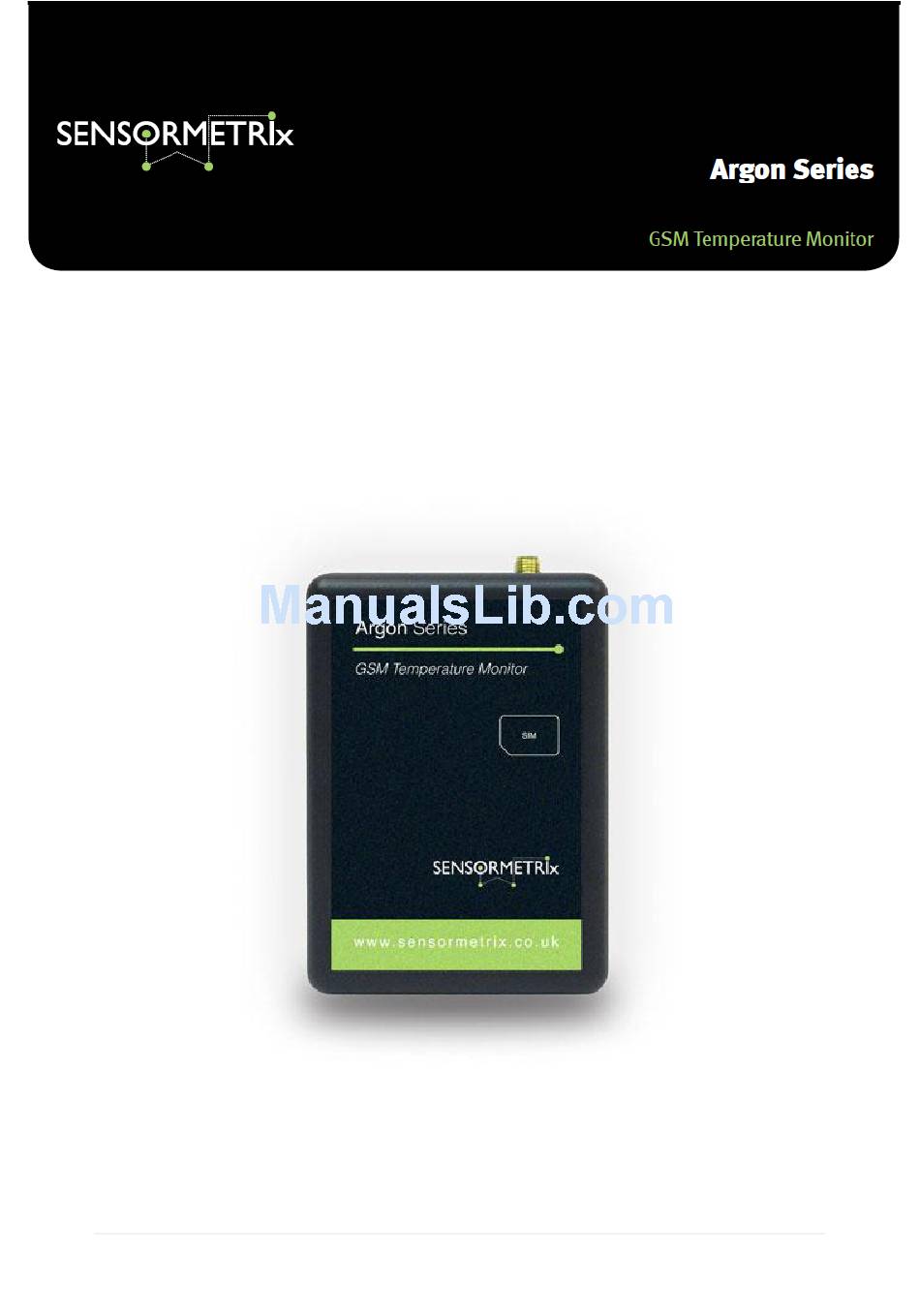

- Page 1 Manual Argon Series Hardware User Manual Version: 1.3 4 April 2012 P a g e 1 5 - 0 3 - 1 2 V e r s i o n : 1 . 2...
-
Page 2: Table Of Contents
Manual Contents What’s in the Box……………….……………………………………. Page 3 Introduction……………….…………………………………..………… Page 4 Basic Setup……………….……………………………………………… Page 5 – 6 LED Configuration and status……………….…………………. Page 7 Set-up Proton-1 Sensor Adapter……………….……………. Page 8 – 9 SMS Commands……………….……………………………………… Page 10 – 14 ... -
Page 3: What's In The Box
Delta 2 Power Cable for Adaptor Antenna Supply Convertor Connection Argon 200 – Same as Argon 100 kit plus. 2-Way Sensor Hub Argon 500 – Same as Argon 100 kit plus. 5-Way Sensor Hub Optional Accessories Temp-Sense STN Temp-Sense Flat Temp-Sense... -
Page 4: Introduction
(USB to serial driver and Microsoft .NET framework required – ensure Windows has latest service pack installed on your computer). The Argon software is designed to operate only with Sensormetrix temperature 1-wire sensors in conjunction with Serial RS232 Proton-1 Temperature adapter. (Included in Argon kit). -
Page 5: Basic Setup
Manual Basic Setup Front View Rear View 1. RS232 Temp-Sensor Attachment connects to Proton-1. (see page ~~~) 2. Mini-USB (Used for Argon-GPIO only) – not used for Argon-Temp Series. 3. LED Status Lights 4. SIM Card Holder 5. Antenna Connector (SMA Female) 6. - Page 6 Manual Setup Insert SIM Card With the Argon RS232 sensor pointing down insert the SIM card this way See quick start guide (Appendix A) SIM CARD Power Connection Use the power supply provided for powering the Argon from standard wall socket. For power connection see quick start guide (Appendix A) See Appendix B for use of alternative power supply Antenna Connection...
-
Page 7: Led Configuration And Status
Manual LED Configuration and status LED Status Lights Red Light Flash rate once per second: GSM Network search / not registered / turning off Slow rate once every 3 s: Registered full service / GSM Signal OK Constant ON: Ringing OR call in progress OFF: Module power down The following table shows the meanings for the LED status and the different states that they represent. -
Page 8: Set-Up Proton-1 Sensor Adapter
Manual Set-up Proton-1 Sensor Adapter ARGON 100 Set-up 1. Connect the proton-1 adapter to the RS232 connection on the Argon unit. 2. Power off the Argon, wait 8-10 seconds and power up the Argon. 3. The green status light on the Proton-1 will now rapidly bink to indicate it’s in programming mode. - Page 9 Manual STEADY STATE OPERATION Once the power up initialisation has been completed, the unit will go into the steady state operation mode. In this mode it will cycle through all the attached temperature sensors that have been identified and stored in non-volatile memory. The time taken to cycle through and read all the sensors depends on how many sensors are attached.
-
Page 10: Sms Commands
Manual SMS Commands The Argon software is controlled via the use of SMS Command messages, these are standard text messages sent via a mobile phone which are formatted in a specific way to configure the Argon (i.e. change GPRS settings). The default password is connect. - Page 11 Manual SENSOR Set sensor_no/min temp/max temp/report type/alias. a) sensor_no: 1-5 b) Min temp & max temp (sometimes called safe limits) are in Centigrade. The format must be as follows: a. -/+xxx.x (numbers only) b. Example: -12.3⁰C is denoted by -012.3 c.
- Page 12 Manual ALERTINTERVAL This command is designed to send repeated alerts to the alert contact list if the temperature is in alert status. If this command is not used the Argon will only send one alert. Set alert repeat / min alert interval a) alert_repeat: The intervals (in seconds –...
- Page 13 Manual NOTIFY Set the Alert or Log to a set medium, i.e. SMS, Email, URL. a) notify_type: Chooese to program datalog feature or alert/alarm feature. a. log: where to send the temperature datalog too. b. alert: where to send the temperature alert too: b) notify_method: Type of medium used: a.
- Page 14 Manual Setup Examples SMS ALERT (NO REPEAT) Setup a non repeating alert on sensor 1 called kitchen to be sent via SMS to +447770123456 if the temperature exceeds, and then falls back within the range of 15˚ C to 21˚ C. connect sensor 1 +015.0 +021.0 both kitchen connect notify alert sms +447770123456 Note: When testing alerts by rapidly heating/cooling the sensor please be aware that the...
-
Page 15: General Notes
Manual General Notes If the SMS password is forgotten then the Argon it can also be reset using the Windows based serial configuration utility. Please contact us for information on how to perform this task if required. Notes Note 1: SMS timings are approximate and are dependent on the GSM network provider. SMS messages are not guaranteed to be sent. -
Page 16: Technical Diagrams
Manual Technical Diagrams All dimensions are shown in mm. The mounting holes are suitable for a M3 fixing screw. (Holes are covered by Argon Label) Top View Serial Connector View 16 | P a g e 1 5 - 0 3 - 1 2 V e r s i o n : 1 . 2... - Page 17 Manual Antenna and Power View SIM and GPIO Indicator View 17 | P a g e 1 5 - 0 3 - 1 2 V e r s i o n : 1 . 2...
- Page 18 Manual Terminal Installation Considerations Environmental conditions: The terminal must be installed so that the environmental conditions stated such as temperature, humidity and vibration are satisfied. Additionally, the electrical specifications must not be exceeded. GSM Signal strength: The terminal/antenna has to be placed in a position that ensures sufficient GSM signal strength.
- Page 19 Manual Installing the Modem Before installing the terminal please take into account the amount of additional space required for the mating connectors and cables that will be used with the terminal in the application. Where access is restricted, it may be easier to connect all the cables to the modem prior to securing it in the application.
-
Page 20: Safety Recommendations
Manual Safety Recommendations PLEASE READ CAREFULLY Be sure the use of this product is allowed in the country and in the environment required. The use of this product may be dangerous and has to be used with caution in the following areas: ... -
Page 21: Conformity Assessment
Manual Conformity Assessment The Argon solution is based on the Sequoia SQ864 GSM Modem. The SQ864-GPRS terminal conforms to the R&TTE Directive as a stand-alone product, so if the terminal is installed in compliance with the telecom installation instructions then no further evaluation is required under Article 3.2 of the R&TTE Directive and no further involvement of a R&TTE Directive Notified Body is required for the final product. -
Page 22: Appendix B Power Connection
Manual Appendix B Power Connection The DC power supply must be connected to the power input. The characteristics of the power input are as follows: Input voltage 5 to 60V DC Nominal input voltage 12V DC Supply current Peak 2A Average standby 25mA Call in progress 250mA... - Page 23 Manual Power Connection: Cable The following connector cable can be purchased from Sensormetrix website: PART:### for connecting to the Argon. The pin out of the cable is shown below and the power connections are shown for the Argon. Cable length 1m...
-
Page 24: Appendix C Supplied Antenna: Siretta Delta
Manual Appendix C Supplied Antenna: Siretta Delta 2 General Description The Siretta Multiband antenna combines good performance in a small size enabling its use with many of today’s GSM/GPRS, 3G and 2.4GHz products. Terminated with a right angle SMA male, it is ideally suited to applications requiring a simple, cable free set up such as Point of Sale, metering or alarm panels as well as being a popular addition to radio manufacturers’...
