Summary of Contents for Retroactive GBS-8100

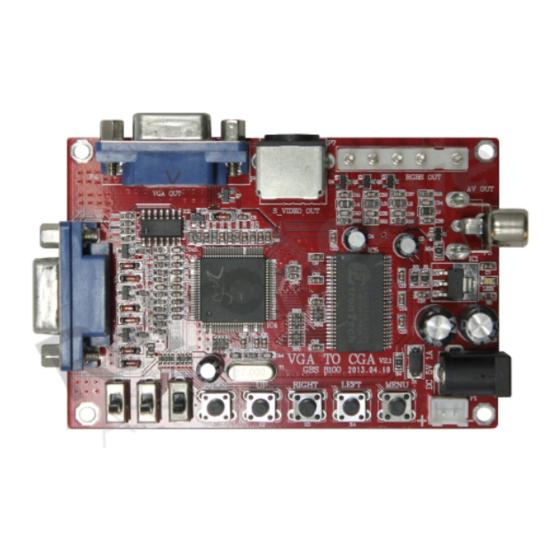

- Page 1 VGA to CGA Converter GBS-8100 Ver. 2 Manual Page 1...
- Page 2 ITEMS INCLUDED WITH PRODUCT ....3 GBS-8100 V2 WIRING DIAGRAM ..... 4 OPERATION MENU .
- Page 3 VGA to CGA Converter GBS-8100 Ver. 2 DESCRIPTION CGA,EGA,RGB TO VGA GAME The high definition converter GBS-8200 is a professional game & playstation display converter. It supports all major games (Play Station, Xbox.etc) converts to CRT monitors, LCD monitors, PDP monitors. It features an Auto scan CGA/EGA/YUV signal function, and as well has VGA output with a high resolution signal.
-
Page 4: Wiring Diagram
VGA to CGA Converter GBS-8100 Ver. 2 Wiring Diagram VGA OUTPUT S-VIDEO OUT 5 PIN CGA/RGBS OUTPUT COMPOSITE VIDEO OUT VGA INPUT BARREL JACK 5V DC IN DOWN RIGHT LEFT MENU SCREEN POSITION ADJUSTMENT BUTTONS TWO PIN 5V DC IN... - Page 5 VGA to CGA Converter GBS-8100 Ver. 2 GBS-8100 BUTTON LAYOUT DOWN RIGHT LEFT MENU SCREEN POSITION ADJUSTMENT BUTTONS 6. OPERATION MENU A. “MENU” opens the OSD menu and also acts as the “Enter/Select” button. B. “UP” moves the screen up.
- Page 6 VGA to CGA Converter GBS-8100 Ver. 2 7. SPECIFICATIONS & DETAILED DISPLAY FUNCTIONS A. Power DC 5V 2A +/- 0.5V B. CGA/EGA 14.5V - 16.5K 23.5V - 25.5K 30.5V - 32.5K AUTO SCAN C. RGBHV 30.5V - 32.5K AUTO SCAN D.
- Page 7 VGA to CGA Converter GBS-8100 Ver. 2 8. FAQ Q. No image or signal going to the screen. A. Check the cable on both ends. Make sure both ends are connected securely. Check that the screen in switch on and power is going to it. If you see the message “No signal” on the screen, press the “SW” button to change the input signal type.
