2KW WIND TURBINE
Operation Manual
G
RADE AAA
**Please read carefully before using**
EST energy saving technology
ESPECIALLY DESIGNED FOR EST LEBANON

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2KW WIND TURBINE and is the answer not in the manual?

Questions and answers

Summary of Contents for EST 2KW WIND TURBINE

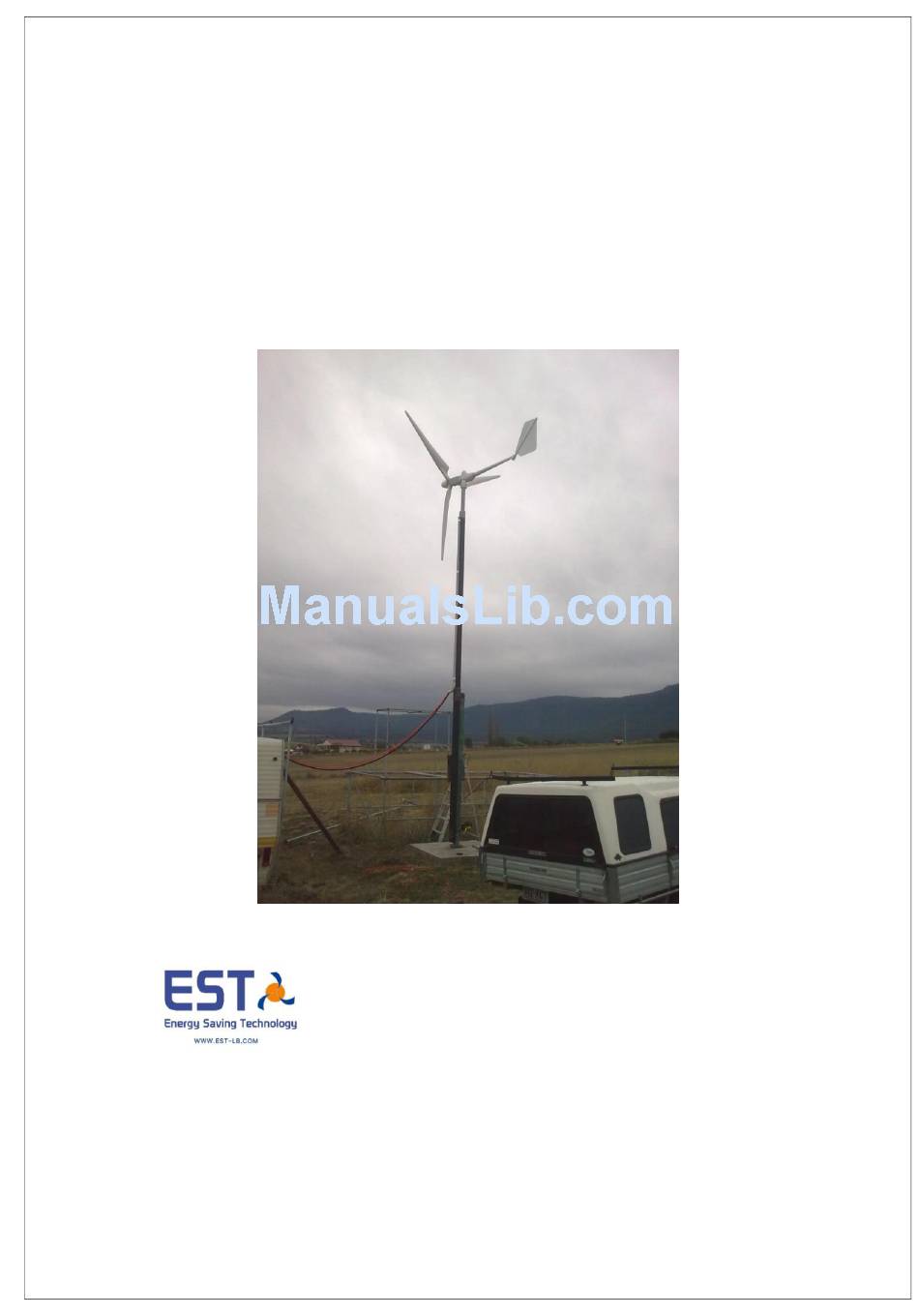

  • Page 1 2KW WIND TURBINE Operation Manual RADE AAA **Please read carefully before using** EST energy saving technology ESPECIALLY DESIGNED FOR EST LEBANON...
  • Page 2 1. Application A wind power generator is a piece of equipment that converts wind energy into electric power which is used to charge a storage battery group. It can be widely used in windy areas without electrical grid access. It is capable of providing power for lighting, TV, telecommunication equipment and other equipment.
  • Page 3 triangle pit points to the center hole. (Fig 2) 3.42 Start with the center pylon. Attach the 4 foundation bolts onto the base plate. Screw on the M16 nuts respectively until the top of bolt is 15mm out of nut. Align the axis of the pivot pin with anchor points BD or AC.
  • Page 4 Insert the tie-in of tail vane into the trough shape clamp of the tail rod, insert M12X70 bolt into the ø13 holes correctly, put on washer 12, lock washer 12 and M12 self-locking nuts, Adjust the tail rod angle against the level plane according to the local wind resources and electricity consumptions (it can be adjusted to four angles).
  • Page 5 When there is no wind, it consumes the electricity from the battery group. Therefore, after discharging, the batteries should be recharged soon, especially for lead-acid batteries. If the batteries cannot be recharged quickly after over discharging, the working life of the batteries will be reduced.
  • Page 6: Troubleshooting

    into the sleeve to remove the rotor from the shaft of the generator(see fig.8). After repairing the imbalance, reassemble. Torque should less than 0.02N.m. 6. Maintenance of the wind generator The products are divided into two types: common product and high quality product (no maintenance).
  • Page 7 3. Break disk is rubbing. 3. Readjust the brake gap. 4. Set switch at “RUN” position. 4. Switch is set at “STOP” position: The output voltage 1. The rotating speed 1. Find out the reason, restoring to normal of the generator is generator is low.
  • Page 8 Fig1 2KW WIND TURBINE SYSTEM (AAA)
  • Page 12 HY-2KW WIND TURBINE WIRING DIAGRAM...
