YSI 30 Operation Manual

Handheld salinity, conductivity and temperature system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

µS

YSI Model 30

YSI Model 30M

Handheld Salinity,

Conductivity and

Temperature

System

Operations

Manual

Table of Contents

Need help?

Do you have a question about the 30 and is the answer not in the manual?

Questions and answers

Larry Gil

June 24, 2025

I have a YSI 30 SCT meter on the cable is a tag 30-25 01C0549 does that reference the part number and the length of the cable?

Summary of Contents for YSI 30

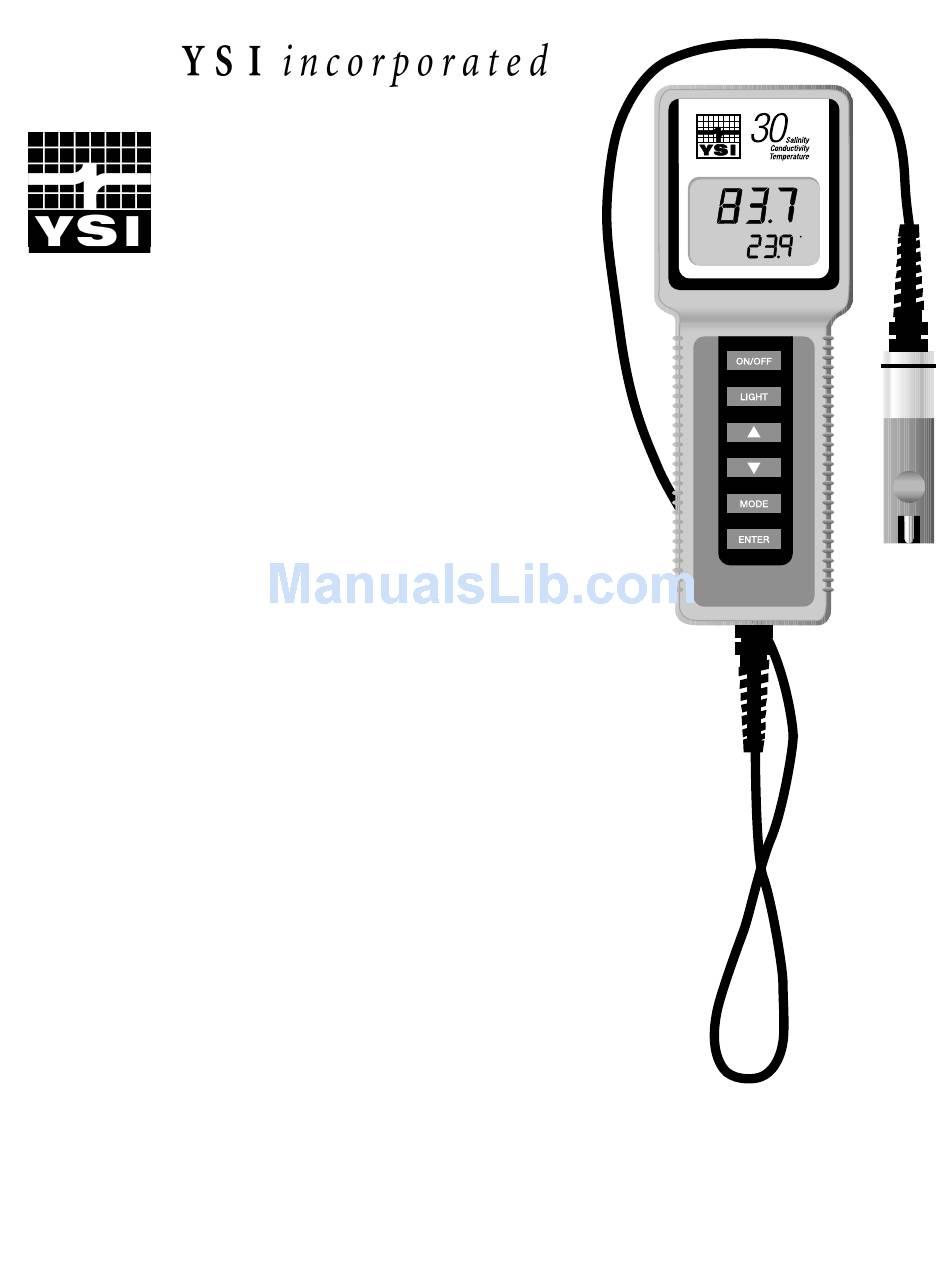

Page 1 µS YSI Model 30 YSI Model 30M Handheld Salinity, Conductivity and Temperature System Operations Manual...
Page 3: Table Of Contents
CONTENTS Section 1 Introduction ..............................1 Section 2 Preparing The Meter ............................3 2.1 Unpacking ..................................3 2.2 Warranty Card................................3 2.3 Batteries ..................................3 2.4 Storage Chamber................................4 2.5 Hand Strap .................................4 2.6 The Meter Case................................4 Section 3 Making Measurements ..........................5 3.1 Turning The Instrument On ............................5 3.2 Measurement Modes..............................6 3.3 Autoranging &...
Page 5: Section 1 Introduction
100 hours of continuous operation. When batteries need to be replaced, the LCD will display a "LO BAT" message. The YSI Model 30 instrument case is waterproof (rated to IP65). You can operate your Model 30 in a steady rain without damage to the instrument.
Page 6 Introduction Section 1 YSI, Incorporated Model 30/30M...
Page 7: Section 2 Preparing The Meter
BATTERIES There are a few things you must do to prepare your YSI Model 30 for use. First, locate the six AA- size alkaline batteries that were included. Use a screwdriver or a small coin to remove the thumbscrew on the bottom of the instrument.
Page 8: Storage Chamber
An optional sponge is available from YSI that will fit inside the storage chamber and provide a moist environment for probe storage should your application or operational procedures require it.
Page 9: Section 3 Making Measurements
SECTION 3 MAKING MEASUREMENTS The YSI Model 30 is factory calibrated. This means that once you have put batteries in the instrument, you are ready to begin taking readings immediately. The following diagram is an overview of the operation of the Model 30 and 30M. Note the difference in key strokes between some of the 30 and 30M functions.
Page 10: Measurement Modes
To dislodge any bubbles which might have formed, move or shake the probe vigorously several times before recording the measurement. MEASUREMENT MODES The Model 30 has three modes as follows: ! Conductivity -- A measurement of the conductive material in the liquid sample without regard to temperature...
Page 11: Autoranging & Range Searching
(within the specifications of the instrument), all you need to do to get the most accurate reading is to put the probe in the sample. This feature makes the Model 30 as simple as possible to operate.
Page 12: The Backlight
Section 3 THE BACKLIGHT At times it may be necessary to take measurements with the Model 30 in dark or poorly lit areas. To help in this situation, the Model 30 comes equipped with a backlight which will illuminate the display so that it can be easily read.
Page 13: Section 4 Saving Data
This feature is useful in situations where transcribing data is difficult or not available. NOTE: The Model 30 is NOT equipped with memory and cannot save data. SAVING DATA TO MEMORY 1.
Page 14: Recalling Stored Data
Site ID #4 Site ID #5 ERASING STORED DATA 1. To erase the data that is stored into the Model 30M’s memory, press the MODE key until the Model 30M displays ErAS on the screen. ErAS YSI, Incorporated Model 30/30M...
Page 15 IMPORTANT: Data in all 50 site ID’s will be erased completely and will be lost forever. Do not use the erase function until all recorded data has been transcribed to an archive outside the Model 30M. YSI, Incorporated Model 30/30M...
Page 16 Saving Data Section 4 YSI, Incorporated Model 30/30M...
Page 17: Section 5 Calibration
BEFORE YOU CALIBRATE IMPORTANT: System calibration is rarely required because of the factory calibration of the YSI Model 30. However, from time to time it is wise to check the system calibration and make adjustments when necessary. Before you calibrate the YSI Model 30, complete the procedures discussed in the Preparing the Meter and Making Measurements sections of this manual.
Page 18 NOTE: If the up or down arrow keys are not pressed during the calibration process, the “SAVE” message will not be displayed since the calibration value has not changed. If an error occurs during calibration, see Section 9, Troubleshooting. YSI, Incorporated Model 30/30M...
Page 19: Section 6 Advanced Setup
For that reason, we have made the YSI Model 30 flexible to accommodate these “advanced users.” If, for example, you are using the YSI Model 30 for a process control application which requires that the conductivity readings be compensated to 20 C instead of 25 C -- this is the section to read.
Page 20: Changing The Reference Temperature
See Appendix C for charts of common salt solutions at various temperatures. CHANGING THE REFERENCE TEMPERATURE Follow these steps to modify the reference temperature of the Model 30. 1. Turn the instrument on and wait for it to complete its self test procedure.
Page 21: Changing From Autoranging To Manual Ranging
CHANGING FROM AUTORANGING TO MANUAL RANGING If your application is easier to perform using a manual range which you select, the YSI Model 30 and Model 30M allow you to turn off the default autoranging feature. Follow the instructions for your model as shown below.
Page 22 Model 30M through the four manual ranges and return the instrument to autoranging. NOTE: You may see an error message in some manual ranges if the manual range selected is not adequate for the sample you are measuring. rErr Range error message 24.8 °C YSI, Incorporated Model 30/30M...
Page 23 If this happens, simply press and release the UP ARROW key until a range is selected which is suitable for your sample. Note that the instrument will always default to autoranging when first turned on. The four ranges of the YSI Model 30 are: Range 1 Range 2...
Page 24 Advanced Setup Section 6 YSI, Incorporated Model 30/30M...
Page 25: Section 7 Principles Of Operation
For this reason, the Model 30 software also allows the user to output conductivity data in either raw or temperature compensated form. If "Conductivity"...
Page 26: Discussion Of Measurement Errors
Performing a calibration will eliminate any error which might arise because of cell constant change. YSI cells are calibrated to within one percent of the stated cell constant at a single point. We consider these products to be usefully linear over most instrument ranges. The cell constant can be calibrated to ±0.35% accuracy with YSI conductivity calibrator solutions.
Page 27 Only trial and error in the actual measurement environment can be suggested as an approach to reduce such errors. If the reading does not change as the setup is adjusted, errors due to such factors can be considered too small to see YSI, Incorporated Model 30/30M...
Page 28 Principles of Operation Section 7 YSI, Incorporated Model 30/30M...
Page 29: Section 8 Maintenance
You may need to tap the probe gently to dislodge any air bubbles. 3. Ideally, the cell should be at least ¼ inch away from any other object, including the sides or bottom of the solution container. YSI, Incorporated Model 30/30M...
Page 30 The user should determine the effects of these and make the necessary corrections, either by shielding or by disconnecting those units that cause trouble. 7. Always rinse the cell carefully before transferring it from one solution to another. 8. Never store a dirty or contaminated cell. YSI, Incorporated Model 30/30M...
Page 31: Section 9 Troubleshooting
SECTION 9 TROUBLESHOOTING The following is a list of error codes for the Model 30 and Model 30M. The Model 30M also has additional error codes (see the following page). SYMPTOM POSSIBLE CAUSE ACTION Instrument will not turn on A. Low battery voltage A.
Page 32 A. Meter is in recall mode. A. Press MODE key to return to Normal change Operation Main Display reads “nOnE” A. During recall, no data is currently A. Store data before attempting to recall stored in memory. YSI, Incorporated Model 30/30M...
Page 33: Section 10 Warranty And Repair
YSI Model 30 Salinity, Conductivity and Temperature Meters are warranted for two years from date of purchase by the end user against defects in materials and workmanship. YSI Model 30 probes and cables are warranted for one year from date of purchase by the end user against defects in material and workmanship.
Page 34 Section 10 AUTHORIZED U.S. SERVICE CENTERS North Region YSI Incorporated • Repair Center • 1725 Brannum Lane • Yellow Springs, Ohio • 45387 • Phone: (800) 765-4974 • (937) 767-7241• E-Mail: info@ysi.com South Region C.C. Lynch & Associates • 212 E. 2nd Street • Suite 203 • Pass Christian, Mississippi • 39571 •...
Page 35 Section 10 INTERNATIONAL SERVICE CENTERS YSI Incorporated • Repair Center • 1725 Brannum Lane • Yellow Springs, Ohio • 45387 • Phone: (937) 767-7241• E-Mail: info@ysi.com Lynchford House • Lynchford Lane • Farnborough • Hampshire • GU146LT • Phone: (44-1252) 514711 •...
Page 36 Disposition costs will be the responsibility of the sender. When service is required, either at the user's facility or at YSI, the following steps must be taken to insure the safety of our service personnel.
Page 37 Cleaning Certificate Organization Department Address City State Country Phone Model No. of Device Lot Number Contaminant (if known) Cleaning Agent(s) used Radioactive Decontamination Certified? (Answer only if there has been radioactive exposure) Cleaning Certified By Name Date YSI, Incorporated Model 30/30M...
Page 38 Warranty and Repair Section 10 YSI, Incorporated Model 30/30M...
Page 39: Appendix A Required Notice
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 0004-000-00345-4. YSI, Incorporated Model 30/30M...
Page 40 Warranty and Repair Section 10 YSI, Incorporated Model 30/30M...
Page 41: Appendix B Accessories And Replacement Parts
APPENDIX B ACCESSORIES AND REPLACEMENT PARTS The following parts and accessories are available from YSI or any Franchise Dealer authorized by YSI. YSI Order Number Description Conductivity Calibrator Solution 1,000 µS/cm (1 Quart) 3161 Conductivity Calibrator Solution 10,000 µS/cm (1 Quart) 3163 Conductivity Calibrator Solution 100,000 µS/cm (1 Quart)
Page 42 Accessories and Replacement Parts Appendix B YSI, Incorporated Model 30/30M...
Page 43: Appendix C Temperature Correction Data
APPENDIX C TEMPERATURE CORRECTION This data is for typical applications of the YSI sondes. A. Potassium Chloride (KCl) Concentration: 1 mole/liter Concentration: 1 x 10 mole/liter °C °C mS/cm mS/cm %/°C (to 25°C) %/°C (to 25°C) 65.10 1.67 7.13 1.78 73.89...
Page 44 0.137 2.15 0.151 2.19 37.5 0.158 2.20 0.165 2.22 0.180 2.25 0.195 2.29 * Charts developed by interpolating data from the CRC Handbook of Chemistry and Physics, 42nd ed., p. 2606, The Chemical Rubber Company, Cleveland. YSI, Incorporated Model 30/30M...
Page 45 * Charts developed by interpolating data from the CRC Handbook of Chemistry and Physics, 42nd ed., p. 2606, The Chemical Rubber Company, Cleveland. ** Charts developed by interpolating data from International Critical Tables, Vol. 6, pp. 229-253, McGraw-Hill Book Co., NY. YSI, Incorporated Model 30/30M...
Page 46 2.06 1.860 2.10 0.194 2.07 2.020 2.14 0.210 2.11 2.186 2.18 0.227 2.15 * Charts developed by interpolating data from the CRC Handbook of Chemistry and Physics, 42nd ed., p. 2606, The Chemical Rubber Company, Cleveland. YSI, Incorporated Model 30/30M...
Page 47: Appendix D Conversion Chart
To Convert From Equation Feet Meters Multiply by 0.3048 Meters Feet Multiply by 3.2808399 Degrees Celsius Degrees Fahrenheit 9/5×( C)+32 Degrees Fahrenheit Degrees Celsius 5/9×( F-32) Milligrams per liter (mg/l) Parts per million (ppm) Multiply by 1 YSI, Incorporated Model 30/30M...
Page 48 Conversion Chart Appendix D YSI, Incorporated Model 30/30M...
Page 49: Appendix E Glossary
(m) - The metric prefix indicating 10 NIST - National Institute of Standards and Technology. The US government agency that defines measurement standards in the United States. ohm (Ω) - SI unit of resistance OIML - Organisation Internationale de Métrologie Légale YSI, Incorporated Model 30/30M...
Page 50 - An adjustment made to a measurement to compensate for the difference between the measured and nominal temperatures. temperature coefficient - The change in any particular physical quantity per degree change in temperature. voltage - Electromotive force or potential expressed in volts. YSI, Incorporated Model 30/30M...
Page 51: Appendix F General Specifications
Power: 9 VDC - 6 AA-size Alkaline Batteries (included) Approximately 100 hours operation from each new set of batteries Water Tightness: Meets or exceeds IP65 standards Extensive testing of the YSI Model 30 indicates the following typical performance: MEASUREMENT RANGE...
Page 52 1700/1725 Brannum Lane Yellow Springs, Ohio 45387 USA (800) 765-4974 (937) 767-7241 FAX: (937) 767-9320 Website: http://www.ysi.com E-Mail: info@ysi.com DRW # A30136D May 1998 Item # 030136...
