TDT DTR 3002CU PVR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

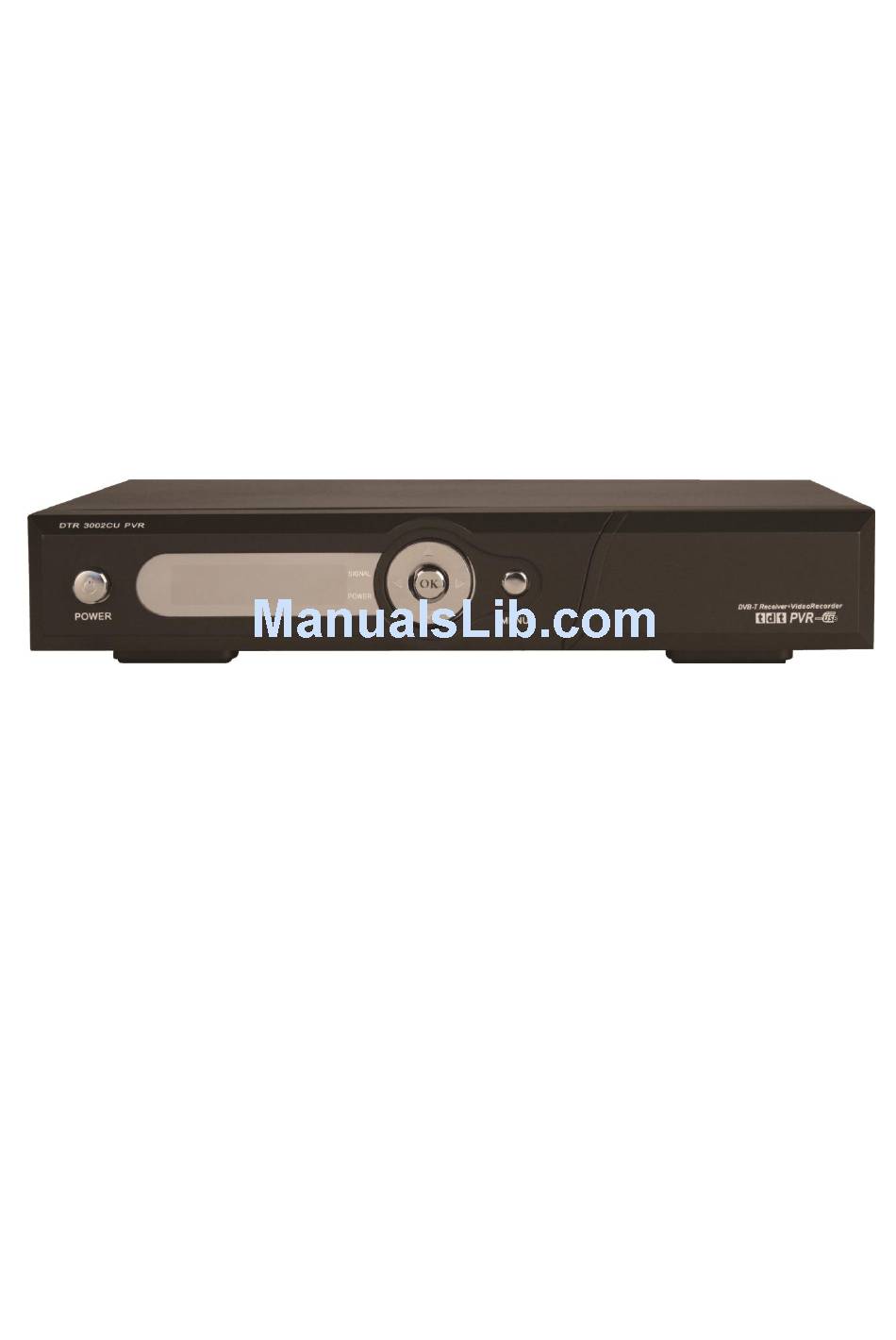

DTR 3002CU PVR

User Manual

December 2009 1 of 54

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTR 3002CU PVR and is the answer not in the manual?

Questions and answers

Summary of Contents for TDT DTR 3002CU PVR

  • Page 1: User Manual

    DTR 3002CU PVR User Manual December 2009 1 of 54...

  • Page 2: Table Of Contents

    Index Installation ....................4 Remote Control .................... 5 Installing the Batteries .................. 6 Setting Language ..................7 Setting Language ..................8 Setting Language ..................8 How to receive the programs? ..............9 5.2.1 Auto Scan ................. 9 5.2.2 Manual Scan ................10 STB Operation .....................
  • Page 3 6.3.1.4 Edit.................. 23 6.3.1.5 Favorites ................25 6.3.1.6 Search ................25 6.3.2 Guide ..................27 6.3.2.1 Book ................27 MULTIMEDIA .................... 30 6.4.1 My Album ................30 6.4.1.1 Thumbnail ................ 31 6.4.1.2 Folder ................31 6.4.1.3 Zoom ................32 6.4.1.4 Rotate ................

  • Page 4: Installation

    1. Installation Rev 1.0 December 2009 4 of 54...

  • Page 5: Remote Control

    2. Remote Control Rev 1.0 December 2009 5 of 54...

  • Page 6: Installing The Batteries

    3. Installing the Batteries Remove the battery cover from the remote control and put 2XAAA size batteries inside the compartment.The diagram inside the battery compartment shows the correct way to install the batteries. Using the Remote Control To use the remote control,point it towards the front of the digital set top box.The remote control has a range of up to 7 metres from the set top box at an angle of up to 60 degrees.

  • Page 7: Setting Language

    4. Setting Language Caution:Make sure to check the voltage specification of the wall outlet is the same rating with the receiver.To prevent the risk of electric shock, do not open the cover or the back of the receiver Note: When connecting the receiver to other equipment,e.g.,TV,VCR and amplifier,make sure to refer to relevant user manual for instruction.Also,make sure you disconnect all the equipments from the mains supply before the connection.

  • Page 8: Setting Language

    5. Setting Language 5.1 Setting Language User can select a preferred language among various languages at Installation page. (1) Press <menu> button to enter Main Menu. (2) Press <Left/Right> button to select SETUP option. (3) Press <Up/Down> button to select Installation option. (4) Press <OK>...

  • Page 9: How To Receive The Programs

    5.2 How to receive the programs? Scan the possible frequency and bandwidth to receive the programs. (1) Press <menu> button to enter Main Menu. (2) Press <Left/Right> button to select SETUP option. (3) Press <Up/Down> button to select Installation option. (4) Press <OK>...

  • Page 10: Manual Scan

    5.2.2 Manual Scan Manual Scan adds the scanning results into database, it doesn’t erase the database. But User has to know the Frequency and Bandwidth for scanning. If user scans the same Frequency and Bandwidth more then once, the programs will be duplicated. Follow the steps (1) ~ (6) at section 1.2..

  • Page 11: Stb Operation

    6. STB Operation Describe how to operate the STB. 6.1 Main Menu Main Menu for operating a lot of functions. (1) Press <menu> button to enter Main Menu. (2) Press <info> button to display the version information of STB. See Figure 7, 8. Figure 7.

  • Page 12: Setup

    6.2 SETUP Set the system settings of STB. See Figure 9. 6.2.1 Installation Set about receiving and playing program settings of STB. See Figure 10. Figure 9. Main Menu, SETUP Figure 10. Installation Page 6.2.1.1 Antenna Setting Set the antenna power on or off at Installation page. (1) Press <Up/Down>...

  • Page 13: Subtitle Language

    (1) Press <Up/Down> button to select Audio Language option. (2) Press <Left/Right> button to set the language. 6.2.1.5 Subtitle Language Set the language for displaying subtitle. (1) Press <Up/Down> button to select Subtitle Language option. (2) Press <Left/Right> button to set the language. 6.2.1.6 Time Zone Set the Time Zone for adjusting the system time.

  • Page 14: Tv Setup

    6.2.2 TV Setup Setup the display mode for TV. See Figure 11. Figure 11. TV Setup Page 6.2.2.1 TV Format Set display format for watching program, such as 4:3LB, 4:3PS, 16:9LB, 16:9FIT. (1) Press <Up/Down> button to select TV Format option. (2) Press <Left/Right>...

  • Page 15: Video Output

    Figure 12. Banner 6.2.2.5 Video Output Set the output method to TV. (1) Press <Up/Down> button to select Video Output option. (2) Press <Left/Right> button to set the method. 6.2.2.6 Video Enhancement Set the Video Enhancement (1) Press <Up/Down> button to select Video Enhancement option. (2) Press <Left/Right>...

  • Page 16: Password

    6.2.3 Password To setup password for channel lock or censorship lock. User can change password here. The default PIN Code is 0000. See Figure 14. Figure 14. Password Page 6.2.3.1 Channel Lock Lock the channel (program) which has been set lock status by password when turning on the Channel Lock.
  • Page 17 Figure 15. Enter Old Password Figure 16. Enter New Password Figure 17. Confirm New Password Figure 18. PIN Code Changed Figure 19. PIN Code Error Rev 1.0 December 2009 17 of 54...

  • Page 18: Advance Timer

    6.2.4 Advance Timer User can set event(s) for watching the program(s) by date, time and frequency. When setting date and start time is up, STB will automatically switch to program user sets. Setting here, the start time and end time depend on current system time. Please check the section 2.3.2.1. for more detail. See Figure 20 Figure 20.

  • Page 19: Data Transfer

    6.2.5 Data Transfer Transfer code (application), database or both to PC or STB. Transfer data by RS232 to PC, or from master STB to slave STB. See Figure 21. (1) Press <RED> button to set Target value. (2) Press <GREEN> button to set Mode value. (3) Press <OK>...

  • Page 20: Set Default

    6.2.6 Set Default Reset STB to factory default. All settings by user has been operated will be reset default, and database will be erased at same time. See Figure 25, 26. Figure 25. Set Default Figure 26. Saving December 2009 20 of 54...

  • Page 21: Tv/Radio

    6.3 TV/RADIO There are two types of program. One is TV and the other is Radio. The operation of the List and Guide at TV and Radio are the same. Here using TV to be example. See Figure 27, 28. Figure 27.

  • Page 22: Skip

    (4) Press <YELLOW > button to confirm the operation and save the result. Program status is changed after operating. And press <Left/Right> button will confirm and save. See Figure 31 ~ 34. Figure 31. Delete - Select Figure 32. Delete - Select All Figure 33.

  • Page 23: Lock

    Figure 35. Skip Figure 36. Skip - Select 6.3.1.3 Lock Lock will confirm password before watching this program when Channel Lock is turned on. Please check the section 2.2.3.1. for more detail. (1) Press <Left/Right> button to select Lock option. (2) Press <Up/Down>...
  • Page 24 (3) Press <RED> button to display program info page. (4) Press <OK> button to edit program name. (5) Press <Up/Down/Left/Right/OK> button to select the character. (6) Press <RED>/<OK> button on “Save” button to return program info page. (7) Press <RED> button to save the editing and return to List. If press <exit>...

  • Page 25: Favorites

    Figure 43. Edit - Done Figure 44. Edit - Save 6.3.1.5 Favorites User can quickly channel up/down the favorite programs by favorite filter. There are 8 kinds of favorite for user setting. They are News, Sprot, Movie, Music, Shopping, Travel, Boy, and Girl. (1) Press <Left/Right>...
  • Page 26 See Figure 47 ~ 50. Figure 47. Search Figure 48. Search character “U” Figure 49. Search Result Figure 50. Search Next Rev 1.0 December 2009 26 of 54...

  • Page 27: Guide

    6.3.2 Guide Guide is also naming EPG (Electronic Program Guide). Display program info and events. TV and Radio Guide are the same. See Figure 51 ~ 53. (1) Press <Up/Down> button to select program. (2) Press <Left/Right> button to change date. (3) Press <GREEN/YELLOW>...
  • Page 28 (6) Press <Up/Down> button to focus item user wants to modify. (7) Press <Left/Right/0~9> button to change the data. (8) Press <YELLOW> button to save. If conflict with itself or other event, it displays conflict message. If the date and time in the event are up, STB will automatically switch to setting program in event. Press any key except <Vol-/Vol+/mute>...
  • Page 29 Figure 58. Book - Conflict Figure 59. Abort Rev 1.0 December 2009 29 of 54...

  • Page 30: Multimedia

    6.4 MULTIMEDIA Multimedia must be used with build-in card reader or USB port. Enter My Album, My Music, My Move and My Record, it displays “Initializing” when just inserting device or “Device is not ready!” without device. See Figure 60 ~ 61. Figure 60.

  • Page 31: Thumbnail

    6.4.1.1 Thumbnail If there is no photo in device root folder, it will start at Thumbnail mode. Or it will start at Folder mode. It displays JPG EXIF info (Width, Height and Date) of selected photo. See Figure 63. Figure 63. Thumbnail mode Press <Up/Down/Left/Right>...

  • Page 32: Zoom

    Menu. 6.4.1.3 Zoom View and zoom the photo at 100% from Thumbnail or Folder mode. See Figure 65, 66. Figure 65. Zoom - Decoding Figure 66. Zoom - Display Press <GREEN> button to browse folders and files.  Press <YELLOW> button to zoom in the photo. ...

  • Page 33: Rotate

    Figure 69. Zoom - 200%, moving Zoom 6.4.1.4 Rotate View and rotate/flip the photo from Thumbnail mode. See Figure 70, 71. Figure 70. Edit - Decoding Figure 71. Edit - Display Press <RED> button, the photo will be rotated left. ...

  • Page 34: Slide Show

    Figure 72. Edit - Rotate left Figure 73. Edit - Rotate right Figure 74. Edit - Flip horizontal Figure 75. Edit - Flip vertical Figure 76. Thumbnail - After editing 6.4.1.5 Slide Show Slide all photos in current folder from Thumbnail mode. Press <RED>...
  • Page 35 Press <BLUE> button to set the time interval between current and next photo.  Press <Up/Down> button to next or previous photo right away.  See Figure 77 ~ 83. Figure 77. Slide Show - Play Figure 78. Slide Show - Pause Figure 79.
  • Page 36 Figure 83. Slide Show - Slow Rev 1.0 December 2009 36 of 54...

  • Page 37: My Music

    6.4.2 My Music My Music can play MP3. Remove device when playing, it will display “Device is not ready!” message, and return to Main Menu. See Figure 84. Figure 84. Remove device when playing Press <Up/Down/Left/Right/OK> button to browse folders and files (MP3). ...
  • Page 38 Figure 87. Pause Figure 88. Repeating Figure 89. Random Figure 90. Play and Volume Figure 91. Mute with volume Figure 92. Mute Rev 1.0 December 2009 38 of 54...

  • Page 39: My Movie

    6.4.3 My Movie My Movie can play the movie. Remove device when playing, it will display “Device is removed !” Message. (1) Press <Up/Down/Left/Right/OK> button to browse folders and files . (2) Press <OK> button to play the movie. 6.4.4 My Recorder My record can play the recorded programs and set functions.

  • Page 40: Recording Preference

    6.4.4.3 Recording Preference Recording Preference can set parameters of time shift and recording .See Figure 15 . Figure 15 Recording Preference 6.4.4.3.1 Time Shift Size Show space size of time shift. Parameters are calculated based upon the remaining space of recording device, not by man-made.setting.

  • Page 41: Gomoku

    6.5.1 Gomoku User can play with computer or someone else. See Figure 94, 95. Press <Up/Down/Left/Right> button to set play mode and difficult.  Press <OK> button to start play Gomoku.  Press <Up/Down/Left/Right> button to select the position.  Press <OK>...

  • Page 42: Calculator

    Figure 97. Change year Figure 98. Change month 6.5.3 Calculator Calculator can used for mathematical calculations. Press <Up/Down/Left/Right> button to move the focus to the symbol you want.  Press <1~9> button to select 1~9 number.  Press <INFO> button to select. ...

  • Page 43: Normal Play

    6.6 Normal Play Normal Play means STB under watching TV or playing Radio. See Figure 101, 102. Figure 101. Normal Play - TV Figure 102. Normal Play - Radio 6.6.1 Information Display program’s info or more detail info. Banner displays the program No., favorite setting, current time, program name, current and next event, lock, scramble, subtitle and teletext info.

  • Page 44: Switch Program

    6.6.2 Switch Program User can channel up/down to switch program or input program number. Press <Ch Up/Ch Down> button to next or previous program.  Press <0~9/OK> button to switch program by inputting program number.  If the input program number doesn’t exist, STB will ignore the input. See Figure 105. Figure 105.

  • Page 45: Volume

    6.6.4 Volume User can adjust the volume or mute. If adjust the volume with mute, mute will be canceled. See Figure 107, 108. Press <Vol-/Vol+> button to adjust the volume.  Press <mute> button to mute.  Figure 107. Mute Figure 108.

  • Page 46: Audio

    6.6.6 Audio Switch Main or SAP sound channel. And switch output channel with LR or L or R. If setting audio language at Main Menu  Installation  Audio Language, the audio channel default language will be chosen by setting. See Figure 110. Press <audio>...

  • Page 47: Teletext

    6.6.8 Teletext Display teletext on screen, the style of teletext may be different by content provider. See Figure 113, 114. Press <text> button to display the teletext setting page.  Press <Up/Down> button to select the teletext language, if the program has teletext. ...

  • Page 48: Subtitle

    6.6.9 Subtitle Display the subtitle on screen, the style of subtitle may be different by content provider. See Figure 115, 116. Press <subtitle> button to display subtitle setting page.  Press <Up/Down> button to select subtitle language, if the program has subtitle. ...

  • Page 49: Guide

    6.6.11 Guide About Guide detail, please check the section 2.3.2. for more detail. Press <RED> button at normal play.  6.6.12 List About List detail, please check the section 2.3.1. for more detail. Press <GREEN> button at normal play.  6.6.13 Browse Browse digest of programs on screen.

  • Page 50: No Service

    Figure 120. No Signal 6.6.15.2 No Service Program doesn’t have any content to play. See Figure 121. Figure 121. No Service 6.6.15.3 Service Scrambled Program is scrambled for payment, contact the content provider to know how to descramble it. See Figure 122.

  • Page 51: Antenna Overload

    Figure 122. Service Scrambled 6.6.15.4 Antenna Overload The power of antenna is overload. See Figure 123. Figure 123. Antenna Overload 6.6.15.5 HDTV not support This STB doesn’t support HDTV. If the program content is HDTV, STB will display this message. See Figure 124.

  • Page 52: Locked

    Figure 124. HDTV Not Suppert 6.6.15.6 Locked Program is locked by setting lock (please check the section 2.3.1.3.) and turning on password setting (please check the section 2.2.3.1.). User must input correct password to watch program. See Figure 125, 126. Figure 125.

  • Page 53: Troubleshooting

    7. Troubleshooting If you experience problems with this receiver or its installation,in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible cause What to do Standby light not 12V DC lead unplugged Check the lead Aerial is disconnected Aerial is No signal found...

  • Page 54: December 2009 2 Of

    8. Specifications Item Specification Frequency Range Tuner VHF:174MHz to 230MHz UHF:470MHz to 862MHz Input Impedance 75 Ohms unbalanced -78～-25 dbm Signal Input Level Bandwidth 7/8 Mhz Demodulator COFDM OFDM Modulation 2K,8K FFT,SFN and MFN Demodulation Packet Carries 2K/8K Guard Interval 1/4,1/8,1/16,1/32 RF IN IEC 169-2 femate connector...
