Summary of Contents for Yiwu Tianying Optical Instrument SHD-3

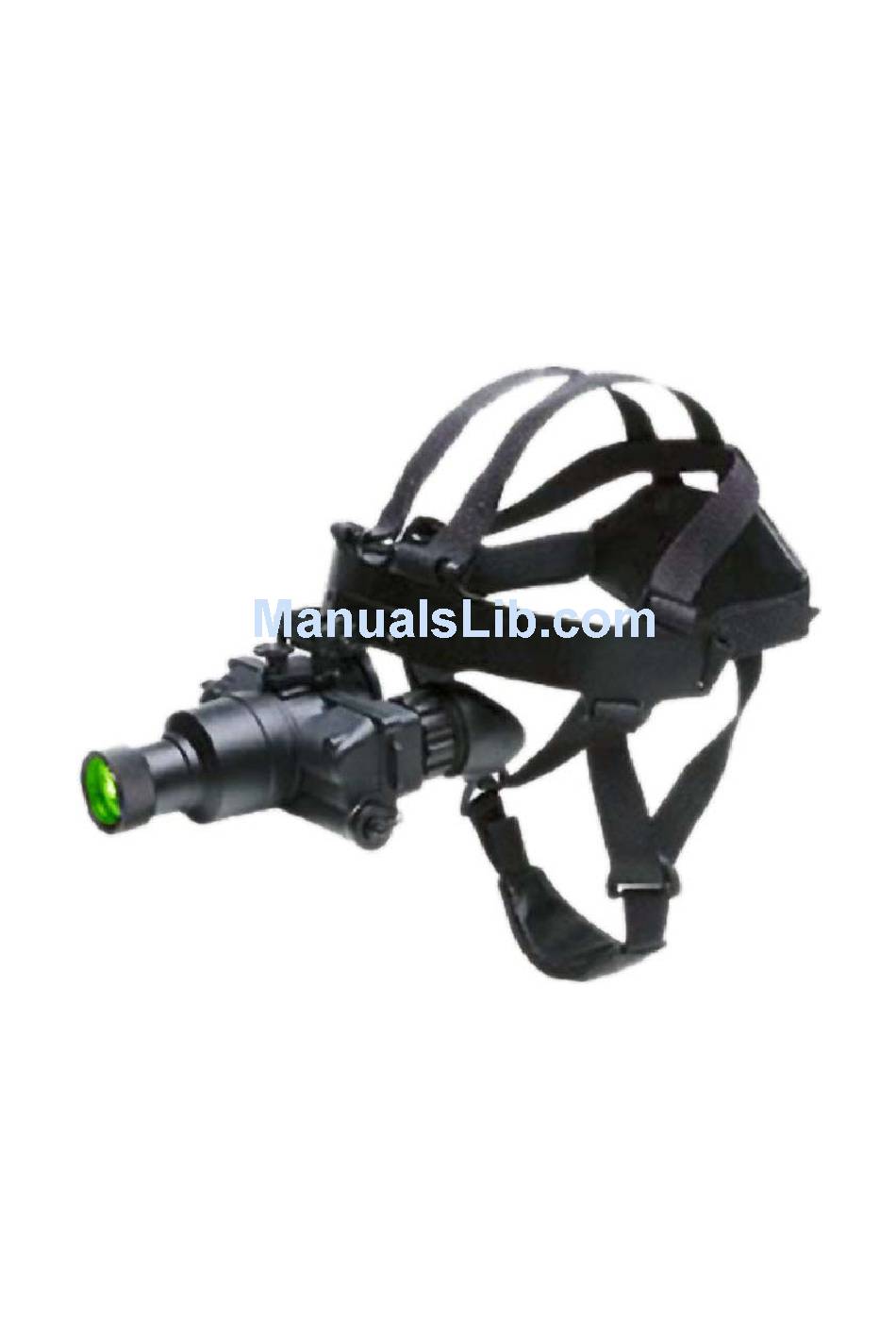

- Page 1 Mil-Spec Night Vision Goggles Gen 3, ™ ™ SHD-3 & XD-4 SKU# TY-N16 Directions to use...
- Page 2 Mil-Spec Night Vision Goggles Gen 3, ™ ™ SHD-3 & XD-4 SKU# TY-N16 1. On-Off, I/R Switch 2. Mounting socket 3. Eyepiece adjustments 4. Eyepieces 5. Battery house cover 6. Objective lens cover Objective lens focus...
- Page 3 OVERVIEW The TY-N16 type night vision is observational optical-electronic Binoculars /goggles, intended for examining objects and orientation at nighttime or dark conditions. The unit utilizes a HyperGen technology image intensifier tube, which amplifies available moonlight, starlight or man-made light. The device was designed to be easy to use, and provide many years of operation.
-
Page 4: General Information
1 GENERAL INFORMATION 1.1 The night vision goggles Omega TY-N16 with built on HyperGen technology image intensifier, infrared illuminator (IR) and bright light sources protection, are intended for observation, recognition at areas, × vehicles drive (with objective lens 1 ) at dark time, performance various operations in dark rooms, cavities e.t.c. -
Page 5: Technical Data
2 TECHNICAL DATA 2.1 Parameters at delivery must be in accordance with ones, listed in table Table 1 Designation parameter Signification parameter 1. Identification range of body figure, m, no less 2. Image tube 18mm HyperGen 3.Resolution, lp/mm 55-64 4.Magnification,x 5.Angular field of view, 40±2 degree... - Page 6 2.2 Ambient conditions: -sinusoidal vibration: Frequency range………………………20~30 Hz -impact resistance………………………50m/s (5g); -operation temperature, ℃……………-40~+40; -relative humidity at 25℃…………… 98%; -watertigtnes……………………………… 0.5m (30min.). 2.3 TY-N16 outline dimensions and mass Outline dimensions and mass of TY-N16 (with supply elements) depended on modification must be in accordance with values, listed in table 2. Designation dimensions Signification parameter Length, mm, no more...
- Page 7 3.2 The HyperGen technology image intensifier tube main parameters Image Intensifier Type HyperGen Photocathode operating diameter，mm Photocathode type S-25 Photocathode sensitivity μA/ lm min Radiant sensitivity at λ =850 nm, mA/W, min Resolution ，lp/mm min Luminous gain at 100µlx min 25000 EBI, µlx, max 0．25...
- Page 8 4 USE DIRECTIONS 4.1 Preparation to operation WARNING! Switch to “ON” at light must be Only with cup placed on the objective. .1 Preparation for use is performed abnormal light level. As supply source is recommended element of Duracell (USA). Turn switch to “OFF”...
- Page 9 Install head harness coupler to unopened position, put the head harness to the bag, and close the bag. 4.2 Viewing Viewing is performed at low light level. Remove objective lens cap and put it to the bag, fixing by the “adhesive”.
-
Page 10: Manufacturer Warranty
4.3.3 It is necessary to protect TY-N16 of shocks, moisture, and sudden temperature change. 4.3.4 After TY-N16 use in moisture conditions, it is necessary switch on, dry and wipe. 4.3.5For optical surfaces cleaning use napkin or absorbent cotton moistened in water. 5 MANUFACTURER WARRANTY The manufacturer warrants the TY-N16 quality to demands of the specifications if the users do not violate use and storage directions. - Page 11 Yiwu Tianying Optical Instrument Co., Ltd Company Address: Room 402, 1 Unit, 26 building, Fancun, Yiwu City, Zhejiang, China Post Code: 322000 Telephones No.:0086-579-85389306 Fax No.:0086-579-85389305 Mobile Phone: 0086-13515798545 Email: info@nightvisioncn.com / nightvision@live.cn web: http://www.nightvisioncn.com...
