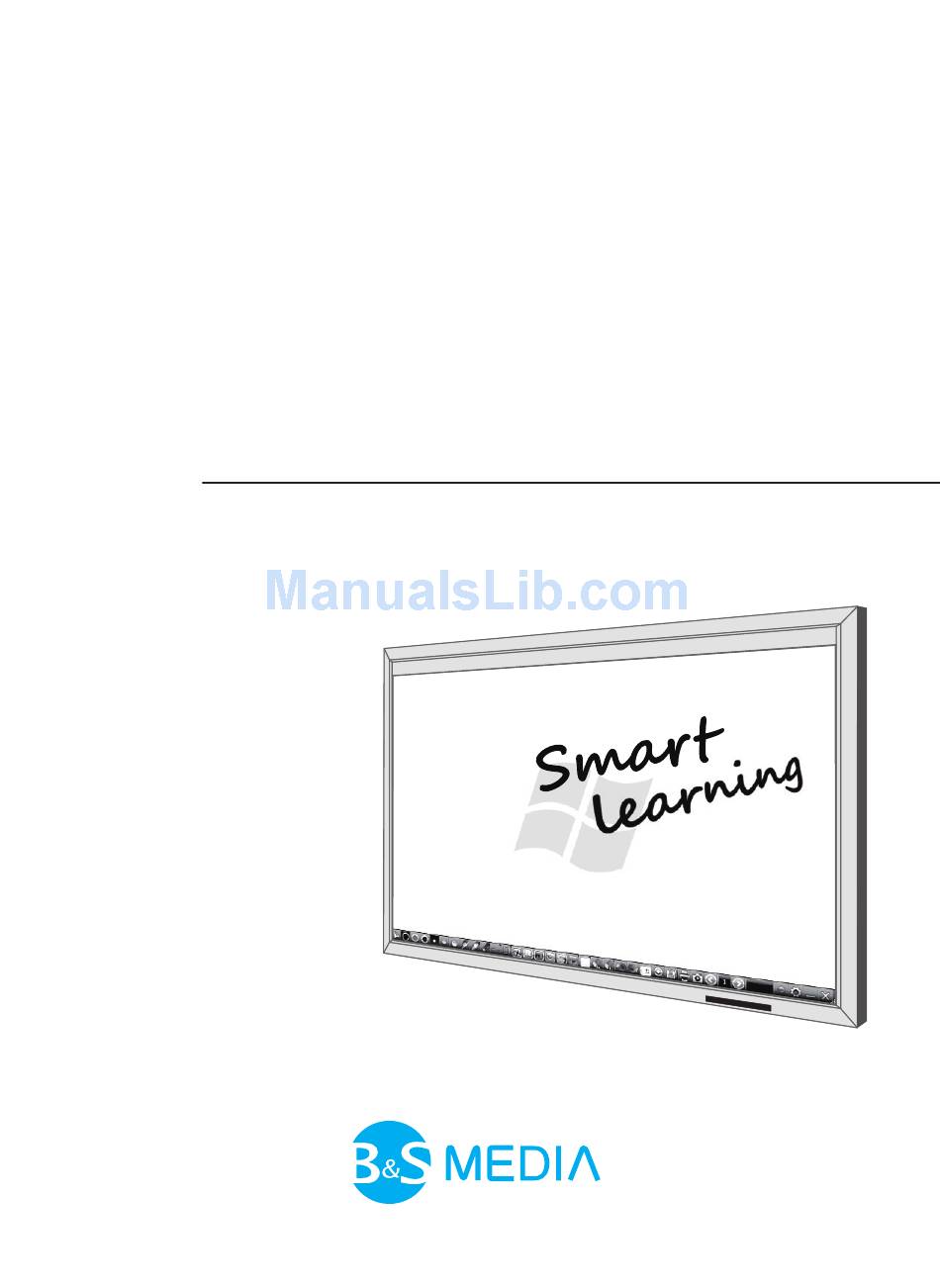

LED Interactive Display
e-VISION 70/80 LED
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-VISION 80 LED and is the answer not in the manual?

Questions and answers

Summary of Contents for B&S e-VISION 80 LED

  • Page 1 LED Interactive Display e-VISION 70/80 LED User’s Manual...
  • Page 2 LED Interactive Display e-VISION 70/80 LED Copyright ( ) 2012 B&S MEDIA Co.,Ltd. All rights reserved. #703 JnK Digital Tower, 111, Digitalro-26gil, Guro-gu, Seoul, Korea B&S MEDIA Co., Ltd. ● Technical Support Center : +82-2-588-3323 ● Fax : +82-2-588-3659 www.bnsmedia.com ●...

  • Page 3: Table Of Contents

    Contents 1. Before Use 1.1 Safety Instructions 1.2 Features 1.3 Package Components 1.4 Shape of Product 1.5 Name of Each Component 1.6 Connection 1.7 Remote Controller 2. How to Use 2.1 How to Use Product 2.2 Picture Adjustment 2.3 Sound Adjustment 2.4 Time / PC Screen / Initialization 3.

  • Page 4: Before Use

    LED Interactive Display 1. Before Use 1.1 Safety Instructions Do not use a damaged or loose plug. - This may cause electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. - This may cause electric shock or fire.
  • Page 5 e-VISION 70/80 LED USER’S MANUAL Do not drop this product when moving it. - This may cause damage to the product or the person carrying it. Keep any flammable objects such as candles, insecticides or cigarettes away from the product. - Otherwise, this may cause fire.
  • Page 6 LED Interactive Display Keep the product away from places exposed to oil, smoke or Moisture do not install inside a vehicle. - This may cause a malfunction, electric shock or fire. - In particular, avoid operating this product near water or outdoors Where this product could be exposed to snow or rain.

  • Page 7: Important Safety Instructions

    e-VISION 70/80 LED USER’S MANUAL Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.

  • Page 8: Features

    LED Interactive Display 1.2 Features Enjoy like in a Theater with High-definition Video & stereophonic sound! 1. Adopted Cutting edge LED-LCD Display Panel Enjoy video by easy connection with PC! 2. Recognizes automatically if connecting with PC as supporting VESA Plug & Play 3.

  • Page 9: Package Components

    e-VISION 70/80 LED USER’S MANUAL 1.3 Package Components ※ The pictures of Package Components are for user’s comprehension and can be different from real product. LED Body Manual Cable Others User’s Manual Power Cable Remote Controller, Battery www.bnsmedia.com...

  • Page 10: Shape Of Product

    LED Interactive Display 1.4 Shape of Product ※ Shape of Product can be different from each inch. www.bnsmedia.com...

  • Page 11: Name Of Each Component

    e-VISION 70/80 LED USER’S MANUAL 1.5 Name of Each Component A. LED / IR B. OSD KEY : POWER / MENU / SOURCE / VOL+ / VOL- / CH+ / CH- 1. AC Power Input Port 9. Component Input Port 2.

  • Page 12: Connection

    LED Interactive Display 1.6 Connection Video Connection Video(Composite) / S-Video Connection Output(R) TV Output Antenna Input (L)Sound Video Output S-Video Input S-Video Input AV1 (Video/Audio Input) Connection 1. Connection Guide 1.1 Video (Composite) Cable: In case of Audio/Video (composite) Cable, be careful of color.
  • Page 13 e-VISION 70/80 LED USER’S MANUAL Connecting Cable Receiver or satellite Receiver Video(Composite) / S-Video connection Video (Composite) Output(R) Antenna Input S-Video (L)Sound Video Output S-Video Cable Connection 1. Connecting Antenna Cable to Cable Box/Satellite Receiver: Connect a antenna cable of 75-Ohm to input port of cable box/satellite receiver. 2.

  • Page 14: Dvd Connection

    LED Interactive Display Watch Cable /Satellite Broadcasting 1. Turn on this product. Select connected Input Source by pressing Source button on remote controller. 2. Turn on Cable Box/Satellite Receiver. Select Channel you want to watch. DVD Connection Component HDMI Sound Input HDMI Output Component I n put Port (L)Sound...
  • Page 15 e-VISION 70/80 LED USER’S MANUAL Connection 1. Connection Guide 1.1 How to Use Component Cable (Green, Blue and Red) • Video Connection: Connect Component Input Port of to Component Output of DVD Player/ Video Machine DVD by this product Component Cable. Input / Output ports are GREEN, BLUE and RED.

  • Page 16: Remote Controller

    LED Interactive Display 1.7 Remote Controller Power Power On/Off Mute It does not sound temporarily. Select the input source SOURCE connected with other products. DISPLAY Direction Used when move and adjust on Menu Window. Button Menu Shows Menu Window. SLEEP Sets up time to be turned off.

  • Page 17: How To Use

    e-VISION 70/80 LED USER’S MANUAL 2. How to Use 2.1 How to Use Product Press Menu Button. ◀.▶ Select screen to control with Direction Button( ) and Select Direction ◀.▶ B utton ( ) item to adjust Exit by pressing Menu Button Video Settings Menu Audio Settings Menu Time/Caption/PVR/PC Menu...

  • Page 18: Picture Adjustment

    LED Interactive Display 2.2 Picture Adjustment How to Control Picture Mode Select picture mode configured automatically or select picture status you want with picture mode button 1. Press Menu Button ◀.▶ 2. Select Picture Control Mode and Item with Direction Button ( It changes as below whenever pressing.
  • Page 19 e-VISION 70/80 LED USER’S MANUAL How to Control Picture Directly This is function for user to control picture directly. ▶ 【 】 ▲.▼ 1. Press Direction Button ( ) after selecting Brightness with Direction Button ( ◀.▶ 2. Press OK button after adjusting with Direction Button ( Contrast: Adjusts difference between brightness and darkness of object and background.
  • Page 20 LED Interactive Display 2.2 Picture Adjustment (Advanced Video) How to adjust Background Tint It is possible to adjusts color temperature in order of Cool Normal Warm. ◀.▶ 1. Press Direction Button ( ) and select Background Tint you want after 【...
  • Page 21 e-VISION 70/80 LED USER’S MANUAL 2.2 Picture Adjustment How to Screen Size You can select screen size configured automatically in order of 【 】 【 】 【 】 【 】 Normal Wide Zoom Cinema 1. Press the MENU button to display the menu. 2.

  • Page 22: Sound Adjustment

    LED Interactive Display 2.3 Sound Adjustment How to control Sound 【 】 【 】 【 】 Sound Mode is automatically adjusted among Standard News Music 【 】 【 】 Film Custom 1. Select 【Sound Mode】 by direction button (▲.▼) and press direction button (◀.▶). 2.
  • Page 23 e-VISION 70/80 LED USER’S MANUAL How to adjust audio mode directly by user You can select screen size configured automatically in order of 【 】 【 】 【 】 【 】 Normal Wide Zoom Cinema 1. Select 【Bass】 by direction button (▲.▼) 2.

  • Page 24: Time / Pc Screen / Initialization

    LED Interactive Display 2.4 Time / PC Screen / Initialization How to control Sound 1. Select Time by direction button and press direction button(▶) 2. Sleep Timer: Select Off / 5 Min / 10 Min / 15 Min / 30 Min / 45 Min / 60 Min / 90 Min / 120 Min / 180 Min / 240 Min / Off by direction button (◀.▶) How to adjust menu settings 1.
  • Page 25 e-VISION 70/80 LED USER’S MANUAL How to adjust PC Screen Set-up 1. Select PC Settings with Direction Button and press Direction Button 2. Select 【H-Position】 by direction button (▲.▼) and adjust horizontal position by direction button(◀.▶). Adjust 【V-Position】 【Clock】 【Phase】 by same way of 【H-Position】. H-Position: Screen moves horizontally.
  • Page 26 LED Interactive Display PC support resolution H-freq V-freq. Pixel Clock Resolution (MHz) (KHz) (Hz) 800 x 600 37.354 59.861 38.25 1024 x 768 47.861 59.92 63.5 1280 x 720 44.772 59.855 74.5 1360 x 768 47.720 59.799 84.75 1280 x 1024 63.668 59.895 109.0...

  • Page 27: Additional Instructions

    e-VISION 70/80 LED USER’S MANUAL 3. Additional Instructions 3.1 Fault Diagnosis before A/S If this product looks faulty, check out the list below before call Customer Service Center. If the problem is not in the list, do not try to solve it by yourself. Call Customer Service Center.
  • Page 28 LED Interactive Display Symptoms which could happen Symptom Problem How to Solve Input Cable is discon- Nothing is displayed nected or wrong Adjust Input Source again. on the screen. Input Source is selected. Audio Volume is adjusted at ‘0’. Screen shows pic- Turn up the Volume.

  • Page 29: Customer Support & A/S

    e-VISION 70/80 LED USER’S MANUAL 3.2 Customer Support & A/S Before A/S A. When this product is not working, refer to the diagnosis page on the manual. B. If problem could not be solved, contact us by phone or online. B&S MEDIA CO., Ltd.
  • Page 30 HEADQUARTERS #703 JnK Digital Tower, 111, Digitalro-26gil, Guro-gu, Seoul, Korea TEL: +82.2.588.3323 / FAX: +82.2.588.3659 FACTORY 351-4 Hodang-li, Yipjang-myun, Seobuk-gu, Cheonan-shi, Chungnam, Korea TEL: +82.41.584.8378 / FAX: +82.41.584.8379 CHINA BRANCH 4F, Building A, YaoLu Industrial Park, TieGangShuiKu Road, BaoAn District, ShenZhen, GuangDong, China TEL: +86.0755.2794.8636 / FAX: +86.0755.2794.8636 (612) www.bnsmedia.com...
