Summary of Contents for Warner TCS-605-1
- Page 1 TCS-605-1 Pivot Point Tension Sensor for Warner Electric Tension Control System Installation Instructions P-0362-WE 819-0551 An Altra Industrial Motion Company...

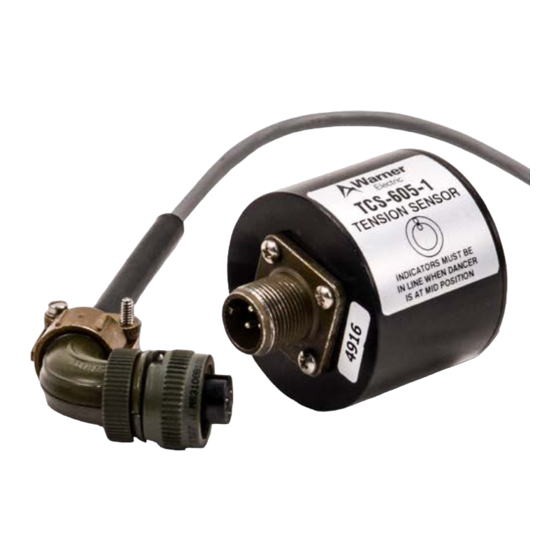

- Page 2 TCS-605-1 Pivot Point Tension Sensor The TCS-605-1 Tension Sensor is used with the Warner Tension Control System to provide smooth control of unwind stands operating at any speed. The sensor is especially convenient in applications having small dancer arms and is complete with versatile mounting brackets.
- Page 3 14 GAUGE (.0747) STEEL 3 Holes 3/16 Dia. on 1.50 B.C. Equally Replaceable Components Spaced Sensor only TCS-605-1 7330-101-002 Cable assembly only 7330-101-001 1. Using a 1/4” drill, drill a hole in the center of the 5. Connect the sensor shaft to the pin with the flexible dancer pivot shaft 1/2”...
- Page 4 Warner Electric LLC be liable for consequential, indirect, or incidental damages of any kind incurred by reason of the manufacture, sale or use of any defective product. Warner Electric LLC neither assumes nor authorizes any other person to give any other warranty or to assume any other obligation or liability on its behalf.
