Summary of Contents for annke X4

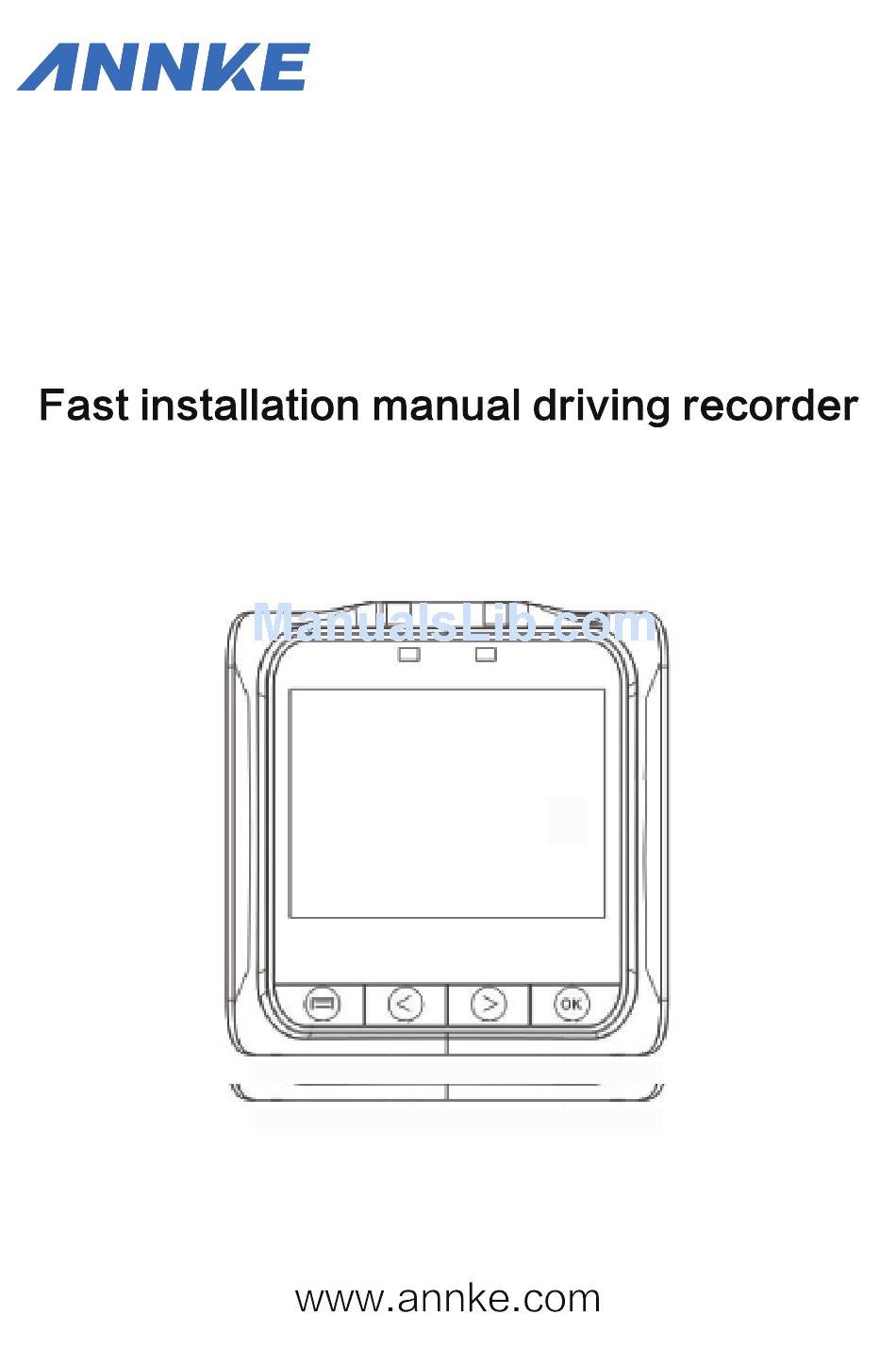

- Page 1 Fast installation manual driving recorder Fast installation manual driving recorder www.annke.com www.annke.com...
- Page 2 ◆Preface Thank you for purchasing car dash board camera. Please read this manual carefully before using, and keep it for future use. ◆Warning 1, Please use the 4GB, class 6 micro SD card or above version. 2, Please format the card if the card is the first using in the certain car dash board camera.
- Page 3 1. Low illumination high-definition video （1080P@30fps、 720P/30FPS） 2.170 degree wide angle lens 3. 2.31 inch LTPS 4. G-sensor 5. GPS logger(optional) 6. Recording when cars start on 7. Loop recording 8. AV output 9. Support micro SD card up to 32GB 10.
- Page 4 ◆Front view 1.Screen 2. Menu 3. UP 4. Down 5.OK lens 13. Speaker ◆side view...
- Page 5 6.power 7.TF 8.USB 9.AV-OUT 10.Reset ◆Said view 11.GPS ◆Operation On/Off A, Automatically When the car is starting, the camera is on. When the car is off, the camera is off. B, Handle Press button, Power for 2s.
- Page 6 When there is no card Press the Button, Power for 2s.
- Page 7 Notice：When the voltage is too low, the camera will be off after saving the files. Shooting Video Handle 1, Press the button, Power for 2s...
- Page 8 2, Press the button, OK Automatically 1, Start the car 2, The camera will shoot video after 2s...
- Page 9 Notice: When it is shooting video, the sign, on up-left flashes. Pause Press the button, OK Digital Zoom Press the button Up to zoom+, press the button Down to Zoom- On/Off Audio...
- Page 10 During shooting, press the button Down to Zoom- bottom, press the button, Down again to on/off the Audio On/Off LED lamp During shooting, press the button, Power to turn on/off LED ◆Video reset, press model button for 2S on video states . Image resolution：1080P/720P/WVGA/VGA Loop video: OFF /2 min/3 min /5 min WDR：ON/OFF...
- Page 11 G-sensor set: OFF/High/medium/low ◆system setup Date/time: 2012/01/01 00:11 Year/month/day Plate number：AAAAAA Auto power off: OFF / 3 min/5 min /10 min Beep sound: ON/OFF Language: English/ 繁 体 中 文 / 简 体 中 文 /langue française/ português/한국의/ italiano /русский/ Deutsch/日本語 TV mode: PAL/NTSC Frequency：50HZ/60HZ Screensavers: Close / 1min/3 min / 5 min...
- Page 12 The default Settings: Yes/No Version: * * * * * * ◆Shoot Image 1, Press the button, Mode, switch to video standby 2, Press the button, Ok to shoot image Digital Zoom Press the button Up to zoom+, press the button Down to Zoom- On/Off LED lamp...
- Page 13 During shooting, press the button, Power to turn on/off LED ◆ Image setup Image Reset: 12M/5M/3M Capture Mode: Single/2S/5S/10S Sequence:Off/On Quality:Fine/Normal/Economy Sharpness:Strong/Normal/Soft Color:Normal/Black& White/Sepia Quick Review:Off/2S/5S Date Stamp:Off/Date/Date/Time ◆ Replay 1, Press the button, Mode, switch to replay standby...
- Page 14 2, Press the button, Up or Down to choose the file or images 3, Press the button, Ok two times to replay Delete 1, Press the button, Mode, switch to replay standby...
- Page 15 2, Press the button, Up or Down to choose the file or images 3, Press the button, Ok 4, Press the button, Menu 5, Press the button, Down 6, Press the button, Ok...
- Page 16 Lock and Unlock Lock Current 1, Press the button, Up or Down to choose the lock file 2, Press the button, Ok one time...
- Page 17 3, Press the button Menu 4, Press the button, Up or Down to choose Unlock Current 5, Press the button, OK If you want to lock all or unlock all, please choose in this menu too. Slide Show 1, Press the button, Up or Down to choose any file 2, Press the button, Ok one time...
- Page 18 3, Press the button Menu 4, Press the button, Down to choose Slide Show 5, Press the button, Ok for reset the times...
- Page 19 ◆HDMI 1,Connect the Camera and TV with HDMI Cable 2, Turn on camera 3, Press the button, Menu on camera...
- Page 20 4, Other operations are same that as you do on camera ◆Connect with PC Turn on camera, you will get the following Press the button, Up or Down to choose Press the button, Ok to confirm, you will get following.
- Page 21 ◆GPS Logger (option) Connect the unit to vehicle GPS mould to carry on location, the lane track and video could playback...
- Page 22 synchronously via GPS player DVD. ◆Specifications NOVATEK Video resolution 1080P/720P/WVGA/VGA Photo resolution 12M/10M/8M/5M Screen 2.31 inch Lens 170 ° A + HD wide Angle lens Video： MOV File format Photo：JPG Motion detecting Support Support Support Up to 32ＧＢ micro SD English/繁体中文/简体中文/langue portugu ê...
