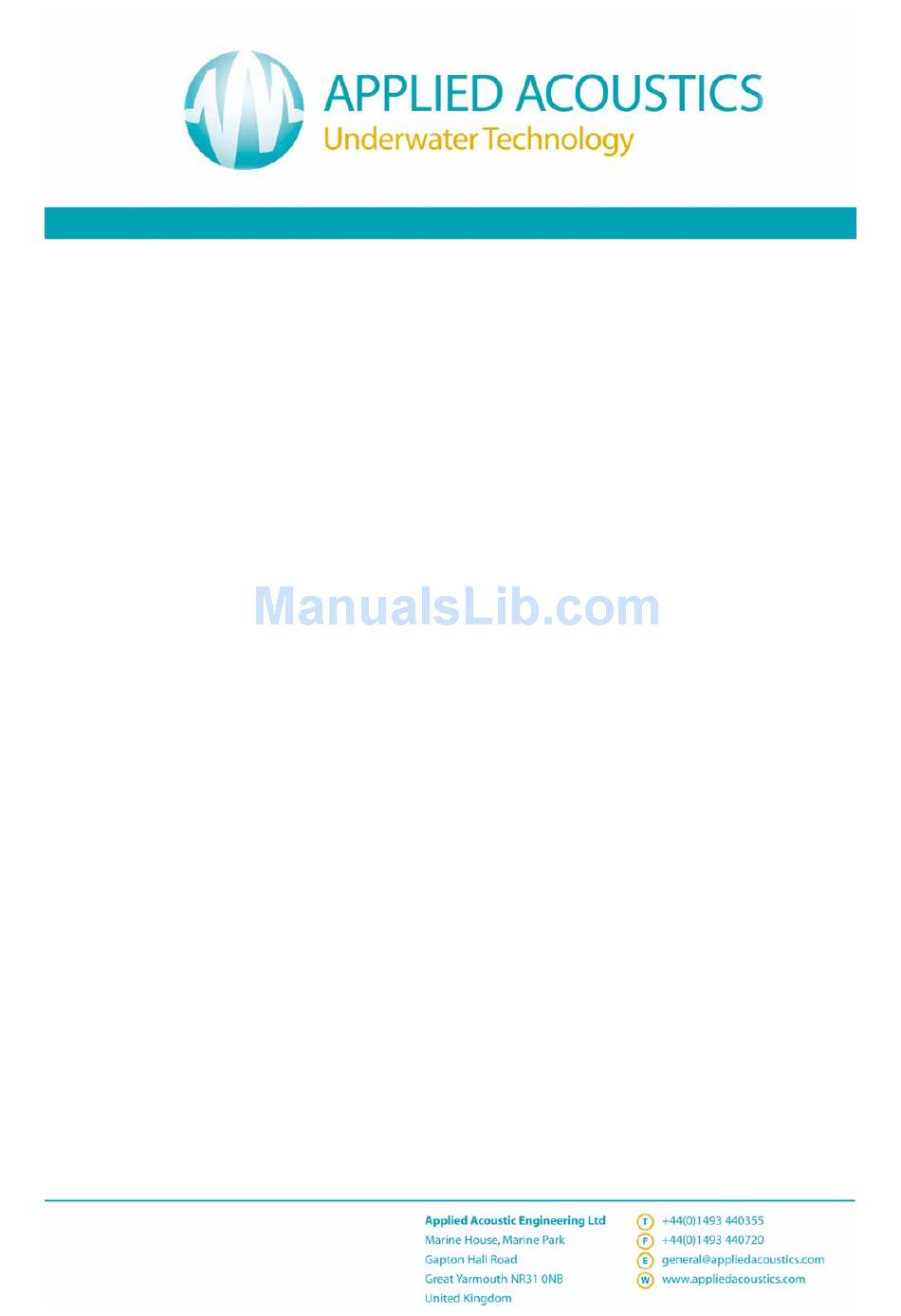

- Page 1 PAM Portable Operation Manual...
- Page 2 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ THIS PAGE IS INTENTIONALLY LEFT BLANK __________________________________________________________________________________________________________ Page 2 of 74...
-
Page 3: Revision History
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Revision History Change Issue Reason for change Date Draft Issue 15/02/12 First Release 09/03/12 Final Release 15/11/12 Omitted 3510 unit weight and dimensions added. 1332 08/05/13 Other minor amendments. Addition of 529 Release Commands Addition of Compatt Commands 1454 Addition of LF Compatibility... -
Page 4: Table Of Contents
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Table of Contents REVISION HISTORY ............................3 1. INTRODUCTION TO THE 3510 PAM PORTABLE ..................7 ..........................7 EATURES OMPATIBILITY ......................7 PTIONAL EATURES OMPATIBILITY 2. SYSTEM DESCRIPTION ..........................8 PAM 3510 C .......................... - Page 5 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 5. HANDLING ..............................55 6. END OF LIFE RECYCLING / DISPOSAL....................55 7. SPARES ..............................55 8. TROUBLESHOOTING ..........................56 9. EXTERNAL I/O CONNECTOR PIN OUTS ....................58 ...
- Page 6 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Thank you for choosing Applied Acoustic Engineering as one of your subsea equipment suppliers. We hope you experience many years of reliable operational use from our products. If you do encounter any technical issues with any of our products then please don’t hesitate to contact our Technical Team via the following methods.
-
Page 7: Introduction To The 3510 Pam Portable
This manual provides the user with information on the operation and maintenance of the Model 3510 PAM Portable. Housed in a water-proof rugged enclosure with a clear LCD the unit can be used on-deck as a portable test control unit or on the bench for pre-dive system checks. -
Page 8: System Description
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 2. System Description PAM 3510 Console Unit Supplied as standard with: Model 3102 Test Transducer Model CHA-1082-4000 Beacon Interface Lead 24VDC PSU and AC IEC Mains Cable The PAM console contains a storage area for the 3102 test transducer and AC mains adaptor, when closed the unit is water proof. -
Page 9: Connections And Installation
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 3. Connections and Installation For connection of the Model 3190 or 3191 Transducer. Transducer: For connection of the Model 3102 Test Transducer. Test Transducer: For connection of a 1000 Series Beacon via CHA-1082-4000 cable. Beacon: External serial connection for program / control. -
Page 10: Model 3190 Deployment Options
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Model 3190 Deployment Options __________________________________________________________________________________________________________ Page 10 of 74... -
Page 11: Power Up
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Power Up Ensuring the internal battery is charged or there is external power connected (see section 4); the PAM Portable can be powered up. Press and hold the Power Button on the front panel. The switch will indicate red. ... -
Page 12: Operation
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 4. Operation Overview Upon power up and initialisation the above main menu will be displayed. The sub menus can be accessed via the function ‘F’ keys or by using the cursor keys then selecting by pressing the return key. -
Page 13: Parameter Editing
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Parameter Editing To select a parameter use the cursor keys to select Press the return key to edit then use the cursor keys to set the desired value and return to confirm. __________________________________________________________________________________________________________ Page 13 of 74... -
Page 14: F1 Transponder Testing
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F1 Transponder Testing The Transponder Testing function allows the operator to verify the operation of all industry standard beacons in air. The system measures Turnaround Time (TAT), Pulse Width (PW) and Reply Frequency (mode dependant) using the 3102 Test Transducer. - Page 15 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Upon selection of testing mode the testing function screen will be displayed (example): Set the Channel and Type parameters as desired to test the operation of the beacon in either transponder or responder mode. Press F1 to begin interrogation of the beacon.
-
Page 16: F2 Depth And Ranging Functionality
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F2 Depth and Ranging Functionality The PAM Portable can calculate the range and received depth telemetry information from a deployed beacon. The mode of depth telemetry is automatically selected upon selection of channel scheme. -
Page 17: Channel Ranging Control
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 4 Channel Ranging Control To go to the 4 Channel Ranging Control menus, Press F1. To access the configuration page of each channel press F1 – 4 or use the cursor keys to select the mode of operation, upon selection the system will take you to the configuration page. -
Page 18: Gain Control
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Gain Control: Auto // Manual Manual Control (Gain Control in manual mode): 0000 to 4000 Gain Steps (Gain sets in Auto mode): 0100 (Default) RX Sensitivity: High // Medium // Low Averaging: Off // High (16) // Medium (8) // Low (4) Gain Control only available if 319X Dunker connected. -
Page 19: Nav Ranging Control
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ V NAV Ranging Control VNAV is a positioning system for statically deployed AAE Beacons. The system provides a navigation screen for deployment, acquisition and processing of range data to obtain seabed positions for the deployed units. -
Page 20: V-Nav Positioning
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ V-Nav Positioning F1: Deployment Logging The PAM 3510 allows the deployed position or trial position to be logged to an entry (slot), this allows the same IDs to be used on large deployments. The entry and Vector ID are logged to the GPS position ready to be uploaded to the VNAV Software for acquisition set-up. -
Page 21: F2: Serial Control Ranging
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F2: Serial Control Ranging This is a status / info page for ranging to the beacons. F3: Command 1419 Vector Beacons are configured using acoustic commands this menu allows the operator to configure and read the status of the Vector Beacons. -
Page 22: Compatt
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Compatt See Page 28 for Compatt Functionality. Pinger See Page 38 for Pinger Functionality. __________________________________________________________________________________________________________ Page 22 of 74... -
Page 23: F3 Release Functionality
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F3 Release Functionality From this menu the PAM Portable commands and configures the AAE 529P or AAE 15xx Release transponders by an acoustic protocol. A Compatt IV can also be commanded to release if functionality enabled. - Page 24 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Release Functions With the Mode, Channel and ID configured the following commands can be sent to the 529P Release beacon. Command Options: Status Request Release Sleep On / Off Anti-Jam Reset STATUS Command The PAM displays the status of the release parameters.
- Page 25 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ SLEEP Command If the release is not going to be used as a transponder or where there are other beacons that use the same channel as the release, it is possible to stop it responding to a navigation interrogation. This can be done by commanding the release to go into sleep mode.
-
Page 26: Release
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 15xx Release Release ID Set Up To configure or identify a 1500 Release beacon select F1 Release ID Set up: Press F1 to get the ID of the release beacon to be configured. To change the ID select the New Release ID parameter and using the cursors set the desired new ID. -
Page 27: Release Functions
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Release Functions F1: Release Commands. To activate, arm, reset prime a Model 1500 Release. F2: Release Battery Status. To identify the battery status of a Model 1500 Release. F3: Release Motor Status. To identify the motor status of a Model 1500 Release. - Page 28 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ When configuring a Model 1529 Release for deployment the procedure is the same as activating (Firing) the release but the release bar requires a manual reset. See REL-1529-8001 for further information. ...
- Page 29 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Release Battery Status The battery status of the release transponder can be acoustically interrogated by sending the F1 Request Status command to the Model 1500 Release transponder. Nominal Battery Pack Voltages are 5.0V Receiver and 16.8V Transmitter. __________________________________________________________________________________________________________ Page 29 of 74...
-
Page 30: Aae Release Receiver Set Up
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Release Motor Status The status of the release transponder can be acoustically interrogated by sending the F1 Request Status command to the Model 1500 Release transponder. Press F2 to Reset the release. The status will update AAE Release Receiver Set Up Using the cursor keys to select and return to confirm the receiver can be configured with the following options:... -
Page 31: Compatt Menu
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Compatt Menu This software module enables the PAM to communicate with a Sonardyne Compatt MK4, upon activation by an update code this module is available. An electrostatic loop can be used to communicate with the Compatt. Connect the test loop to the transducer connector of the Pam and put the loop around the Compatt’s transducer. -
Page 32: System Commands
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ System Commands Enable / Disable Functions To update status information press F5, the ‘ ? ‘ is updated F1: Enable / Disable Compatt F2: Enable / Disable IIF (Individual Interrogate Frequency) F3: Enable / Disable CIF (Common Interrogate Frequency) F4: Enable / Disable USBL (Ultra Short Base Line) The Compatt must be enabled to allow communications with the PAM 3510. -
Page 33: Power Settings
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Power Settings To update status information press F5, the ‘ ? ‘ is updated F1: Set all Power High / Low F2: Set Tel Pulse Power High / Low (Telemetry) F3: Set Tel Data Power High / Low (Telemetry) F4: Set USBL Power High / Low (Ultra Short Base Line) Gain / Frequency / TAT Settings To update status information press F4, ‘xx ‘... -
Page 34: Reset Screen
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Reset Screen Press F1 to Reset Compatt to defaults The Compatt must be in default baud rate to allow communications with the PAM 3510. Compatt Rx Settings Set the PAM 3510 Receiver gains and Detect Thresholds for operation with a Compatt Transponder. - Page 35 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Compatt Status Read Power Status Press F1 to refresh the status of the power levels. Press F2 to set the various power levels below: __________________________________________________________________________________________________________ Page 35 of 74...
- Page 36 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Battery / Time Status Press F1 to refresh Battery Volts and Count. Press F2 to refresh Elasped Time. Read Status Press F1 to Read Status, ‘?’ fields will update. __________________________________________________________________________________________________________ Page 36 of 74...
- Page 37 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Read Sensors Press F1 to get Temperature reading Press F2 to get Depth Reading Press F3 to get Pitch / Roll Reading To convert this value into degrees use the following formula: ...
- Page 38 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Interrogate Test Functions Compatt CIF Interrogate Set RX Channel of Compatt under test then Press F1 to Range Press F2 to Test (TEST Transducer only) Press F3 to access Ranging Settings (Page 36) __________________________________________________________________________________________________________ Page 38 of 74...
- Page 39 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Compatt IIF Interrogate Set TX Channel of Compatt under test then Press F1 to Range Press F2 to Test (TEST Transducer only) Press F3 to access R settings (above) Compatt Simultaneous Interrogate The Pam will command the Compatt under control to do interrogate any Compatts it is close to.
- Page 40 PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Ranging Settings Gain Control: Auto // Manual Manual Control (Gain Control in manual mode): 0000 to 4000 Gain Steps (Gain sets in Auto mode): 0100 (Default) RX Sensitivity: High // Medium // Low Test Interval: 1000 to 9999ms TAT (Turn Around Time):...
-
Page 41: F5 Pinger
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F5 Pinger The PAM Portable can report the acoustic results from a 669 series Pinger. Set the Gain and Threshold and then press F1 to start searching. ‘Status’ will display ‘Searching Please wait’ while the PAM searches for the Pinger. If a Pinger is found, the pings per second will be displayed. -
Page 42: F4 Beacon Configuration
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F4 Beacon Configuration The PAM Portable controls and configures the 1000 series Beacons using the Beacon serial port connection. CHA-1082-4000 Cable 10XX Series Beacon Ensure the beacon is switch is the ON position and the battery pack is charged. Press F1 to read the beacon’s configuration. -
Page 43: F5 Telemetry Functionality
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ To configure a Sonardyne Wideband channel press F3. Using the cursors the Acoustic Command Address (ACA), Turnaround Time can be selected and confirmed by pressing the return key. Alternatively a Quick Set channel can be selected. To set the beacon press F2 to send the configuration to the beacon. -
Page 44: F6 System Configuration
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F6 System Configuration F1 System Configuration The system date and time can be set from this menu. The back light of the display can also be controlled from this menu. In bright sun shine the back light can be switched off to aid viewing. __________________________________________________________________________________________________________ Page 44 of 74... -
Page 45: F2 Rx Tx Parameters
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F2 Rx Tx Parameters System parameters can be configured from this menu using the cursor keys to select and return key to confirm. Transmit (Tx) Power (Dunker: High // Low Speed of Sound (in Water): 300 to 1600 m/s Enter the Velocity Of Sound (VOS) for transmission through water to be used in the range calculation. -
Page 46: F3 Serial Omm Parameters
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F3 Serial Comm’s Parameters The system has 2 serial communication ports, these can be configured from this menu. Baud Rate: 200,2400,3600,4800,9600 14400,19200,28800, 38400,115200 Data Bits: 8 // 9 Stop Bits: 1 // 2 Parity: On // Off Function:... -
Page 47: F4 System Information / Upgrade
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ F4 System Information / Upgrade The system serial number and current firmware revisions are displayed. To configure the system to receive a firmware update, connect serial cable to a PC running the PAM Programmer Application. -
Page 48: F5 Diagnostics
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ To add an option to the system press F5. The following screen is then displayed: Press F1/F2 to scroll through the software options available and to see which are enabled. The above is an example only of the options available. Press F4 to add an option;... -
Page 49: Pam Programmer Application
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ PAM Programmer Application Software Operation The Pam Portable Programmer software can be used to update the PAM unit software, this includes the following: GUI Software ARM Software DSP Software The software communicates with the PAM Portable via a serial interface and uses a one-to-one 9 way serial cable. -
Page 50: Pam-3510
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ The following window will be displayed The window contains four areas. Software Versions – this area will display the versions of software currently installed in the unit Source File Details – this area will display information about the file that has been selected to update the PAM unit Progress –... -
Page 51: __________________________________________________________________________________________________________
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Programming Procedure Please ensure the PAM Portable is in upgrade mode before attempting to update the software in the unit. Enter upgrade mode detailed on page 43. The current upgrade mode status is displayed in the status bar at the bottom of the window. ... -
Page 52: __________________________________________________________________________________________________________
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ The progress and an estimated time to complete will be displayed along with various messages in the event window to show current progress. Note: During this phase, the programming may be aborted if required. ... -
Page 53: __________________________________________________________________________________________________________
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ This phase can take up to 90 seconds to complete It is critical that during this phase the unit must not be powered down or tampered with in any way. Failure to comply may result in the unit becoming unservicable and would have to be returned to the factory for repair. -
Page 54: __________________________________________________________________________________________________________
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Power the PAM back on and confirm all software revisions are correct, as below This completes the programming process Remember to disconnect the serial cable after confirming software revision. __________________________________________________________________________________________________________ Page 54 of 74... -
Page 55: Handling
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 5. Handling There are no special handling conditions with this product. For beacons, please see their specific manuals. 6. End of Life Recycling / Disposal Within the EU all electronic components and batteries must be taken for separate collection at the end of their working life under EU WEEE directives. -
Page 56: Troubleshooting
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 8. Troubleshooting No Power light on the front panel. AULT YMPTOM The Power supply. Is there power to the socket? The Power supply OSSIBLE AUSES is not plugged in, or the Wall socket, or not switched on. Internal Battery. -
Page 57: __________________________________________________________________________________________________________
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Short range AULT YMPTOM Range is dependent on local Excessive range for conditions. OSSIBLE AUSE conditions such as in-band noise from man-made or marine sources. If possible reduce noise or work at a shorter range. This may be due to a fouled Beacon reply insensitivity. -
Page 58: External I/O Connector Pin Outs
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 9. External I/O Connector Pin Outs S ERIAL ONNECTORS Receive Data (Rx) Transmit Data (Tx) Ground DC P OWER ONNECTOR +24v Ground D UNKER ONNECTOR TX + TX - TX Screen Gain Screen Gain +... -
Page 59: Data Output Format
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 10. Data Output format PPLIED COUSTIC NGINEERING ANGE ATA STRING Beacon # Range = rrrr.r M Depth = dddd.d M CL Beacon identification (1 to 4) Range in meters Depth in meters Carriage return (CR) Line Feed (LF) PPLIED... -
Page 60: System Specification
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ 11. System Specification Pam Portable Model 3510 Dimensions Width 390mm x Height 310mm x Depth 170mm Weight 6 kg (Inc peripherals) Power requirements 24VDC at 1A AC Adaptor 90 – 250 VAC at 250 VA maximum. Front panel Indicators LED indicators for power and TX // RX status. -
Page 61: Compatibility
PAM Portable Operation Manual PAM-3510-8000/7 __________________________________________________________________________________________________________ Compatibility Test and Configuration of AAE 1000 Series Spread Spectrum beacons AAE 900, 300, 200 Series beacon testing AAE 529, 559, 1500 Release Beacon AAE VNAV 1400 Beacon IXBlue (Option) Sonardyne Wideband™ 1 beacon testing HPR and HiPAP compatible beacon testing COMPATT IV Functionality (Option) Transducer Model 3190... -
Page 62: Appendix A - Transducer Mounting Bracket A
Appendix A – Transducer Mounting Bracket A 172.40 10.00 4 x Ø17.50 ON A 114.30 PCD ________________________________________________________________________________________________________________________________________________________________________ Page 62 of 74... -
Page 63: Appendix B - Transducer Mounting Bracket B
Appendix B – Transducer Mounting Bracket B M12 CLEARANCE 152.00 89.00 Ø102.00 495.00 ±5.00mm ________________________________________________________________________________________________________________________________________________________________________ Page 63 of 74... -
Page 64: Appendix C - Model 3190 Transducer Mounting Dimensions
Appendix C – Model 3190 Transducer Mounting Dimensions ________________________________________________________________________________________________________________________________________________________________________ Page 64 of 74... -
Page 65: Appendix D - Model 3191 Lf Transducer Mounting Dimensions
Appendix D – Model 3191 LF Transducer Mounting Dimensions ________________________________________________________________________________________________________________________________________________________________________ Page 65 of 74... -
Page 66: Appendix E - Compatible Channels
Appendix E - Compatible Channels AAE Spread Spectrum Channels Transponder Responder Channel Description TAT (ms) TAT (ms) AAE Spread Spectrum SS CH 0 AAE Spread Spectrum SS CH 1 AAE Spread Spectrum SS CH 2 AAE Spread Spectrum SS CH 3 AAE Spread Spectrum SS CH 4 AAE Spread Spectrum... -
Page 67: Aae Easytrak Channels
AAE Easytrak Channels Pulse RXF1 RXF2 TXF1 TXF2 Transponder Responder Channel Width (Hz) (Hz) (Hz) (Hz)* TAT (ms) TAT (ms) (ms) 17500 30000 29000 18500 28000 27000 19500 26000 25000 20500 29000 28000 21500 27000 26000 22500 30000 29000 18000 20000 27000... -
Page 68: Simrad Hipap Channels
Simrad HiPAP Channels Pulse RXF1 RXF2 TXF1 TXF2 Transponder Responder Channel Width (Hz) (Hz) (Hz) (Hz)* TAT (ms) TAT (ms) (ms) 21000 21500 29250 29750 21000 22000 29750 30250 21000 22500 30250 28750 21000 23000 30750 27250 21000 23500 27250 27750 21000... -
Page 69: Simrad Hipap Channels Continued
Simrad HiPAP Channels Continued Pulse RXF1 RXF2 TXF1 TXF2 Transponder Responder Channel Width (Hz) (Hz) (Hz) (Hz)* TAT (ms) TAT (ms) (ms) 24000 21000 28750 29250 24000 21500 29250 29750 24000 22000 29750 30250 24000 22500 30250 28750 24000 23000 30750 27250... -
Page 70: Ore Trackpoint Channels
ORE Trackpoint Channels Pulse RXF1 TXF1 TXF2 Transponder Responder Channel Width Channel (Hz) (Hz) (Hz)* TAT (ms) TAT (ms) (ms) 18000 24000 23000 17000 24000 23000 LXT Code 1 17000 23000 22000 18000 25000 24000 16000 25000 24000 21500 26000 25000 LXT Code 2... -
Page 71: Aae Lf Channels
AAE LF Channels Pulse RXF1 TXF1 TXF2 Transponder Responder Channel Width (Hz) (Hz) (Hz)* TAT (ms) TAT (ms) (ms) 10000 12000 11000 10000 13000 12000 10000 14000 13000 10000 15000 14000 10000 16000 14000 11000 13000 12000 11000 14000 12500 11000 15000... -
Page 72: Hpr4 Lf Channels
HPR4 LF Channels Pulse Transponder Responder Channel RXF1 RXF2 TXF1 TXF2* Width TAT (ms) TAT (ms) (ms) 10.00 kHz 10.50 kHz 13.75 kHz 15.75 kHz 10.00 kHz 11.00 kHz 14.25 kHz 16.25 kHz 10.00 kHz 11.50 kHz 14.75 kHz 16.75 kHz 10.00 kHz 12.00 kHz... -
Page 73: Index
Index AAE Easytrak Channels, 63 Operation, 12 AAE Release Functionality, 19 ORE Trackpoint Channels, 66 AAE Spread Spectrum Channels, 62 Accuracy / Performance, 56 Pinger 37 Battery Replacement, 53 Beacon Configuration, 38 Range calculation, 16, 41 Release Battery Status, 23, 25 Release Commands, 23 Compatibility, 7, 57 Release Functions, 23... - Page 74 ...
