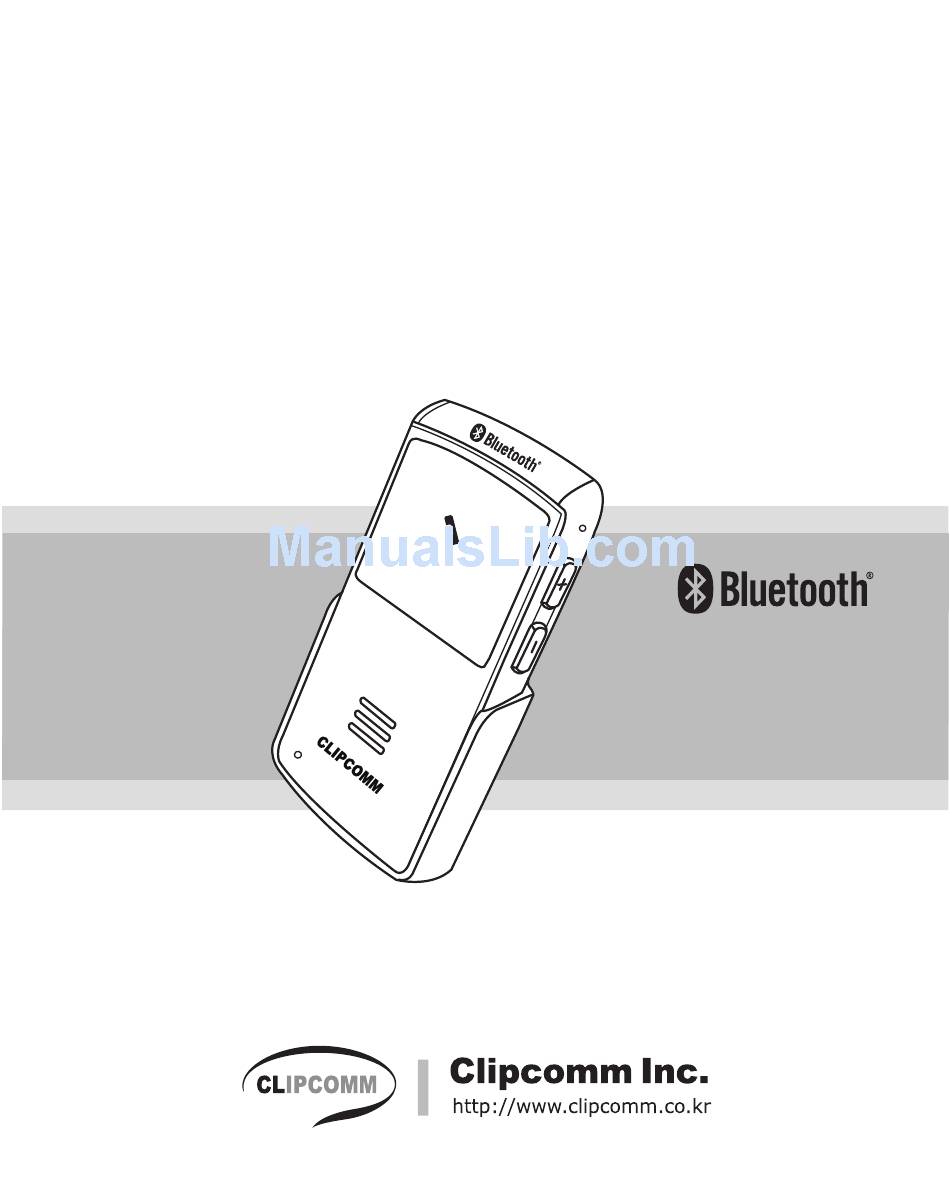

- Page 1 Bluetooth Hands-Free Car Kit HCC-100A User Manual...
-
Page 3: Table Of Contents
[Table of Contents] Before use Package contents Description of parts Recommended installation position Charging Low battery Battery status Solar power charging status How to use Power on/off Pairing Connecting Answering a call Making a call Ending a call Volume control Functions during a call Summary of button functions LED indication and signal sound... -
Page 4: Before Use
Before use The Clipcomm HCC-100A is a solar-powered Bluetooth hands- free car kit with a slim and fashionable design. It provides crystal clear sound and excellent ease of use because of its simple and user-friendly interface. [Package contents] Ensure that the items mentioned below are all included in the package. -
Page 5: Description Of Parts
Before use [Description of parts] Microphone Status LED Volume controls Multifunction button Speaker Battery status Charging port 3M tape Suction cup hole Solar panel Suction cup hole 3M tape... -
Page 6: Recommended Installation Position
Before use [Recommended installation position] It is recommended that the hands-free car kit be positioned and installed on the top-left of the windshield, as shown in the picture below. (The hands-free car kit can be installed using either 3M tapes or suction cups.) Installing the hands-free car kit in the recommended position will lead to more efficient solar power charging and better performance with regard to the microphone. - Page 7 Before use Charge your hands-free car kit until the battery status LED turns off. The unit will be fully charged in approximately 2 h. 2. Using solar power Direct the solar panel on the back of the hands-free car kit ...
-
Page 8: Low Battery
Before use [Low battery] The status LED will flash blue and the battery status LED will flash red simultaneously with a periodic beeping sound when the battery status is lower than 10% out of full charge. In this low battery status, the battery status LED and the status LED will operate simultaneously in the same way. -
Page 9: Solar Power Charging Status
How to use [Solar power charging status] To check the solar power charging status, you can press for 5 s when the hands-free car kit turned on. If the car kit is receiving sufficient sunlight, the battery status LED will glow red. -
Page 10: Pairing
Bluetooth mobile phone. (For the detailed set up and pairing instructions with mobile phone, please consult your mobile phone user guide.) There are two pairing mode methods with HCC-100A. Easy Pairing 1. With the power off, press and hold button for 2 seconds, to turn on the product. - Page 11 (Pairing with the hands-free profile is recommended since the user can utilize the various Bluetooth functions in this profile.) 4. Select “HCC-100A” from the list of searched devices. 5. When prompted for a passkey, enter 0000.
-
Page 12: Connecting
How to use 6. A beep will sound when the devices are paired successfully. 7. After you have successfully paired your phone and the hands-free car kit, you do not need to repeat these steps each time you use the hands-free car kit with your mobile phone. - Page 13 How to use without the paring process when the hands-free car kit turns on. (The mobile phone connected previously should be within 10 m from the car kit.) 2. Out of range The hands-free car kit will be automatically reconnected when it is brought back within a 10-m range of the phone within 3 min.
-
Page 14: Answering A Call
How to use [Answering a call] The hands-free car kit and mobile phone will ring simultane- ously when an incoming call is received. You can answer a call by pressing briefly. (The call can also be answered using the mobile phone.) Ringing mute In order to activate the mute function when an incoming call is received, press and hold... -
Page 15: Ending A Call
How to use This function is only available if your mobile phone supports the voice dialing function and the hands-free car kit is paired as a hands-free device. If your mobile phone does not support voice dialing, the hands-free car kit will activate the last number redial feature. The hands-free car kit may not activate any action;...
