APS-3
Revision 3.0.0

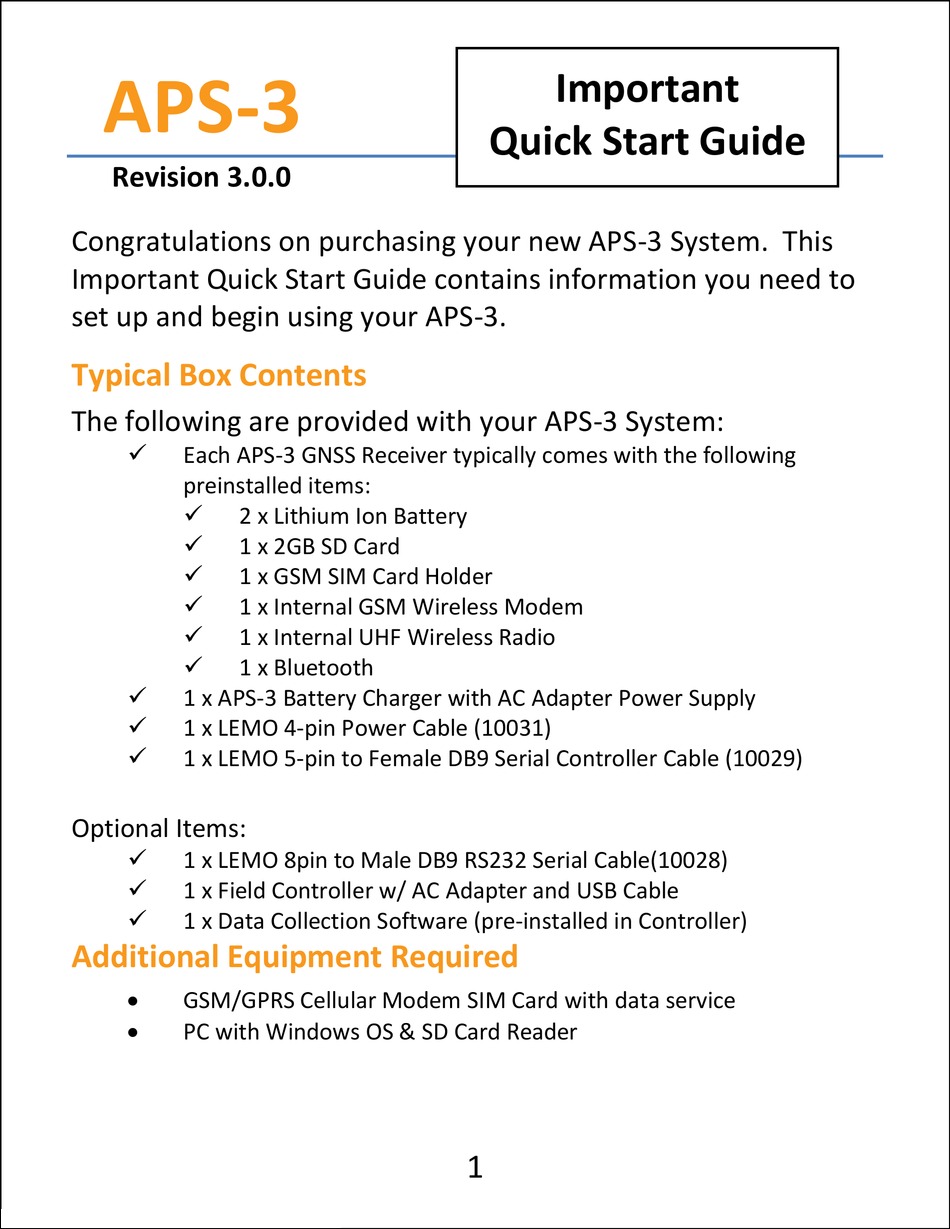

Congratulations on purchasing your new APS-3 System. This
Important Quick Start Guide contains information you need to
set up and begin using your APS-3.

Typical Box Contents

The following are provided with your APS-3 System:
Each APS-3 GNSS Receiver typically comes with the following
preinstalled items:
2 x Lithium Ion Battery
1 x 2GB SD Card
1 x GSM SIM Card Holder
1 x Internal GSM Wireless Modem
1 x Internal UHF Wireless Radio
1 x Bluetooth
1 x APS-3 Battery Charger with AC Adapter Power Supply
1 x LEMO 4-pin Power Cable (10031)
1 x LEMO 5-pin to Female DB9 Serial Controller Cable (10029)
Optional Items:
1 x LEMO 8pin to Male DB9 RS232 Serial Cable(10028)
1 x Field Controller w/ AC Adapter and USB Cable
1 x Data Collection Software (pre-installed in Controller)

Additional Equipment Required

GSM/GPRS Cellular Modem SIM Card with data service
PC with Windows OS & SD Card Reader
Important

Quick Start Guide
