Summary of Contents for Parker C3Manager-Compax3H

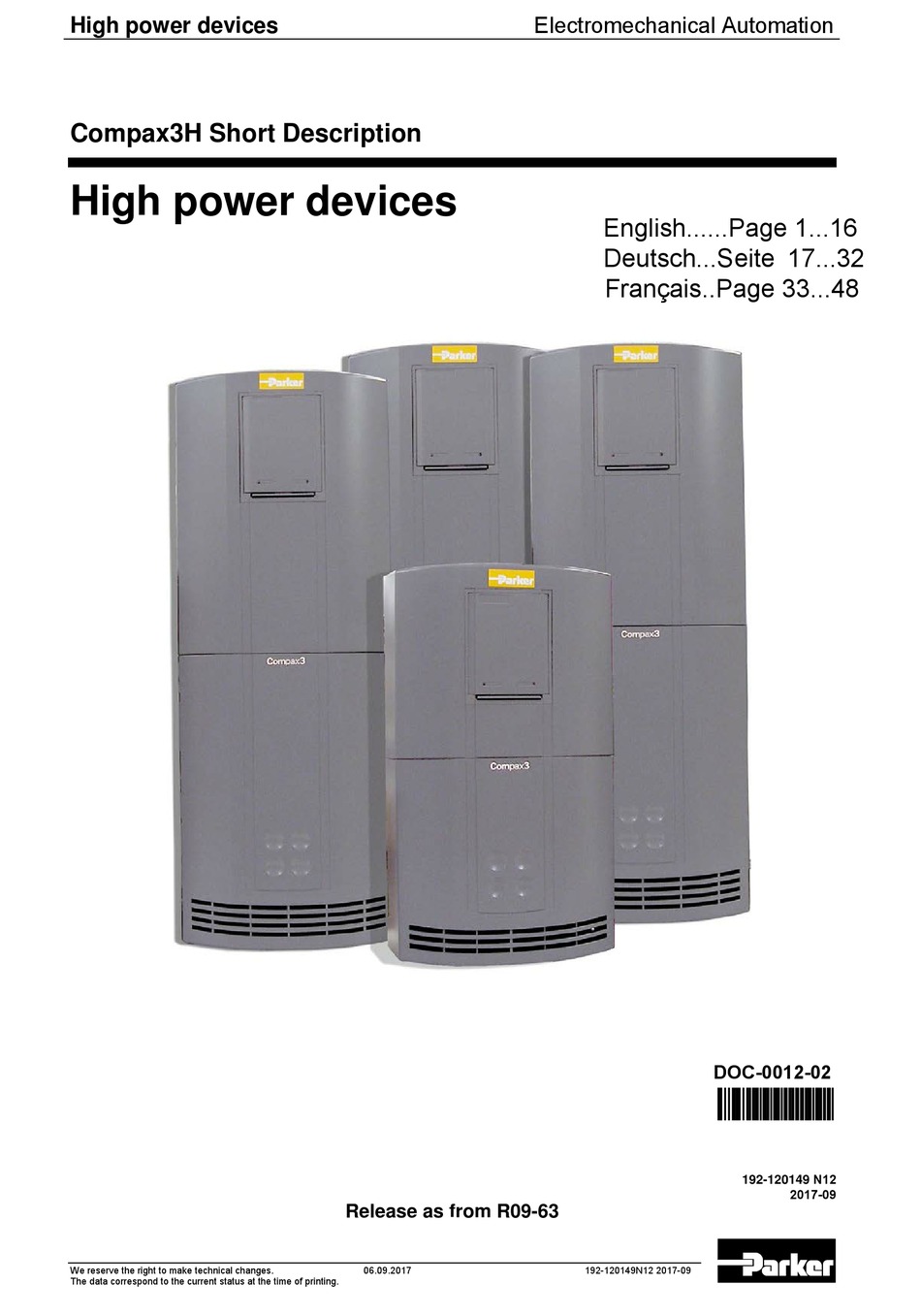

- Page 1 Electromechanical Automation High power devices Compax3H Short Description High power devices English..Page 1...16 Deutsch...Seite 17...32 Français..Page 33...48 DOC-0012-02 DOC-0012-02 192-120149 N12 2017-09 Release as from R09-63 We reserve the right to make technical changes. 06.09.2017 192-120149N12 2017-09 The data correspond to the current status at the time of printing.
- Page 2 Fax: + 49 (0781) 509-98176 Internet: www.parker.com/eme http://www.parker.com/eme E-mail: sales.automation@parker.com mailto:EM-Motion@parker.com Parker Hannifin GmbH - registered office: Bielefeld HRB 35489 Management Board: Ellen Raahede Secher, Dr.-Ing. Hans-Jürgen Haas, Günter Schrank, Kees Veraart - Chairman of the board: Hansgeorg Greuner Italy: Parker Hannifin Manufacturing Srl Electromechanical &...
-
Page 3: Notes On The Documents Supplied
C3 ServoManager Parker EME 1. Notes on the Documents Supplied Compax 3 - short This short reference guide does contain only the basic information; for more reference guide detailed information please refer to the Help-files of the individual Compax3 device types. -
Page 4: Table Of Contents
Introduction High power devices Content 1. Notes on the Documents Supplied ............3 C3 ServoManager ..................3 2. Introduction ..................... 4 Device assignment .................. 4 Scope of delivery ..................5 Type specification plate ................5 Packaging, transport, storage ..............6 Safety instructions ................... -
Page 5: Scope Of Delivery
Scope of delivery Parker EME Scope of delivery The following items are furnished with the device: Device accessories Device accessories for Compax3H Mating connector for X3 and X4 SSK32/20: RS232 adapter cable (programming port C3HxxxV4 - SSK1 - PC) ... -
Page 6: Packaging, Transport, Storage
Introduction High power devices Packaging, transport, storage Packaging material and transport Caution! The packaging material is inflammable, if it is disposed of improperly by burning, lethal fumes may develop. The packaging material must be kept and reused in the case of a return shipment. Improper or faulty packaging may lead to transport damages. -
Page 7: Safety Instructions
Safety instructions Parker EME Safety instructions 2.5.1. General hazards General Hazards on Non-Compliance with the Safety Instructions The device described in this manual is designed in accordance with the latest technology and is safe in operation. Nevertheless, the device can entail certain hazards if used improperly or for purposes other than those explicitly intended. -
Page 8: Warranty Conditions
Introduction High power devices Before you can work on the device, the supply voltage must be switched off at the L1, L2 and L3 clamps. Wait at least 10 minutes so that the power direct current may sink to a secure value (<50V). Check with the aid of a voltmeter, if the voltage at the DC+ and DC- clamps has fallen to a value below 50V. - Page 9 Never mount the filter housing and the device on paint-coated surfaces! Accessories: Make sure to use only the accessories recommended by Parker. Connect all cable shields at both ends, ensuring large contact areas! This is restricted operation category product according to EN 61800-3. This product can cause high-frequency disturbance in domestic areas.
-
Page 10: Conditions Of Utilization For Ul Certification Compax3H
Introduction High power devices 2.7.2. Conditions of utilization for UL certification Compax3H UL certification for Compax3H according to UL508C Conform to UL: E-File_No.: E235342 Certified The UL certification is documented by a "UL" logo on the device (type specification plate). “UL”... -
Page 11: Current On The Mains Pe (Leakage Current)
Conditions of utilization Parker EME 2.7.3. Current on the mains PE (leakage current) This product can cause a direct current in the protective lead. If a residual current device (RCD) is used for protection in the event of direct or indirect contact, only a type B (all current sensitive) RCD is permitted on the current supply side of this product . -
Page 12: Ec Declaration Of Conformity Compax3H
Introduction High power devices EC declaration of conformity Compax3H 192-120149N12 2017-09... -
Page 13: Mounting And Dimensions C3H
EC declaration of conformity Compax3H Parker EME 3. Mounting and dimensions C3H The devices must be mounted vertically on a level surface in the control cabinet. Dimensions: (1): Electronics (2): Head dissipator 453mm 440mm 245mm 252mm 150mm C3H050V4 668.6mm 630mm... -
Page 14: Mounting Distances, Air Currents Compax3H050V4
Mounting and dimensions C3H High power devices Mounting distances, air currents Compax3H050V4 [mm] C3H050V4 Mounting distances, air currents Compax3H090V4 [mm] C3H090V4 Mounting distances, air currents Compax3H1xxV4 [mm] C3H1xxV4 192-120149N12 2017-09... -
Page 15: Technical Data
Mounting distances, air currents Compax3H1xxV4 Parker EME 4. Technical Data Mains connection Compax3HxxxV4 3*400VAC Device type Compax3 H050V4 H090V4 H125V4 H155V4 Three-phase 3*400VAC Continuous working 350-528VAC / 50-60Hz voltage Receiver current 66Arms 95Arms 143Arms 164Arms consumption 50Arms 90Arms 125Arms 155Arms... - Page 16 Technical Data High power devices 192-120149N12 2017-09...
