Summary of Contents for AGFEO STE 40

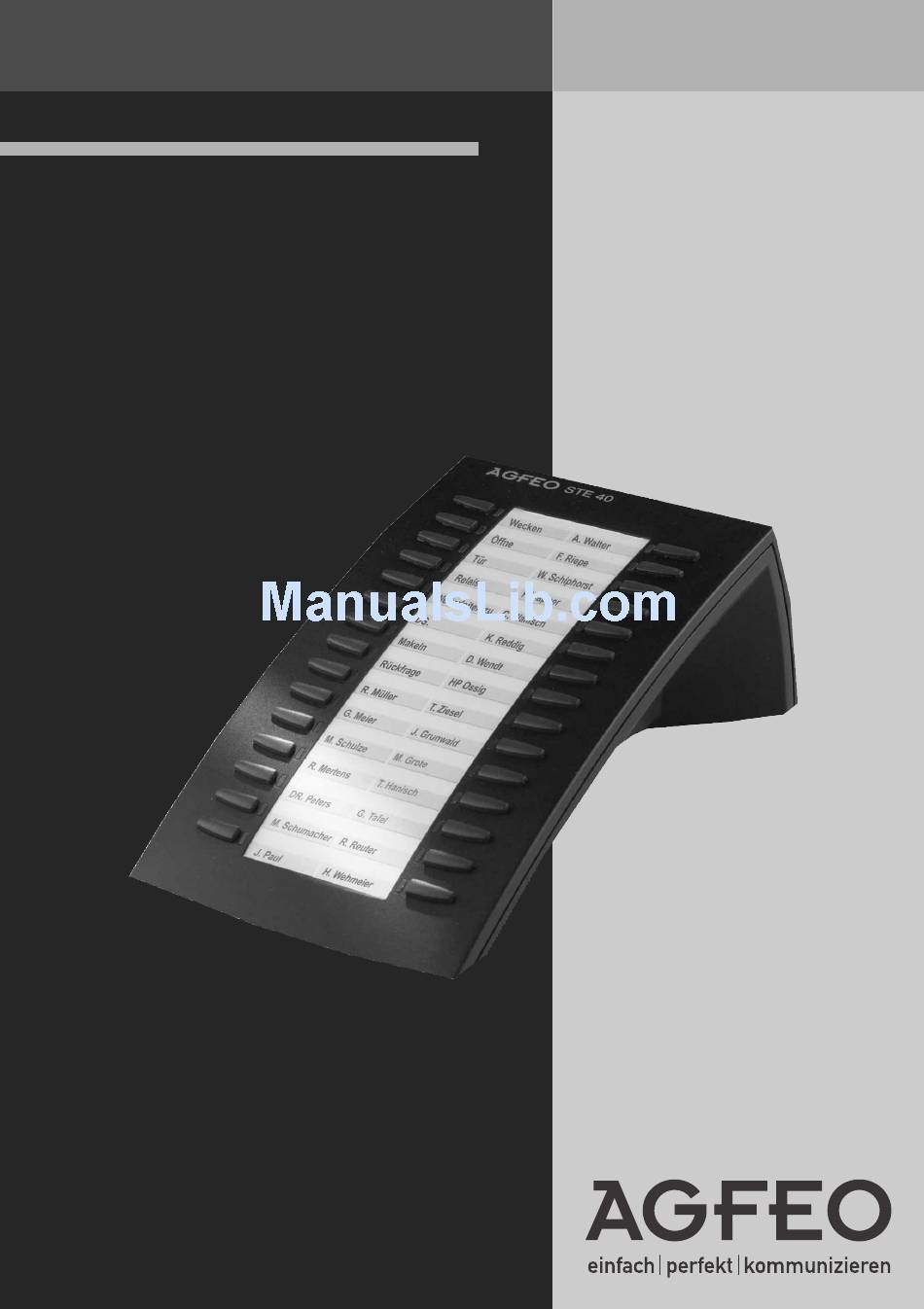

  • Page 1 User Manual STE 40 DSS Console...

  • Page 2: User Instructions

    System: AS 281 All-In-One, AS 35, AS 35 All-In-One, AS 40P (P400-1), AS 4000 (P400- 1), AS 100 IT (P400 IT), AS 43, AS 45, AS 200 IT from Version 7.1. Up to 48 STE 40 may be registered which will depend on the type of telephone system in use and firmware level.

  • Page 3: Table Of Contents

    Declaration of Conformity ......................15 Very Important Installation Note: Please note that it will be imperative that you use the optional power supply STE 30 / ST 40 / STE 40 for the operation of the STE 40 on your telephone system.

  • Page 4: Feature Description Of The Ste 40

    The unit can be connected to any ST 31 or ST 40 and operated with telephone systems which are listed within the user instructions. The STE 40 will compliment the system phone ST 31 or ST 40 and can be connected via the fixed connection clips.

  • Page 5: Connection Of Ste 40

    - Guide the cable along the cable channel underneath the ST 31 / ST 40 telephone and the STE 40 expansion unit. - Connect the plug of the power supply STE 30 / STE 40/ ST 40 to the socket of the STE 40 marked - Re-establish the connection between ST 31 / ST 40 and the telephone system.

  • Page 6: Ste 40 Connections

    AGFEO System Telephone Expansion STE 40 STE 40 Connections AGFEO STE 40 100288010001 Connection for optional Power Supply Unit. Connection to Connection to next STE 40 ST 40 or previous STE 40...

  • Page 7: Attach Ste 40 To St 40

    AGFEO System Telephone Expansion STE 40 Attach STE 40 to ST 40 To attach the STE 40 to the System Phone press the hooks of the STE 40 into the slots provided of the ST 31 or ST 40 as shown below.

  • Page 8: Programmable Function Buttons (Overview)

    AGFEO System Telephone Expansion STE 40 Programmable Function Buttons (Overview) TAM activation To switch answering machine on or off (optional module). From another system phone will only work if notification to system phone has been switched on. (Info to Systel) TAM info To listen to recorded messages.
  • Page 9 AGFEO System Telephone Expansion STE 40 Programmable Function Buttons (Overview) Headset To use a headset. (Digital System Phones only) Call Pick Up To Pick Up a call ringing on another extension. A Special Function Button may be assigned for this feature.

  • Page 10: Led - Indication Associated To Function Buttons

    AGFEO System Telephone Expansion STE 40 LED - Indication Associated to Function Buttons LED on LED off LED flashes Answering Machine Stored messages No Messages New Messages Messages already listened Call Waiting activation enabled disabled Call Log entries No numbers in...
  • Page 11 AGFEO System Telephone Expansion STE 40 LED - Indication Associated to Function Buttons LED on LED off LED flahes LED flashes (slow) (fast) TAM switched TAM Activation switched off Extension The button is Exclusiv Extension Button Busy or off allocated to an Hold.

  • Page 12: Changing Button Assignment

    AGFEO System Telephone Expansion STE 40 Changing Button Assignment y& End programming Start Press Button to be Enter first letter of required Confirm function or browse using the Programming programmed on the entry STE40 arrow buttons.

  • Page 13: Location

    AGFEO System Telephone Expansion STE 40 Location Select a suitable location for theSTE 40 to be installed. Please observe the following points: - Do not use locations where the unit could be subjected to water or chemicals. - Rubber feet of the Console: Your console has been manufactured for general use.

  • Page 14: Firmware Upgrade St 40 Or St 31

    AGFEO System Telephone Expansion STE 40 Firmware Upgrade ST 40 or ST 31 The firmware of your telephone can be upgraded without the need of any hardware changes. Please follow the instructions if a firmware upgrade is required: The handset is...

  • Page 15: Declaration Of Conformity

    AGFEO System Telephone Expansion STE 40 Declaration of Conformity...
  • Page 16 Ident no. 1101394 Subject to change without notice. No liability can AGFEO GmbH & Co. KG be accepted for errors contained in this Gaswerkstr. 8 document.
