Summary of Contents for Systemline SN6210 S7
-

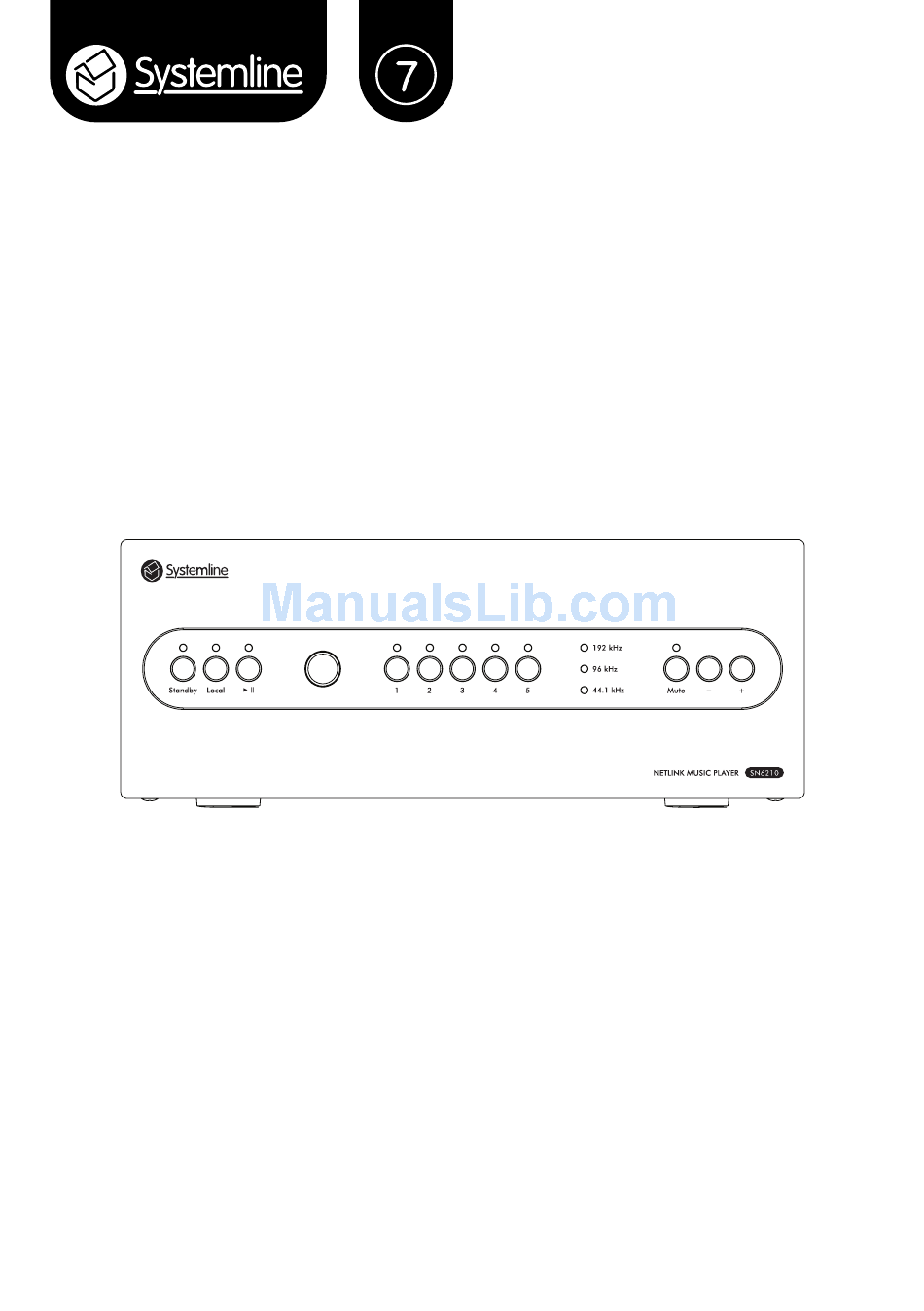

Page 1: Instruction Manual
Instruction manual NetLink Music Player Systemline 7 Music Player SN6210... -
Page 2: Important Safety Instructions
Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 3 Instructions de sécurité importantes 1. Veuillez lire ces instructions. 2. Veuillez conserver ces instructions. 3. Veuillez prendre connaissance de tous les avertissements. 4. Veuillez suivre toutes les instructions. 5. N’utilisez pas cet appareil a proximite de l’eau. 6. Nettoyez uniquement avec un chiffon sec. 7.
-
Page 4: Table Of Contents
Contents 1.0 NetLink pack contents 2.0 Introduction 3.0 Compatible AVR Receivers 4.0 NetLink Rear Panel 5.0 NetLink Front Panel 6.0 Wiring Diagram 6.1 Wiring Diagram with DigiLink and Keypad 6.2 Wiring Diagram with Keypad (without DigiLink) 7.0 NetLink Setup - First Steps Connections 8.0 NetLink Configuration –... -
Page 5: Netlink Pack Contents
The NetLink Music Player uniquely integrates a home cinema system or high quality HIFI system with the Systemline 7 multi-room installation. NetLink can be configured to control a connected AV Receiver so that it switches it on, selects the correct input and controls the volume using the S7 App. -
Page 6: Netlink Rear Panel
4.0 NetLink Rear Panel 1. Power Input NetLink requires a 12v 2amp power supply, supplied. 2. 12 Volt DC Trigger Output Recommended for use with a power amplifier that has a 12volt DC trigger input such as the NetPower, when NetLink turns on it will power up a compatible power amplifier by presenting 12v. -
Page 7: Netlink Front Panel
10. Network LAN (T568B) RJ45 connection for network this must be used for control via your S7 App. 11. USB These are for future use only. 5.0 NetLink Front Panel 1. Standby Pressing will turn NetLink in and out of standby, and will also control a compatible AVR’s standby state via IP or RS232. -
Page 8: Wiring Diagram
8. Volume Up Adjusts the zone volume up (Level will be shown in the app). 9. Volume Down Adjusts the zone volume down (Level will be shown in the app). 6.0 Wiring Diagram 6.1 Wiring Diagram with DigiLink and Keypad It is recommended that two CAT5/6 cables are run from the server room to NetLink (if being located in the zone), one for network control and one for audio via DigiLink. -
Page 9: Wiring Diagram With Keypad (Without Digilink)
6.2 Wiring Diagram with Keypad (without DigiLink) 7.0 NetLink Setup - First Steps Connections Insert (RJ45) LAN connection from network switch/router. Insert audio connection to AV amplifier (Digital coax preferred) make a note of which input you have used on the AV Receiver, requires a digital audio cable not supplied. Connect RS232 cable from NetLink to AV Amplifier/Receiver (recommended). -
Page 10: Netlink Configuration - Quick Start
8.0 NetLink Configuration – Quick Start Open a Web browser on a PC or Mac and type htttp://NetLink to reveal the Overview page. 8.1 Source Setup Select Source Setup from the left menu you will be prompted for a username and password. Username: admin Password: password These can be changed in Factory setup if needed... -
Page 11: Connected Amplifier
If the server is on and NetLink connected to the network, the server IP address should be inserted and highlighted in green showing NetLink has connected. If the IP address is not shown, or the box is red, refer to the detailed instructions in section 9.3. Press the Save button 8.3 Connected Amplifier Select the connected amplifier you are using from the drop down box. -
Page 12: Zone Setup
8.4 Zone Setup Select ‘Zone Setup’ and enter the name of the NetLink zone and press ‘Save’ . Initial Setup is complete, use the S7 App to discover the zone, select music and enjoy. 9.0 NetLink Further Configuration Options Overview: Serial Number: Displays the NetLink serial number, also found on the back of the NetLink. -
Page 13: Factory Setup
Firmware Code: NetLink will automatically check the Systemline Cloud Server for new firmware and inform the user via the App. It is possible to manually enter a code here to force an update to firmware not posted on the server. -
Page 14: Connected Amplifier
Amplifier Type: You can select the AVR or Power Amplifier mode here from the drop down list: S7 NetPower – Use this mode with the Systemline 7 NetPower amplifier, or any other power amplifier or non-supported AVR. The analogue outputs will be variable with volume control;... -
Page 15: Zone Setup
NAD T-Series – There have been many T-series AV Receivers produced, so a definitive list cannot be produced. NetLink is tested with T787, T785 It is highly recommended that you test the AVR compatibility with NetLink first before installation. Amplifier Input: Select the particular audio input that you have plugged NetLink into from the drop down list. -
Page 16: Troubleshooting
Rear DigiLink LEDs Off: Checking this box will switch off the LED’s on the DigiLink RJ45 socket. 10. Front LEDs Auto-Off after 20 secs: Will turn the front LEDs off after 20sec when NetLink is in use. 11. IR Receiver Enable: Checking this box will enable IR control via the front panel. Keep this box unchecked (disabled) if using NetLink with AVR’s using RC5 IR codes such as Arcam or Marantz. -
Page 17: Specifications
11.0 Specifications 11.1 IR RC5 Code Table Function IR Code RC5 System Command Standby 013 (*LP) Mute Volume Up Volume Down Source Up Source Down Source 1 Source 2 Source 3 Local Play Pause Stop Skip Forwards Skip Back LIM Analogue LIM Digital LIM Auto... -
Page 18: Product Specifications
11.2 Product Specifications Features Network or Digilink (Optional) 192kHz/24bit Audio Changeable in the S7 app Favourites/Pre-sets TCP/IP, RS232, S7 Keypad, IR control Control options Arcam, Denon, Marantz, Yamaha, Onkyo, NAD Compatible Receivers Voltage Standby consumption <0.5W Mains voltage External Power supply 12v –... -
Page 19: Product Dimensions
11.3 Product Dimensions... -
Page 20: Appendix 1: Netlink Compatible And Tested Av Receivers
Appendix 1: NetLink Compatible and Tested AV Receivers Arcam - RS232 only (Null Modem RS232) AVR 380 AVR 390 AVR 450 AVR 550 AVR 750 Tested AVR 850 AV860 SR250 Denon - RS232 or IP (Straight through RS232) AVR-X Series AVR-X3200W Tested Marantz - RS232 or IP... - Page 24 Stortford Hall Industrial Park Dunmow Road Bishops Stortford Hertfordshire CM23 5GZ United Kingdom www.armourhome.co.uk ©2014 Armour Home Electrioncs, All rights reserved. Our policy is one of continuous product improvement. We reserve the right to change the design and specifications without notice. All information is given in good faith.
