Summary of Contents for Hill Audio RPX-2300

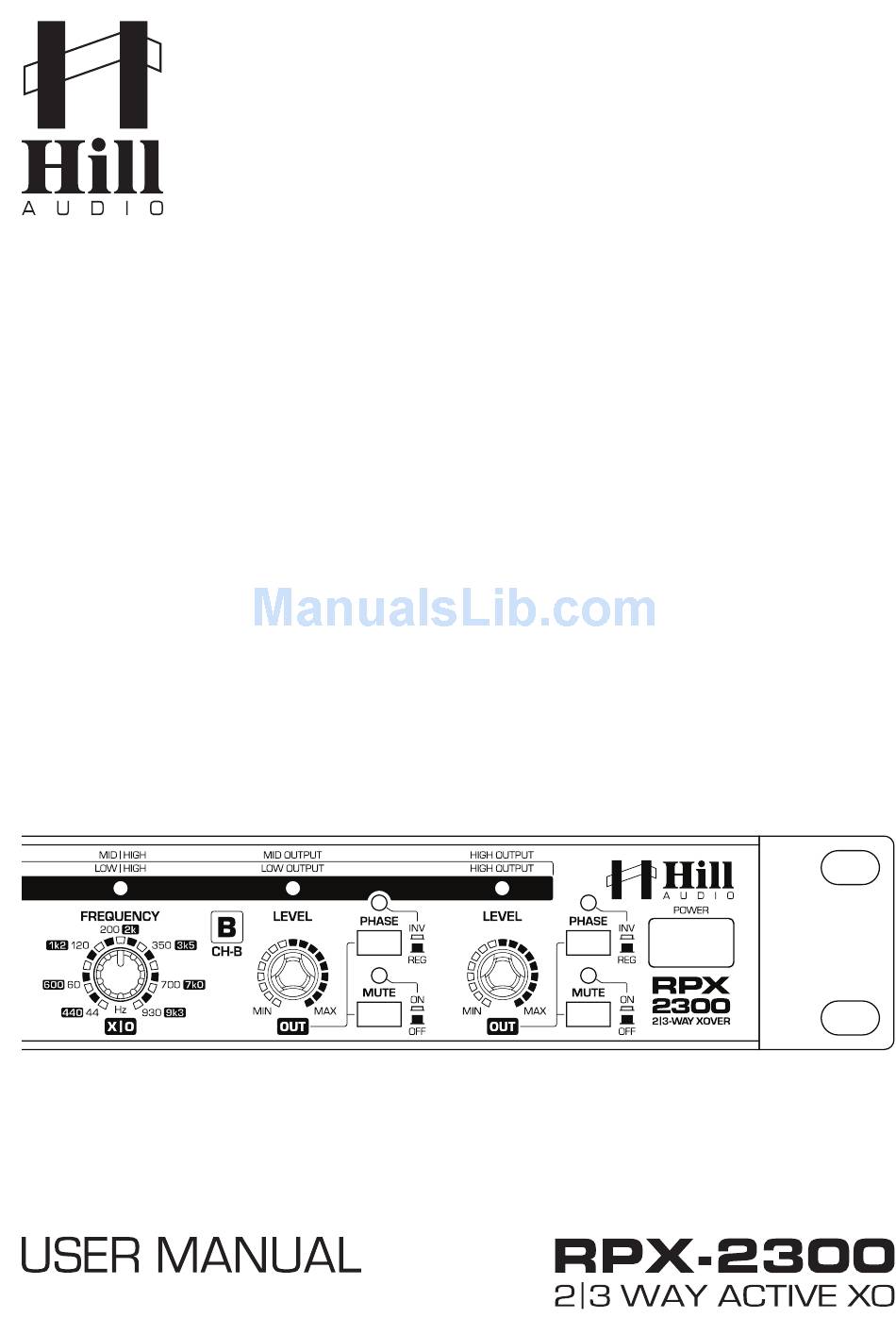

- Page 1 RevA 04-2017...
-
Page 2: Important Safety Instructions
USER MANUAL - RPX2300 ACTIVE XO Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. -
Page 3: Health Advice
USER MANUAL - RPX2300 ACTIVE XO Description The RPX-2300 is a stereo 2-way/mono 3-way active crossover with additional subbass output. It sports 24dB/Oct Linkwitz-Riley filters with adjustable crossover frequencies. Low Cut Filters for the inputs, as well as a Mute function and Phase reverse for all outputs complete the feature set and make this units a prime choice for smaller active bi-amplified sound systems. -
Page 4: Controls And Connections
USER MANUAL - RPX2300 ACTIVE XO Controls and Connections Connections - Rear Controls - Front PAGE 3... -
Page 5: Functional Description
USER MANUAL - RPX2300 ACTIVE XO Functional Description The RPX-2300 is a stereo 2-way/mono 3-way active crossover for bi-amplified sound systems. The Linkwitz-Riley filters with adjustable crossover frequencies offer a constant summed amplitude response and are complemented by 25Hz Low Cut Filters for the inputs, as well as a Mute function and Phase reverse for all outputs. -
Page 6: Technical Specifications
POWER switch. Switches the unit on and off. Make sure to switch the unit off when not in use. Connections The RPX-2300 uses the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper opera- tion. -
Page 7: Operation
USER MANUAL - RPX2300 ACTIVE XO Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. -
Page 8: Ec Declaration Of Conformity
Burnham-on-Crouch, 16.09.2016 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
