Summary of Contents for Artway Tech KDL100
- Page 1 PET GPS TRACKER COLLAR KDL100 USER MANUAL...
-
Page 2: Special Features

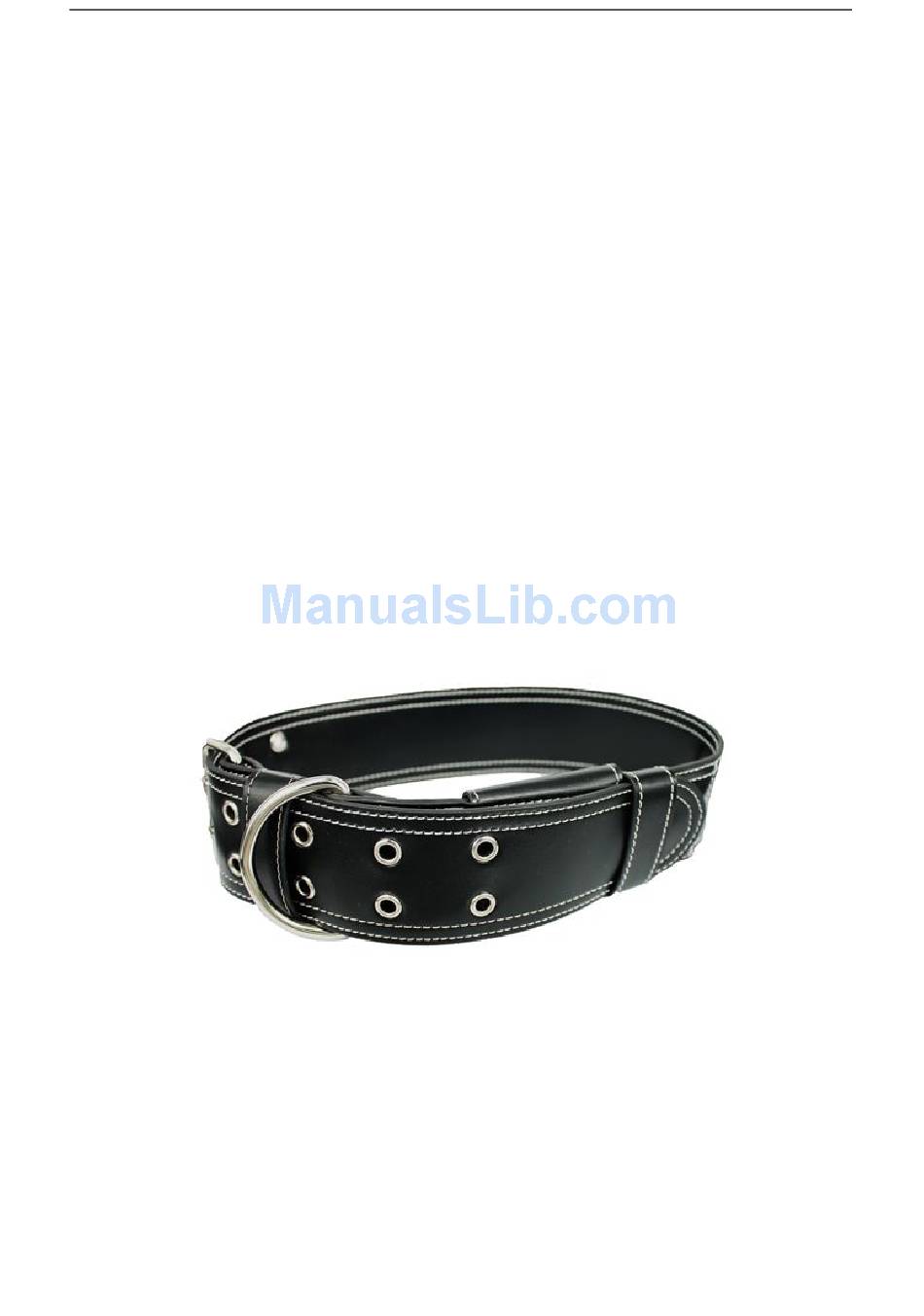

Introduction: KDL100 is a leather pet collar, suitable for midium and large animals, a special design hidden design tracker. It can locate accurately, set multiple functions of security, positioning, realtime tracking. Offer you precise positioning information and dynamic conditions. Perfect deluxel eather collar design with GPS tracker inside of small pouch, make it not visible against thief, also weather-proof. -
Page 3: Specification
Specification: Content Specs. 68cm (L) x 3.8cm (W), leather Thickness: 4mm Dim. Shortest circle 40cm Weight 150g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -159dBm GPS accuracy Cold status 45s Time To First Fix Warm status 35s Hot status 1s 12—24V input Car charger output 110－220V input... -
Page 4: Sim Card Installation
2. INSTALLATION 2. 1 SIM-CARD INSTALLATION Open the leather collar cover on the side of collar pack , the PCBA will be exploded, insert the sim card into sim card slot , if you have purchased a MICRO SIM , you will need to use the Micro SIM adapter enclosed, like this: 2.2 USE THE GPS DEVICE ... - Page 5 3. SMS TRACKING 1) Call the SIM-card phone number in the device by other cell phone 2) Receive a Google Maps link by SMS to your mobile phone 3) Click on the Google Maps link 4) Now it displays the position of device. Command Instruction INSTRUCTION COMMAND...
-
Page 6: Detail Instruction
4.2 START ONLINE TRACKING Note:Must turn on GPRS function (send comand “gprs123456 to the device ) and set the apn first Platform : http://www.zg888gps.com/ IMEI No. : In the pack cover inner side Password: 123456 5. DETAIL INSTRUCTION: 5.1 Initialization Send “begin+password”... - Page 7 5.3.5 When the authorized number call the device, it will hang up your phone and reply a real-time latitude and longitude information, as below: 5.4 Single Locating 5.4.1 If there is no authorized number, when any number dials up the unit, it will report a Geo-info; If there is already an authorized number, then it will not respond when an unauthorized number calls it up.
- Page 8 5.7 Geo-fence Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district. 5.7.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS: “stockade+password+space+latitude,longitude;...
- Page 9 5.10 Low battery alert When GPS device battery is going to be about 3.7V, it will send SMS: “bat:l” at 30 minutes interval. 5.11 Terminal (local) Time Setting Send SMS “time+space+zone+password+space+local time”. For example, Send SMS “time zone123456 8” (time zone of China). If the local time zone is negative as “-8”, then it should set as SMS: “time zone123456 -8”.
- Page 10 5.14 GPRS setting User must send SMS via cell phone to set up IP, port and APN before starting GPRS. 5.14.1 Setting up APN 5.14.1.1 APN standards for Access Point Name and differs from country to country. For more information about the local APN, inquire with your local GPRS network operator.
