H.264 Wi-Fi IP High Resolution
Smoke Detector Color Camera

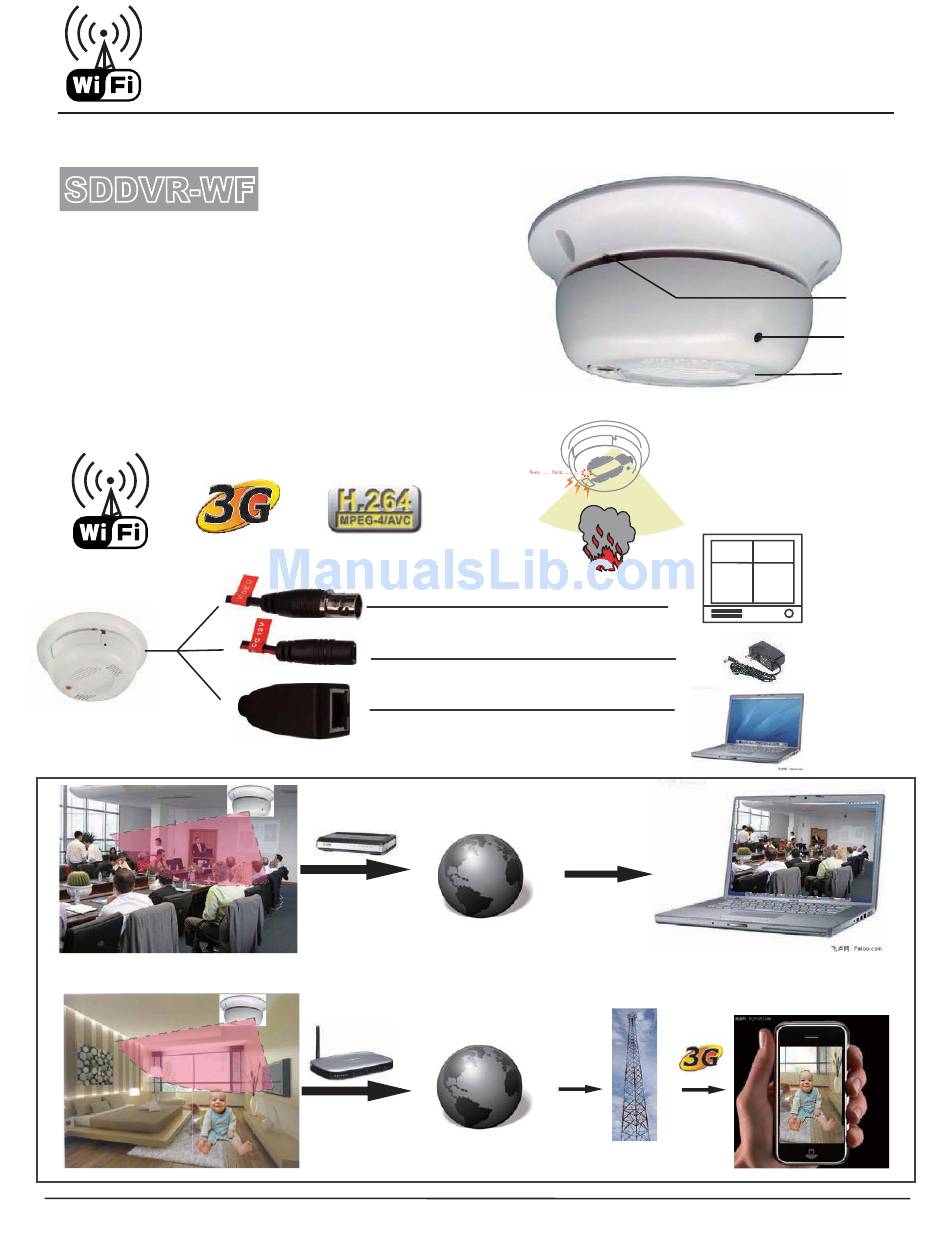

3G Wifi IP Camera is Accessible from Anywhere in the World by Internet
SDDVR-WF
* 1/3'' Color CCD High Resolution Camera
* 540 TVL 0.001LUX (SDNR) Slow-shutter
* 3.7mm Pinhole Lens
* Audio Video Intercom by Wi-Fi / Ethernet
* H.264 Algorihm hardware compression
* Easy Recording Setup by Internet
* Functional Smoke Detector Camera
* DC12V 1A
* Specifications are subject to change without notice
Video or DVR
DC12V 1A
Internet
Router
InterNet
Wireless Router
InterNet
Reset
Camera
MIC
MONITOR
** Designed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDDVR-WF and is the answer not in the manual?

Questions and answers

Related Manuals for COP-USA SDDVR-WF

Summary of Contents for COP-USA SDDVR-WF

  • Page 1 H.264 Wi-Fi IP High Resolution Smoke Detector Color Camera 3G Wifi IP Camera is Accessible from Anywhere in the World by Internet SDDVR-WF * 1/3’’ Color CCD High Resolution Camera * 540 TVL 0.001LUX (SDNR) Slow-shutter * 3.7mm Pinhole Lens...
  • Page 2 Basic step for wifi setup First connect your wifi device and computer to the switch or router using the network cable. Please note: the default ip address is (192.168.0.233) The LAN ip address of your device is: IP address 192.168.0.233 Subnet mask 255.255.255.0 Default gateway...
  • Page 3 Network Video Server V1.1 User guide June, 18, 2007...
  • Page 4 The aim of this handbook is to help user managing and using the series of DVS products made by our company. In order to achieve highly performance of products, you may need to know basic network knowledge before reading this handbook. You can also find more information you need from online help.
  • Page 5 Network video server user guide v1.1 June, 18, 2007 Index Index ..................................3 1. Product Overview.

  • Page 6: Table Of Contents

    SD DVR series video server installation ......................8 2.1. Hardware installation ..........................8 2.1.1. Installation steps ........................8 2.1.2. Notice ............................8 2.2. Device panel description ........................9 2.3. Client software installation ........................10 Video server parameter configuration ......................14 3.1.
  • Page 7 4.4.3. PTZ control ..........................54 4.4.4. Preset position .......................... 55 4.5. Audio intercom ............................ 56 4.5.1. Client request intercom ......................56 4.6. Video grouping, viewing........................57 4.6.1. Video grouping setting ......................57 4.6.2. Video grouping view ........................ 61 4.6.3. Video grouping cyclic switch ....................62 4.7.

  • Page 9: Sddvr Series Video Server Installation

    2. SDDVR series video server installation 2.1. Hardware installation 2.1.1. Installation steps 1. Unpack the case and check if all things in the case are in good condition 2. Take out devices which will be installed 3. Connect devices 2.1.2. Notice Please carefully read this part.

  • Page 10: Client Software Installation

    6. IN 2 channels sensor input the rising or falling edge of level of channel S1 or channel S2 can trigger alarm. The method of application is that connects port S1 or S2 with a 47K Ohm resistance, and then connects with a 12V power supply, and parallel connects with the alarm flip-flop. Connect one side of flip-flop with S1 or S2, connect another side of flip-flop with panel power GND or +12V power terminal.
  • Page 11 Figure 2-2 Installation confirmation Click “next”, there will be a dialogue box: Figure 2-3 agreement license Click “Yes”, there will be a dialogue box:...
  • Page 12 Figure 2-4 Choose installation folder Choose installation folder, click “next”, there will be a dialogue box: Figure 2-5 Start to copy files Click “Next”, move to the installation process...
  • Page 13 Figure 2-6 Start the installation When the installation is finished, there will be a dialogue box: Figure 2-7 Installation complete Click “Finish” button, client software was installed into the system default directory and there will be a “NetView” program group on the “Start”Æ”Program” of the windows system...

  • Page 14: Video Server Parameter Configuration

    3. Video server parameter configuration There are following types of NVS-6000 video server parameter configuration: 1) Set DVS parameter via client software (connect DVS with computer via network) Set DVS parameter via IE (connect DVS with computer via network) NVS-6000 video server supports network preview, parameter setting and remote control via software and IE Use setting tool When you login the server successfully with IE, you can use the convenient setting tool provided...

  • Page 15: Video And Image Setting

    3.1. Video and image setting Notice When setting the video and picture's parameters of the 2 or 4 channels device, it will restart automatically. Video and image setting interface is displayed as following: Figure 3-2 Channel setting 3.1.1. Video attribute setting Video attribute setting includes video mode, color and definition setting ¾...

  • Page 16: Image Setting

    ¾ Definition Definition includes a 4-level definition setting of video. The left of the setting bar is the minimum value, you can easily drag the bar control to change value by mouse. For fine tuning you can use the direction key of keyboard. 3.1.2.

  • Page 17: Advanced Image Setting Skill

    ¾ Bit Rate “Bit Rate” means the amount of stream bit encoding by encoder in a second, the unit of stream rate is bps, namely bits per second. The range of stream rate is from 16k to 4096k, please note that the unit k means 1000, for example 4096k means 4096000bps, the encoder will use 4096000bps stream rate to encode video.
  • Page 18 the increasing frame rate will make the image display smoother and stream rate increasing. Conversely, the image will become discontinuous and stream rate decrease. ¾ I Frame Inv It means the number of frame P or frame B between key frames (frame I). Generally, the default value of this parameter is 25 and does not need to be changed.

  • Page 19: Osd/Mask Setting

    Bit rate) Bit rate) ADSL-upload CBR(Constant CBR(Constant invalid 768k Bit rate) Bit rate) VBR(Variable VBR(Variable set according best best unlimited Bit rate) Bit rate) condition VBR(Variable VBR(Variable set according good good unlimited Bit rate) Bit rate) condition VBR(Variable VBR(Variable set according normal normal unlimited...
  • Page 20 Figure 3-3 OSD setting ¾ Display information setting This setting achieves the characters overlay function, including date overlay, time overlay, channel description overlay, and font display. Date and time will be displayed on the top left of the preview image. Channel description displays the location with coordinate X (0~720) and Y(0~576) ¾...

  • Page 21: Audio Setting

    Figure 3-4 Video Mask zone setting 3.3. Audio setting The setting of audio is in the “Camera Setup” page. Clicking “ ” on “ ”in the “Encode Audio” means the system will encode audio and send encoded audio stream to the client via network.

  • Page 22: System Network Setting

    Figure 3-5 Audio setting 3.4. System network setting The setting is shown as following figure:...
  • Page 23 Figure 3-6 Network setting ¾ IP address IP address is the address of video server in the network, please enquire this value from your network administrator, invalid or address conflict will cause video server connection failed. ¾ Gateway Please enquire your network administrator. Subnet mask ¾...

  • Page 24: Ptz, Com Setting

    intercom request button. You need to set the IP before you start an intercom from the server. After this IP setting server will request an intercom to this IP (the machine with this IP must run our client software firstly), the intercom will start if the client agree, and otherwise the intercom will be failed.
  • Page 25 Figure 3-7 COM setting ¾ PTZ proto Choose the protocol from the pull-down menu, server supports 64 types of common protocols. You can upload your protocol if the protocol you need is not in the pull-down menu. Server supports transparent transmission, please contact us for further information about self-defined PTZ protocol.

  • Page 26: Rs232 Serial Port Parameter Setting

    3.5.3. RS232 serial port parameter setting Server supports RS232 serial port transparent transmission function, data can be transmitted from client to server via network, server send the data to the serial port. 3.5.4. PTZ management FAQ 1 Can not control dome, the possible reasons include: hardware errors for example PTZ power supply is not connected, RS485 cable connection is not correct.

  • Page 27: Video Motion Alarm Management

    3.6.1. Video motion alarm management After the video motion alarm function is enabled, when there are motions in the image at specific time and district, the video server will perform alarm operation such as JPG image capture or sensor output combination and send alarm message to client according to the action setting. Client will deal with the alarm according to the local setting.

  • Page 28: Video Loss Alarm Management

    ¾ Enable Auto Snapshot When the motion events happened, system will send alarm JPG image to all connected clients automatically. ¾ Alarm Time Set For specific time that motion events need to be detected, input the time setting value according to your conditions. ¾...

  • Page 29: Sensor Input Management

    Figure 3-9 Video loss alarm setting ¾ Alarm Time Set Input value to detect loss events in specific time according to real conditions. ¾ Linkage Alarm Out System provides 2 channels on-off camera outputs for user to connect with bells, lights, beepers etc. When video loss event happens, system will output on-off level to attached devices.
  • Page 30 Call preset of dome automatically Send alarm information to client or trigger the unconnected client connection and video opening Sensor alarm setting It is shown as following figure: Figure 3-10 Sensor input alarm setting ¾ Sensor Name The description of a sensor for easy remembering, for example “entrance”, “switch room”...

  • Page 31: Sensor Output Setting

    ¾ Enable Alarm Snapshot When the sensor trigger events happened, system will send alarm JPG image to specific client automatically. The client must be specified firstly and set its IP address in “network setting” ¾ Preset channel When the sensor is triggered, system will automatically preset dome as the “PTZ preset position”, system must connect with a preset-supporting dome and set preset position on the main interface.

  • Page 32: Pppoe&Ddns Setting

    3.7. PPPOE&DDNS setting If the server is using dial up Internet connection please set the PPPOE and DDNS here. PPPOE&DDNS setting Figure 3-12 3.8. Center platform connection setting Platform connection setting is the necessary setting of the platform surveillance for the front end device, please see the following figure:...

  • Page 33: System Setting

    Enable Register on “Center”: front end will automatically register the IP address the system assigned. Disable the item if the device does not connect with platform. Center IP: the IP address of the center platform server. Center port: the network port of the platform server. 3.9.
  • Page 34 Figure 3-13 System setting ¾ Server Time Set System provides remote video server and client time calibration function. Confirm the client device’s time and then click “set” to synchronize the time of server. ¾ Save Click “save” to save the parameter into flash of the server, unless system will use the previous settings after the restart.
  • Page 35 Figure 3-14 Choose upgrade file...
  • Page 36 Figure 3-15 Choose upgrade file Then click “Upgrade”, click “Ok” button in a pop-up box. Figure 3-16 S tart to upgrade The system will start the upgrade process. A progress bar will show the real time upgrade progress.
  • Page 37 Figure 3-17 Upgrading When the upgrade finished, there will be a status bar showing “Update success. The server will restart”. After the restart you can check if the system is the same version as your upgrade package.

  • Page 38: User Rights Setting

    Figure 3-18 Upgrade successfully ¾ Restore Restore all parameters with factory settings except network settings and password. ¾ Click “Restart” button, the server will restart. Restart 3.10. User rights setting The server supports maximum 5 users. Each user has independent rights. You can authorize rights to a user with clicking the “...

  • Page 39: Client Software Operation

    Figure 3-19 User right setting ¾ Enable User Clicking “ ” on “ ” means enable this user. Only enabled user can login the server, otherwise the login will be forbade. 4. Client software operation 4.1. System login, lock and logout 4.1.1.
  • Page 40 Figure 4-1 Login Input username, password as above figure: username and password are not necessary as default value Figure 4-2 Input username and password Click “Login” to enter the main menu...

  • Page 41: System Lock

    Figure 4-3 Main menu Main menu consists of network preview, function button, servers list and status display. 4.1.2. System lock Click button in main menu, the client window will be locked and can not continue any operation. Re-click system lock button, a dialogue box will pop up: Figure 4-4 Unlock dialogue box...

  • Page 42: System Logout

    Input username and password in the dialogue box and click ok to unlock the system. 4.1.3. System logout Click button in main menu, a dialogue box will pop up: Figure 4-5 Logout input dialogue box Input username and password and click ok to logout system. 4.2.
  • Page 43 Figure 4-6 Server management Add server:...
  • Page 44 Figure 4-7 Add server Input the parameter of server which you manage, respectively select host type, input server’s IP address, local display name, command port, additional information, if automatically login enabled, if use TRSP channel display video. Enabling automatically server login means system will use saved username and password to login the system, unless system will pop up a username and password input dialogue to verify the login.
  • Page 45 Figure 4-8 login the server Figure 4-9 Input the server’s parameters The factory settings’ username and password are admin and admin. Thus in this example we use admin, admin to login. Click “Ok” button to complete the adding process, the added servers list can be viewed in the following figure:...
  • Page 46 Figure 4-10 Video server adding completed Server modification: select server from servers list and click the modify button or double click a server to modify the attribute of a server. A window similar as the server adding window will pop up:...
  • Page 47 Figure 4-11modify server Delete the server. Select a server from the servers list and click the delete button to delete an added server. For example, in the above figure, delete the 102 serve. When the delete process completed, the system will delete the server in the main menu.

  • Page 48: User Management

    Figure 4-12 the result of 102 server deleting 4.2.2. User management Click the button in the main menu to pop up a local setting window and enter the normal setting attribute page, please refer to the figure:...
  • Page 49 Figure 4-13 User management Password setting: click “Set Password” button to pop up a username and password setting dialogue box: Figure 4-14 Username and password input box Input the new username and password and click “Ok” button to save it.

  • Page 50: Server Login

    Figure 4-15 username and password input box When the setting is completed, you have to use your new username and password to login after the logout 4.3. Server login 4.3.1. Reload server Reload automatically: system supports servers automatically search and adding by client in a same segment.

  • Page 51: Server Logout

    Figure 4-17 Server login menu Input username and password in the pop up dialogue box and click connect. Figure 4-18 Login dialogue box 4.3.3. Server logout Click server node with right mouse button and select “Close Server” from the pop up menu...

  • Page 52: Video Browse And Control

    Figure 4-19 Server logout menu 4.4. Video browse and control The system can provide professional real time surveillance function, hundreds node management, 64 image surveillance at one time supporting, multi image cyclic switch, front user grouping management supporting, and grouping switch. 4.4.1.
  • Page 53 Figure 4-20 Video channel open menu Close the video: Method 1: double click the opened video channel in the servers list to close the video. Method 2: click a video image with right mouse button and select “Close Channel” from the pop up menu as following figure:...

  • Page 54: Sound Play Control

    Figure 4-21 Video close menu 4.4.2. Sound play control Open the video server’s channel video, select video image, click button on the below of the main menu to change the corresponding icon to . Then re-click this button to close sound. Notice: please make sure the video server has already encoded audio and connected with audio input before the play.

  • Page 55: Preset Position

    Figure 4-22 Image selection menu Control button to control the PTZ Notice: please check the PTZ setting errors and PTZ device errors if the control failed. Figure 4-23 PTZ control menu 4.4.4. Preset position Open the video server’s channel video and select video image.

  • Page 56: Audio Intercom

    Add preset position: preset PTZ to a position and input number in the preset position input box, click “preset” button to complete the setting. Input number in the preset position input box, click “call” to preset the camera. Figure 4-24 Preset control menu 4.5.

  • Page 57: Video Grouping, Viewing

    Figure 4-25 Audio intercom window 4.6. Video grouping, viewing 4.6.1. Video grouping setting Click the button in main menu, in the pop up local setting menu, click “grouping switch” page, as figure:...
  • Page 58 Figure 4-26 Video grouping setting menu Add a group In the “video grouping setting menu”, click “Add” button to pop up the following dialogue box. Input the group name and click “Ok”. Figure 4-27 Input group name The group “102” you added will be displayed in the group name list...
  • Page 59 Figure 4-28 Add completely menu For each image channel setting in group “102”: after selecting “102”, select an image from the “Channel Setup” list and click the “Set” button or double click, there will be a pop up dialogue box: Figure 4-29 Server selection Select the server and channel which you want to display and click “Ok”, please see the following figure Notice: The server list only displays servers which were added and launched the automatic login...
  • Page 60 Figure 4-30 Server and channel selection Figure 4-31 A image setting completed Follow the above steps to configure the video channel of image display server, add multi groups, the result will be:...

  • Page 61: Video Grouping View

    Figure 4-32 Setting completed menu 4.6.2. Video grouping view Click the in main menu to pop up a configured group list, as figure:...

  • Page 62: Video Grouping Cyclic Switch

    Figure 4-33 Video group view Select a group and open the video of this group 4.6.3. Video grouping cyclic switch “Video grouping cyclic switch” means cyclic displaying video of each configured video group according to the time interval. Click button in main menu to start the cyclic switch. Re-click button if you need to stop the cyclic switch.

  • Page 63: Capture Setting

    4.7.1. Capture setting Storage path setting: Click button in main menu to pop up the local setting menu. Enter the “Common Setup” attribute page; choose the storage disk in the “Local Record Disk”, as following figure: Notice: system will save files to hard driver D with folders named “NVFile” if there is not storage selection.

  • Page 64: Alarm Capture

    Method 1: Select the “capture” item from the pop up menu by clicking open video image with the right mouse button. Figure 4-35 Manual capture menu Method 2: Select open video image with left mouse button, and then click button in main menu with left mouse button.

  • Page 65: Video Record

    Figure 4-36 Images view 4.8. Video record The system supports 7*24 hours record, manual record, alarm record, pre-record, local/remote record search, and record cover automatically. 4.8.1. Record setting Setting path: Click button in main menu to pop up the local setting menu, enter the “Common Setup” attribute page, and choose the storage hard driver in the “Local Record Disk”.

  • Page 66: Timer Record

    Figure 4-37 Path setting Startup pre-record: startup pre-record and set pre-record time in the “Environment” item. Set the record file packing size. Figure 4-38 Record packing 4.8.2. Timer record Click button in main menu to pop up the local setting menu, enter the “On Time Recode” attribute page as following figure:...

  • Page 67: Manual Record

    Figure 4-39 Timer record time interval setting Notice: For enabling timer record function, the video server must enable automatically login server function firstly, please refer to “server management” for details Please do not close video when you enable the timer record, otherwise the system will not record automatically.

  • Page 68: Alarm Record

    Figure 4-40 Manual record menu Method 2: click video image with left mouse button and use shortcut button “F4”. Stop record: repeat the record start operation to stop record when the system is recording. 4.8.4. Alarm record Enable alarm recode setting: Click button in main menu to pop up the local setting, enter the “Common Setup”...
  • Page 69 Figure 4-41 Enable record setting Enable combined alarm record: Enable server video motion combined record, as following figure:...
  • Page 70 Figure 4-42 Video detecting alarm combined record setting Enable server camera alarm combined record, see the figure:...
  • Page 71 Figure 4-43 Sensor alarm combined record setting Enable server video loss combined record, see figure:...

  • Page 72: Record Status Checking

    Figure 4-44 Video loss alarm combined record setting Click “More Info” button to display all combined record settings 4.8.5. Record status checking Method 1: timer record setting: click button in main menu to pup up the local setting menu, enter the “On Time Record” attribute page to check if status displaying “Running”, if yes it means it is recording currently, as the figure:...
  • Page 73 Figure 4-45 Timer record status display Method 2: open the video of the server video channel, it means it is recording if there is an icon on the image.

  • Page 74: Video Data Search

    Figure 4-46 Record status display 4.8.6. Video data search Video data search will search the path of the driver according to the storage settings. 4.9. Alarm management Alarm management includes: Enable corresponding channel record Enable local sound alarm Automatically channel pop up Alarm information display 4.9.1.
  • Page 75 Figure 4-47 Local sound alarm Set alarm sound output file Set alarm automatically pop up channel Set pop up electronic map Set alarm pop up information...

  • Page 76: Real Time Event

    Figure 4-48 Alarm combined setting 4.9.2. Real time event 1 Normally, the “Alarm Info” button in main menu is displayed as , when there is a real time alarm message happened, the “Alarm Info” button will become an alarm status icon .
  • Page 77 Figure 4-49 Real time event display 2 There will be an icon in the corresponding video window when a video channel alarm happens Figure 4-50 Video alarm display...

  • Page 78: History Event

    4.9.3. History event 5. Frequent problems If you have problems in using, please refer to following steps to check and solve them Check hardware and interface Please check you power supply firstly, and then check if your network is connected, lastly check if your cables are well connected.
  • Page 79 Solution: Contact network administrator to obtain corresponding port information e) Possible reason: unknown Solution: Reset server to the factory settings and re-connect network. The default IP address of system is 192.168.55.78 b can not control dome Possible reason: signal cable is not connected or not connected properly Solution: Re-connect control cable with dome and server c can not view normal image g) Possible reason: OS is Win98...

  • Page 80: Appendix Specs

    6. Appendix specs Codec MPEG4 H.264 Resolutions FULL- D1 PAL:720*576, NTSC:720*480 FULL- D1 PAL:704*576, NTSC:704*480 CIF PAL:352*288, NTSC:352*240 CIF PAL:352*288, NTSC:352*240 QCIF PAL:176*144, NTSC:176*120 QCIF PAL:176*144, NTSC:176*120 HALF-D1 PAL:720*288, NTSC:720*240 HALF-D1 PAL:704*288, NTSC:704*240 Video in 1~4 channel NTSC PAL auto detect 1~4 channel NTSC PAL auto detect BNC level 1.0Vp-p impedance 75Ω...
  • Page 81 Audio sample 8Kbps 16Kbps Audio intercom input Network One RS232 Serial interface One RS485 Serial interface interface Alarm input 2 channel Alarm output 2 channel Power supply DC 12V Power Less than 3.5W consumption Working -10 -- 50 temperature Working 10 --90 humidity...

  • Page 82: Appendix Factors Influencing System Capability

    7. Appendix factors influencing system capability You must consider the whole system capability issue and factors influencing your system and system optimized settings when you set up your system. Bandwidth including stream rate setting, frame rate, and too many client connections influencing frame rate is the main issue that we need to consider. Following are the common factors which will influence the server efficiency that we need to consider: Firstly is your bandwidth.
