Summary of Contents for FIELD VIEW 777HD

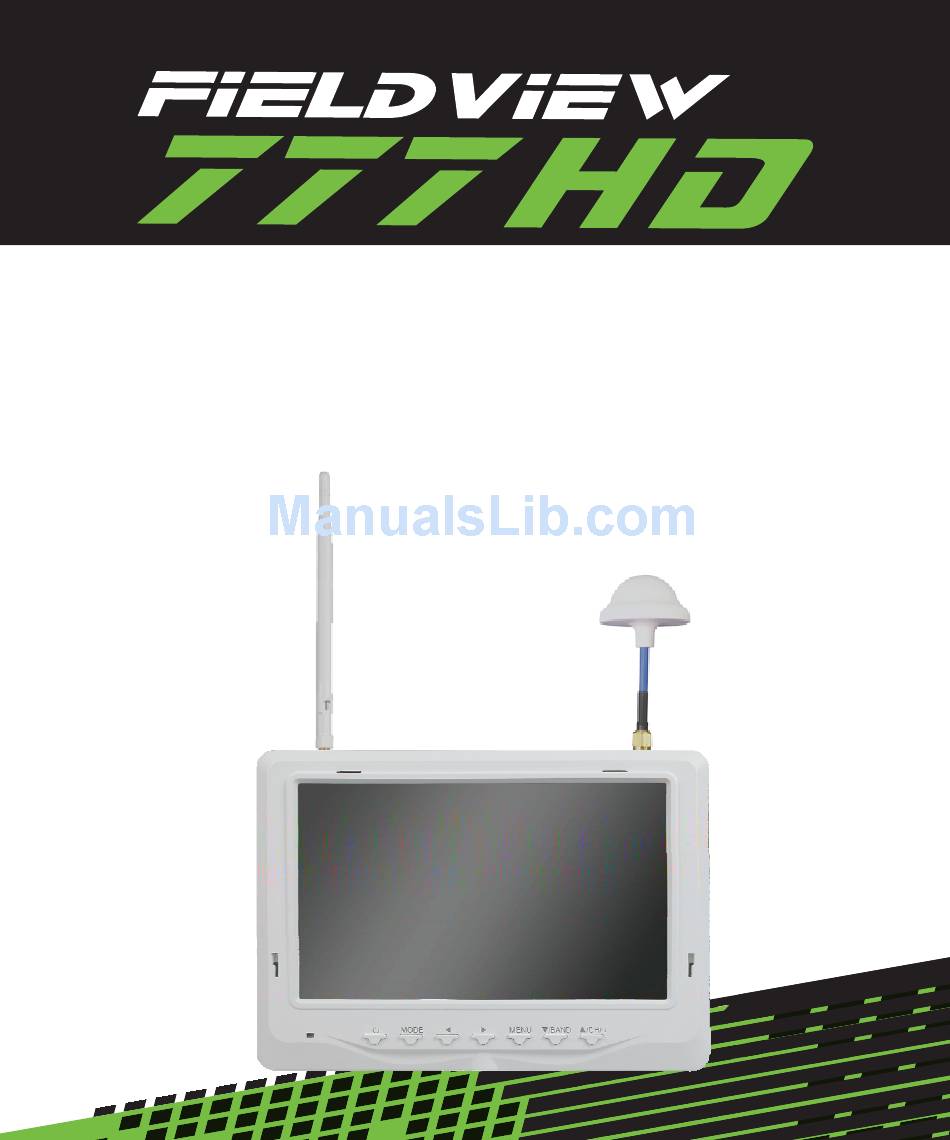

Page 1: User Manual
32 Channel Auto Searching Wireless FPV LCD Monitor with Diversity Receiver User Manual...
Page 2 ： Product description: Super Slim, Wireless FPV monitor with dual receiver. LCD monitor is a new multi-function product, adopting advanced integrated circuits and high-quality new HD LCD monitor. It integrates a high-sensitivity and auto searching of 32channels, dual 5.8GHZ AV wireless receivers, aerial receiver and high-definition monitor.
Page 3: Product Features
Product features : 1.8cm thick body Build-in 5.8 GHz wireless receiver High Sensitivity:-90dBM, 5.8GHz wireless receiver, 32 channels Auto search Non-blue screen High brightness, contrast, high resolution Built-in VIDEO/AUDIO input and output, HDMI input, Color Control Systems Headphone audio Built-in battery and rear battery plate. With VIDEO signal output function, can be used as video host, connecting multiple monitors.
Page 4: Table Of Contents
CONTENTS 1. Product description ------------------------------- 4 2. Wireless receiver operation -------------------- 7 3. Operation instruct ions --------------------------- 10 VIDEO input and output cable ------------------ 15 Sun shade installation and removal ---- 6. Power Sup ------------------------------------------ 18 Param eters -------------------------------------------- 19 Trouble shooting ---------------------------------- 21...
Page 5: Product Description
1. Product description 1.1 Front panel instruction: ４...
Page 6 : Multi button: Check Field/ Auto search/ Channel set/ up. /CH/ In RF signal state: Press this button for channel selection In HDMI / VIDEO state: shortcut key for check field. In OSD menu state: UP for OSD Menu. /BAND Multi button，...
Page 7 9. TFT screen 10. Terminal of receiver 1.2 Rear battery plate instruction: 1. USB Upgrade 2. DC OUT: DC power output. Can supply power to other additional equipment. When the machine has an external power supply, the output of the power supply voltage and the external power supply voltage is the same.
Page 8: Wireless Receiver Operation
3. DC IN: External power input. This machine can be powered by external or internal power. If you want to use another power adapter, please use a genuine power supply in the DC9-18V, ≧1.2A. Range. 4. Battery plate ：Stereo earphone jack 6.
Page 9 2.1 Channel selection: Wireless transmitter channel and receiver channel must be the same as the chart; otherwise it will not receive a signal. This unit can auto search 32 channels. (Frequency range of each region is different, please check the unit’s frequency chart below). Wireless 5.8GHz Diversity Receiver BAND CH1 5865...
Page 10 2.2 Auto Search: Turn on the monitor, press “MENU” and select “RF” signal input. ” ,“Auto Searching” will display on /CH/ Long press “ the top left corner of the screen. When the screen on the upper left corner shows the BAND:X CH:X and images, the search has finished.
Page 11: Operating Instructions
3. Operating instructions 3.1 Button instructions: MODE Input Signal selection button menu item selection for settings adjustment. Volume down and center mark button press this key for center mark on/off. If would like to make the Volume down, press “ ”...
Page 12 Multi button ，different functions in different input /BAND status: ● RF Status Manual Tuning, to switch channel A/B/E/F. VIDEO Status ● No menu shows, press this button to change 6 brightness levels 2 Menu instructions Press "MENU" to enter the menu, use the " /CH/ "...
Page 13 Color ※ Brightness: To adjust the image's brightness. ※ Contrast: To adjust the brightnest ratio of the Image. ※ Hue : On NTSC Video mode, the image color tint difference is adjustable by hue. ※ Saturation: To adjust color concentration ※...
Page 14 ※ Language: Languages for OSD as below: English 、简体中文、François、 Italia no、Deutsch Español、日本語、、 Pycc 、Portuguesa 한국의 ※ H Position：To adjust the OSD horizontal position. ※ V Position：To adjust the OSD in vertical position. ※ OSD Timeout：To adjust the clock. ※...
Page 15 ※ Display Ratio: To change the display ratio 16:9/4:3. ● Screen Markers: To adjust screen marker（off，96% ， 93%， 90%， 85%，80%） ● Centre Markers： To set centre mark (cross mark) display ● Camera: Use the Canon 5 d II or similar camera, the monitor video has a real-time image.
Page 16: Video Input And Output Cable
※ Focus: As an auxiliary function (in HDMI mode ) when used as the camera viewfinder. ※ Ver.1.1: Software version number 4. VIDEO input and output cable 3.5mm plug for VIDEO input and output. (see the picture as above) Use No.1 plug for the VIDEO input and output Yellow RCA: VIDEO input or output port Red RCA:...
Page 17: Sun Shade Installation And Removal
5. Sun shade installation and removeal ① ② Sun shade installation view ● The sun shade’s hanging clip and the monitor’s sun shade ① slot should be aligned with the hole and slide down. ② Please follow the above steps, otherwise the cover will be damaged.
Page 18 5.2 Remove: When you want to remove the shade cover from the monitor, drag up shade cover from monitor, that separates the sun shade from the monitor. ● Remove sun shade view: ① ② ③...
Page 19: Power Supply
6. Power Supply 6.1 There are two versions for power supply: ● External power supply Supply by power adapter When the monitor is connect by the DC power adapter, red light is illuminated, means is charging, after it is fully charged, then it will switch to a green light.
Page 20: Parameters
6.3 Li-ion Battery: ● The working temperature of Li-ion battery is -20~60 ℃, please don’t use the battery in places with temperatures too low or to high. The power of battery will be reduced if it is working in a low temperature environment.
Page 21 / d m Viewing angle 80°/85°(L/R) 85°/85°(U/D) Video color system PAL-4.43 / NTSC-3.58 HDMI support format 480i /480p /576i /576p 720p /1080i /1080p (50/60Hz) ≦ RF receiving frequency 5.8 G broadband FM audio and video synchronization receiving (other frequencies optional) 32 channel auto search (different frequency range for different region)
Page 22: Trouble Shooting
i l i ± 190(L)x134(W)x18(H)mm Unit size (mm) Unit weight 440g (Including the Li battery but without antenna and battery plate) Installation method 1/4 inch bracket screw holes, can be easily connected to the hot shoe mount, tripod fixed installation Build-in battery Li-ion 7.4V/2200 mA/h Working temperature...
Page 23 8.2 NO picture after Turning on the power Check signal cable contact are in good condition, a monitor is ① synchronized with the input signal, and can press the "SOURCE/EXIT" give it a try. If in the RF channel, please check to see if the transmitter has been work.
