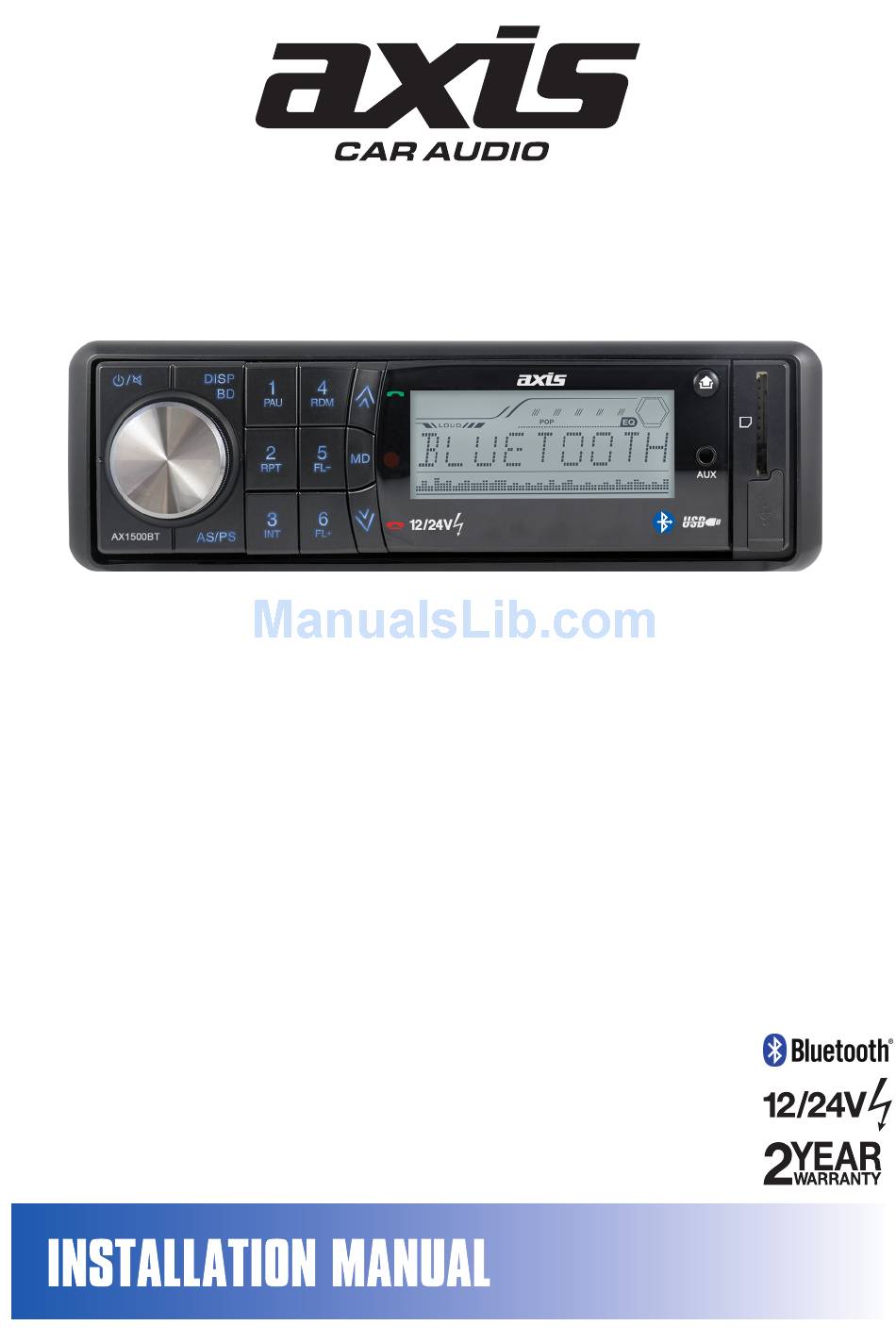

Axis Car Audio AX1500BT Installation Manual

Car bluetooth 12/24v mechless am/fm multimedia player

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

BLUETOOTH 12/24V MECHLESS

USB / SD-MMC INPUT - FRONT PANEL AUX-IN

FSTN Display for Wide Angle Views/Compact Chassis

SPECIFICATIONS:

GENERAL:

- Detachable Face Panel

- Mechless (without CD Deck)

- "Ultra Memory" Power Circuit to retain

settings when power is disconnected

- Illuminated Controls (Blue)

- FSTN Display for Wide Angle Viewing

- ISO DIN Mounting

- Mounting Depth 86mm

- Mini DIN Chassis: 178W x 50H x 86Dmm

- 12/24 Volt DC (10.8-32V) Negative Ground

- 2 Ch RCA Line Out - 5 Volt (Max)

- Speaker Impedance 4-8 Ohm

- Max Power 25 Watts x 4 Ch

MULTIMEDIA:

USB Input: Front Panel

SD / MMC Card Port: Front Panel

AUX-IN: Front Panel (3.5mm)

MP3 / WMA Player

Intro / Repeat / Random Play / Pause

Track Down / Up / Select (MP3/WMA Files)

AUDIO CONTROL:

- Rotary Encoder

- Electronic Volume / Balance / Bass / Treble

- Loud / Mute

- 4-Band DSP Settings

AM/FM MULTIMEDIA PLAYER

DESIGNED FOR AUSTRALASIAN CONDITIONS

TUNER:

- PLL Synthesized AM/FM Stereo

- Xtreme Long Range Tuner

- FM 87.5~108 MHz; AM 522~1710 KHz

- Interference Absorption Circuit

- 30 Station Presets - 18FM/12AM Memory

- Station Seek / Preset Scan / Auto Store

- Automatic or Manual Tuning

- Local / Distant Control

- Mono / Stereo

- Digital Clock

BLUETOOTH:

Bluetooth in Phone Mode

Call History

Dial Pick-Up/Call Transfer

A2DP Audio Streaming

INCLUDED:

- Remote Control

- External Microphone

- ISO Wiring Harness

- Installation Hardware

AX1500BT

Table of Contents

Need help?

Do you have a question about the AX1500BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Axis Car Audio AX1500BT

Page 1: Specifications
Track Down / Up / Select (MP3/WMA Files) - External Microphone - ISO Wiring Harness - Installation Hardware AUDIO CONTROL: - Rotary Encoder - Electronic Volume / Balance / Bass / Treble - Loud / Mute - 4-Band DSP Settings DESIGNED FOR AUSTRALASIAN CONDITIONS AX1500BT...
Page 2: Installation
INSTALLATION PRECAUTIONS • Carefully choose the mounting location so normal driving is not hindered. • Avoid installing the unit where it would be subject to high temperatures (direct sunlight or hot air from the heater) or where it would be subject to dust, dirt or excessive vibration. •...
Page 3: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE 3. DASH Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION CONNECT TO EXTERNAL MICROPHONE CONNECT TO EXTERNAL MICROPHONE ISO CONNECTOR ISO CONNECTOR...
Page 4: Control Functions
11 15 CONTROL FUNCTIONS (1-6) MODE POWER LOUD TUNE/SEEK AX1500BT BAND 11 15 (1,2,3,4,5,6) (1-6) (1,2...,9,0, LOCATIONS OF PARTS 1. POWER ON/OFF ( ) / MUTE ( MODE POWER LOUD 2. FUNCTION SELECT BUTTON:BASS/TREBLE/BALANCE/FADER / TUNE/SEEK EQ/VOLUME LEVEL/STEREO/LOUD/LOCAL/ADJUST CLOCK (SEL) 3.
Page 5: Adjust Clock
OPERATING INSTRUCTIONS POWER ON/OFF Press POWER ON button to power the unit. Press and hold to turn off. MUTE If you just press this button briefly, it will turn to MUTE. To return to sound, press it briefly again. 2. SELECT 3.
Page 6 Recall a station: 1. Select band (if needed) 2. Press a preset button for less than one second to select stored station. (B) MP3 PLAYER MODE: 1. PAUSE 2. REPEAT 3. INTRO 4. RANDOM 5. STEREO/MONO SELECTOR (ST) This function will only affect FM reception. Press this button if the FM reception becomes noisy/hissy. If the station being received is in stereo, it will now be heard in mono.
Page 7: How To Select Mp3/Wma Files
MP3/WMA CONTROL LOCATION OF PARTS 14. PAUSE BUTTON During “PLAY”, press (14) ‘PAU’ button to “PAUSE”. Press gain to resume play. Note: Press and hold PAU button to play first title on the storage medium. TRACK/SEARCH BUTTON (10) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press and release to advance to next track or to return to the beginning of the current track (track number will be displayed.) Press and hold to .
Page 8: Bluetooth Operation
functions will be available with this device. • You cannot operate USB hard drives on the device. 21. FRONT AUX IN An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket to be played back by the vehicle loudspeakers.
Page 9: Troubleshooting Guide
CAUTION & MAINTENANCE This detachable panel AM/FM car radio with MP3/WMA player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many years of enjoyment. 1. Do not touch the contacts on the front panel or the unit body. 2.
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 45 dB (1kHz) Frequency Response 60Hz - 20 kHz TUNER (FM) Frequency Range 87.5 - 108 MHz Sensitivity 2.8 µV Stereo Separation 28 dB Signal to Noise Ratio >55 dB Channel Step 100 kHz...
