Summary of Contents for Sartorius YTM15MA

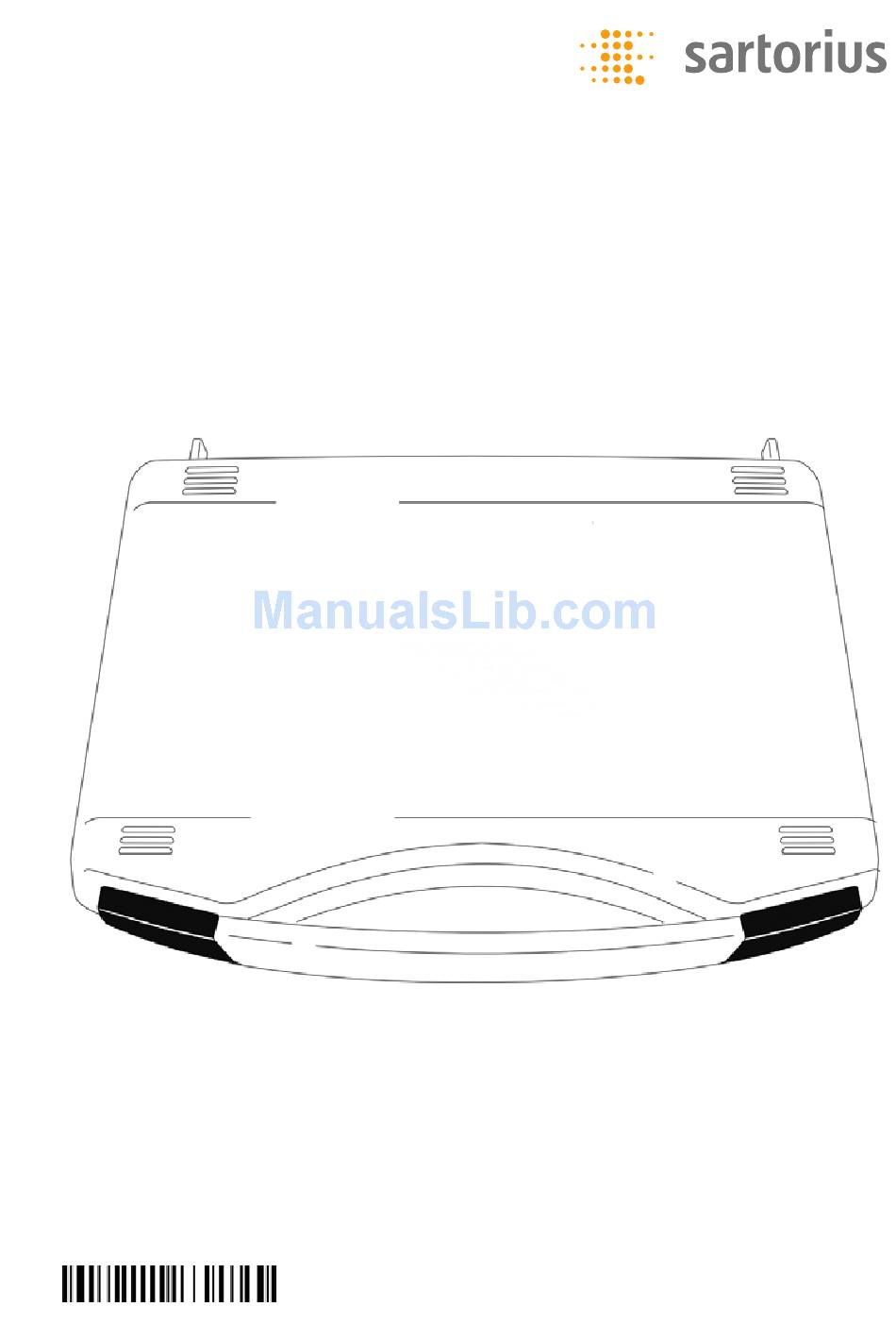

- Page 1 Operating Instructions YTM15MA Heating Adjustment Set 1000026973...
-
Page 3: Table Of Contents
2 Safety Instructions . . . . . . . . . . . . . . 5 7 Sartorius Service . . . . . . . . . . . . . . . 28 2 .1 Intended Use . -
Page 4: About These Instructions
1.3.1 Warnings CAUTION Denotes a hazard that may result in moderate or minor injury if it is not avoided . NOTICE Denotes a danger that can result in property damage if the risk is not avoided . Operating Instructions YTM15MA... -
Page 5: Other Symbols
. Personal Protective Equipment Personal protective equipment protects against risks arising from handling the product . Wear appropriate personal protective equipment . Also follow the instructions posted in the work area pertaining to personal protective equipment . Operating Instructions YTM15MA... -
Page 6: Hot Surfaces
Allow the adjustment disk to cool on a clean, temperature-resistant pad before or after completion of a measurement . After cooling, place the adjustment disk back into the carrying case and store it in a dust-free and protected location . Wear personal protective equipment . Operating Instructions YTM15MA... -
Page 7: Installation
Installation Installation Equipment Supplied Fig . 3-1: Equipment Supplied Pos. Product Quantity Carrying case Temperature measuring instrument Adjustment disk Battery Disk holder (removal tool) Operating Instructions YTM15MA... -
Page 8: Inserting The Battery
If calibration is carried out, then this must be calibrated in the ambient conditions present . E .g .: If the moisture analyzer is operated in a room with exhaust, then the moisture analyzer must also be calibrated at this place of use . Operating Instructions YTM15MA... -
Page 9: Transporting And Removing
Allow the adjustment disk to cool on a clean, temperature-resistant pad before or after completion of a measurement . Only place the adjustment disk back into the carrying case after cooling . Wear personal protective equipment . Operating Instructions YTM15MA... - Page 10 Remove the adjustment disk using the disk holder Squeeze the disk holder on the underside and place centrally on the adjustment disk . Release the disk holder . The disk holder is connected with the adjustment disk . Transport the adjustment disk . Operating Instructions YTM15MA...
-
Page 11: Need For Calibration/Adjusting
. After the calibration/adjustment of the heating module, carry out another performance test . If the performance test is again failed after calibration/ adjustment of the heating module, please contact Sartorius Service . Operating Instructions YTM15MA... - Page 12 Device should be tested performance Test Test failed Test OK? Weighing system tested? Heating Module Weighing System Calibration/ Calibration/ Device is OK . Adjustment Adjustment Fig . 3-2: Process of testing the heating module MA37 | MA160 Operating Instructions YTM15MA...
-
Page 13: Calibrate Heating Module
. The calibration takes at least 50 minutes . System Requirements − At least 30 minutes have passed since the last application measurement . − The device has cooled down with the hood open . Operating Instructions YTM15MA... - Page 14 Adjusting the Weighing System Cal . / Adjust . of the heating module Calibration Report Press the [Calibration] key . Cal./Adjust. of the heating module Calibration Calibration and Adjustment Open the hood . Remove the sample pan if necessary . Operating Instructions YTM15MA...
- Page 15 (specification in Calibrating the heating percent) . Heating temperature 140°C Stabilization phase: 14% Wait for the end of the stabilization phase . After the end of the stabilization phase, the device emits a beep . Operating Instructions YTM15MA...
- Page 16 Actual value 143.20°C Deviation 3.20°C The result of the calibration can subsequently be called up at any time via the menu Settings -> Calibration/Adjustment -> Calibration Report -> Heating Calibration . Switch off the temperature measuring instrument . Operating Instructions YTM15MA...
-
Page 17: Calibrate/Adjust Heating
100 minutes . System Requirements − At least 30 minutes have passed since the last application measurement . − The device has cooled down with the hood open . Procedure Call up the setup menu [Settings] . Operating Instructions YTM15MA... - Page 18 Adjustment] key . Calibration Calibration and Adjustment Confirm the query or cancel the process . Calibration/Adjustment The changes to the heating parameters may influence your saved methods. Open the hood . Remove the sample pan if necessary . Operating Instructions YTM15MA...
- Page 19 Heating Module a stabilization phase (specification in Adjustment percent) . Heating temperature 100°C Stabilization phase: 23% Wait for the end of the stabilization phase . After the end of the stabilization phase, the device emits a beep . Operating Instructions YTM15MA...
- Page 20 Assess the results and perform an Carry out adjustment? adjustment if necessary . Date and time 2016-04-07 09:43 Target value 1 100°C Actual value 1 95.50°C Deviation 1 -4.50°C Target value 2 180°C Actual value 2 180.20°C Deviation 2 0.20°C Operating Instructions YTM15MA...
- Page 21 Page 9 . Remove the adjustment disk from the pan retainer using the disk holder (removal tool) and leave to cool on a temperature-resistant pad . The calibration and adjustment of the heating module is now complete . Operating Instructions YTM15MA...
-
Page 22: Single-Point Temperature
Confirm "CAL" (display) with the "ENTER" key . Select the "PH" function (heating calibration) with the cursor keys, and confirm with [ENTER] . "TAR" appears on the display . To tare the device: Press the [Enter] key . Operating Instructions YTM15MA... - Page 23 . To confirm the correction: Hold down the [ENTER] key . A printout is generated . If no correction entry with a confirmation is made before 100 minutes, the calibration cancels automatically with "Err C ." Operating Instructions YTM15MA...
- Page 24 The table is required to establish comparability to the old measurement disk technology of the YTM01MA: The coating of the adjustment disk from the YTM15MA heating adjustment set absorbs considerably more heat than the old measurement disk technology of the YTM01MA .
- Page 25 100 .33 56 .88 79 .00 100 .33 57 .67 79 .79 101 .12 58 .46 80 .58 101 .91 59 .25 81 .37 102 .70 60 .04 82 .16 103 .49 60 .83 82 .95 104 .28 Operating Instructions YTM15MA...
- Page 26 140 .62 120 .08 141 .41 120 .87 142 .20 212 .66 142 .99 122 .45 143 .78 122 .45 144 .57 123 .24 145 .36 124 .03 146 .15 124 .82 146 .94 125 .61 147 .73 Operating Instructions YTM15MA...
-
Page 27: Cleaning And Maintenance
. Maintenance The adjustment disk should be inspected annually if used frequently (> 1x/week) . Send the adjustment disk with complete heating adjustment set to Sartorius Service . Waste Disposal Policy General Instructions The equipment, including accessories and empty non-rechargeable and rechargeable batteries, does not belong in your regular household waste;... -
Page 28: Waste Disposal Policy
. Contact Sartorius Service for this purpose . In countries that are not members of the European Economic Area (EEA) or where no Sartorius subsidiaries or dealerships are located, please contact your local authorities or a commercial disposal operator . -
Page 29: Factory Calibration Certificate
Factory Calibration Certificate (Sample) Factory Calibration Certificate (Sample) Werkskalibrierzertifikat Factory Calibration Certificate Messobjekt: Heizungsabgleichset (YTM15MA) Messobjekt: Temperatur-Messgerät ( GMH175 ) Test object: Heating Adjustment Set (YTM15MA) Test object: Thermometer (GMH 175 ) 1234567890 1234567890 Seriennummer: Seriennummer: Serial number: Serial number: Prüfmittel-Nr: Prüfmittel-Nr:... - Page 30 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49.551.308.0 Fax: +49.551.308.3289 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
