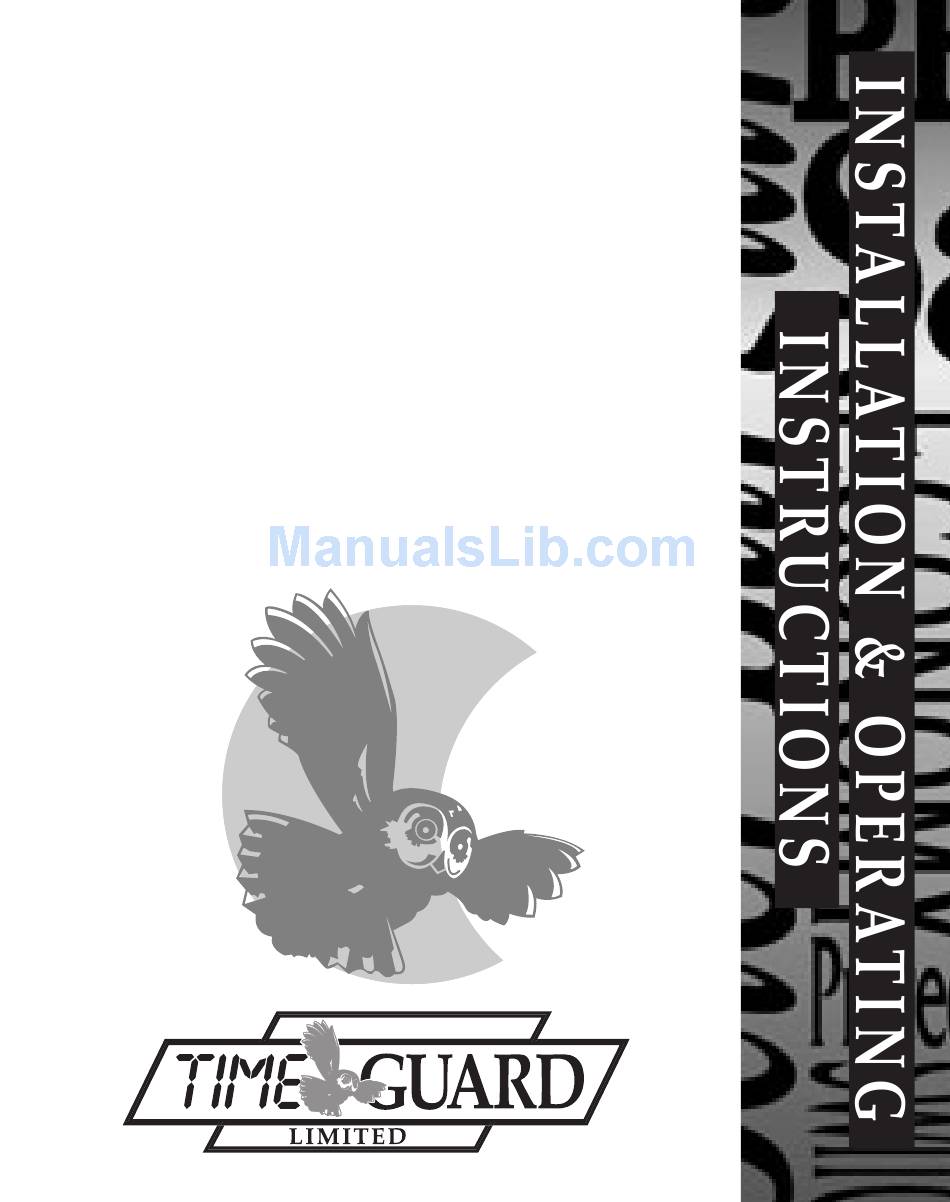

- Page 1 MOTION DETECTOR/ALARM Cat No. TG115 MOTION DETECTOR/ALARM WITH REMOTE CONTROL Cat No. TG115R...
- Page 2 TG115 - Motion Detector/Alarm TG115R - Motion Detector/ Alarm with Remote Control Please read the instructions before using the product and retain for future use. High I.R. detector intensity lamp 100dB alarm Arm/ PIR lens chime/off switch TG115 Fig 1...
- Page 3 TG115R Introduction This motion detector/alarm comes in two variations – with remote control (TG115R) and without (TG115). The function of the main unit is the same in either case apart from a PANIC function available on the remote control version.
- Page 4 Battery Installation/Change Main Unit - Remove the cover retention screw (see fig 2). Press sown on the battery compartment cover (as shown in fig 2) and slide outwards in the direction of the arrows. Remove the old batteries if necessary and install 4 new alkaline AA batteries.
- Page 5 Remote Control - Press down as shown in fig 3 and then slide out. If necessary remove the batteries from the compartment and insert 3 new SR44 silver oxide batteries with polarities as shown in fig 3. Engage the catch and the lugs on the battery compartment cover under the case and case slides respectively and push the cover home.
-
Page 6: Points To Note
• Do not locate near radiators or heaters. • Do not locate near fans. Installation The TG115/TG115R is a wall mounted unit and has a PIR detection range of between 5 and 7m across a 90° angle (see fig 4). It should be mounted 1.5 to 2m above floor level. - Page 7 Choose a position where an intruder would be most likely to pass across the face of the unit. Having decided on a position mark and drill a single fixing hole. Fit the plug (if necessary) and screw provided. The screw (with head left 2.5mm proud of the fixing surface) engages with the keyhole fixing on the back of the case (see fig 2).
- Page 8 Operation (Without Remote - TG115) Arming Slide switch to ARM and 3 short bleeps will be heard in confirmation. 60 seconds later (allowing for PIR stabilisation and user exit) a single bleep will be heard indicating the system is ready for detection.
- Page 9 Chime Switch to CHIME and the unit will respond to detection by sounding a two tone chime after the 60 second PIR stabilisation period. This is particularly useful for carrying out a "walk" test of the detection area prior to putting the unit into use and periodically during the unit’s life to maintain confidence.
-
Page 10: Panic Button
Disarming Press the DISARM button. Panic Button Press the PANIC button to summon help in an emergency and the alarm will sound for a 30 second period and then stop. It may be stopped before this by pressing the DISARM button. Trouble-Shooting Guide Unit will not arm or chime: Remove the main unit batteries, wait for 3... -
Page 11: Year Guarantee
3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge. - Page 12 HELPLINE 020-8450-0515 For a product brochure please contact: Timeguard Ltd. Victory Park, 400 Edgware Road, London NW2 6ND 020-8452-1112 or email csc@timeguard.com...
