User Guide

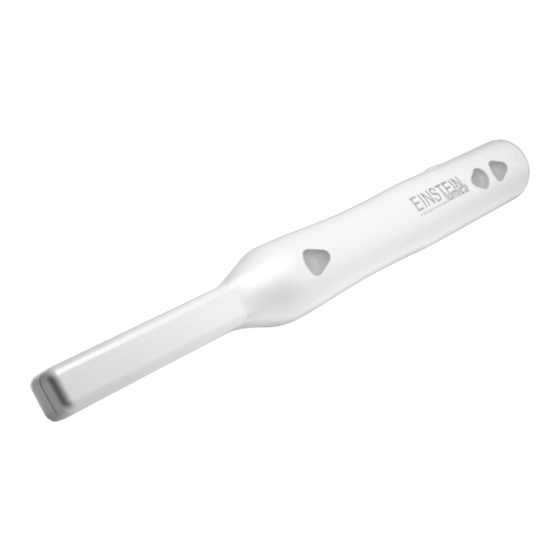

Thank you for purchasing the wireless digital intraoral camera, Einstein Lumica.
This document includes the important information to ensure the safe usage of
Einstein Lumica. Before using the camera, please read this instruction guide
thoroughly and safety information carefully.
It may not be covered under its warranty if the repair is required
due to the failure caused by your intention or when the camera is
used under the abnormal conditions.
Contents
......................................................... 2
................................................... 3
................................................... 3
................................................... 4
.......................................... 5
PACKAGED ITEMS
Please confirm that all items shown below are included in the package.
If you find any part missing, defective, or damaged, please contact us.
EINSTEIN Lumica Unit (x1)
Battery Pack (x1)
....................................... 1
................................. 2
........................ 3
........................... 3
........................... 6
.............................. 7
..................... 7
Magnet Sheet for Charging Stand (x1)
*Please place this at the bottom of charging stand to stabilize it.
................................................... 9
................................................... 11
............................................. 13
Charging Stand (x1)
.............................. 8
.............................. 8
..................... 10
........................... 12-13
....................................... 13
Lens Protective Sheets
(x5 sheets)
Disposable Covers
(x100 sleeves)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMICA and is the answer not in the manual?

Questions and answers

Summary of Contents for Einstein LUMICA

  • Page 1: Table Of Contents

    User Guide Thank you for purchasing the wireless digital intraoral camera, Einstein Lumica. This document includes the important information to ensure the safe usage of Einstein Lumica. Before using the camera, please read this instruction guide thoroughly and safety information carefully.

  • Page 2: Warnings And Cautions

    WARNINGS AND CAUTIONS Basic Warnings ■ Do not dismantle or modify the product. • Do not open the main unit case. It is dangerous to touch the internal components, and may cause damages. • If the product case is opened, the product warranty is voided regardless of the remaining warranty term. ■...

  • Page 3: Precautions For Safe Usage

    【 Bottom view 】 Einstein Lumica contains the onboard CPU, and all operations are controlled by it. Therefore, there my be an occasion that it freezes (stops working) similar Reset Button to a computer. If it freezes or stops working, turn off the camera by pressing the reset button located on the bottom of the camera with a fine-tipped object;...

  • Page 4: Basic Operation

    BASIC OPERATION Attaching Lens Protection Sheet Make sure to attach a lens protective sheet prior to use (refer to another instruction to see how to attach the sheet). This sheet is to avoid any dust to contact the lens. ■ It may cause a blurry image *It does not require to be replaced every time.

  • Page 5: Sleep Mode

    Sleep Mode The sleep mode is to save the consumption power of the unit by turning off the camera function on the unit while keeping the captured images on its on-board memory. The camera goes into the sleep mode when: OFF ! 1）Sliding the power switch to “SLEEP”.

  • Page 6: Capturing Images

    Capturing Images 1. Turn on the power and confirm the white LEDs are on. Bring the tip of the camera closer to the object. 2. Push the Rec button. * You may want to change the display mode to display the image in the preferable way.

  • Page 7: Reviewing Captured Images

    Reviewing Captured Images Pushing Sub Buttons turns the captured images OFF! forward or backward forward or back captured image. *The LEDs turn off while reviewing the captured LEDs turn off LEDs turn off images. Push Sub Button 1 Push Sub Button 2, Push Sub Button 1, to view the stored images to view the stored images...

  • Page 8: Deleting Captured Images

    Deleting Captured Images The message “Delete?” will appear when you hold down the Rec Button for a second. For deleting, push Sub Button 1. For canceling, push Sub Button 2. *For going back to the Capture Mode, push the Rec Button once. DELETE? DELETE? The next image will appear in place of the deleted image.

  • Page 9: Changing Display Setting

    CHANGING DISPLAY SETTING The live display in Captured Mode can be switched to mirror image by pushing Sub Button 2. The display mode changes from normal, mirror, reflection (vertical), and 180 degree rotation as you push Sub Button 2. By pushing Rec Button, it captures the image in a direction that the image is displayed. Normal Mirror Reflection...

  • Page 10: Recharging

    Charging Stand ① Plug the AC adaptor into the power outlet. ② Place the Einstein Lumica onto the charging stand. (The operation LED lights up to indicate it is charging*.) ③ It takes approximately 2 hours to complete the charge.

  • Page 11: Transferring Images Wirelessly

    TRANSFERRING IMAGES WIRELESSLY To use with hard disc recorders or computers, it is recommended to use RF receivers. Viewing on a TV Connect our wireless video microwave receiver Morse typeS into any device equipped with a video input; TV, video printer, etc., to view images. wireless To a video input ［Camera］...

  • Page 12: After Use

    AFTER USAGE Do not reuse the same disposable cover each time. Keep this product clean by cleaning up in the following way: ■ Maintenance and Cleaning • Do not use any chlorine bleach or a volatile organic solvent, like benzene or thinner, or a     chemical fiber duster.

  • Page 13: Q & A (Troubleshooting)

    (stops working) similar to a computer. For such case, press the button. reset button with fine-tipped object to reset the unit. Be aware that pressing the reset button will erase all stored images in Einstein Lumica. (Refer to Page 2 for more details.)

  • Page 14: Specifications

    ■ The battery may be worn out The charge does not hold (the estimated life expectancy is 1 year). even for 5 minutes. There is a life span for any rechargeable battery. If the run time drastically decreases even with the full charge, the battery may be worn out.
