Summary of Contents for RuarkAudio R1mk3

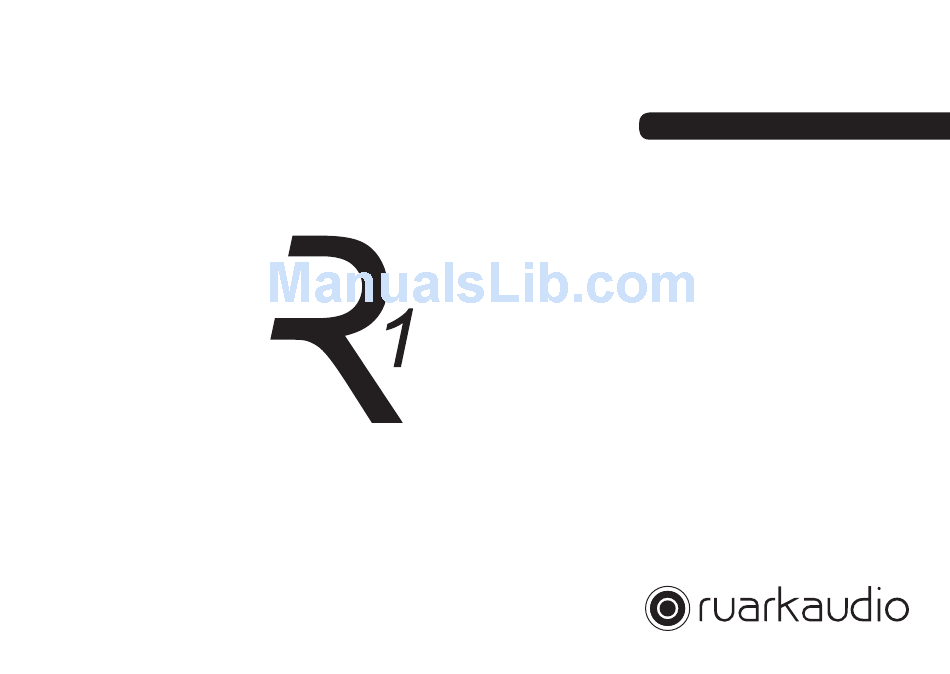

- Page 1 User guide User guide Brugervejledning Bedienungsanleitung Guía del usuario Guide de l’utilisateur Manuale dell’utente Gebruikershandleiding Brukerveiledning 사용자 가이드 Tabletop Radio R1mk3...
-
Page 2: Table Of Contents
Contents What’s in the box Overview Thank you for choosing our R1 tabletop radio. Controls Please take the time to read this user guide as it Getting started will help you get the best from your radio. Specifications Common functions and system settings With due care, we’re confident your R1 will give Alarms, snooze and sleep you many years of listening pleasure but, should... -
Page 3: What's In The Box
What’s in the box Ensure that all the parts listed below are in the box. If any part is missing, do not use the R1. If purchased in the UK, contact us directly. If purchased outside the UK, please contact your Ruark Audio dealer. -
Page 4: Overview
Overview Controls Display Full range 3.5” speaker 10. Aerial socket 11. 5W 1.0A USB power output for charging external devices 12. DC power socket (14V 1.5A) 13. Line in socket (3.5mm jack) 14. Headphone socket (3.5mm jack) 15. Security slot 1.0A USB LINE IN CHARGE PORT... -
Page 5: Controls
Controls (STANDBY) – press to power on or off the radio. (Press and hold for two seconds to turn it on when running off a BackPack battery.) 17. CONTROL KNOB / SELECT Rotate to adjust volume from a Now-playing screen Rotate to browse menu options* Press to select (NEXT) -
Page 6: Getting Started
Getting started EN-6... -
Page 7: Specifications
Specifications 1. Fit aerial Connect the aerial to the socket on the back of your R1 and tighten R1 Tabletop Radio the nut with the spanner. If you do not tighten the nut, the aerial • DAB / DAB+ / FM with RDS may come lose when moving the aerial. -
Page 8: Common Functions And System Settings
Common functions and system settings Switch on and to standby Menu screens Press to turn your radio on. Press again to switch to The menus enable you to set the various options such standby. To switch it on when running off a BackPack as adjusting the bass and treble. - Page 9 Adjust volume Save preset Rotate the CONTROL KNOB from any Now-playing Press and hold PRESET for two seconds, rotate the screen. CONTROL KNOB to choose the preset number, then press the knob to save the current station. Presets are Speaker volume and headphone volume are adjusted either marked with the station name, frequency or as separately, so when headphones are plugged in the ‘(Empty)’.
-
Page 10: Bass And Treble
Connect a Bluetooth device Date and time Your R1 will attempt to automatically connect to the MENU > System > Date and time last connected device. If you have not yet paired your The time and date are automatically synchronised with device or the previous device is not available, your R1 national time signals broadcast over DAB and FM (when will enter into pairing mode. -
Page 11: Alarms, Snooze And Sleep
Alarms, snooze and sleep Setting an alarm Quickly turn alarms on and off An active alarm is indicated by the alarm icon (27) and Press ALARM once for alarm 1 and twice for alarm 2, then rotate the CONTROL KNOB to choose On or Off, when it sounds, the icon flashes. -
Page 12: Bluetooth
Bluetooth Your R1 radio is Bluetooth enabled and can receive It may take a few seconds for your R1 to appear in the music streamed from a Bluetooth smartphone, tablet or list on your device, and in some cases you may need to laptop. -
Page 13: Adjust Volume
This is typically up to 10 metres (30 feet) from your R1, For help with using Bluetooth, please visit although obstructions such as walls may reduce this. www.ruarkaudio.com/support Adjust volume The volume of your R1 and Bluetooth device are linked so you can control the volume of your R1 during Bluetooth playback by adjusting the volume on your device. -
Page 14: Dab Radio
DAB radio Your R1 radio receives DAB / DAB+ digital radio and Once the station list is displayed, you can scroll through displays information about the station and programme the list by rotating the CONTROL KNOB and selecting a being broadcast. station by pressing the knob. -
Page 15: Secondary Services
Secondary services Station scan Some DAB radio stations have one or more secondary If the station list is empty the radio will automatically stations associated with them. If a secondary station is perform a full scan as soon as you switch to DAB. available ‘>>’... -
Page 16: Fm Radio
FM radio FM radio text (RDS/RBDS) Your R1 radio receives analogue radio from the FM band and, when available, displays the station name and radio Each time you press INFO, the next set of information is text using RDS (Radio Data System) information. displayed, cycling through radio text, programme type, frequency, signal strength and date. -
Page 17: Line In
Your R1 is fully compatible with the Ruark R1 BackPack Headphones battery. See www.ruarkaudio.com To save power, your R1 will switch off completely rather Connect your headphones to the 3.5mm stereo jack than go into standby when running on battery. To turn socket (14) on the back of your R1. -
Page 18: Safety And Regulatory Information
Safety and regulatory information ● Read this user guide and follow all instructions, it will help you set ● Avoid exposure to extreme heat or cold. up and operate your product properly. ● Only use attachments/accessories specified for this device. Make ●... - Page 19 harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not This device is labelled in accordance with European Directive installed and used in accordance with the instructions, may cause 2002/96/EC concerning waste electrical and electronic harmful interference to radio communications.
-
Page 20: Guarantee Information
Should you experience a problem please contact us via our website ● Natural wood finish cabinets will vary and lighten or darken with age, www.ruarkaudio.com or by calling directly on 01702 601410 where we particularly when exposed to sunlight. will advise the course of action. If your product needs to be returned it should be packaged in its original packing along with proof of purchase.
