Summary of Contents for ScanCool SHC 2000

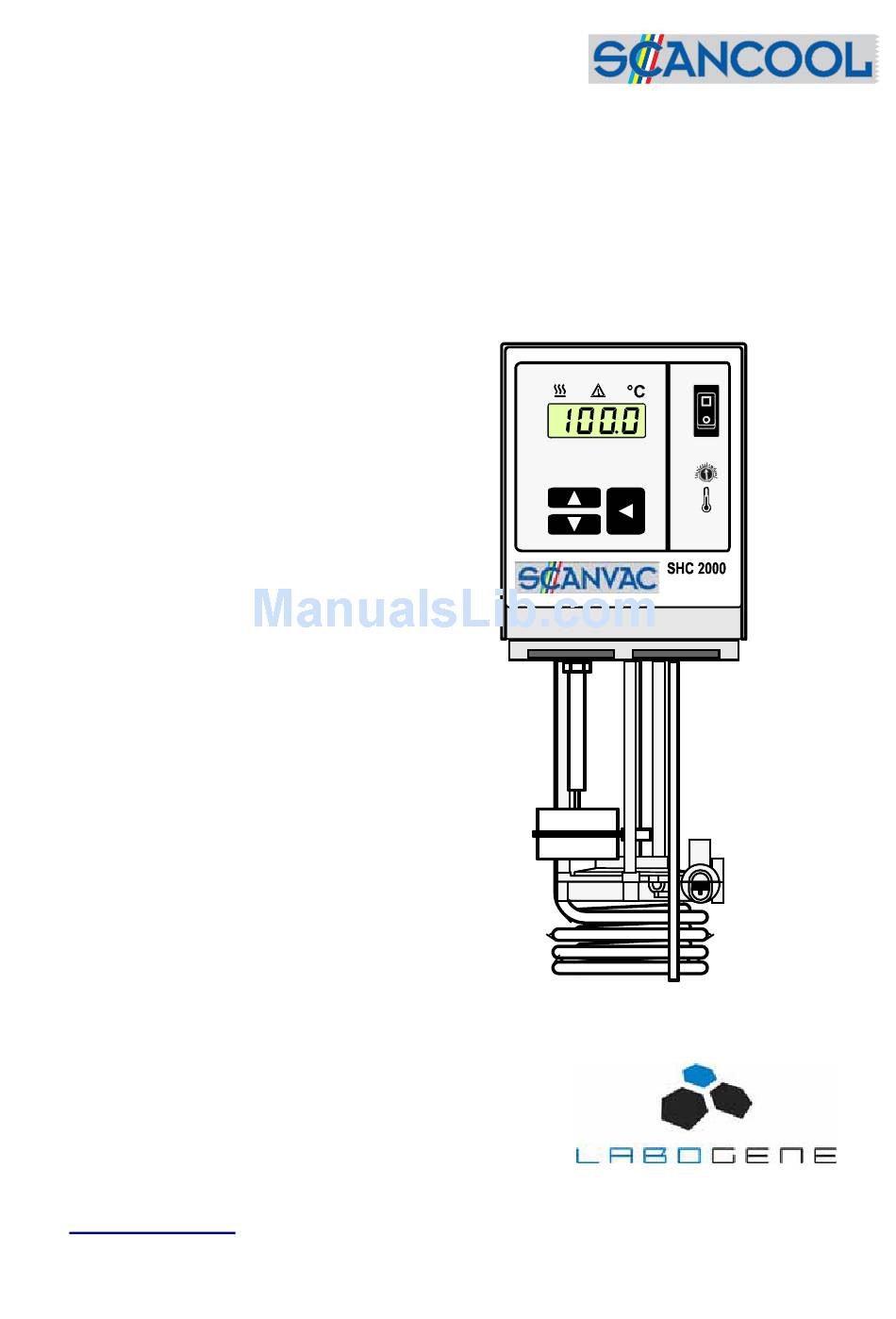

- Page 1 Operating Manual Circulator SHC 2000 © Copyright 2009 – version November 2009. LaboGene ApS Nøglegårdsvej 20 Vassingerød DK-3540 Lynge. Tel: +45 3940 2566; Mobil: +45 3016 0990; Fax: +45 4498 1741 info@labogene. Mail: com; 9.900.900.719 SHC2000-manual-111609...
- Page 2 Congratulations! You have made an excellent choice. ScanCool thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the principles of operating and possibilities of our circulators. For optimum utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.
-
Page 3: Table Of Contents
SHC 2000 TABLE OF CONTENTS Operating manual ......................4 Description .........................4 Operator responsibility – Safety recommendations ...........4 Technical specifications .....................7 Operating instructions ....................9 Operating controls and functional elements............9 Safety notes for the user ..................10 Preparations......................10 3.1. Installation ......................10 3.2. Bath fluids.....................11 3.3. -
Page 4: Operating Manual
SHC 2000 Operating manual Description The circulators SHC 2000 are designed for temperature application to specific fluids in a bath tank. The circulators are operated via the splash-proof keypad. The implemented microprocessor technology allows to set and to store the setpoint that can be indicated on the LED temperature display. -
Page 5: Shc2000-Manual
SHC 2000 ScanCool Contact Nøglegaardsvej 20 Vassingerød 3540 Lynge Denmark Handling: You received a product conceived for industrial use. Nevertheless, avoid strikes to the housing, vibrations and damages to the keypad foil (keys, display) or contamination. Make sure the product is regularly checked for proper condition. Regularly check (at least every 2 years) the proper condition of the mandatory, warning, prohibition and safety labels. - Page 6 Warning label W26: Colours: yellow, black Hot surface warning. (The label is put on by ScanCool ) Observe the instructions in the manuals for instruments of a different make that you connect to the circulator, particularly the respective safety recommendations. Also observe the pin assignment of plugs and technical specifications of the products.
-
Page 7: Technical Specifications
SHC 2000 Technical specifications SHC 2000 Working temperature range °C 20 ... 150 Operating temperature range °C -35 ... 150 Temperature stability °C ±0,01 Temperature selection digital Temperature indication Resolution °C Temperature control Heater wattage (at 230 V) Heater wattage (at 115 V) Pump capacity Flow rate. - Page 8 SHC 2000 Safety installations according to IEC 61010-2-010: Excess temperature protection adjustable from 0 °C ... 170 °C Low liquid level protection float switch Classification according to DIN 12876-1 class III Alarm message optical + audible (permanent) Environmental conditions according to IEC 61 010-1: Use only indoor.
-
Page 9: Operating Instructions
SHC 2000 Operating instructions Operating controls and functional elements Front view Rear view Mains power switch, illuminated Edit keys (increase/decrease setting) Enter key (store) LED temperature display, menu indication Control indicator –Heating Control indicator – Alarm Adjustable excess temperature protection according... -
Page 10: Safety Notes For The User
SHC 2000 Safety notes for the user In addition to the safety warnings listed above, warnings are posted throughout the manual. These warnings are designated by an exclamation mark inside an equilateral triangle. „Warning of a dangerous situation (Attention ! Please follow the documentation).“... -
Page 11: Bath Fluids
The maximum permissible viscosity is 30 mm Notice: Please contact ScanCool before using other than recommended bath fluids. ScanCool takes no responsibility for damages caused by the selection of an unsuitable bath fluid. Unsuitable bath fluids are liquids which e.g. -
Page 12: Tubing
SHC 2000 The following questions shall help to recognize possible dangers and to reduce the risks to a minimum. • Are all tubes and electrical cables connected and installed? Note: sharp edges, hot surfaces in operation, moving machine parts, etc. -
Page 13: Adjusting The Pump Flow
SHC 2000 3.4. Adjusting the pump flow The pump flow is pre-adjusted in the factory and can be modified to suit user requirements. • Using a screwdriver turn the screw (1) anti-clockwise by 360 °. • Using flat pliers turn the marking of the slide (2) to the desired position. -
Page 14: Switching On / Start - Stop
SHC 2000 4.2. Switching on / Start - Stop • Switching on: Turn on the mains power switch (1). The unit performs a self-test. All segments of the 4-digit LED temperature DISPLAY and all indicator lights will illuminate (as illustrated on the left). -
Page 15: Automatic / Non-Automatic Start Mode
AUTOSTART on. AUTOSTART off. NOTE: The circulator has been configured and supplied by ScanCool according to N.A.M.U.R. recommendations. This means for the start mode, that the unit must enter a safe operating state after a power failure (non-automatic start mode). This safe operating state is indicated by „OFF“... - Page 16 SHC 2000 1. Turn on the circulator with the mains switch. 2. Start the unit Press enter for about 4 seconds. 3. Start the calibration: Press the hidden key and the key at the same time. The controller attempts to heat up to the working temperature (30 °C).The LED temperature DISPLAY...
-
Page 17: Timer Function
SHC 2000 4.6. Timer function With the timer function the operating time can be limited to an allowed time. 4.6.1. Setting the time The setting can only be made in the Stop status. Calling the timer function: Factory setting: Hold the Enter key pressed and activate the edit key shortly. -
Page 18: Safety Installations According To Iec 61010-2-010
SHC 2000 Safety installations according to IEC 61010-2-010 5.1. Excess temperature protection This safety installation is independent of the control circuit. When the temperature of the bath fluid has reached the safety temperature, a complete shutdown of the heater and pump is effected. -
Page 19: Troubleshooting Guide / Error Messages
SHC 2000 Notice: Check the safety installations at least twice a year! • Excess temperature protection according to IEC 61010-2-010 With a screwdriver turn back the adjustable excess temperature protection until the shut-down point (actual temperature). • Low level protection according to IEC 61010-2-010 To check the function of the float, it can be manually lowered with a screwdriver for example. - Page 20 SHC 2000 • The excess temperature value lies below the working temperature setpoint. Set the excess temperature to a higher value. • Cable of the excess temperature sensor interrupted or short- circuited. After eliminating the malfunction, press the mains power switch off and on again to cancel the alarm state.
-
Page 21: Safety Recommendations
SHC 2000 Safety recommendations Follow the safety recommendations to prevent damage to persons or property. Further, the valid safety instructions for working places must be followed. • Only connect the unit to a power socket with earthing contact (PE –... -
Page 22: Cleaning / Repairing The Unit
The circulator is designed for continuous operation under normal conditions. Periodic maintenance is not required. The tank should be filled only with a bath fluid recommended by ScanCool . To avoid contamination, it is essential to change the bath fluid from time to time. Repairs: Before asking for a service technician or returning a circulator for repair, please contact an authorized service station. - Page 23 Declaration af Conformity We declare under our responsibility, that the following product Model: SHC2000 to which this declaration relates is in conformity with the following standard(s) directives or other normative document(s): DS/EN ISO 12100-1: 2003 Safety of machinery (basic concepts – General principles) DS/EN ISO 12100-2: 2003 Safety of machinery (Technical principles and specifications) EN 60204-1: 2006 Safety of machinery...
