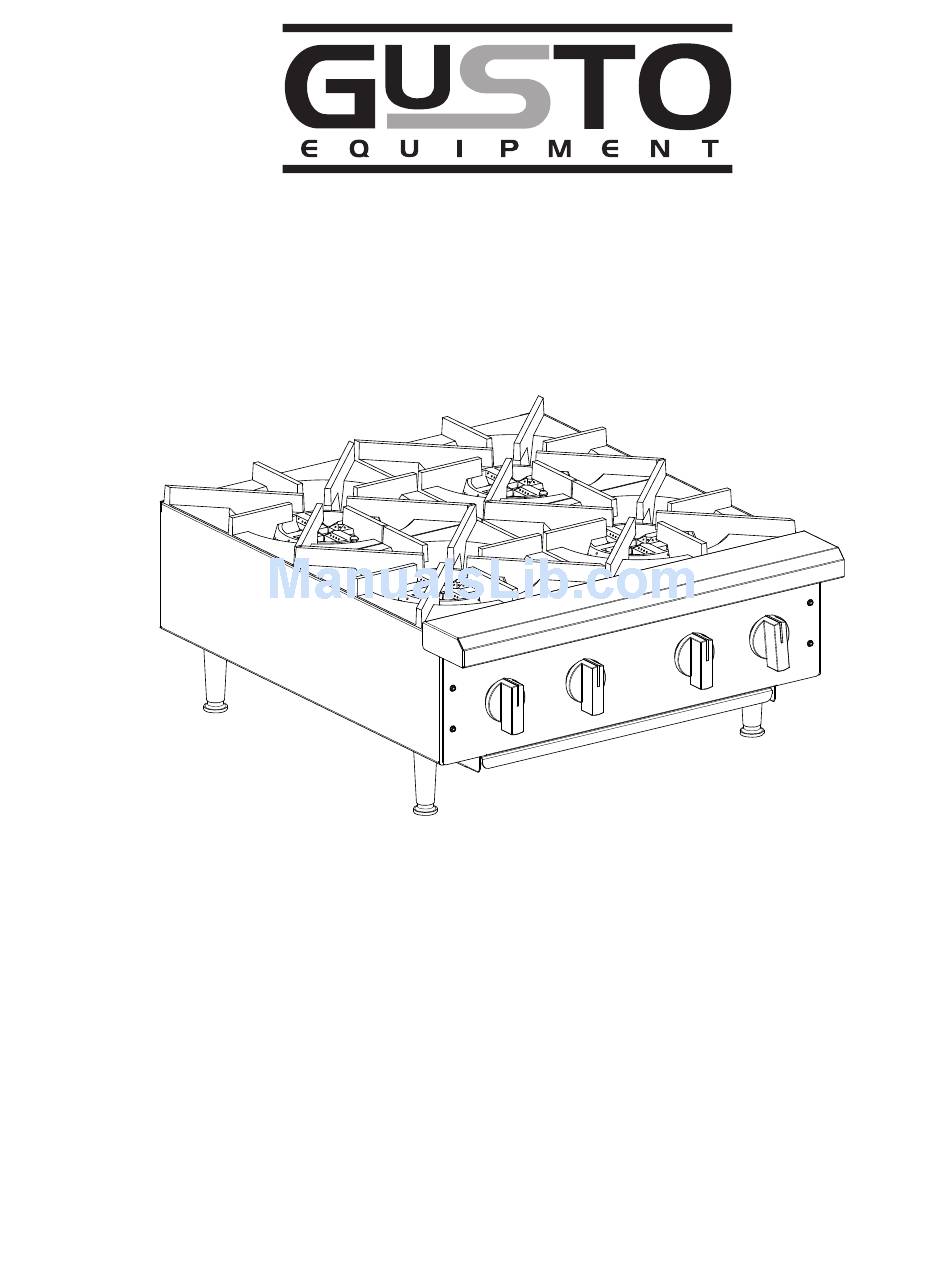

- Page 1 IL2424 GAS HOT PLATE MODEL AMHP2, AMHP4, AMHP6 Installation, Operation & Parts Manual 2M-Z15770 Rev. - 4/12/12...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. CAUTION WARNING RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. - Page 3 36.1875” 176 lbs 200 lbs • Gusto Gas Hot Plates are designed for the most demanding foodservice applications and deliver years of maintenance free operation. • Available in 2, 4, and 6 burner styles to accommodate many volume operations. •...
-
Page 4: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. For equipment to be used by the general public, please contact the factory. -
Page 5: Pressure Regulator
CLEARANCE Minimum wall clearances for the sides and back of the models contained in this manual shall be as follows: Combustible Non-Combustible Wall Wall Hotplates 9" 0" Stock Pot Range 14" 0" PRESSURE REGULATOR A convertible pressure regulator set at 6" water column for use on natural gas is furnished. (For LP models the regulator is set for 10"... -
Page 6: Lighting Instructions
LIGHTING INSTRUCTIONS The appliance is equipped with standing pilots; each pilot is located next to each of the burners. Pilots should be lighted immediately after the gas is turned on by the manual shutoff valve. 1. Turn control knobs to "OFF" position. 1/4”... - Page 8 Model: AMHP Gas Hotplate SK2573 Rev. - 3/13/12...
- Page 9 Model: Gas Hot Plate Fig No. Part No Description Application AMHP2 2F-Z16681 CASTING AMHP4 AMHP6 AMHP2 2F-Z0615 BURNER 7” ROUND AMHP4 AMHP6 AMHP2 2I-Z0752 GASKET-BURNER AMHP4 AMHP6 AMHP2 I4-602014 PILOT TUBE ASSY LONG AMHP4 AMHP6 AMHP2 I4-602013 PILOT TUBE ASSY SHORT...
