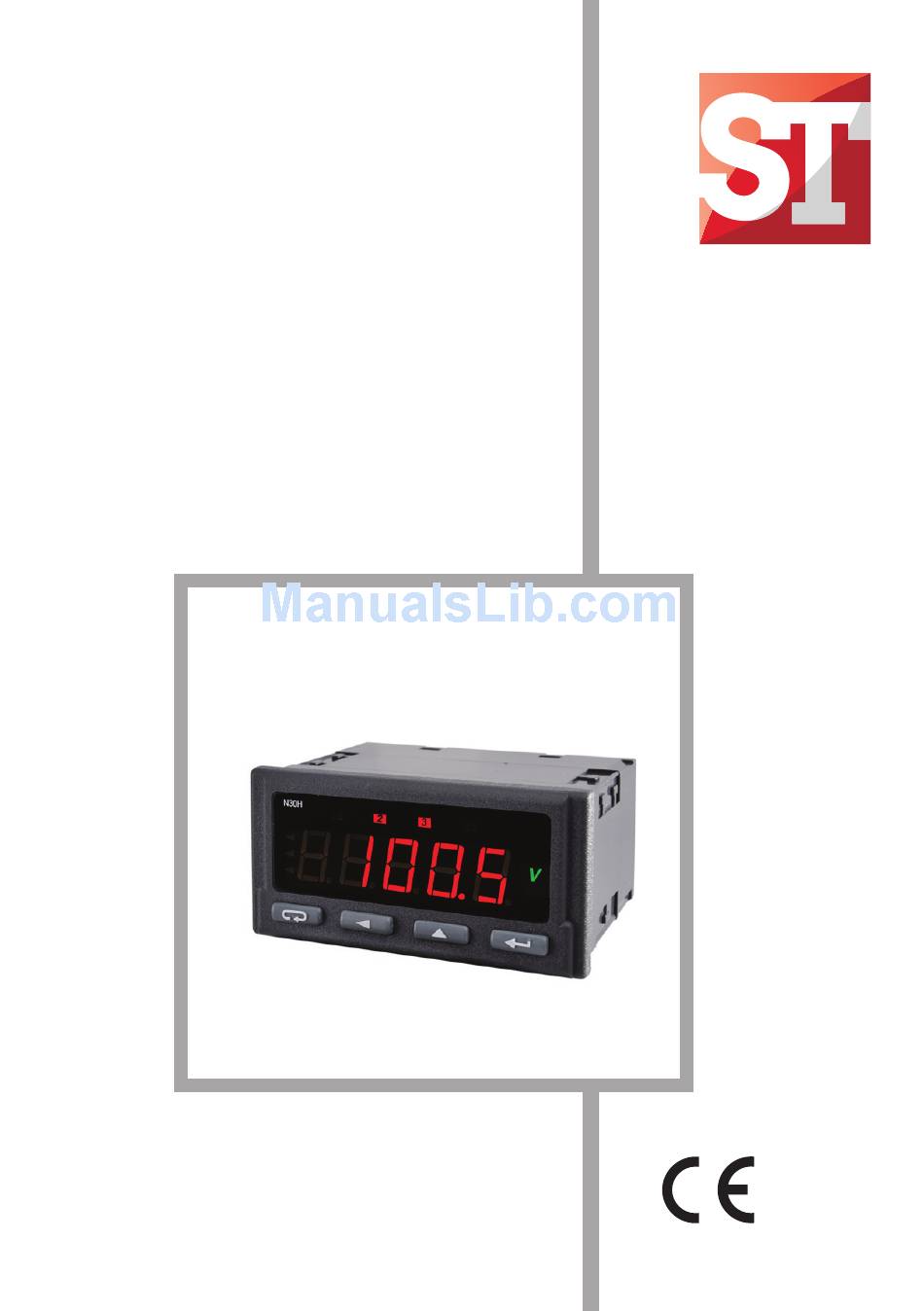

DIGITAL PANEL METER
N30H TYPE
USER'S MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N30H and is the answer not in the manual?

Questions and answers

Related Manuals for ST N30H

Summary of Contents for ST N30H

  • Page 1 DIGITAL PANEL METER N30H TYPE USER’S MANUAL...

  • Page 3: Table Of Contents

    Contents 1. APPLICATION AND METER DESIGN ........5 2. METER SET ..................6 3. BASIC REQUIREMENTS, OPERATIONAL SAFETY ....7 4. INSTALLATION ................8 5. SERVICE ..................11 6. RS-485 INTERFACE ..............27 7. SOFTwARE UPDATE ..............27 8. ERROR CODES .................41 9. TECHNICAL DATA ..............42 10. ORDER CODES .................44 11.

  • Page 5: Application And Meter Design

    1. APPLICATION AND METER DESIGN The N30H meter is a programmable digital panel meter destined for the measurement of d.c. voltage or d.c. current. Additionally, the meter enables the indication of the current time. The readout field is a LED display, which allows the exposition of results in colours: red, green and orange.

  • Page 6: Meter Set

    Protection degree from frontal side: IP65 Meter overall dimensions: 96 x 48 x 93 mm (with terminals). The meter casing is made of plastics. Fig. 1. View of the N30H meter 2. METER SET The set is composed of: - N30H meter ............1 pc - User’s manual ............1 pc...

  • Page 7: Basic Requirements, Operational Safety

    3. BASIC REQUIREMENTS, OPERATIONAL SAFETY In the safety service scope, the N30H meter meets the requirements of the EN 61010-1 standard. Observations concerning the operational safety All operations concerning transport, installation, and commissioning as well as maintenance, must be carried out by qualified, skilled per- sonnel, and national regulations for the prevention of accidents must be observed.

  • Page 8: Installation

    4. INSTALLATION The meter has separable strips with screw terminals, which enable the connection of external wires of 2.5 mm cross-section. Strips of input signals are protected against any accidental disconnection by means of a screw joint. ´ 45 One must prepare a hole of 92 +0,6 +0,6 mm in the panel, which the...
  • Page 9 4.1. Signals Leads Signals led out on the meter connectors are presented on the fig. 4. All input signals are separated between them from remaining circuits. Analog outputs are not separated between them. One don’t have to take simultaneously advantage of voltage and current measure- ments, since measuring circuits of voltage and current are not galva- nically isolated.
  • Page 10 4.2. Examples of Connections An example of the N30H meter connection for current measurement is presented on the fig. 5. However, an example of the meter connection in the configuration for voltage measurement is presented on the fig. 6. Fig. 5. Meter connection in the configuration for current measurement...

  • Page 11: Service

    5.2. Messages after Switching the Supply on After switching the supply on, the meter displays the meter name N30H, and next the program version in the form „r x.xx” – where x.xx is the number of the current program version or the number of a custom-made execution.
  • Page 12 5.3. Functions of Push-buttons - Acceptation push-button: Þ entry in programming mode (press and hold ca 3 seconds) Þ moving through the menu – level selection, Þ entry in the mode changing the parameter value, Þ acceptation of the changed parameter value. Þ...
  • Page 13 The pressure of the push-button combination and hol- ding down them during ca 3 seconds causes the deletion of alarm signa- ling. This operation acts only when the support function is switched on. The pressure of the push-button combination causes the erasing of the minimal value.
  • Page 15 5.4. Programming The pressure of the push-button and holding it down through ca 3 seconds causes the entry to the programming matrix. If the entry is protected by a password, then the safety code symbol SEC is display- ed alternately with the set value 0. The write of the correct code causes the entry to the matrix, the write of an incorrect code causes the display of the ErCod inscription.
  • Page 16 Fig. 9. Programming matrix...
  • Page 17 one must hold down the push-button. Then, the write of the parameter follows and the display of its symbol alternately with the new value. The pressure of the push-button during the change of the parameter value will cause the resignation of the write. 5.4.2.
  • Page 18 Table 2 Parameter Description Range of changes symbol Number of points of the individual char- acteristic. For a value less than 2, the individual characteristic is switched off. IndCp The number of segments is the number 1...21 of points decreased of one. The individual characteristic is not taken into consideration in the HoUr modes.
  • Page 19 Table 4 ALr1, ALr2, ALr3, ALr4 Parameter Description Range of changes symbol P_A1 InP1 – Main input (indicated P_A2 Input quantity, steering the alarm. value). P_A3 HoUr – real time clock P_A4 n-on – normal (transition from 0 to 1), n-oFF –...
  • Page 20 Support of alarm signalling. In the situation when the support function is switched on , after the alarm state retreat, the signalling diode is not blanked . It signals the alarm state till its LEd1 blanking moment by means of LEd2 oFF –...
  • Page 21 4.8 – 4800 bit/s 9.6 – 9600 bit/s 19.2 – 19200 bit/s bAud Baud rate of the RS485 interface 38.4 – 38400 bit/s 57.6 – 57600 bit/s 115.2 – 115200 bit/s r8n2 r8E1 Type of transmission frame of the prot RS-485 interface.
  • Page 22 5.4.4 Individual Characteristic N30H meters can recalculated the measured value into any value thanks to the implemented individual characteristic function. The indivi- dual characteristic rescales the input signal measured according to the set characteristic. The way of the individual characteristic interaction on the meter operation has been presented on the fig.10.
  • Page 23 Fig. 11. Individual characteristic During the function approximation, one must remember that for the ap- proximation of functions strongly differing from the linear characteristic , the higher the number of linearizing segments, the smallest the error related to the linearization. If measured values are smallest from H1 then, recalculations will be made on the base of the first straight line calculated on the base of points (H1,Y1) an (H2,Y2).
  • Page 24 5.4.5 Alarm Types The N30U meter is equipped with 2 alarm outputs with NOC contact (make contact) and two alarm outputs with NOC/NCC contact (make and break contact) (option). Each of alarms can work in one of the six modes . The work of alarms in modes is presented in the fig. 12. : n-on, n-off, on, off.
  • Page 25 5.4.6 Display Format The N30H meter adapts automatically the display format (precision) to the value of measured quantity. So that the function could be fully used, one must choose the format 0.0000, then the meter will display the me- asured value with the possible highest accuracy.
  • Page 26 5.5. Manufacturer’s Parameters Standard settings of the N30U meter are presented in the table 8. The- se settings can be restored by means of the meter menu through the choice of the option Set from the menu Ser. Table 7 Parameter symbol Level in the matrix Standard value...

  • Page 27: Rs-485 Interface

    6. RS-485 INTERFACE N30H programmable digital meters have a serial link in RS-485 stan- dard for the communication in computer systems and with other de- vices fulfilling Master function. An asynchronous communication cha- racter protocol MODBUS has been implemented on the serial link. The transmission protocol describes ways of information exchange between devices through the serial link.
  • Page 28 The lead wire of the interface line is presented on the fig. 4. To obtain a correct transmission, it is necessary to connect lines A and B in parallel with their equivalents in other devices. The connection must be made through a shielded wire.
  • Page 29 6.2. Description of the MODBUS Protocol Implementation. The implemented protocol is in accordance with the PI-MBUS-300 Rev G of Modicon Company specification. Set of the serial link parameters of N30U meters in MODBUS protocol: meter address: 1...247, baud rate: 4800, 9600, 19200, 38400, 57600, 115200 bit/s, work mode: RTU with a frame in formats: 8N2,...
  • Page 30 6.4 Register Map The register map of the N30H meter is presented below. Notice: All given addresses are physical addresses. In some computer pro- grams logical addressing is applied, then addresses must be increa- sed of 1. Table 8 Value type...
  • Page 31 6.5. Registers for Write and Readout Table 9 Symbol Range Description 4000 tYP1 0...4 Input type Value 500U - voltage measurement in the 500 V range 100U - voltage measurement in the 100 V range 5A - voltage measurement in the 5 A range 1A - voltage measurement in the1 A range HoUr -current time 4001...
  • Page 32 000.00 0000.0 00000 Display colour when the displayed value is less than coLLo Value Description 4010 0...2 CoLdo green orange Display colour when the displayed value is higher than coLLo and less than CoLHi Value Description 4011 CoLbE 0...2 green orange Display colour when the displayed value is higher than coLHi...
  • Page 33 4016 0...1 LEd1 Support of alarm 1 signalling Value Descritpion Support switched off Support switched on 4017 P_a2 0, 1 Input quantity controlling the alarm Value Description Main input Clock 4018 0...5 tyP2 Type of alarm 2 (description - fig. 6) Value Description n-on...
  • Page 34 4024 0...1 LEd3 Support of alarm 3 signalling Value Description Support switched off Support switched on 4025 P_a4 0, 1 Input quantity controlling the alarm Value Description Main input Clock 4026 0...5 tyP4 Type of alarm 4 (description - fig. 6) Value Description n-on...
  • Page 35 38400 bit/s 57600 bit/s 115200 bit/s 4032 0...3 Transmission mode prot Value Description RTU 8N2 RTU 8E1 RTU 8O1 RTU 8N1 Meter address. The write of the value 0 causes the 4033 0...247 Addr inerface switching off. Update transmission parameters. Causes the appli- 4034 0...1 sAvE...
  • Page 36 Bit 13 Not used Bit 12 Lack of communication with data memory Bit 11 Wrong settings Bit 10 Manufacturer’s setting restored Bit 9 Lack of measured values in data memory Bit 8 Not used Bit 7 Output plate was detected Bit 6 Output plate - error or lack of calibration Bit 5...
  • Page 37 Table 10 write Sym- /rea- Range Description dout 7200 7600 coLLo -19999...99999 Lower threshold of the display colour change Upper threshold of the display colour 7202 7601 coLHI w/r -19999...99999 change 7204 7602 ovrLo -19999...99999 Lower threshold of the display narrowing 7206 7603 ovrHI...
  • Page 38 7240 7620 w/r -19999...99999 Reserved 7242 7621 w/r -19999...99999 Reserved Point of the individual charachteristic 7244 7622 w/r -19999...99999 Point No.1. 7246 7623 w/r -19999...99999 Expected value for the point No. 1. Point of the individual charachteristic 7248 7624 w/r -19999...99999 Point No.
  • Page 39 7290 7645 w/r -19999...99999 Expected value for the point No. 12. Point of the individual charachteristic 7292 7646 w/r -19999...99999 Point No. 13. 7294 7647 w/r -19999...99999 Expected value for the point No. 13. Point of the individual charachteristic 7296 7648 w/r -19999...99999 Point No.
  • Page 40 Constant identifying the device. 7000 7500 Identifier — The value 187 means the N30H meter Status is register describing the current 7002 7501 Status — state of the meter It is a register defining the control of the...
  • Page 41 7. SOFTWARE UPDATING The N30H meters (from the version 1.09) in version with RS-485 interface come with the implemented function that allows for updating the software from a PC with LPCon or eCon software. In order to update software the RS-485 converter on USB, such as PD10 converter must be connected to the computer.
  • Page 42 Entering the updating mode in the meter is carried out remotely by LU program (based on the settings in LPCon - adres, mode, baud rate, port Com) or by switching on the meter power supply with pressed key . Pulsating of the meter state diode AL1 in gre- en signals readiness for updating, whereas the LU program displays the message Device found and the name and version of the program of the conneted device.

  • Page 43: Error Codes

    8. ERROR CODES After switching the meter on to the network or during the work, messa- ges about errors can appear. Messages about errors and their reasons are presented below. . Table 12 Error message Description Overflow of the upper value of the measuring range value or the programmed indication range.

  • Page 44: Technical Data

    8. TECHNICAL DATA Measuring ranges. Table 13 Kind of input Indication of range class 500 V -600...600 V 0.1% of the range 100 V -130...130 V 0.1% of the range -6...6 A 0.1% of the range ± 5 mA -2...2 A 0.1% of the range ±...

  • Page 45: Operating Conditions

    < 0.2 kg weight: 96 ´ 48 ´ 93 mm Dimensions: Reference Conditions and Rated Operating conditions: - supply voltage 85..253 V d.c./a.c. 40..400Hz or 20..40 V a.c. (40...400 Hz), 20...60 V d.c. 40..400Hz - ambient temperature -25..23..+55 - storage temperature -33..+70 - reltive air humidity 25..95% (inadmissible vapour...

  • Page 46: Order Codes

    Acc. to customer’s request* ................X - after agreeing with the Manufacturer Order example The code N30H - 1 0 01 00 U 0 - means N30H - programmable N30H panel digital meter 1 - supply: 85...253 V a.c./d.c 0 - lack of additional outputs 01 - unit „V”...
  • Page 47 Code of the highlighted unit Table 15 Code Unit Code Unit Lack of unit kvar Mvar obr/min kvarh mm/min Mvarh m/min kVAh l/min MVAh /min szt/h km/h kg/h On order 1) - after agreeing with the Manufacturer...

  • Page 48: Maintenance And Guarantee

    10. MAINTENANCE AND GUARANTEE The N30H digital panel meter does not require any periodical maintenance. In case of some incorrect operations: 1. From the Shipping Date, During the Period Given in the Annexed Guarantee Card: One should take the meter down from the installation and return it to the Manufacturer’s Quality Control Dept.
  • Page 50 N30H-09A Distributed by: Manufactured by: Veracious Canada Inc Sifam Tinsley Instrumentation Inc 1101 Britannia Rd E, 3105 Creekside Village Dr, Mississauga, ON L4W 3X1 Unit 801, Kennesaw GA 30144 Contact: +1 416-640-5364 Fax: +1 416-981-3933 E-mail: info@veraciousinc.ca Web: www.veraciousinc.com...
