User Manual

CentrePoint Data Hub

CentrePoint Data Hub | Revision: 0 | Released: 07/11/2017

Table of Contents

Need help?

Do you have a question about the CentrePoint Data Hub and is the answer not in the manual?

Questions and answers

Summary of Contents for ActiGraph CentrePoint Data Hub

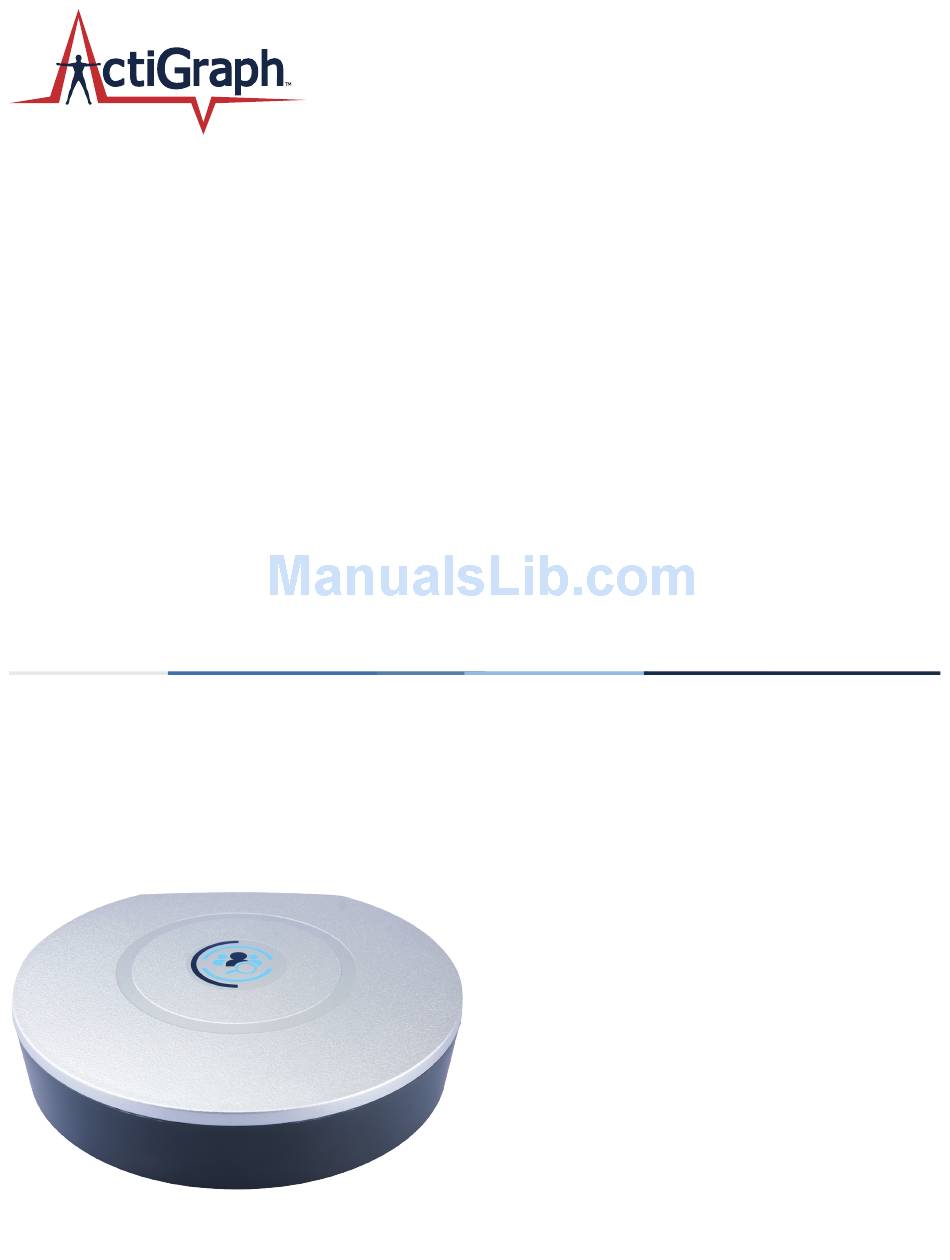

Page 1 User Manual CentrePoint Data Hub CentrePoint Data Hub | Revision: 0 | Released: 07/11/2017...
Page 2: Table Of Contents
The CentrePoint (CP) Data Hub from ActiGraph is a home-based communication gateway capable of transmitting both one-minute epoch level and raw data captured by ActiGraph GT9X Link activity monitors to the CentrePoint cloud software platform via 3G cellular network. The CP Data Hub also functions as a charging hub for ActiGraph Link activity monitors. This User Manual contains instructions on how to set up, operate, and manage your CentrePoint Data Hub.
Page 3: Getting Started
Getting Started Your CP Data Hub package contains the items listed below. A CentrePoint user account and ActiGraph Link activity monitor are required to use the CentrePoint Data Hub and must be purchased separately. CentrePoint Data Hub Power Cable Link Dock...
Page 4: Assigning The Centrepoint Data Hub To A Subject
Assigning the CentrePoint Data Hub to a Subject Pair the CP Data Hub with the ActiGraph Link CentrePoint User Manual Follow the instructions in the or your custom Site Manual to assign the ActiGraph Link activity monitor to a new subject in CentrePoint. After the assignment is complete, remove the Link from the dock (connected to your PC).
Page 5 On the CentrePoint website, go to the “Subject Details” page and select “Subject Timeline. ” Verify that an upload has occurred via Data Hub USB. The ActiGraph Link and the CP Data Hub are now paired. Remove the ActiGraph Link from the dock. Give the activity monitor, CP Data Hub, dock, and cables to the subject and provide specific instructions for wearing, charging, and uploading data.
Page 6: Operating The Centrepoint Data Hub
If only a partial day is downloaded via Bluetooth®, the CP Data Hub will store that data until a full day is queued. The data will then be uploaded to CentrePoint. Note: CentrePoint Data Hub default settings require a full day of data before an upload is initiated, however this can be configured for each study.
Page 7 When the upload is complete, a checkmark will appear on the screen. This can take several minutes to several hours, depending on how much data is on the device. The ActiGraph Link can now be removed from the dock. Uploading Upload Completed Summary one-minute epoch data and the raw data file (if applicable) are immediately available in CentrePoint.
Page 8: Managing The Centrepoint Data Hub In Centrepoint
Managing the CentrePoint Data Hub in CentrePoint Viewing upload details All CP Data Hub data uploads (wireless and raw data) are instantly logged in the “Activity Feed” on the “Study Home Dashboard” page. To view detailed upload information for a subject, go to the “Subject Details” page and select “Subject Timeline.
Page 9 Managing the CentrePoint Data Hub in CentrePoint (Continued) Viewing uploaded data After the CP Data Hub performs a successful data upload (Bluetooth® or USB), the epoch summary data is immediately available to view. From the “Subject Details” page, select “Subject Data Report” from the dropdown list to view daily wear compliance, calories, and steps.
Page 10 Managing the CentrePoint Data Hub in CentrePoint (Continued) If raw data has been uploaded via the CP Data Hub (USB), the file can be downloaded by going to the “Subject Details” page and selecting the “Raw Data Downloads” tab. Select the desired file(s) and click download.
Page 11: Technical Details
Technical Details The CentrePoint Data Hub (CP Data Hub) leverages several technologies to facilitate the reliable transfer of both raw and summary data collected by ActiGraph activity monitors and other connected health sensors. Bluetooth® Data transfer from peripheral devices to the CP Data Hub is supported by a dual-mode Bluetooth®...
Page 12: Regulatory Statements
60 C could lead to dangerous conditions. CAUTION: Modification to ActiGraph products are not permitted and will void all warranties if tampered and/or modified. Do not modify the product in any way. CAUTION: Do not swallow any part of this product. If a piece has been swallowed, contact your local poison control hotline or seek medical attention as soon as possible.
Page 13: Troubleshooting
Troubleshooting CP Data Hub LED behavior Blinking blue light: The CP Data Hub is attempting to connect to the cellular network. If the blinking blue light lasts more than several minutes or happens intermittently throughout the day, move the CP Data Hub to a different location in the home.
