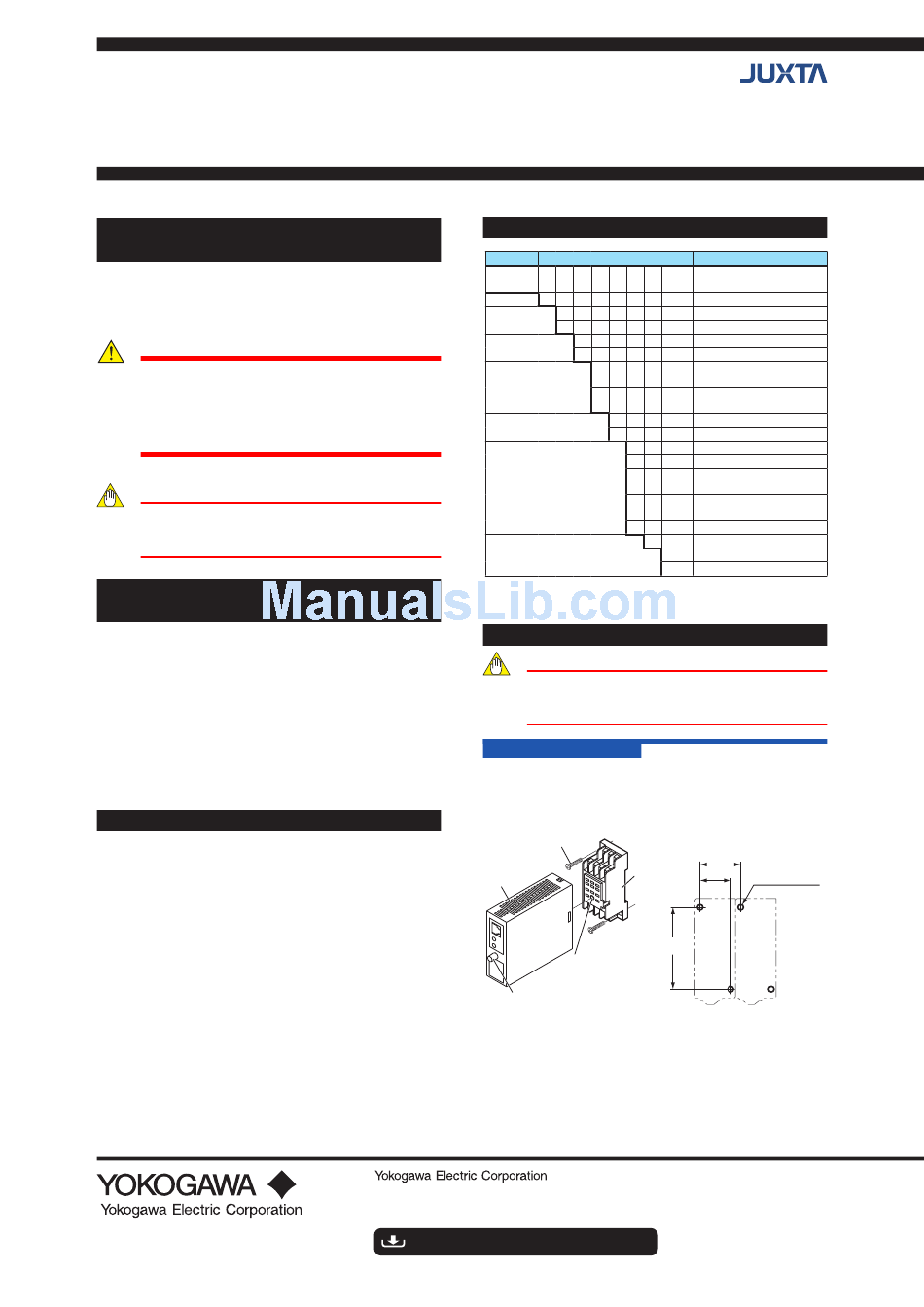

Juxta VJQ7 User Manual

User's
Manual
IM 77J01Q17-01E
Thank you for purchasing the JUXTA Signal Conditioner. Please read through this manual before use for correct handling.
CAUTIONARY NOTES FOR SAFE USE OF
THE PRODUCT
This User's Manual should be carefully read before installing
and operating the product. Please keep this User's Manual
for future reference.
The following symbol is used on the product and in this
manual to ensure safe usage.
This symbol is displayed on the product when
it is necessary to refer to the User's Manual for
information on personal and instrument safety.
This symbol is displayed in the User's Manual
to indicate precautions to avoid danger to the
operator, such as an electric shock.
The following symbols are used only in this manual.
NOTE
Draws attention to essential information for
understanding the operations and/or functions of
the product.
CHECKING PRODUCT SPECIFICATIONS
AND THE CONTENTS OF PACKING
(1) Model Number and Specification Check
Check that the model number and specifications shown
on the nameplate attached on the side of the product are
as ordered.
(2) Contents of the Packing
Check that the packing contains the following items:
• VJQ7: 1 unit
• Tag number label, 1 sheet
• Range label: 1 sheet
• Shunt registor (for specification of current input), 1
piece
• User's Manual (this manual): 1 copy
GENERAL
The VJQ7 is a plug-in analog/pulse Transmitter that converts
DC current or DC voltage signal into isolated transistor-
contact pulse or contactless AC switch pulse.
The VJQ7 converter features:
• Either pulse output, communication function (RS-485), or
alarm output (2 relay contacts) is selectable as Output-2.
• Various parameters such as input range can be set and
modified using a PC (VJ77(sold separately)) or Handy
Terminal (JHT200(sold separately) and the like).
Keep this manual in a safe place.
Model VJQ7
Analog to Pulse Converter
(Isolated Single-output and Isolated Dual-output Types)
MODEL AND SUFFIX CODES
Model Suffix codes
VJQ7 -0 □ □ -□ □ □ 0 /□
-0
Output
configuration
Power supply
Input signal
Output-1 signal
Output-2 signal
Option
*1: Operating range: 85 to 264V
*2: Operating range: 12 to 36V
1. MOUNTING METHODS
Note
Insert/pull out the main unit into/from the socket
vertically to the face of socket. Otherwise the
terminals are bent and it may cause a bad contact.
1.1 Wall Mounting
Loosen the main unit-fixing screw of the transmitter to
disconnect the main unit from the socket. Next, anchor the
socket onto the wall with screws. Then, plug the main unit
into the socket and secure the main unit with the main unit-
fixing screw.
Mounting screws
Main unit
Main unit-fixing screw
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179 Facsimile: +81-422-52-6793
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/juxta/im/
(Multi-function)
Description
Analog to Pulse Converter
(Multi-function)
Always -0
1 1 output
2 2 outputs
6 100-240 V AC/DC
7 15-30 V DC
0 to 50mA DC, span is
-A
5mA or more
–10 to +10V DC, span is
-1
0.1V or more
1 Open collector
3 Contactless AC switch
1 Open collector
3
Contactless AC switch
Communication function
P
(RS485)
Alarm output (2 relay
T
contacts)
N No Output-2
0
Always 0
Blank: With socket
/SN Without socket
Mounting Dimensions
29.5 or more
Socket
22±0.2
59±0.3
Threaded hole for
fixing the main unit
1st Edition Feb. 2000
4th Edition Mar. 2016
*1
*2
Unit: mm
2-M4 or
2-ø4.5 or more
IM 77J01Q17-01E
