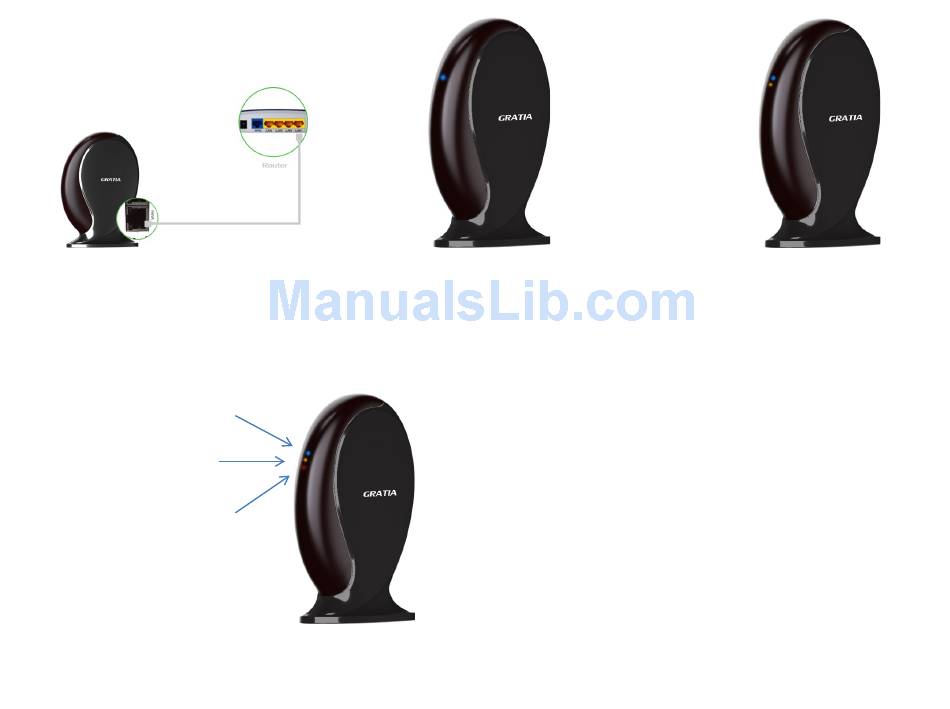

Product Manual : Gratia Zeno
1. Connect Zeno with net cable to WAN/LAN port
Zeno Light Status
Blue light steady :normal
Yellow light steady: internet well
Red light keep on : signal control indicator
Between Zeno with Gratia App
2. Plug the power port with Zeno
the blue light will keep blinking 2 minute
Note:
1. For good signal stability , It's better connect
Zeno with LAN cable
2. After finished setting Zeno ,should not move it
to any place
3. Extension GR-7 ,after setting also should not
move it to any place or edit
3. Then yellow light show up.
Zeno is ready to configure with Gratia app
Advertisement
Summary of Contents for Gratia Zeno
- Page 1 Product Manual : Gratia Zeno 2. Plug the power port with Zeno 3. Then yellow light show up. 1. Connect Zeno with net cable to WAN/LAN port the blue light will keep blinking 2 minute Zeno is ready to configure with Gratia app...
- Page 2 Instruction on Gratia App step by step 3. Connect with new host +” 2. Go to Zeno >> Host >> Choose “ 4. Then choose “next” 1. Launch Gratia app choose “Config New Host” (Device list is empty) and register a Gratia account for Login 5.
- Page 3 Check the lights status Chang to Thailand time zone 1.Check and set Zeno status 3. Green is control by 2. Change time zone , it is very By Choose gear sign on right important in timer alarm setting using Wi-fi hand 4.
- Page 4 1.Go to “More” 2. Choose “Room Manage” 3. Choose “ +” to create new one or use original to edit 6.Select Zeno host which you want to use 4.Edit the corresponding room name 5.Must blind a Zeno host for the room...
- Page 5 Add Extension device to spread out signal 3.Choose “IR/RF Relay “ 2.Choose “ +” 4.Scan and wait until it done 1.Go to Zeno >> Gratia Lan 5.Create room name 7.And then go Back to “ More” 9.Choose the Extension that you have create 8.Choose Device...
- Page 6 *** Connect Extension device to spread out signal into other room Between scanning blue light must keep blinking If blue light does not blinking , pressing the reset for 5 second then blue light will blinking RESET...
- Page 7 Add Gratia switch remote control >>Make sure that you have turn on Wi-Fi before connect every time 1.Choose “+” from rooms page 2. Choose “ Remote Control” 3. Choose “ Custom” 4.It will back to room page then Choose “custom” icon 6.
- Page 8 10. Choose “+” for adding 8.You can delete the icon 9.Via pressing “Delete” 11. Select the icon that you want button that you don’t want 13.Long press icon ,It will 12.Long press, and move it 14.Press “Learn” 15. Choose “Create Code” be “Learn”...
- Page 9 18. Gratia switch synchronizing , hold the gang of switch for 5 seconds ,and take away when hear a sound of “DI”.Then press the button on Gratia App 16. Choose “Gratia Switch Code” 17. Then “Save” Rename icon You can create your own photo 19.
- Page 10 Add air-conditioner Remote Control by using Code 3. Select “ Aircond” 1. Choose “+” from rooms page 2. Choose “Remote Control” 4. Search the brand of your Air-conditioner 5. LG brand please press “ Test” again and again until you hear a pairing response voice from the air-conditioner, After test code successfully, you could see its relevant icon in “Rooms”...
- Page 11 Add air-conditioner Remote Control by Custom icon>>Make sure that you have turn on Wi-Fi before connect every time 3. Select “ Aircond” 4. Then choose “Custom” 1. Choose “+” from rooms page 2. Choose “Remote Control” 5. You will get the air-conditioner icon 5.
- Page 12 Add TV Remote Control by Code>>Make sure that you have turn on Wi-Fi before connect every time 3. Choose “TV” 1. Choose “+” from rooms page 2. Choose “Remote Control” 5. Samsung-TV brand , please press “Power” Switching with “NEXT” again and again until 4.
- Page 13 8. Choose the icon that you want to custom 9 . Choose “Learn Code” 10 . “Operation prompt” come up 11 . It will showing up “Success” 10.1. Press the air-conditioner remote controller button into Zeno...
- Page 14 Add TV Remote Control by Custom icon>>Make sure that you have turn on Wi-Fi before connect every time 3. Choose “TV” 4. Choose “Custom” 1. Choose “+” from rooms page 2. Choose “Remote Control” 6. It will show up the original button 7.
- Page 15 9 . Choose “Learn Code” 10 . “Operation prompt” come up 10.1. Press the TV remote controller button into Zeno 12 . It will showing up “Success” (added into app via pairing their remote controller button key one by one)
- Page 16 Add STB Remote Control by Custom icon>>Make sure that you have turn on Wi-Fi before connect every time 4. It will show on room page, 3. Choose “STB” 1. Choose “+” from rooms page 2. Choose “Remote Control” Than choose “STB” icon 5.
- Page 17 12 . It will showing up “Success” 10.1. Press the STB remote controller button into Zeno (added into app via pairing their remote controller button key one by one)
- Page 18 Add Curtain motor Remote Control by Custom icon>>Make sure that you have turn on Wi-Fi before connect every time 4. It will show on room page, 3. Choose “Curtain” 1. Choose “+” from rooms page 2. Choose “Remote Control” Than choose “Curtain” icon 6.
- Page 19 10 . It will showing up “Success” 9. Press the curtain motor remote controller button into Zeno (added into app via pairing their remote controller button key one by one)
- Page 20 การสร้ า ง Timer สํ า หรั บ เปิ ด -ปิ ด ไฟ อั ต โนมั ต ิ 5.Set the right time 3.Create name for 6.Press “ Yes” 4.Input timer 2.Choose “ +” 7.Press “ Next” 1.Go to “Routines” Ex. 18.00 pm. Timer to turn on-off name then choose “Timer”...
- Page 21 Add Door Sensor device 2. Choose “+” 3. Choose .Gratia Device Linkage” 4. Choose “Door Sensor” 1.Go to “Zeno” then choose “Gratia Lan. 5.First , use the pin in the package put into the reset button of 6.Choose “Scan” and 7.Rename “Door Sensor”...
- Page 22 การสร้ า งตั ว เชื ่ อ มต่ อ Door Sensor และเชื ่ อ มต่ อ ให้ เ ปิ ด ไฟ อั ต โนมั ต ิ 3. Choose “ +” 2. Choose “ +” 4.Choose “ Gratia 8.Choose “Set Action” 1. Go to 6.You can set turn...
