Summary of Contents for Ultramax MF 500-0219

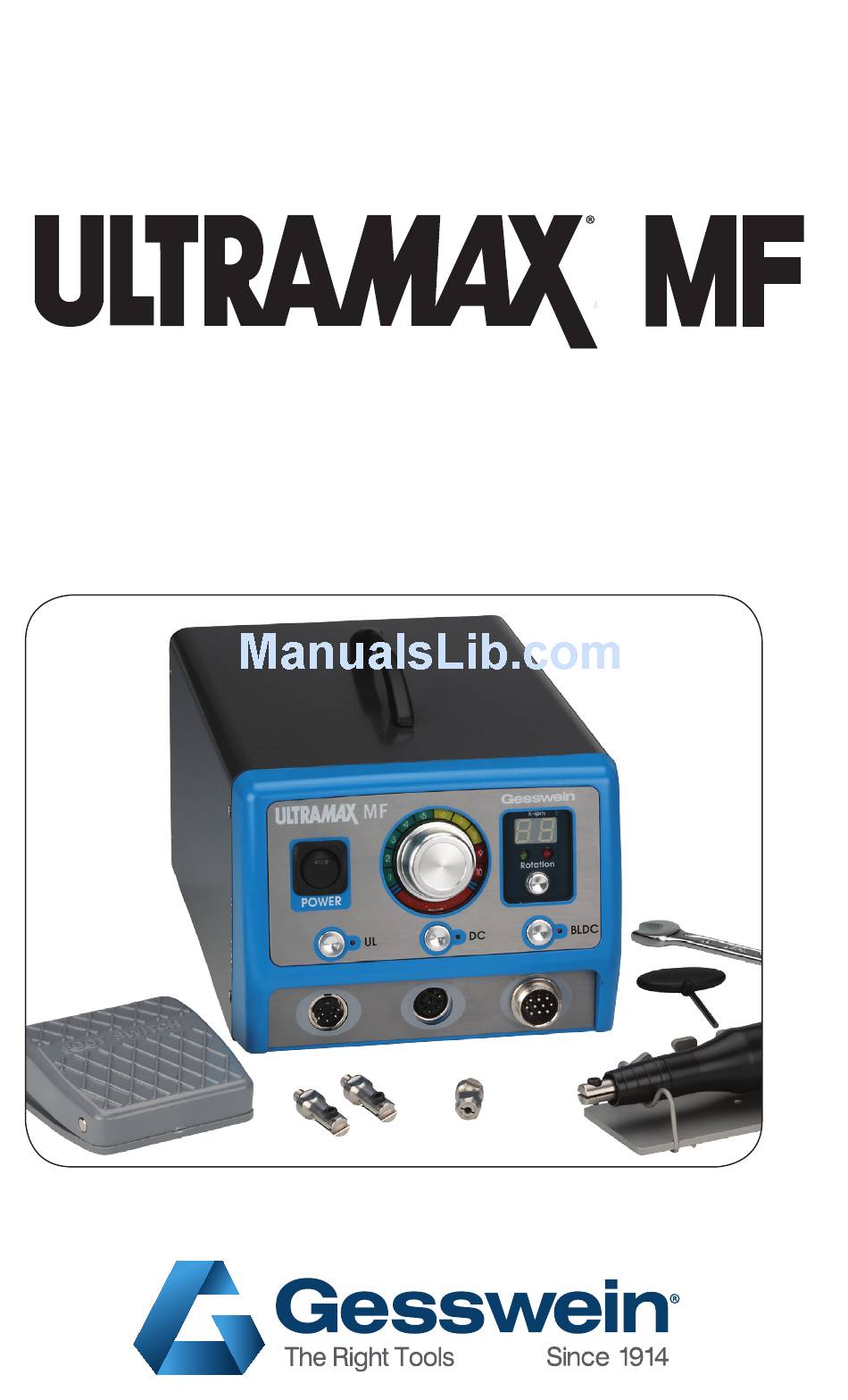

- Page 1 Instruction Manual Models #500-0219 #500-0220...
-
Page 2: Product Features
Multi purpose polishing system 3N1 1. Product features: Power supply of AC90-240V at 50/60Hz. ◎ High-efficiency microprocessor, with more flexible and ◎ user-friendly functions. Regulated power supply for low power consumption and ◎ over heating. Overload protective circuit and load indicator incorporated ◎... - Page 3 2. Parts and descriptions of Main Unit ⑮ ⑧ ⑦ Plug/Power cord Spare fuse ⑥ ① ⑤ ④ ⑨ ③ ⑬ ② ⑭ Foot switch Tool box ⑩ ⑪ ⑫ 4.2 3N1 Optional Accessories Item Specification Article-No 1. Power switch and indicator lamp φ33x 147 mm45Watts Large Hand-piece 2.
- Page 4 3-2 DC rotary tools 1) The 3N1 power pac is intended for D.C30V micro motor hand pieces. 2) Please turn off the power before using the rotary tools. 3) Connect the rotary tool to the jack on the main uni , and ①...
- Page 5 3-3 Brushless DC rotary tools 1) Please turn off the power before using the Brushless DC ① rotary hand-piece. 2) Connect the hand-piece to the jack on the main unit, and ② install the proper polishing tool. 3) Turn on the power of the main unit, and the main unit will enter to last user's mode.
-
Page 6: Standard Contents
4. 3N1 Accessories 4.1 Standard contents. i f i Article-No Small Hand-piece Φ2 6mm ×116mm 36 Watts Hand-piece base L112xD51xH35 mm Plug/Power cord 18AWGx3C 180 cm 31-PSAK Small Hand-piece cord 150 cm Tool box L225xD53xH25 cm Tool changing rack of For W:10mm small hand-piece Wrench... - Page 7 Plug/Power cord Spare fuse Foot switch Tool box 4.2 3N1 Optional Accessories Item Specification Article-No φ33x 147 mm45Watts Large Hand-piece 150 cm Large Hand-piece cord For W:12mm Tool changing rack of Large hand-piece T 1.1mm M8 For Large Tool holder A. ceramic oilstones T 1.1mm M8 3.0mm M8 For...
- Page 8 Handpieces Included with the 3-in-1 Kit For information on the additional handpieces included with the 3-in-1 Kit, please refer to the instructions included with those handpieces. • Recipro Handpiece Z-2X (Item# 510-2150) or Z-6X (Item# 510-2160) • BH60 Handpiece (Item# 500-0224) •...
