Product introduction:

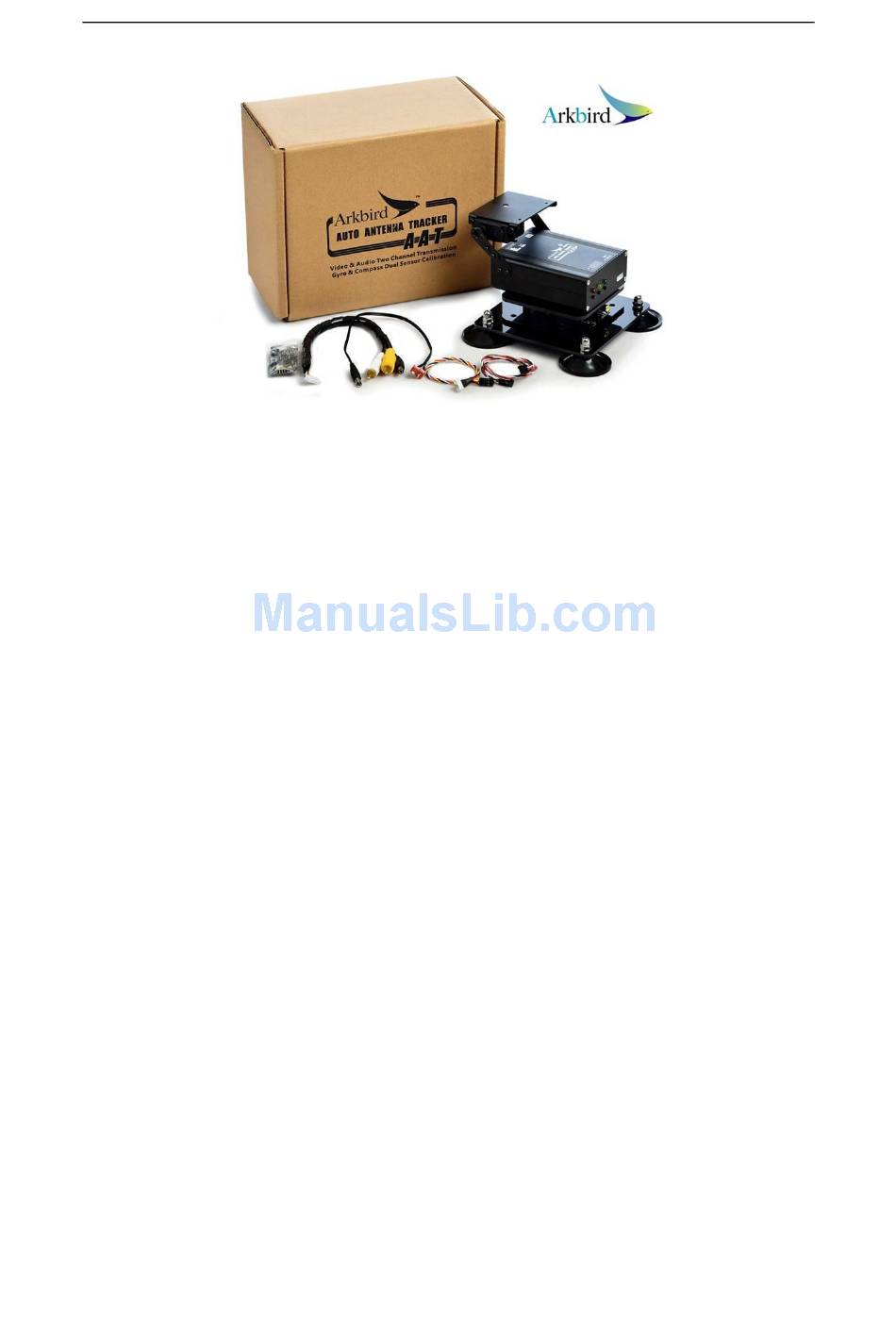

ARKBIRD-AAT (Auto Antenna Tracker) is an antenna tracking system designed for long distance
transmission. It greatly improves the transmission range by pointing the high-gain ground panel antenna to your
plane at every moment.
Six innovative designs give you the best experience:
1.
Two sets of sensors for dual-coupling correction equipped with magnetic compass and inertial navigation
compass (gyroscopes), ultra high-precision pointing;
2.
Plug and play; work with Arkbird OSD to make a weld-free plug assembler; advanced full-automatic
calibration algorithm for one step calibration;
3.
Two-channel transmission on video and audio, dual reliability (50hz superimposed on video channel, 10hz
on audio channel);
4.
Integrated suction cup mounts and tripod mounting hole , Super tiny (PTZ body 11cm * 8.8cm * 3.9cm),
high-quality powerful steering engine (max load 2kg), 360-degree slip ring without winding;
5.
Take-off point coordinates can be automatically saved after powering-on; dynamic positioning can be
realized by using the GPS interface in the ground module, which supports movement tracking (e.g. It can
be used when driving or emergency-landed plane searching);
6.
9600-115200 Self-adaptive GPS Baud rate without any setting, which is compatible with all kinds of FPV
equipment;
7.
Reserving an interface for upgrade, and more functions for continuous upgrades.
Airborne module:
Voltage: 2S-4S（7～16.8V）
Ground module:
Voltage: 3S（12V）
Attention:
Please read the instructions and "Frequently Asked Questions" at the end of our instructions
carefully before using it. Pay attention and be sure to check the details and wiring before powering
on. Incorrect wiring may cause permanent damage to the device!
Arkbird
Peak current: 200mA@12V
Peak current: 800mA@12V
- 1 -
Advertisement
Table of Contents
Summary of Contents for Arkbird AAT
-
Page 1: Product Introduction
Two sets of sensors for dual-coupling correction equipped with magnetic compass and inertial navigation compass (gyroscopes), ultra high-precision pointing; Plug and play; work with Arkbird OSD to make a weld-free plug assembler; advanced full-automatic calibration algorithm for one step calibration;... - Page 2 Arkbird GPS signal line, as shown below). Update rates are decided by the GPS module. TX port wiring with Arkbird OSD: Connect the video to Arkbird OSD 's Vout port; one wire from TX port; will be able to identify the position signal (as shown below).
- Page 3 Arkbird Independent GPS module connection: If no serial GPS or Arkbird TX port is available, one independent GPS can be added. Connect the "5V, GND, serial ports signal" into airborne module which has a 5V power supply (100 mA) for GPS module.
- Page 4 GPS automatically to real-time update HOME coordinates and give directions for dynamic positioning. The change in position of ground module is allowed while tracking. When there is no video signal, AAT will point to the latest identified coordinates before you lost your signal.
- Page 5 Arkbird III. Key function and Calibration (important!) Press "HOME Button 1" for five seconds to save airborne module coordinates as take-off point Press "Cal. Button 2" for five seconds for automatic calibration mode Press "OFFLINE Button 3" to switch between "off-line mode" and "tracking mode". In "off-line" mode you can switch the antenna to any position manually.
- Page 6 The provider of the system is not responsible for any direct or indirect loss and consequences caused by the product. Please send an email to Arkbird@foxmail.com if there is any comment or suggestion. We are looking forward to hearing your comments in order to improve our products constantly!
