No.
Part No.
SP Description
501
A-1303-017-A s MOUNTED CIRCUIT BOARD, G
502
8-330-030-82 s Q BLOCK ASSY
!
503
1-453-446-11 s FBT ASSY (NX-4525//M3A4)
!
504
1-251-382-11 s INLET, AC 3P (WITH NOISE FILTER)
505
1-469-241-11 s CORE, FERRITE (RFC-8 BK)
506
2-990-241-02 o HOLDER (A), PLUG
507
4-389-025-01 s SCREW, TAPPING M4X8 W/WASHER (ST)
Screws/Washers
7-682-961-01 s SCREW, +PSW 4X8
7-682-950-09 s SCREW, +PSW 3X12 (EP-FE/ZNBK/CM2)
7-685-648-79 s SCREW, +BV 3X12 (EP-FE/ZNBK/CM2)
7-682-661-01 s SCREW, +PS 4X8 (EP-FE/ZN/CM2)
PVM-14L2/20L2

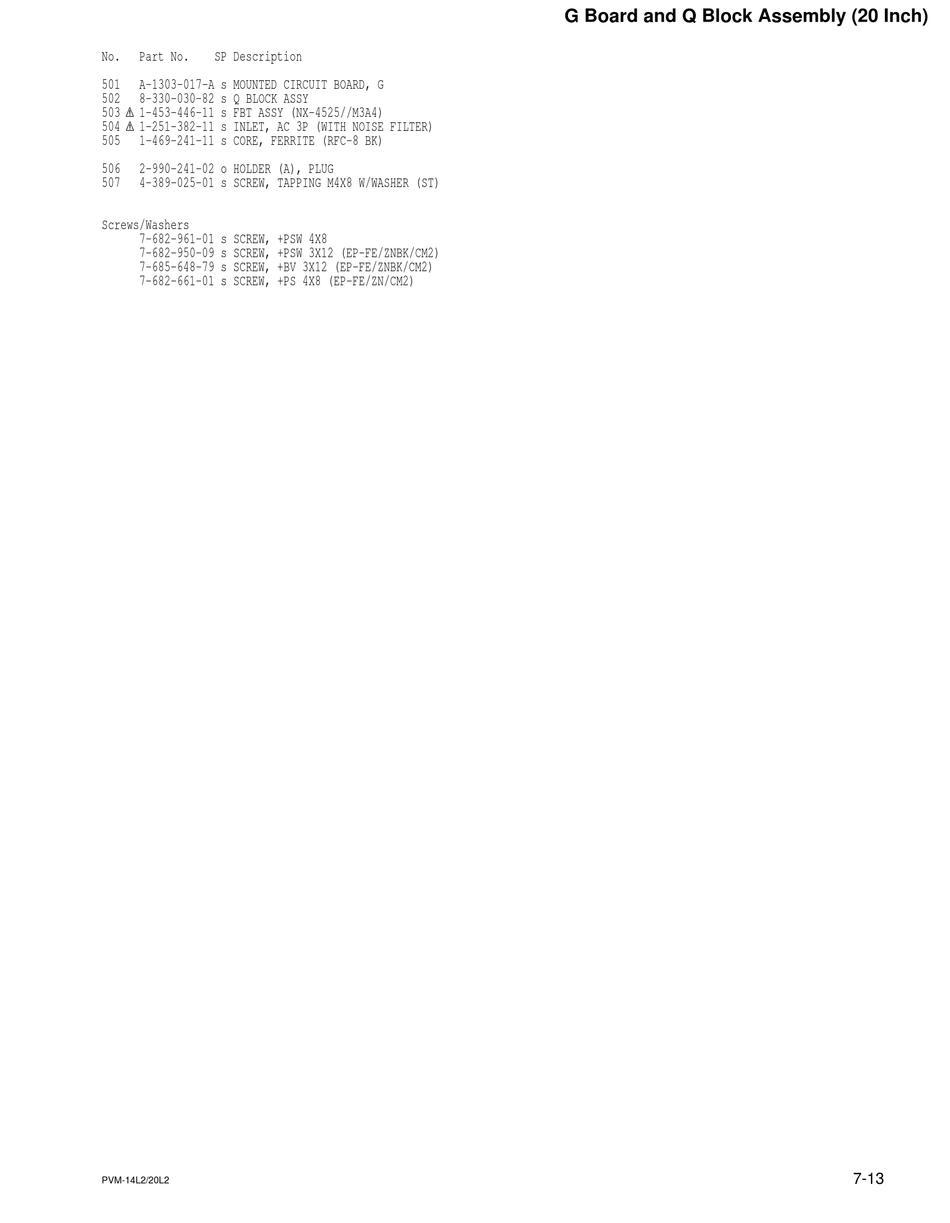

G Board and Q Block Assembly (20 Inch)
7-13
