Summary of Contents for Stinger Equipment Dual-Aer 2400

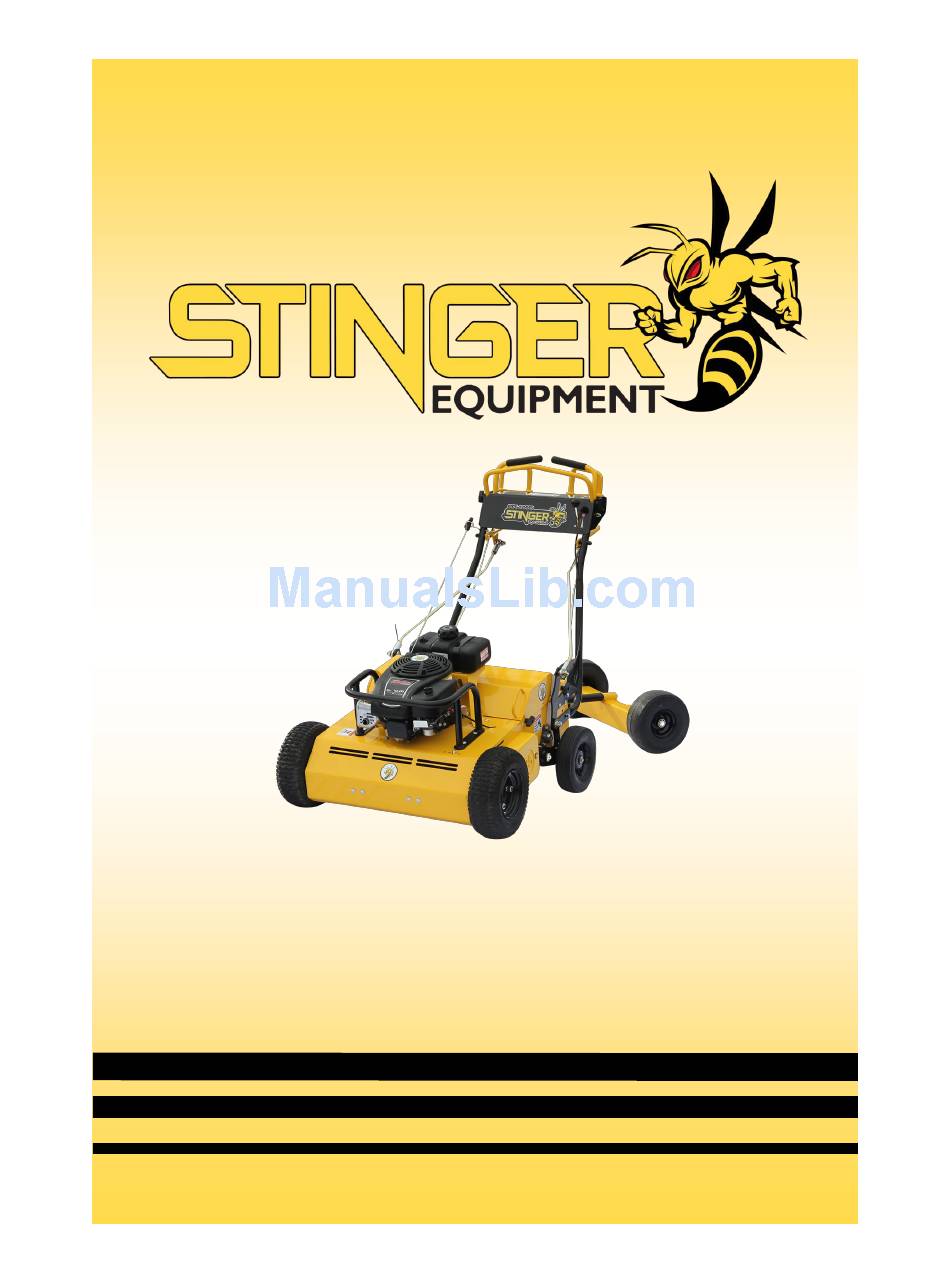

  • Page 1 Dual-Aer 2400/2450 Operator’s Manual...
  • Page 2 Introduction Thank you for purchasing this Stinger Equipment, Inc. product. This manual will explain the safety, maintenance and operation of your unit. Safety  All operators should read the product manual in its entirety before operating. All operators must be properly trained on the controls and their functions.

  • Page 3: Signal Word Definitions

    This Symbol means: ATTENTION! TAKE NOTICE! Your attention is needed to ensure your safety and the safety of those around you. This symbol is followed by a Signal word describing the level of hazard. Throughout this manual and on all equipment you will see these safety labels.

  • Page 4: Maintenance

    Maintenance Turn the unit off as shown in Figure 1, and remove spark plug as shown in Figure 2 before performing any maintenance. Hydrostatic transmissions  The hydrostatic transmissions features a maintenance-free design. Belt  Inspect the engine belt every 100 hours, or annually, for signs of wear.
  • Page 5 Figure 1 Figure 2 Figure 3...
  • Page 6 Chains  Inspect the chains after the first 4 hours of use and adjust as needed. A properly tensioned chain should have 1/4-3/8” of slack.  Make sure the chain is clean and free of any debris.  Every month or 50 hours check the chain tension. Chain Tensioning: 1.
  • Page 7 Figure 4 Figure 5 Figure 6...

  • Page 8: Grease Points

    Grease Points  Grease the 4 bearings on the tine shaft every 50 hours as shown in Figure 7. Operation Starting and Stopping the Engine 1. Slide throttle all the way forward to apply the choke when Honda engine is cold as shown in figure 8. Briggs engine is equipped with an auto-choke;...
  • Page 9 Figure 7 Figure 8 Figure 9...

  • Page 10: Unit Operation

    Unit Operation 1. Push both steering controls as shown in Figure 10 forward, to move the unit forward. The more pressure applied, the greater the speed. 2. Pull back on both steering controls to go backwards. 3. Reduce the speed of the left or right steering control while moving forward to turn left or right.
  • Page 11 Figure 10 Figure 11 Figure 12...
  • Page 12 www.StingerEquipment.com 2140 Spencer Court LaGrange, KY 40031 (502) 536-0716...
