Summary of Contents for JLT JLT8404

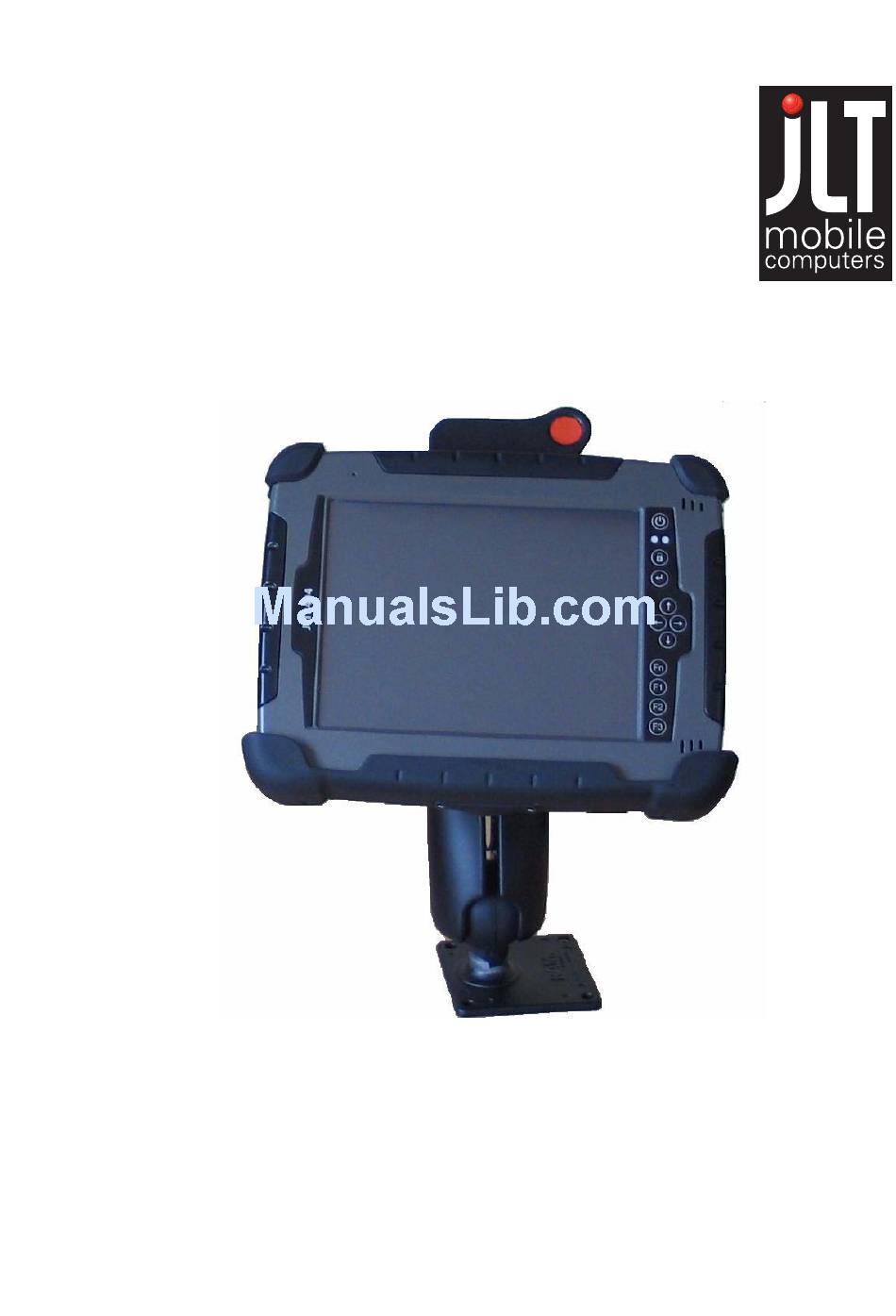

- Page 1 Rugged Industrial PC JLT8404 Manual JLT Mobile Computers AB Isbjörnsvägen 3 SE-352 45 Växjö, SWEDEN Phone: +46 470 53 03 00 Fax: +46 470 445 29 JLT8404, Manual E-mail: mailbox@jltmobile.com Part no: 90052, Rev 1 www.jltmobile.com © 2007, JLT Mobile Computers AB...
- Page 2 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by JLT Mobile Computers could void the user's authority to operate the equipment.
-
Page 3: Table Of Contents
Content General....................3 Rugged Industrial PC................3 Features....................4 Accessories..................4 Function buttons .................5 Status indication LEDs................6 Audio....................6 Using the Rugged Industrial PC ............7 Turning on the Rugged Industrial PC..........7 Shutting down the Rugged Industrial PC ..........7 Reset....................7 Power settings ..................7 Screen brightness ................9 Touch screen ..................9 Battery handling ................10 Low-battery warning ..............10... - Page 4 Maintenance ................... 15 Cleaning ................... 15 Technical specification..............16 Base system..................16...
-
Page 5: General

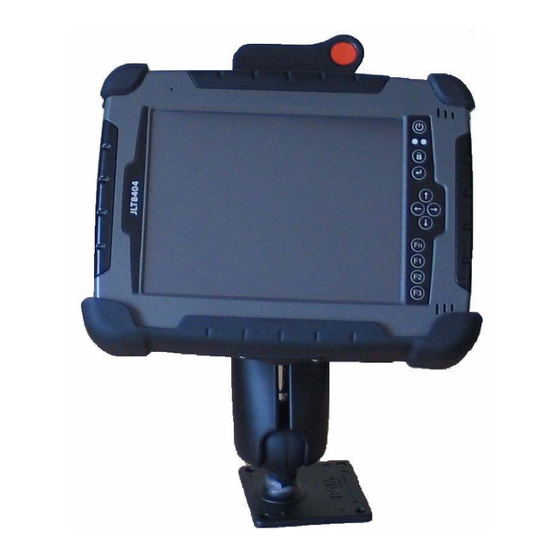

Windows operating system installed, but other operating systems can also be used. Please contact your supplier for further information. The JLT8404 Rugged Industrial PC is a compact high performance, low weight rug- ged Tablet PC designed for fieldwork. The Rugged Industrial PC can withstand severe environmental conditions including vibration, shock, moisture and temperature varia- tions. -
Page 6: Features
Features • USB • Docking Connector with Power and USB • Function buttons • Lithium/Ion Battery 5200 mAh, hotswap Accessories 1. Vehicle docking (not in picture) 2. AC/DC Adaptor 3. DC/DC Adaptor (not in picture) 4. Battery charger 5. Port replicator (not in picture) 6. -
Page 7: Function Buttons
Function buttons Function + Shift function Power on/off Ctrl-Alt-Delete Enter Escape Arrow up Increase brightness Arrow right Arrow left Shift+Tab Arrow down Decrease brightness Reset Fn Pre-set as Alt-Tab No pre-setting Pre-set as Internet Explorer No pre-setting Pre-set as E-mail client No pre-setting... -
Page 8: Status Indication Leds
Status indication LEDs State Description Green/ Continuous green The Rugged Industrial PC is in full function. yellow Flashing green The Rugged Industrial PC is in standby mode, notice that the touch screen is inactive. Continuous yellow The Rugged Industrial PC is in full function and the Fn key is activated. -
Page 9: Using The Rugged Industrial Pc
Using the Rugged Industrial PC This chapter covers information about using the Rugged Industrial PC. The use of the Rugged Industrial PC does not differ from normal PC use. Turning on the Rugged Industrial PC To turn on the Rugged Industrial PC press the power on button for one second, see chapter ”Function buttons”... - Page 10 Power buttons: 1. Select the Advanced tab. 2. Under When I press the power button on my computer: select Ask me what to do from the drop down list. 3. Under When I press the sleep button on my computer: select Hibernate (Sus- pend to Disk mode).
-
Page 11: Screen Brightness
Screen brightness The screen brightness has 16 brightness levels and can be adjusted for indoor or out- door use. To increase or decrease the screen brightness first activate the Fn button, then press the Arrow up or Arrow down buttons on the front. When the brightness is at the lowest level the backlight will be completely turned off. -
Page 12: Battery Handling
Calibrate When used for the first time or when users work in different angles, the touch screen may require calibration. To calibrate the touch screen do the following: 1. Open the Control Panel from the Windows Start menu. 2. Double-tap the Pointer Devices icon. 3. -
Page 13: Remove A Battery Pack
Remove a battery pack To remove the battery from the Rugged Industrial PC: 1. Turn the Rugged Industrial PC with the backside up. 2. To release the battery press and lift the release latch (2) until the battery slides out from the slot. -
Page 14: Replacement Of Hard Disc
Replacement of hard disc Tools needed: screwdriver Torx T8 and Torx T10. Unscrew the screw (T8) and remove the upper left corner protector. Unscrew the two screws (T8) and remove the left computer grip. Unscrew the two screws (T10) and remove the lid. Release the lever and remove the hard disc. -
Page 15: External Device Connections
The Docking Connector located at center bottom, is used to connect the different docks available. The Docking Connector is also used to connect the AC power source, only connect JLT approved AC adaptor. The connector offers connection support for power and a second USB device. -
Page 16: Ethernet
Ethernet The Ethernet connector (2) is located under the lid on the left side of the Rugged In- dustrial PC. It is used to connect the Rugged Industrial PC to a network. USB 2.0 The USB connector (3) is located under the lid on the left side of the Rugged Industrial PC. -
Page 17: Maintenance
Maintenance The Rugged Industrial PC is maintenance-free, except for normal cleaning. All set- ting, i.e. date and time etc, should be done through the interface of the operating sys- tem, just like on any non-rugged PC. Cleaning The display/touch screen should be cleaned with glass cleaning agent, made for that purpose. -
Page 18: Technical Specification
Technical specification Base system Operating system: Microsoft Windows XP Pro or XP Embedded Display: 8.4" colour TFT SVGA 800x600, 320Nits Processor: Intel Celeron M ULV 373 1.0 GHz Chipset: Intel 855 Memory: Standard 256 MB (max 1 GB) Note: Up to 32 MB of graphic memory can be reserved for processor usage. - Page 19 Housing: Aluminum with shock absorbing handles Dimensions: 261 mm (w) x 199 mm (h) x 45 mm (d) Weight: 1.9 kg Stand-alone 18,5V ± 10% Power 40 W (not charging batteries) Requirements: Charging Battery 18,5V ± 10% Power 20 W (Powered off) Requirements: 50 W (Powered on) Voltage regulator required for vehicles...
- Page 22 JLT Mobile Computers AB Isbjörnsvägen 3 SE-352 45 Växjö, SWEDEN Phone: +46 470 53 03 00 Fax: +46 470 445 29 JLT8404, Manual E-mail: mailbox@jltmobile.com Part no: 90052, Rev 1 www.jltmobile.com © 2007, JLT Mobile Computers AB...
