Lightning
While most amateur radio installations rarely suffer damage from lightning (even though they never
disconnect their equipment); the best protection is to disconnect electrical devices during storms.
The key to proper lightning survival is proper grounding of feedlines and equipment, and
maintaining integrity of shield connections. A proper installation improves lightning protection and
enhances weak-signal receiving performance. The DXE-RLP-75FF Lightning Protector, 75-ohm,
DC Pass, Type F Connectors is one optional device that could be used. Consult lightning protection
and station grounding information in the ARRL handbooks, the National Association of
Broadcasters (NAB) handbook or other reliable sources.

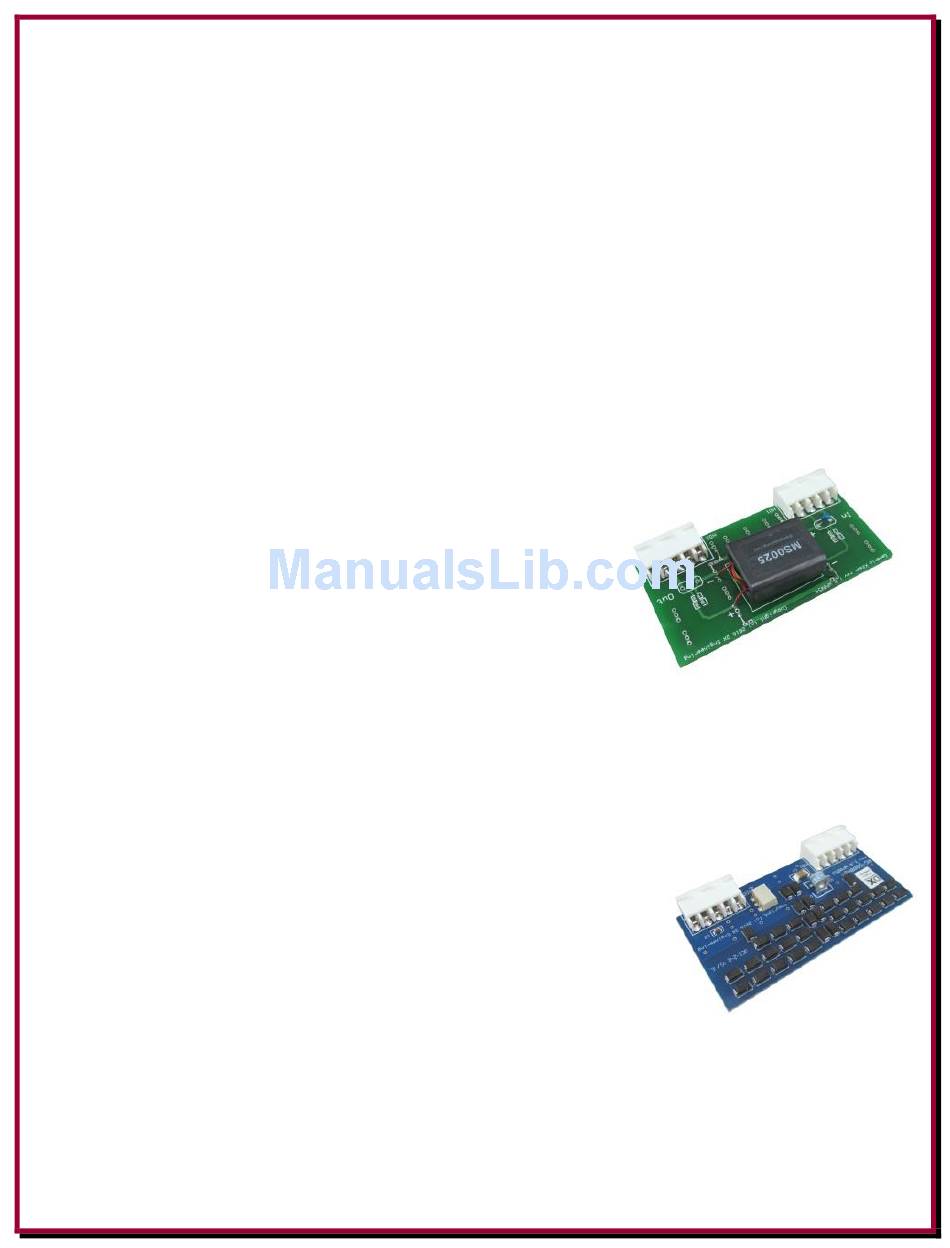

Optional Plug-in Module Descriptions and Specifications
75 to 50-ohm Impedance Transformer Plug-in Module (DXE-IT-PM)
A perfect match for changing the line impedance between 50 and 75-ohm systems
Frequency Range:
500 kHz through 30 MHz
Insertion Loss:
<0.1 dB at 15 MHz, <0.2 dB at 30 MHz
Power Handling:
over 30 dBm
Impedance:
input = 75-ohms unbalanced
output = 50-ohms unbalanced
Receiver Guard Plug-In Module (DXE-RG5000HD-PM)
This highly effective and inexpensive receive RF limiter prevents front-end damage due to high RF
levels that can result in costly radio repairs.
Frequency Range:
0.5 through 150 MHz
Insertion Loss:
< 0.15 dB at 50 MHz, < 0.3 dB 50 MHz up to 150 MHz
VSWR:
< 1.2:1
Max Output Level:
+14 dBm at 10 W input.
Maximum Power Handling: 10 W CCS (Continuous Commercial Service)
System Impedance:
50-ohms, unbalanced
