Tyco Electronics CS-7000 Operator's Manual

Control station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
MM-014713-001
Apr/08
M/A-COM
CS-7000 Control Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tyco Electronics CS-7000

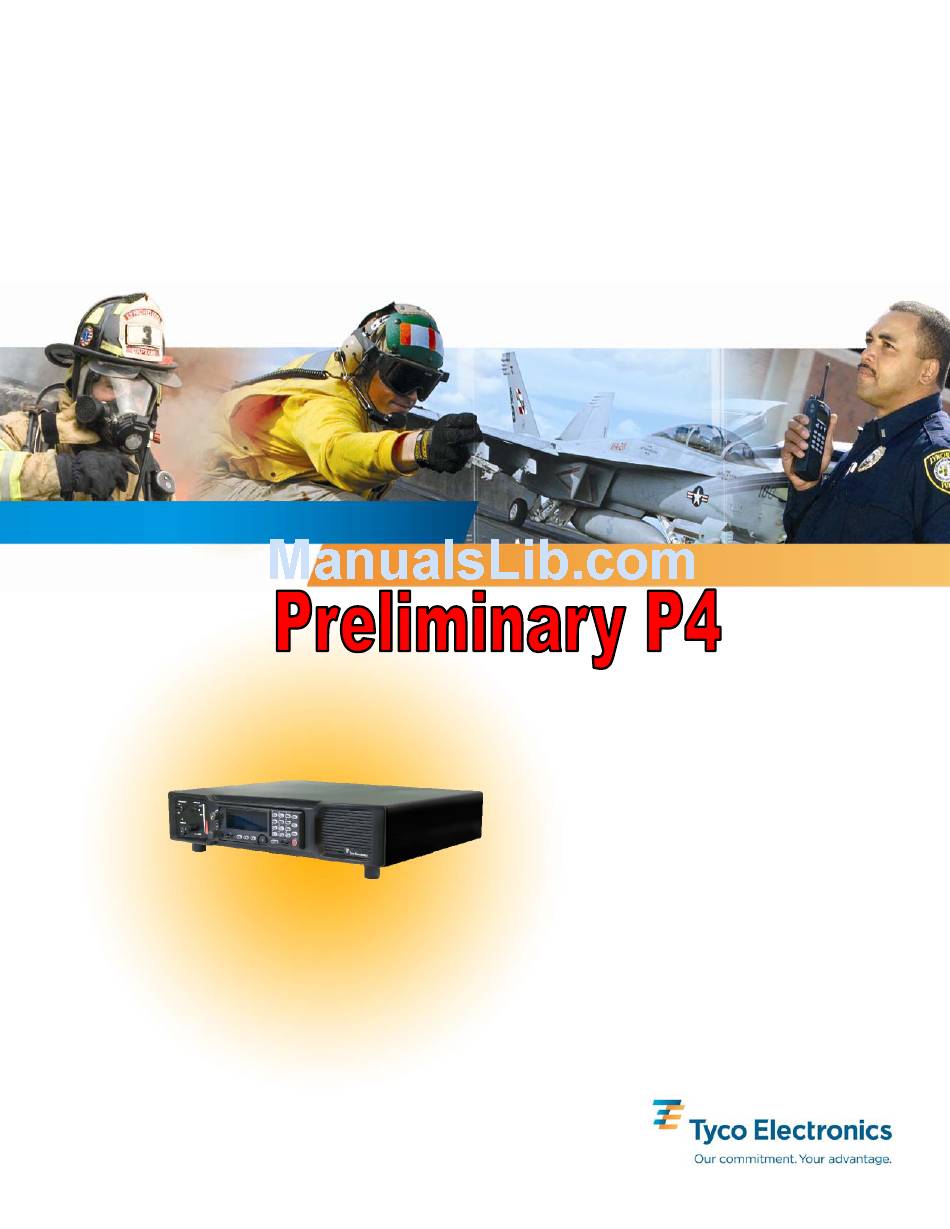

  • Page 1 Operator’s Manual MM-014713-001 Apr/08 M/A-COM CS-7000 Control Station...
  • Page 2 M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this document and suggestions on how the document could be improved. Submit your comments and suggestions to: Tyco Electronics Wireless Systems Segment or fax your comments to: 1 (434) 455-6851 M/A-COM, Inc.

  • Page 3: Table Of Contents

    MM-014713-001 TABLE OF CONTENTS Section Page SAFETY INFORMATION ......................5 SAFETY CONVENTIONS....................... 5 GENERAL DESCRIPTION ......................6 CONTROLS AND CONNECTIONS ....................7 LOCAL CONTROL STATION ....................7 3.1.1 DC Power Indicator..................... 7 3.1.2 Transceiver ........................7 3.1.3 Local Speaker ......................7 REMOTE CONTROL STATION .....................
  • Page 4 MM-014713-001 TABLE OF CONTENTS Section Page REFERENCE MATERIAL ......................15 INTERCOM AND REMOTE SWITCH SUMMARY ..............16 WARRANTY........................... 17 TABLES Table 5-1: Reference Documents ......................15 Table 6-1: Summary of Remote and Intercom Switch Positions ............16 FIGURES Figure 2-1: CT-013892-001 Local Control Station with Scan Head (Front View)........6 Figure 2-2: CT-013892-002 Local/Remote Control Station with System Head (Front View) ....

  • Page 5: Safety Information

    MM-014713-001 SAFETY INFORMATION SAFETY CONVENTIONS The following conventions are used throughout this manual to alert the user to general safety precautions that must be observed during all phases of operation, service, and repair of this product. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the product.

  • Page 6: General Description

    Stations. The slimline design of the CS-7000 Control Station provides a convenient method to equip offices, shops and other remote locations with radio communications. At the heart of the CS-7000 Control Stations are the M5300 and M7300 transceiver. The M5300 ®...

  • Page 7: Controls And Connections

    DC voltage to Control Station. 3.1.2 Transceiver The CS-7000 Control Station may be equipped with an M5300 or M7300 transceiver, respectively. The M5300 transceiver is a single band transceiver capable of EDACS, Conventional and OpenSky modes of operation.

  • Page 8: Remote Station Microphone

    MM-014713-001 3.2.1 Remote Station Microphone The microphone for remote control stations is connected to the remote station microphone connector as shown in Figure 3-2. See Section 3.1.2.2 when connecting a microphone to a local control station. The Control Station’s microphone MUST be connected to the Control Station’s remote station microphone connector found on the front-left faceplate panel.

  • Page 9: Vu Meter

    Figure 3-2: Front Panel Features – Remote Control Station REMOTE MOUNT STATION The CS-7000 Remote Mount Station (not shown) is designed for applications where access to local user controls is not required. The Remote Mount Station is housed in a 2-RU high rack mountable enclosure and equipped only with a front panel power LED.

  • Page 10: Antenna Connector

    MM-014713-001 3.4.1.3 AC Fuse The main AC power fuses for the Control Station are located on the left side of the rear panel (when facing the rear panel) and is part of the AC Power Switch/Cord/Fuse assembly. Caution should be taken when replacing a suspected blown fuse to ensure the proper value replacement fuse is re-installed.

  • Page 11: Serial B

    MM-014713-001 3.4.10 Serial B The Serial B connection is a DB-9 DCE female connection, and used to access the transceiver’s serial Rs- 232 programming port. 3.4.11 External I/O The External I/O connector is a DB-25 female connection. This port provides access to local controlling features of the transceiver such as PTT, TX audio, RX audio, etc.

  • Page 12: Control Station Operation

    MM-014713-001 CONTROL STATION OPERATION POWERING UP THE STATION 1. Make sure the Control Station is connected to a functional AC power outlet. 2. On the Control Station’s rear panel (refer to Figure 3-3), turn on the main ON/OFF power switch located just above the AC power cord.

  • Page 13: To Make (Transmit) A Call (Remote Controlled Stations)

    MM-014713-001 3. When the first call is received, it may be necessary to adjust the volume control to the desired listening level. Use the Station Volume Control to set to local speaker volume level. Setting this control does not affect the volume level heard by remote controllers. 4.2.5 To Make (Transmit) a Call (Remote Controlled Stations) 1.

  • Page 14: Intercom Operation

    MM-014713-001 INTERCOM OPERATION Control Stations equipped with Intercom and Remote switches may make intercom calls to and from remote controllers connected to the Control Station. The Intercom and Remote switches determine when and how the Control Station makes intercom calls. 4.4.1 Continuous Intercom Operation (Intercom-Only Mode) The Continuous Intercom mode of operation allows transmissions between the Control Station and Remote Controllers (over-the-air transmissions via the Control Station are disabled during this mode).

  • Page 15: Reference Material

    It may be necessary to consult one or more of the following manuals. These manuals will also provide additional guidance if you encounter technical difficulties during the installation or testing processes. Table 5-1: Reference Documents DOCUMENTATION MANUAL NUMBER CS-7000 Installation Manual MM-014714-001 M5300 Transceiver Operator’s Manual MM-012125-001 M5300 Transceiver Quick Guide when using OpenSky Systems...

  • Page 16: Intercom And Remote Switch Summary

    MM-014713-001 INTERCOM AND REMOTE SWITCH SUMMARY Table 6-1: Summary of Remote and Intercom Switch Positions TRANSMIT SWITCH PTT BUTTON POSITIONS PRIORITY STATUS COMMENTS The Control Station’s receiver audio is Receive Mode heard at the Control Station’s speaker, and (No PTTs Pressed). Remote Controller’s speaker.

  • Page 17: Warranty

    MM-014713-001 WARRANTY M/A-COM, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer") that Equipment manufactured by or for the Seller shall be free from defects in material and workmanship, and shall conform to its published specifications. With respect to all non-M/A-COM Equipment, Seller gives no warranty, and only the warranty, if any, given by the manufacturer shall apply.
  • Page 18 Tyco Electronics Wireless Systems Segment 221 Jefferson Ridge Parkway Lynchburg, Virginia 24501 (Outside USA, 1-434-385-2400) Toll Free 1-800-528-7711 www.macom-wireless.com Printed in U.S.A.
