Summary of Contents for SomovWorld E-VD6910

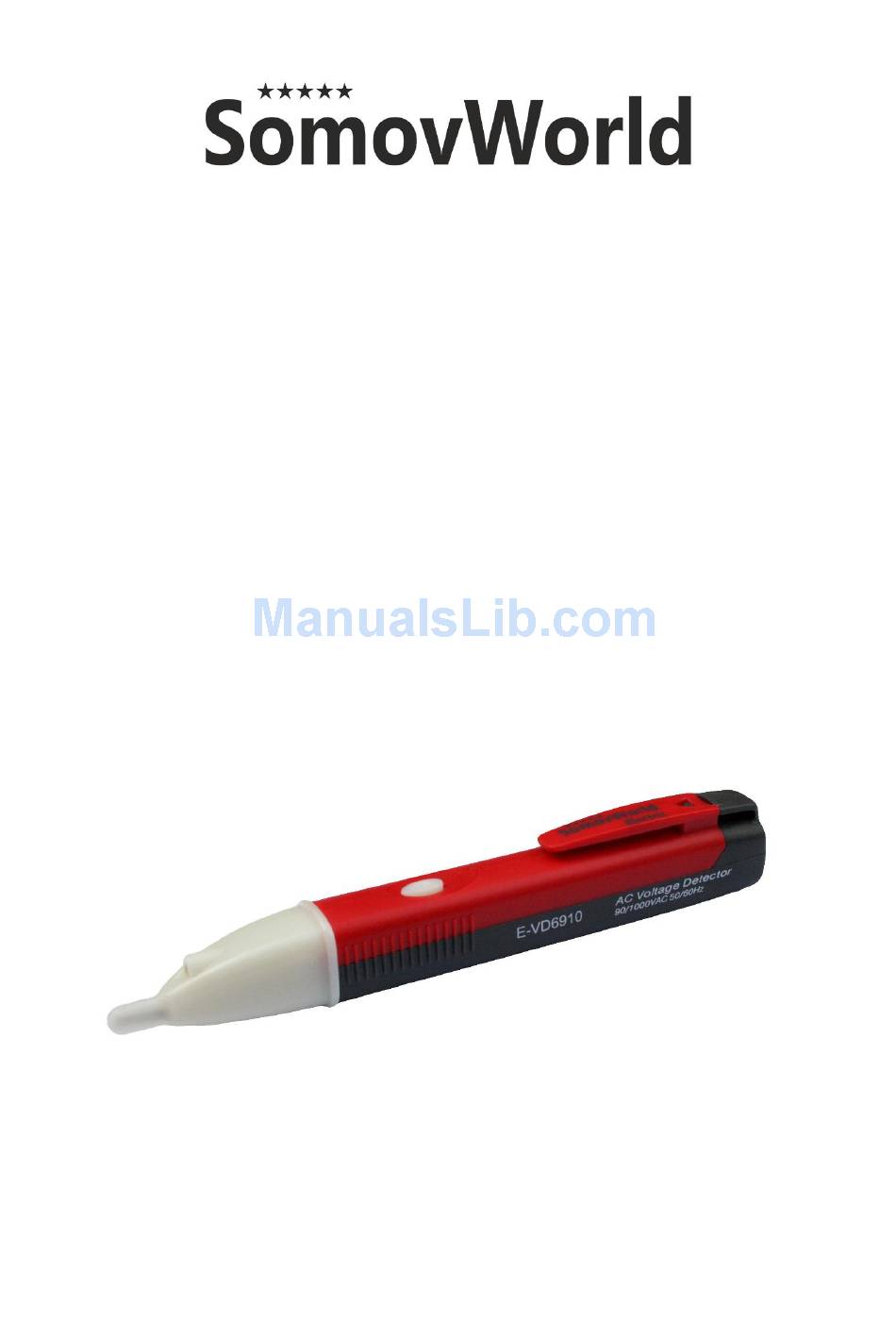

- Page 1 Non Contact Voltage Detector Model E-VD6910 User Manual...
- Page 2 Proper use and care of this meter will provide many years of reliable service. Safety Safety is essential in the use and maintenance of SomovWorld tools. This instruction manual and any markings on the tool provide information for avoiding hazards and unsafe practices related to the use of this tool. Observe all of the safety information provided.
- Page 3 Replacing the batteries Please refer to the picture below to replace the batteries 1. Press the locking tab and pull it up. 2. Put the batteries in. Be careful about the directions of their poles. 3. Align the two parts and slide the locking tab until it cracks. NOTE: To avoid corrosion from leaking batteries, remove the batteries when the unit is not in use for an extended period.
- Page 4 To check for the presence of AC electrical voltage in an outlet: 1. Touch the probe tip to a cord plugged into the outlet, or insert the probe tip into all the outlet holes. 2. If AC electrical voltage is present, the LED light will flash and the audible warning will sound.
- Page 5 Operation Requirements • Make sure the voltage detector is dry, clean and free from dust, grease and moisture while in use to avoid the danger from electric shock due to surface leakage. • Place the tip of the detector close to the AC voltage source radiating unimpeded.
- Page 6 • This unit is used near equipment that generates electromagnetic interference. • The frequency of the voltage is not a perfect sine wave between 50 and 500Hz. • The detector is outside of operation conditions (listed in Specifications section). • Operation may be affected by differences in socket design and insulation thickness and type.
- Page 7 Maintenance Cleaning Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. Make sure the detector is completely dry prior to operation. Do not use alcohol, ammonia or cleaners containing solvents to clean detector.
