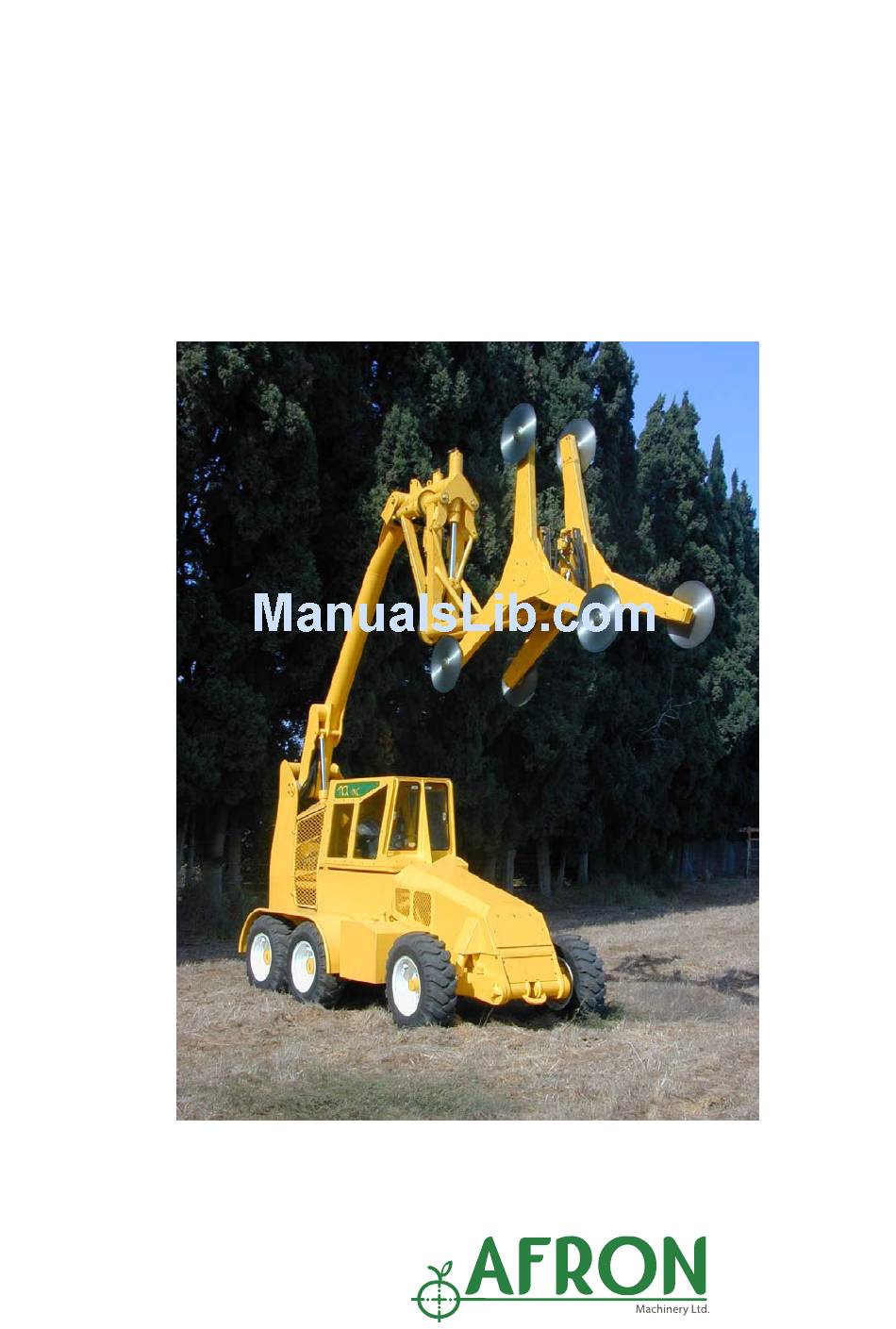

PART III
Edition: April-2005
HD1100N
Parts Manual
www.afron.com
T. 972-4-6371203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD1100N and is the answer not in the manual?

Questions and answers

Summary of Contents for Afron HD1100N

  • Page 1 HD1100N Parts Manual PART III www.afron.com T. 972-4-6371203 Edition: April-2005...

  • Page 2: Table Of Contents

    INDEX INDEX…………………………………………………………………………………………… 1-2 INTRODUCTION………………………………………………………………………………. 3 MACHINE DETAILS…………………………………………………………………………. 4 INDEX OF SECTIONS SCHEMATIC............……………….…. 5 A- SAW ASSEMBLY - SCHEMATIC ……………………...…..……………………………. 6 A- SAW ASSEMBLY - PARTS LIST...…..………………………………………………….…7 B- MAIN ROTATION SHAFT - SCHEMATIC.....…..…………………………. 8 B- MAIN ROTATION SHAFT- PARTS LIST......……….……………………9 C- ROTATION MOTOR – SCHEMATIC……………………..…..……………………... 10 C- ROTATION MOTOR - PARTS LIST..…..……..…………………………………….…11 D- WIDTH CYLINDER SCHEMATIC ……...………………………………….…………….
  • Page 3 HYDRAULIC SYSTEM –HYDROSTATIC DRIVE SCHEMATIC ……………………… 33 HYDRAULIC SYSTEM –HYDROSTATIC DRIVE -PARTS LIST ……………………… 34 HYDRAULIC SYSTEM –POWER STEERING SCHEMATIC AND PARTS LIST.…….. 35 HYDRAULIC SYSTEM –COOLING FAN SCHEMATIC AND PARTS LIST..……….. 36 SPECIAL TOOLS………………………………………………………………………………. 37 NOTE…………………………………………………………………………………………….. 38...

  • Page 4: Introduction

    For any technical assistance, please contact your local dealer or our Technical Department: ISRAEL: Phone # ++972-4-63713203 or Fax #++972-4-6370246. E-mail: contact@afron.com USA: Phone #1-559-686-2844 or Fax # 1-559-685-1006. E-mail: contact@tol-inc.com As our policy is of continuous improvement, we reserve the right to change Specification and design without notice.

  • Page 5: Machine Details

    MACHINE DETAILS Machine model:…......…… Machine S/N:……………………………… Date of purchase:……………………………………………………………………….…. Sold by (dealer):………………………………………………………………………….. Purchaser’s Name:…......…………………………………………………….. Phone number:………………………. Fax number:………………………………. E-mail: …………………………………………………………………………………… Address: ………………………………………………………………………….……….. City:...........……….State:........…………………….. Postal code:……………………………Country:…………………………………………. …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………………………………… …………………………………………………………………………...

  • Page 6: Index Of Sections Schematic

    INDEX OF SECTIONS...

  • Page 7: A- Saw Assembly - Schematic

    HD1100N-SECTION -A – SAW ASSY. SCHEMATIC...

  • Page 8: A- Saw Assembly - Parts List

    HD1100N-SECTION- A – SAW ASSY. PARTS LIST REF. NO. DESCRIPTION PART NO. SAW BEARING HOUSE 00100135 SAW SHAFT BEARING 6007-2RS 87006007 SAW BEARING SPACER 00100131 SAW PULLEY 00160069 SAW WASHER 00100132 SAW SHAFT - SHORT 00160072 SAW SHAFT NUT 1”NC...

  • Page 9: B- Main Rotation Shaft - Schematic

    HD1100N- SECTION -B – MAIN ROTATION SHAFT SCHEMATIC...

  • Page 10: B- Main Rotation Shaft- Parts List

    HD1100N-SECTION- B – MAIN ROTATION SHAFT PARTS LIST REF. DESCRIPTION PART NO. CUTTING ARM FRAME - LEFT 00145100 CUTTING ARM FRAME - RIGHT 00145110 BEARING 6015-2RS 87006015 SPACER 00160075 ROTATION ASSEMBLY (COMPLETE) 00195038 BEARING 6007 – 2RS 87006007 SAW ROTATION SHAFT...

  • Page 11: C- Rotation Motor - Schematic

    HD1100N-SECTION -C – ROTATION MOTOR SCHEMATIC...

  • Page 12: C- Rotation Motor - Parts List

    HD1100N-SECTION- C – ROTATION MOTOR PARTS LIST REF. DESCRIPTION PART NO. CUTTING HEAD FRAME – 11 FT 00145182 ROTATION MOTOR MOUNT FLANGE 00195040 BOLT 5/8” NC x 8” 85110128 WASHER 00118116 SPRING WASHER 5/8” 86601000 NUT 5/8” NC 861010NC ROTATION MOTOR 00100459 BOLT ALEN 1/2"...

  • Page 13: D- Width Cylinder Schematic

    HD1100N- SECTION - D –WIDTH CYLINDER SCHEMATIC...

  • Page 14: D- Width Cylinder Parts List

    HD1100N-SECTION - D –WIDTH CYLINDER PARTS LIST REF. NO. DESCRIPTION PART NO. CYLINDER 00145201 CYLINDER NUT 00145202 PISTON ROD GUIDE 00200738 PISTON 00160317 LOCK NUT 1-1/2” NC 860024NC LOCK NUT 00160315 FLOW RISTRICTOR QR4 00421157 CYLINDER ROD 00145203 BACK UP RING...

  • Page 15: E- Ver/Hor Cylinder - Schematic

    HD1100N- SECTION- E – VER/HOR SCHEMATIC...

  • Page 16: E- Ver/Hor Cylinder - Parts List

    HD1100N-SECTION- E – VER/HOR PARTS LIST REF. NO. DESCRIPTION PART NO. CYLINDER 00145211 PISTON 00550027 CYLINDER ROD 00145213 LOCK NUT 1-1/8” NC 860018NC SPACER 00145216 CYLINDER NUT 00145212 CONECTOR ¼” BSPx 9/16” JIC 18-10000005 CYLINDER GUIDE WRE80 883WRE80 MAIN SEAL R1886...

  • Page 17: F-Engine Hood Cylinder- Schematic And Parts List

    HD1100N- F - ENGINE HOOD CYLINDER SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. CYLINDER 00090231 LOCK NUT 00090234 PISTON ROD 00090232 CYLINDER NUT 00090236 SCRAPER PW30 882PW030 PISTON ROD GUIDE WRI30 883WRI30 PISTON 00090233 O-RING 2-118 880OR118 OIL SEALR567...

  • Page 18: G- Lift Cylinder - Schematic And Parts List

    HD1100N- SECTION-G – LIFT CYLINDER SCHEMATIC AND PARTS LIST REF NO. DESCRIPTION PART NO. CYLINDER 00118081 LOCK NUT 00160315 CYLINDER NUT 00118084 PISTON ROD 00118082 LOCK NUT 861024NC BACK UP RING 00100739 PISTON 00160317 PISTON ROD GUIDE 00200738 SPACER 00118083...

  • Page 19: H- Cooling Fan- Schematic And Parts List

    HD1100N- SECTION - H - COOLING FAN SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. ADAPTOR 00090132 RADIATOR MOTOR FLANGE 00170551 RADIATOR FAN MOTOR 00135058...

  • Page 20: I- Rear Axle Cylinder- Schematic And Parts List

    HD1100N- SECTION – I - REAR AXLE CYLINDER SCHEMATIC AND PARTS LIST REF NO. DESCRIPTION PART NO. CYLINDER 00145221 00145222 CYLINDER NUT 00145223 LOCK NUT 00160315 SCRAPER PW50 882PW050 BACK UP RING 00160312 MAIN SEAL R8991 884R8991 O RING 2-245...

  • Page 21: J- Rear Axle Pivot - Schematic And Parts List

    HD1100N-SECTION - J – REAR AXLE PIVOT SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. O RING 2-258 880OR258 BEARING 6218-2RS 87006218 BEARING 6016-2RS 87006016 SNAP RING FOR SHAFT 80MM 876CI080 O RING 2-247 880OR247 COVER 00090025...

  • Page 22: K- Front Axle Hub- Schematic And Parts List

    HD1100N-SECTION - K – FRONT HUB SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. ARM LEFT 00145710 ARM RIGHT 00145712 KING PIN TOP PLATE LEFT 00145714 KING PIN TOP PLATE RIGHT 00145715 BOLT ¼” NF X1/2” 85004008 BEARING 32208...

  • Page 23: L- Steering Cylinder And Tie Rod- Schematic

    HD1100N-SECTION - L – STEERING CYLINDER AND TIE ROD SCHEMATIC...

  • Page 24: L- Steering Cylinder And Tie Rod- Parts List

    HD1100N-SECTION - L – STEERING CYLINDER AND TIE ROD PARTS LIST REF. NO. DESCRIPTION PART NO. SCRAPER PW40 882PW040 BACK UP RING 00550022 ROD GUIDE 00145243 CYLINDER 00145242 CYLINDER GUIDE WRE 63 883WRE63 MAIN SEAL PR63 881PR063 LOCK NUT 00120804...

  • Page 25: M-Front Axle Cylinder- Schematic And Parts List

    HD1100N- SECTION - M - FRONT AXLE CYLINDER SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. CYLINDER 00145231 00145232 CYLINDER NUT 00145233 LOCK NUT 00160304 SCRAPER PW60 882PW060 BACK UP RING 00200739 MAIN SEAL R12138 88412138 BACK UP RING 8-238...

  • Page 26: N- Front Axle Pivot- Schematic And Parts List

    HD1100N-SECTION - N - FRONT AXLE PIVOT SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. LOCK WASHER 86601200 BOLT ¾” NC X2” 85112032 COVER 00090029 BEARING 6016-2RS 87006016 BEARING 6018-2RS 87006018 LEFT ARM 00145710 RIGHT RAM 00145712...

  • Page 27: O- Front Pump Coupling- Schematic And Parts List

    HD1100N-SECTION - O - FRONT PUMP COUPLING SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. JD-6068 ENGINE PULLEY 00090352 OMEGA COUPLING E10-M-01 00170151 FRONT PUMP SHAFT COUPLING 00170046 CONNECTOR 00090353 ROTATION PUMP CCW 00130552 LOCK WASHER 1/4” 86600400 BOLT 1/4"NC X 1...

  • Page 28: Hydraulic System- Control Circuit Schematic

    HD1100N-HYDRAULIC SYSTEM CONTROL CIRCUIT - SCHEMATIC...

  • Page 29: Hydraulic System- Control Circuit Parts List

    HD1100N-HYDRAULIC SYSTEM CONTROL CIRCUIT - PARTS LIST REF NO. DESCRIPTION PART NO. WIDTH CYLINDER 00145200 CONTROL VALVE MANIFOLD (X7) 16DHIPLAT7 VER/HOR CYLINDER 00145210 RESTRICTOR QR4 00421157 LIFT CYLINDER 00118080 HOOD CYLINDER 00090230 FRONT AXLE CYLINDER 00145230 REAR AXLE CYLINDER 00145250...

  • Page 30: Hydraulic System-Saw Circuit Schematic

    HD1100N-HYDRAULIC SYSTEM SAW CIRCUIT - SCHEMATIC...

  • Page 31: Hydraulic System-Saw Circuit Parts List

    HD1100N-HYDRAULIC SYSTEM SAW CIRCUIT - PARTS LIST REF. NO. DESCRIPTION PART NO. SAW MOTOR 00165101S SUB PLATE FOR SAW VALVE 00091035 SAW ROTATION VALVE SOLENOID 13-00000006 SAW ROTATION VALVE 13-00000009 SAW RELIEF VALVE 00165198 PRESSURE GAUGE 0-3000 P.S.I. 00100465 SAW PUMP CCW...

  • Page 32: Hydraulic System -Rotation Circuit Schematic

    HD1100N-HYDRAULIC SYSTEM ROTATION CIRCUIT - SCHEMATIC...

  • Page 33: Hydraulic System -Rotation Circuit Parts List

    HD1100N-HYDRAULIC SYSTEM ROTATION CIRCUIT - PARTS LIST REF. NO. DESCRIPTION PART NO. ROTATION MOTOR 00100453 ROTATION VALVE SOLENOID 16000004 SUB PLATE FOR ROTATION VALVE 16F-10-12-20 ROTATION VALVE - DKI 16DKI1710 SUCTION MANIFOLD MOTOR 00090033 FLOW CONTROL VALVE 1/4 “ 00420463 FLOW VALVE 1/2"...
  • Page 34 HD1100N-HYDRAULIC SYSTEM HYDROSTATIC DRIVE CIRCUIT - SCHEMATIC...
  • Page 35 HD1100N-HYDRAULIC SYSTEM HYDROSTATIC DRIVE CIRCUIT - PARTS LIST REF. NO. DESCRIPTION PART NO. HYDROSTATIC DRIVE PUMP 64 00090099 PRESSURE GAUGE 0-6000 P.S.I. 00120754 PRESSURE GAUGE 0-1000 P.S.I. 00100527 PARKING VALVE DELTA 13-00000010 HYDROSTATIC DRIVE MOTOR F12-30 10-00000002 FINAL DRIVE 67-00000015...
  • Page 36 HD1100N- HYDRAULIC SYSTEM POWER STEERING CIRCUIT SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. STEERING MOTOR 00090082 STEERING COLUMN 10-00000001 STEERING WHEEL 00090084 RELIEF VALVE 00180230 STEERING PUMP 00090082 SUCTION STRAINER 00090085 RETURN FILTER ELEMENT 00090087 STEERING CYLINDER 00145240...
  • Page 37 HD1100N- HYDRAULIC SYSTEM COOLING FAN CIRCUIT- SCHEMATIC AND PARTS LIST REF. NO. DESCRIPTION PART NO. COOLING PUMP 00090089 RELIEF VALVE 00180230 COOLING FAN MOTOR 00135058 RETURN FILTER ELEMENT 00090087 SUCTION STRAINER 00090085...

  • Page 38: Special Tools

    SPECIAL TOOLS REF. NO. DESCRIPTION PART NO. SAW SHAFT WRENCH 00100188 SAW PULLEY BEARING (6007) TOOL 00155101 ARM ROTATION SHAFT BEARING (6015) TOOL 00155102...
  • Page 39 NOTES ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………. ……………………………………………………………………………………………………………...
