CONTENTS Safety Precautions......................2-3 Installation....................4-5 Wiring Connections......................6-7 Controls of the Unit......................8 Basic Operation.......................9 Radio Operation......................10 USB/SD Operation....................11 Steering Wheel Control....................11 Other Operations......................12 Maintenance......................12 Infra Red Remote Control...................13 Simple Troubleshooting Guide..................14 Specifications..................15...
SAFETY PRECAUTIONS Important Warnings to Take Note of BEFORE Commencing Installation Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take the Time to Read the Installation Notes Carefully. To Validate the Warranty Please Ensure That the Unit is Installed by a Professional, VAT registered Car Audio Installation Company.
SAFETY PRECAUTIONS Secure the wiring with cable clamps or adhesive tape. To protect the wiring, wrap adhesive tape around them where they lie against metal parts. To avoid short-circuiting, cover all disconnected lead with insulating tape. There is a possibility of short-circuiting if the leads are not insulated.
INSTALLATION Tools for Installation Use the 2 removal wrenches of the old unit to take out the old unit and place with this brand new car radio. The following tools and sup- plies may also be needed for the installation: Tools for Installation: Philips Screw-drivers /Machine Screws /Wire Stripper /Wire Cutter /Hammer /Pencil /Electrical Tape /Electric Drill Supplies for Installation: Machine Screws /Crimp Connectors /14 Gauge Wire for Power Connections /14-16 Gauge Speaker Wires The above are not supplied.
INSTALLATION WARNING! Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. NOTE: Mark the polarity of the existing speaker wires before disconnecting battery. NOTE: Remove the two transport screws from the top of the unit before installing. NOTE: Make sure there is enough space for the installation of this double-din unit.
WIRING DIAGRAM Radio Antenna Reverse(purple-white) Steering 1 (brown) Parking (green) Steering 2A (white) Steering 2B (grey) Connector A Connector B 1. Rear right speaker(+)/Purple 1. - Rear right speaker(-)/Purple-Black 2. - 3. Front right speaker(+)/Grey 3. - 4. Front right speaker(-)/Grey-Black 4.
Page 8
WIRING DIAGRAM General Wiring Notes: Make sure You have a good chassis ground. Good ground connection will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the .vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good ground connection.

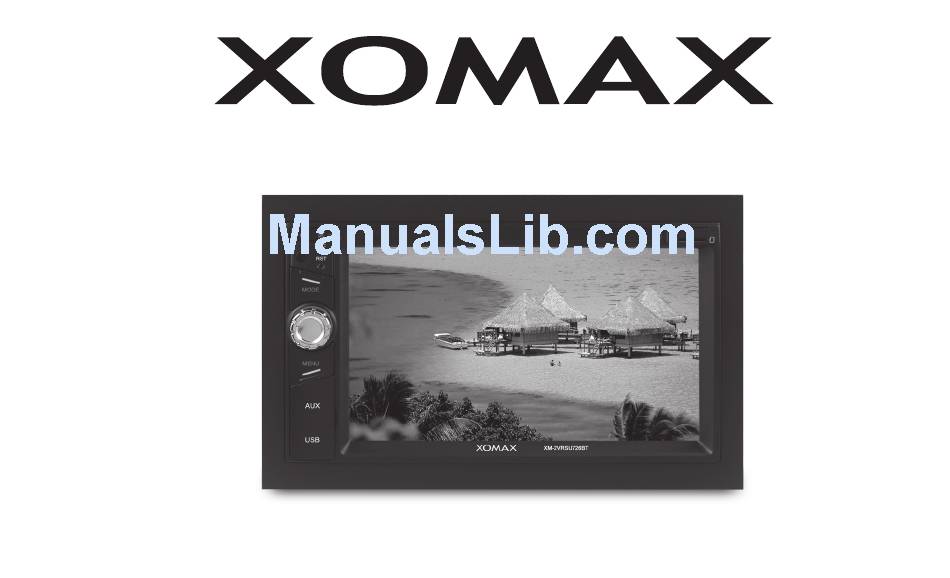

CONTROLS OF THE UNIT Power on/off - TFT on/off SD Card Slot Mute MIC Receiver IR Receiver Reset Mode Select Sound Select/Volume +/- Menu AUX Input Jack USB Slot XM-2VRSU726BT 6.2” TFT Screen...
BASIC OPERATION 1. Turning the unit On / Off Press the Power Button to turn the unit on. When the unit is on, press the Power Button once to turn the TFT off. During TFT off, the video out signal will be available so that the connected monitor will show the screen of the unit.
Radio Operation 1. Choose Radio Band Touch the BAND button onscreen to choose among the five radio bands - three FM Bands (FM1, FM2, and FM3) and two AM Bands (AM1, and AM2). Each of the five bands can store up to six preset stations, for a total of 30 preset memory stations. 2.
USB/SD Operation Plug the USB/SD card into the USB/SD port. The unit will play the contents automatically. 1. Advance / Go Back Advance to the next track or go back to the previous track by pressing the forward or rewind buttons on the front panel or touch screen.
Other Operations 1. AV Input The AV Input Jack is a set of composite input on the rear of the unit. Press the Mode button to choose AUX. Connect any portable audio/ video device such as a DVD player or VCD player to unit. Use the volume control to adjust volume. 2.
Infra Red Remote Control 1. Power On/off 13. Time Clock Display/Statistical Disc 2. Mode Switch Button Information Display Button 3. Stop Playback 14. VOL + 4. Navigation Up 15. Play/Pause Function 5. Navigation Left 16. Sound Select Button 6. Enter Button 17.
SIMPLE TROUBLESHOOTING GUIDE PROBLEM CAUSE / SOLUTION No Power Check whether the fuse is blown, replace with fuse of proper value if necessary. Unit stops responding or shows error Press the RESET button. in display Unable to receive radio stations Check whether the antenna is inserted or the antenna is properly connected;...
Specifications GENERAL Operating Power............................12 Volts DC, Negative Ground Output Wiring..........................Designed for using four speakers only RCA line out..............................low-level outputs - 1000MV Output Impedance..........................Compatible 4 to 8 Ohm Speakers Fuses.........................................10 amp Dimensions............................178mm(W) x 137mm(D) x 100mm (H) Weight........................................2.0 Kg TFT/SYSTEM Resolution..................................800RGB(H) X 480(V) Brightness/Contrast.................................400cd/m /600 Viewing angle......................................70...
