MILE HIGH WINGS XACT Instruction Manual

Composite aerobatic arf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

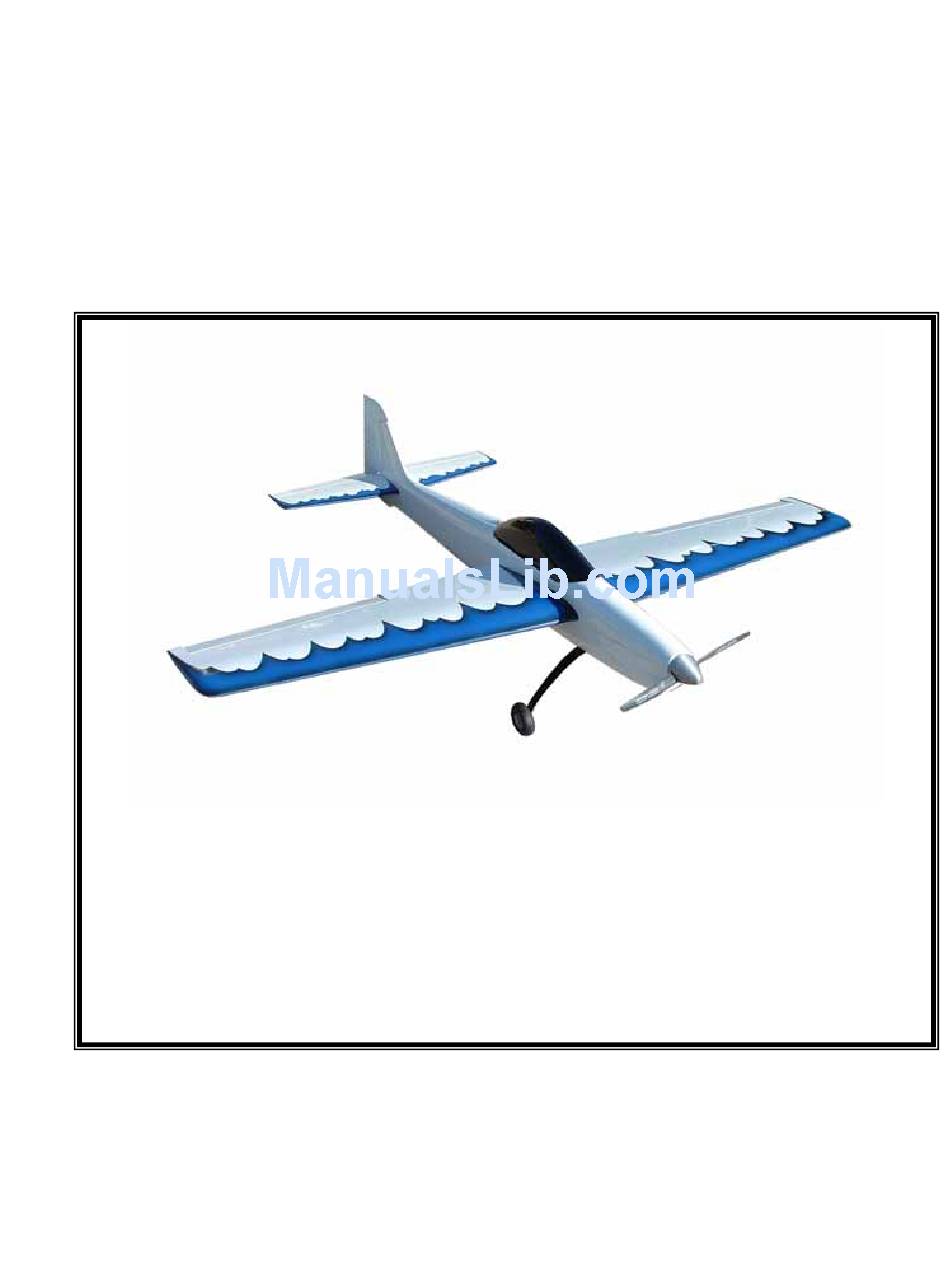

INSTRUCTIONAL MANUAL
Wingspan: 54.7 in (1390 mm)
Length:
51 in (1295 mm)
Wing Area: 550 sq.in (35.5 dm
Flying Weight: 4.6 lb (2.1 kg)
Wing Loading: 19.5 oz/sq.ft (60 g/dm
Engine Req. : .40-.61 2s/.50-.70 4s or electric
Xact
Composite Aerobatic ARF
2
)
2
)
Mile High Wings
Boulder, Colorado, USA
www.milehighwings.com
sales@milehighwings.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XACT and is the answer not in the manual?

Questions and answers

Summary of Contents for MILE HIGH WINGS XACT

  • Page 1 Wingspan: 54.7 in (1390 mm) Length: 51 in (1295 mm) Wing Area: 550 sq.in (35.5 dm Flying Weight: 4.6 lb (2.1 kg) Wing Loading: 19.5 oz/sq.ft (60 g/dm Engine Req. : .40-.61 2s/.50-.70 4s or electric Mile High Wings Boulder, Colorado, USA www.milehighwings.com sales@milehighwings.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Thank you for purchasing this plane. INTRODUCTION........2 Xact is not recommended as the first plane as SAFETY............2 it does not have excessive stability, typical for a trainer. Instead, Xact offers impressive Radio ..............3 aerobatic performance due to its light weight Engine Recommendations ......3...

  • Page 3: Radio

    R/C pilot. Hardware and Accessories 6. WARNING: Xact is made of fiberglass, Virtually no extra hardware is needed, as which fibers may cause eye, skin and everything is provided in this kit. You will respiratory tract irritation.

  • Page 4: Kit Contents

    KIT CONTENTS ASSEMBLING THE PLANE 1. Wings with ailerons 1. Installing Control Horns on Stabilizer 2. Fuselage and cowl and Rudder 3. Stabilizer with elevator It is easier to install control horns before 4. Rudder gluing the elevator and the rudder to the 5.

  • Page 5: Installing Rudder And Tail Wheel

    Sand the paint off the thin strip of the stabilizer, which will contact the fuselage. Be careful not to damage the fiberglass, just remove the paint. Apply small amount of Aerosil/epoxy mix to the fuselage and/or to the stabilizer; insert the stabilizer into the fuselage slot aligning it to the electric tape;...

  • Page 6: Mounting Engine And Throttle Servo

    Figure 5. Once the servo is secured in the wing, cut a slot for the servo arm in the servo bay lid then fix it in place with the scotch. Make control rods from the piano wire using the supplied clevises and E/Z Link-s.

  • Page 7: Installing Fuel Tank

    Wing nuts should turn rather tight, which is normal. 12. Setting Control Throws Figure 9. Xact is a very light plane with all the heavy components (engine, battery, etc.) are located 8. Installing Fuel Tank near its center of gravity. Because of this, it...
