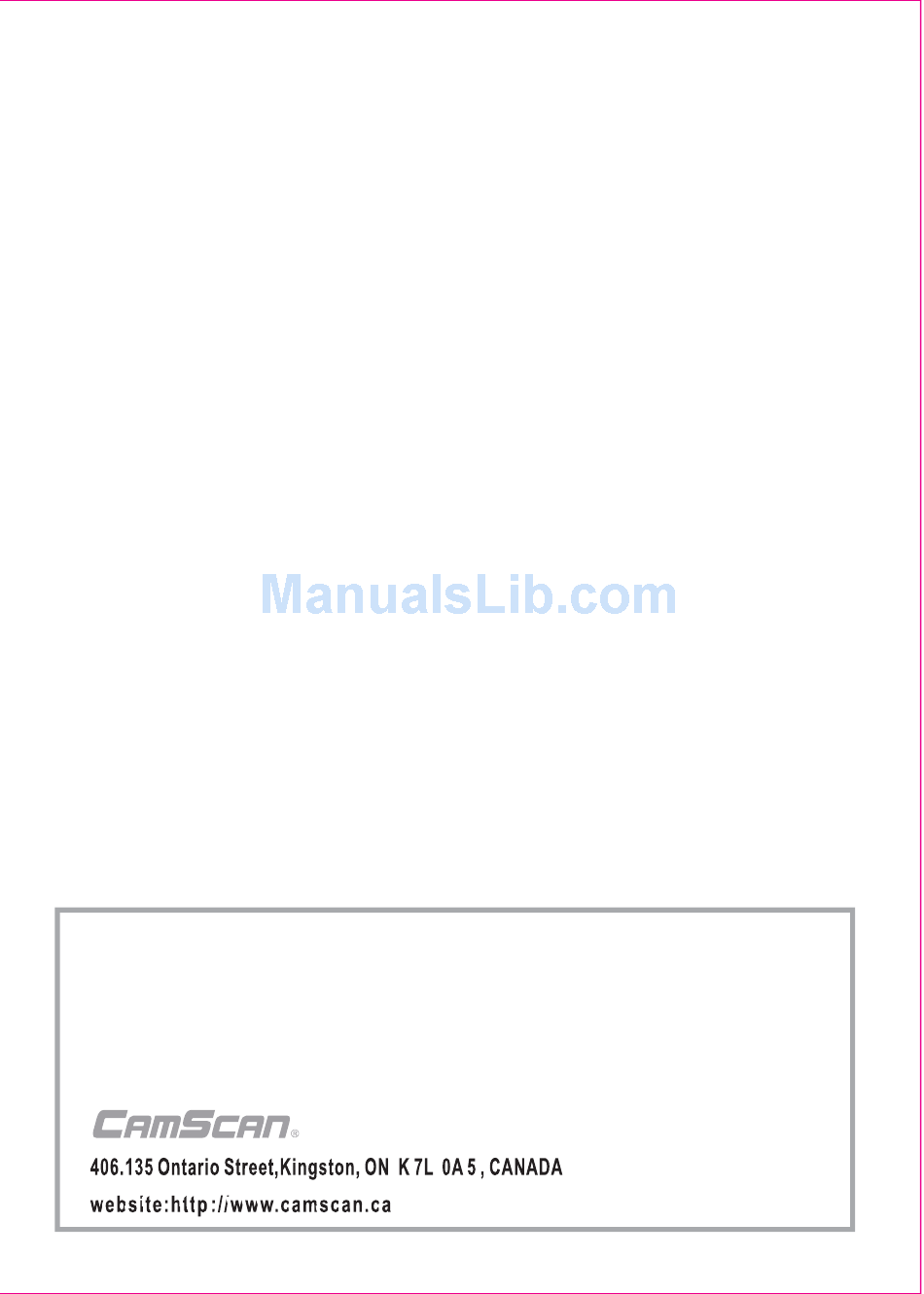

- Page 1 P/N : 388028373 PRINTED IN KOREA...
- Page 2 INSTRUCTION MANUAL SUPREME IMAGE SUPREME IMAGE Video Surveillance Camera Video Surveillance Camera CS-IRV7700 CS-IRV7800 CS-IRV7950 Professional IR 7000 Series V/F Lens Day&Night IR Bullet Camera...
-
Page 3: Information For User
INFORMATION FOR USER... -
Page 4: Table Of Contents
CONTENTS 1. Information for user 2. Contents 3. Composition 4. Features 5. Dimensions 6. Parts Name 7. Connection 8. Adjustments 9. Setup Menu CS-IRV7700 CS-IRV7800 CS-IRV7950 10. Specifications CS-IRV7700 CS-IRV7800 CS-IRV7950 11. Troubleshooting... -
Page 5: Composition
Composition Confirm that the following parts are included: T1 5x26 L-Wrench: Unscrew and tighten bracket screws for pan&tilt adjustment of the camera. Screws: Firmly attach the bracket to the wall or ceiling. Bolt: Fix the sun-shield to the camera. Driver: Unscrew the service port cap. Adjust the zoom/Focus screws. Service monitor and control cable: Monitors the display screen and set up OSD menu externally. -
Page 6: Features
- Horizontal, Vertical Mirror Supports - Externally adjustable Focal length & Focus - Built-in Service Monitor & OSD Control Port - Cable managed bracket - Weatherproof Housing (IP-66) - DC 12V Operation (AC24V/DC12V option) CS-IRV7700 CS-IRV7800 CS-IRV7950 Resolution 700 TV Lines 2.2 mega-pixel Lens 2.8~12mm... -
Page 7: Dimensions
Dimensions 118.5 Ø80 Ø101 191.5... -
Page 8: Parts Name
Parts Name f=2.8~11mm f=6.0~50mm - Focus: Near(N) to Infinity( - Field of View: Wide(W) to Tele(T) 1. Sun-shield Bolt 5. Rear Case 2. Sun-shield 6. Service Monitor Output Cap 3. Front Case 7. Bracket 4. External Adjustment Screws 8. Video/Power Cable (Zoom/Focus Screws) -
Page 9: Connection
Connection Follow the diagram below to make proper connections to the monitor or the service monitor. Service Monitor and Control Cable Power Connection: - DC12V type: Requires DC12V. (Polatity) This camera is equipped with a service monitor output port. To setup the OSD menu, connect the OSD controller and service cable to the service monitor output port located at the base of the camera unit. -
Page 10: Adjustments
Adjustments Zoom / Focus Adjustment - To widen the viewing angle turn the Zoom screw to “W”(Wide) to obtain a closer view turn it to “T”(Tele). - Turn the Focus screw to “N”(Near) or “ ”(Far) until the sharpest focus is made. -
Page 11: Setup Menu
Setup Menu “CS-IRV7700” MAIN MENU MENU EXPOSUREDC DAY/NIGHT EXTERN WHITE BAL. MONITOR IMAGE MIDDLE MOTION SYSTEM EXIT SAVE The menu consists of the “Main Menu” and “Sub Menu”. The main menu is 8 kinds of camera functions can be selected. - Page 12 Setup Menu “CS-IRV7700” EXPOSURE MENU EXPOSURE EXPOSUREDC LENS DAY/NIGHT BRIGHTNESS EXTERN WHITE BAL. SHUTTER 1/60 MONITOR IMAGE SENSOR UP MIDDLE MOTION IRIS OFFSET SYSTEM EXIT ENTER - RETURN SAVE EXPOSURE LENS BRIGHTNESS SHUTTER AUTO SENSOR UP IRIS OFFSET NOT USED ENTER - RETURN ◈...
- Page 13 Setup Menu “CS-IRV7700” DAY & NIGHT MENU DAY/NIGHT EXPOSUREDC MODE AUTO DAY/NIGHT AGC THRS EXTERN WHITE BAL. AGC MARGIN MONITOR D/N DELAY 2 SEC IMAGE B/W BURST SMART IR MIDDLE MOTION RETURN SYSTEM EXIT SAVE DAY/NIGHT DAY/NIGHT MODE NIGHT MODE...
- Page 14 Setup Menu “CS-IRV7700” WHITE BALANCE MENU W.B. MANUAL EXPOSUREDC DAY/NIGHT BLUE EXTERN WHITE BAL. MONITOR IMAGE MIDDLE MOTION SYSTEM EXIT SAVE ENTER - RETURN ◈ WHITE BAL : You can select white balance mode. ▷ ATW / PUSH→SET / MANUAL(RED / BLUE) ▶...
- Page 15 Setup Menu “CS-IRV7700” MONITOR MENU MONITOR EXPOSUREDC GAMMA 0.45 DAY/NIGHT CHROMA EXTERN WHITE BAL. SHARPNESS MONITOR SHADING IMAGE PED. LV. MIDDLE MOTION SYSTEM EXIT SAVE ENTER - RETURN ◈ MONITOR : You can adjust camera image. ▷ GAMMA : You can adjust gamma on screen ▶...
-
Page 16: Back Light
Setup Menu “CS-IRV7700” IMAGE MENU IMAGE EXPOSUREDC BACKLIGHT DAY/NIGHT CONTRAST EXTERN WHITE BAL. POSI/NEGA POSI MONITOR H-MIRROR IMAGE PRIVACY RETURN MIDDLE MOTION SYSTEM EXIT SAVE ◈ IMAGE : You can adjust camera image IMAGE BACK LIGHT BACKLIGHT MODE CONTRAST LEVEL... - Page 17 Setup Menu “CS-IRV7700” IMAGE IMAGE BACK LIGHT BACKLIGHT MODE CONTRAST LEVEL HIGH POSI/NEGA POSI H-MIRROR PRIVACY RETURN ENTER - RETURN ▶ HLC : You can select HLC display ► LEVEL : LOW / MIDDLE / HIGH IMAGE CONTRAST BACKLIGHT MODE...
- Page 18 Setup Menu “CS-IRV7700” IMAGE IMAGE CONTRAST BACKLIGHT MODE DEFOG CONTRAST DEFOG DEFOG AUTO POSI/NEGA LEVEL POSI H-MIRROR PRIVACY RETURN ENTER - RETURN ▶ DEFOG : You can select defog display ► DEFOG : AUTO / MANUAL ► LEVEL : LOW / MIDDLE / HIGH ▶...
- Page 19 Setup Menu “CS-IRV7700” MENU EXPOSUREDC DAY/NIGHT EXTERN WHITE BAL. MONITOR IMAGE MIDDLE MOTION SYSTEM EXIT SAVE ◈ DNR : You can select digital noise reduction display ▶ LEVEL : LOW / MIDDLE / HIGH...
- Page 20 Setup Menu “CS-IRV7700” MOTION MENU MOTION EXPOSUREDC SENSITIVITY DAY/NIGHT AREA NO. EXTERN WHITE BAL. AREA USE MONITOR IMAGE BOTTOM LEFT MIDDLE MOTION RIGHT SYSTEM ENTER RETURN EXIT SAVE ◈ MOTION : You can select motion detection display ▷ MOTION ▶ SENSITIVITY : 0 ~ 30 steps ▶...
- Page 21 Setup Menu “CS-IRV7700” SYSTEM MENU SYSTEM EXPOSUREDC CAM TITLE DAY/NIGHT CAM ID EXTERN WHITE BAL. ID DISP. MONITOR SYNC IMAGE BAUDRATE 115200 LANGUAGE MIDDLE MOTION SPECIAL SYSTEM RETURN EXIT SAVE ◈ SYSTEM : You can select system display ▷ CAM TITLE : Select camera title ▶...
- Page 22 Setup Menu “CS-IRV7700” SYSTEM SYSTEM SPECIAL CAM TITLE DEFECT DET. START CAM ID FONT COLOR ID DISP. VERSION 130621 0 SYNC RETURN BAUDRATE 115200 LANGUAGE SPECIAL RETURN ▷ SPECIAL ▶ DEFECT DET : Select dead pixel compensation processing ► THRESHOLD LEVEL : 0 ~ 255 steps ▶...
- Page 23 Setup Menu “CS-IRV7800” MAIN MENU [MENU] MODEL TDN/COLOR EXPOSURE WHITE BAL IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] Functions can be setup using “Menu Key Command” of Visca protocol or Menu Key Port input. The menu consists of the “Main Menu” and “Sub Menu”. The main menu is displayed where 7 camera functions can be selected.
- Page 24 Setup Menu “CS-IRV7800” EXPOSURE [EXPOSURE] [MENU] LENS MODEL TDN/COLOR MODE . . . EXPOSURE WHITE BAL SHUT SPEED . . . IMAGE FLICKERLESS INTELLIGENCE BRIGHTNESS SPECIAL FUNC DISPLAY DAY/NIGHT [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] · LENS : Select lens type ▶...
- Page 25 Setup Menu “CS-IRV7800” EXPOSURE [EXPOSURE] [MENU] LENS MODEL TDN/COLOR MODE . . . EXPOSURE WHITE BAL SHUT SPEED . . . IMAGE FLICKERLESS INTELLIGENCE BRIGHTNESS SPECIAL FUNC DISPLAY DAY/NIGHT [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] · BRIGHTNESS : Adjust brightness level ▶...
- Page 26 Setup Menu “CS-IRV7800” EXPOSURE [EXPOSURE] [MENU] LENS MODEL TDN/COLOR MODE . . . EXPOSURE WHITE BAL SHUT SPEED . . . IMAGE FLICKERLESS INTELLIGENCE BRIGHTNESS SPECIAL FUNC DISPLAY DAY/NIGHT [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ▷Delay : Adjust the working time of the filter when Day&Night operated.
- Page 27 Setup Menu “CS-IRV7800” WHITE BALANCE [MENU] [WHITE BALANCE] MODEL TDN/COLOR MODE EXPOSURE RED GAIN . . . WHITE BAL BLUE GAIN . . . IMAGE CHROMA INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DELT] · MODE : Select white balance mode ▶...
- Page 28 Setup Menu “CS-IRV7800” IMAGE [MENU] [IMAGE] MODEL TDN/COLOR EXPOSURE AUTO WHITE BAL MIRROR IMAGE SHARPNESS INTELLIGENCE EFFECT SPECIAL FUNC FREEZE DISPLAY E.ZOOM [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] · HLC : Enhances the visibility on strong light sources in dark locations ▷...
- Page 29 Setup Menu “CS-IRV7800” IMAGE [MENU] [IMAGE] MODEL TDN/COLOR EXPOSURE AUTO WHITE BAL MIRROR IMAGE SHARPNESS INTELLIGENCE EFFECT SPECIAL FUNC FREEZE DISPLAY E.ZOOM [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] · EFFECT : Select the negative or B/W effect ▶ OFF / NEGATIVE / B/W ·...
- Page 30 Setup Menu “CS-IRV7800” INTELLIGENCE [MENU] [INTELLIGENCE] MODEL TDN/COLOR PRIVACY EXPOSURE MOTION WHITE BAL OBJECT IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] · PRIVACY : Hide an area you want to hide on the screen ▶ MASK# : Select mask area number (1 ~ 16) ▶...
- Page 31 Setup Menu “CS-IRV7800” INTELLIGENCE [INTELLIGENCE] [MENU] PRIVACY MODEL TDN/COLOR MOTION EXPOSURE WHITE BAL OBJECT IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] · OBJECT : Detect object appeared or removed the screen ▶ MODE : Object detection enable or disable (OFF / ON) ▶...
-
Page 32: Special Function
Setup Menu “CS-IRV7800” SPECIAL FUNCTION [SPECIAL FUNC] [MENU] MODEL SYNC MODE TDN/COLOR PHASE EXPOSURE WHITE BAL DEFECT DET IMAGE ONE PUSH DEFECT LEVEL INTELLIGENCE SCENE MODE SPECIAL FUNC USER DISPLAY COMM [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] · SYNC MODE : Select vertical sync source ▶... - Page 33 Setup Menu “CS-IRV7800” SPECIAL FUNCTION · SCENE MODE : Select scene preset ▶ USER / NORMAL / TRAFFIC / BACK LIGHT/ DAY/NIGHT / CASINO Function Normal Traffic Back Day/ Casino Light Night Mode Auto Auto Auto Auto Auto Max 4x Max 2x Max 4x Max 4x...
- Page 34 Setup Menu “CS-IRV7800” DISPLAY [MENU] [DISPLAY] MODEL TDN/COLOR DISP SEL EXPOSURE SET TITLE WHITE BAL ENGLISH LANGUAGE IMAGE SETUP STATUS INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] · DISP SEL : Select display item. ▶ OFF / ON ▶...
- Page 35 Setup Menu “CS-IRV7950” MAIN MENU MENU MODEL D&N EXPOSURE WHITE BAL IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] Functions can be setup using “Menu Key Command” of Visca protocol. The menu consists of the “Main Menu” and “Sub Menu”. The main menu is displayed where 7 camera functions can be selected.
- Page 36 Setup Menu “CS-IRV7950” EXPOSURE MENU EXPOSURE MODEL D&N MODE EXPOSURE BRIGHTNESS WHITE BAL SHUT SPEED AUTO IMAGE INTELLIGENCE SPECIAL FUNC FLICKERLESS DISPLAY WDR/BLC DAY&NIGHT [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ◈ LENS : Select LENS type ► DC ▷ MODE : INDOOR, OUTDOOR, DEBLUR ►...
- Page 37 Setup Menu “CS-IRV7950” EXPOSURE ◈ WDR/BLC : Select WDR(Wide Dynamic Range) or BLC(Back Light Compensation) ► WDR↲ ▷ LEVEL : Adjust WDR level. ► LOW, MID-LOW, MIDDLE, MID-HIGH, HIGH ※ WDR doesn’t work in Shutter Manual Mode. ► BLC↲ ▷ POSITION : Adjust the window position ▷...
- Page 38 Setup Menu “CS-IRV7950” WHITE BALANCE MENU WHITE BAL MODEL D&N MODE AUTO EXPOSURE RED GAIN WHITE BAL BLUE GAIN IMAGE CHROMA INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ◈ AWB : Select WHITE BALANCE mode ► AUTO / ONE PUSH / MANUAL / INDOOR / OUTDOOR ▷...
- Page 39 Setup Menu “CS-IRV7950” IMAGE MENU IMAGE MODEL D&N EXPOSURE AUTO WHITE BAL MIRROR IMAGE SHARPNESS INTELLIGENCE SPECIAL FUNC DEFOG DISPLAY FREEZE GAMMA 0.55 E.ZOOM [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ◈ HLC : Select High Light Compensation. When extremely bright light is projected to the camera masking is used on the portion to prevent partial saturation on the monitor.
- Page 40 Setup Menu “CS-IRV7950” IMAGE ◈ SHARPNESS : Adjust sharpness level ► 0 ~ 10 steps ◈ ACE : Select Digital WDR (Wide Dynamic Range) ► OFF / LOW / MIDDLE / HIGH ◈ DEFOG : Carry out defog function ► OFF / ON↲ ▷...
- Page 41 Setup Menu “CS-IRV7950” INTELLIGENCE MENU INTELLIGENCE MODEL D&N PRIVACY EXPOSURE MOTION WHITE BAL IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ◈ PRIVACY : Hide an area you want to hide on the screen ► OFF / ON↲ ▷...
- Page 42 Setup Menu “CS-IRV7950” SPECIAL FUNC MENU SPECIAL FUNC MODEL D&N DEFECT EXPOSURE NTSC SYSTEM WHITE BAL HD FORMAT 1080P IMAGE COMM INTELLIGENCE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ◈ DEFECT : Compensates for bad pixels that may occur. Occurs when the whole screen is in full black or if there is bad pixelation and it changes the THRS values until the screen is fixed.
- Page 43 Setup Menu “CS-IRV7950” DISPLAY MENU DISPLAY MODEL D&N DISP SEL EXPOSURE SET TITLE WHITE BAL INIT SEL IMAGE SET INIT MSG INTELLIGENCE ENGLISH LANGUAGE SPECIAL FUNC DISPLAY [EXIT] [SAVE] [DFLT] [BACK] [SAVE] [DFLT] ◈ DISP SEL : Select display item. ►...
- Page 44 Specifications “CS-IRV7700” Model NTSC Image Sensor 1/3” 2:1 Interlaced CCD Total Pixels 1020(H) × 508(V) 1020(H) x 596(V) Effective pixels 976(H) × 494(V) 976(H) x 582(V) Scanning system 2:1 Interlace Scanning Frequency 15.734KHz(H),59.94Hz(V) 15.625KHz(H),50Hz(V) Sync. System Internal Horizontal Resolution Max 700 TV lines in color Min.
- Page 45 Specifications “CS-IRV7700” NTSC Model Sharpness 1 ~ 20 steps Effect Positive / Negative Shading 1 ~ 20 steps Privacy Mask Off / 8 positions Motion Detection Off / 4 positions Defect Detection One Push Communication Coaxial control, RS-485 Protocol COAX : Pelco-C / RS-485 : Palco-D, Pelco-P...
- Page 46 Specifications “CS-IRV7800” Model NTSC 1/3" SONY Super HADⅡ(Double Scan) CCD Image Sensor Total Pixels 1028(H) × 508(V) 1028(H) x 596(V) 2:1 Interlace Scanning system Scanning Frequency 15.734KHz(H),59.94Hz(V) 15.625KHz(H),50Hz(V) Internal / External (V-Lock) Sync. System Max 700 TV lines in color @ HR 7 mode Resolution (750TV lines in B/W @ HR 7 mode) Color : 0.3 lux , BW : 0.1 lux...
- Page 47 Specifications “CS-IRV7800” Model NTSC Sharpness 1 ~ 16 steps Effect Off / Negative / B/W Freeze Off / On E.Zoom E-Zoom (Max x2 ~ x32) / E-Pan / E-Tilt Intelligent Privacy / MD / OD Privacy Mask Off / 16 positions Motion Detection Off / 3 positions Object Detection...
- Page 48 Specifications “CS-IRV7950” Model NTSC Image Sensor 1/3" Panasonic CMOS Total Pixels 2010(H) x 1108(V) = 2,227,080 (pixels) Active pixels 1944(H) x 1092(V) = 2,122,848 (pixels) Scanning system Progressive Resolution Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/30fps) Analog : 700TVL Min. illumination Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux Video Output HD : HD-SDI, BT.1120...
- Page 49 Specifications “CS-IRV7950” Model NTSC Defog Off / On (Auto / Manual) Freeze Off / On GAMMA 0.45 / 0.50 / 0.55 / 0.60 / 0.65 E.Zoom Off / Max x2 ~ x32 PRIVACY Off / On (24 points) MOTION Off / On (3 points) Defect One Push System...
-
Page 50: Troubleshooting
Troubleshooting Nothing appears on the screen. - Please check the power connection. - Please check the video signal line connection. - Please check and make sure that the lens mode is set to DC(VIDEO) when using a VIDEO(DC) lens. The video image is not clear. - Please clean the lens with a clean cloth or brush.
