Summary of Contents for Door entry online K301A

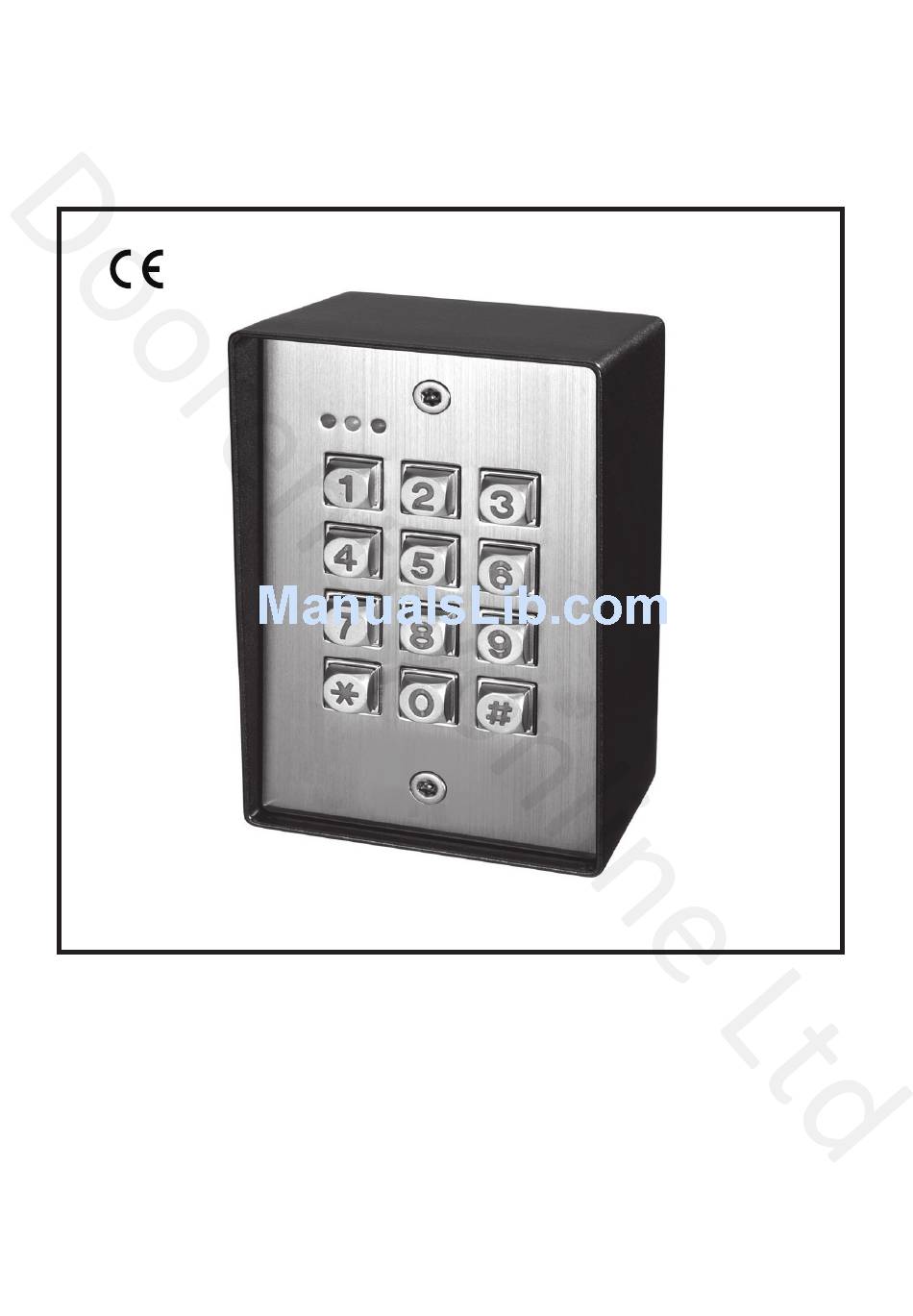

- Page 1 VANDAL RESISTANT BACK-LIT WEATHERPROOF ACCESS CONTROL KEYPAD K301A User Manual (MK-II) FOR ELECTRIC LOCK, INTER-LOCK AND SECURITY SYSTEM INSTALLATIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ························································································································· 5 FEATURES ·································································································································· 5 OPTIONAL DEVICES FOR SYSTEM EXPANSION ····································································· 5 SPECIFICATIONS ······················································································································· 6 INSTALLATION ··························································································································· 7 Precautions ································································································································ 7 CONNECTION TERMINALS ·································································································· 8-10 OTHER FACILITIES ··················································································································· 11 On-Board LED Indicators ·········································································································· 11 Pacifier Tone & The LED Signals ·······························································································... - Page 3 TABLE OF CONTENTS Operation Modes ························································································································· 38 Close The Programming Mode ···································································································· 38 Programming - General Users ······································································································· Programming Summary Chart ····························································································· 40-41 Application Examples ·········································································································· 42-43 Stand alone Door Lock ············································································································· 42 Inter Lock System Using Two Keypads ···················································································· 43...
-
Page 4: Introduction
INTRODUCTION K301A is a self-contained two output relay, vandal resistant and weatherproof keypad. It has been designed for full feature stand alone access control applications The keypad is ideally for door strike and alarm arm-disarm controls. It is also a programmable industrial timer (from 1 second to over 24 hours) for automatic operator system. -
Page 5: Specifications
SPECIFICATIONS Operating Voltage: 12V-24V AC/DC, Auto adjusting Operating Current: 20mA (quiescent) to 90mA@12VDC 10mA (quiescent) to 45mA@24VDC Storage and Operation Temperature: -20 C to +70 C Storage and Operation Humidity: 5-95% relative humidity non-condensing Working Environment & Ingress Protection: All weather, IP-66 Number of Users: Output 1 –... -
Page 6: Installation
INSTALLATION ASSEMBLY PRECAUTIONS In previous experience, most of the damages caused in the installation are accidental touching of the components on circuit board with the wires carrying power. Please be patient to study the manual to become familiar with the specifications of the system before starting the installations. Do not apply power to the system while it is in installation. -
Page 7: Connection Terminals
24 VDC/1A. K301A - Standard Version The Output relay 2 in K301A is controlled by the Group 2 User Codes. It is programmable for Start/Stop (toggle) mode or Momentary Timer mode. See programming Location 52 for the details. -
Page 8: System Refreshing With "Refreshing Code
9: EG IN ( Egress Input) A Normally Open (N.O.) input terminal referring to (-) ground. With the help of connecting a normally open button to activate Output 1 for door opening like using Codes. Egress button is usually put inside the house near the door. More than one egress buttons can be connected in parallel to this terminal. - Page 9 14: O/P 1 INHIBIT N.O. (Output 1 Inhibit Control Input – Normally Open) A Normally Open (N.O.) sensing input point for controlling the Output 1, with this terminal connecting to (-) ground, the Egress Button, the group of User PINs for Output 1 are all disabled. It is prepared mainly for the cross wire connection with the “Inter-lock O/P”...
-
Page 10: Other Facilities
OTHER FACILITIES ON-BOARD LED INDICATORS It lights up in Green for Output 1 activation; Red for Output 1 inhibited RED / GREEN (Right) --- and flashing during inhibition paused. It flashes in Standby. It shows the system status in synchronization AMBER (Centre) --------- with the beep tones. -
Page 11: Preparation For Programming
PREPARATION FOR PROGRAMMING A) CRITERIA FOR CODES Prime Codes a) User Codes b) Master Code c) Super User Code d) Visitor Codes All these codes MUST be unique. It is not allowed to repeat a prime code for second function. All the codes in this system can be 4-8 digits for Manual Entry Mode. -
Page 12: Programming And Operation
PROGRAMMING & OPERATION POWER-UP THE KEYPAD The keypad gives power-up delay of 1 minute after power has been applied. It is the time frame designed for setting the keypad to programming mode with DAP code. See the details of “DAP CODE –... -
Page 13: Direct Access To Programming Mode With The "Dap" Code - 2 8 2 8
DIRECT ACCESS TO PROGRAMMING MODE WITH “DAP” CODE -- 2 8 2 8 In case the Master Code is forgotten, apply the following procedures precisely to set keypad into programming mode with DAP code: Switch OFF all the power for 1 minute to ensure that the keypad is fully discharged. Switch ON power again. -
Page 14: The Default Values After Refreshing
THE DEFAULT VALUES AFTER REFRESHING LOCATION PARAMETERS DEFAULT FUNCTIONS & VALUES Master Code 0 0 0 0 Factory Set, Not a default value * Common User Code 2 Nil ----- User Program Required User Codes for O/P 1 Nil ----- User Program Required User Codes for O/P 2 Nil ----- User Program Required Visitor Codes... -
Page 15: Master Code
MASTER CODE (Location 01) LOCATION MASTER CODE VALIDATION 4 to 8 Digits (1) LOCATION Key in Location (2) MASTER CODE Master Code is the authorization code for setting the system to programming mode. It is NOT an User Code operating the output relays. The Master Code can be 4 to 8 digits. -
Page 16: Operation And Functions Of The Super User Code
OPERATION AND FUNCTIONS OF THE SUPER USER CODE 1) Operate Output 1 and 2 The operation of the Super User Code is just like a normal User Code. Simply key-in the Code with a specific output number for the desired Output. The Super User Code can also be used to reset an operating output timer instantly. - Page 17 4) Inhibit All The User Codes for Output 1 (Disable Access Control Manually) To enhance the security of the access control keypad, the owner can stop the keypad after office hour or while the house is nobody inside. Once the Output 1 (for door lock control) is inhibited, all the User Codes for it become invalid and those people holding the User Code are refused.
-
Page 18: User Codes For Output 1 & 2
USER CODES FOR OUTPUT 1 & 2 (Locations 10 & 20) LOCATIONS MEDIA USER ID USER CODE VALIDATION (1) LOCATIONS (User Groups) – Group 1 – 1,000 User Codes for controlling Output 1 – Group 2 – 100 User Codes for controlling Output 2 (2) MEDIA (Operation Media) –... -
Page 19: Examples - Programming And Operation
EXAMPLES – PROGRAMMING AND OPERATION 1) Example 1 -- User Code for Output 1 : i) Programming : (a) The User Code is programmed for Output 1 (b) Record a User Code (c) Take ID number 001 in Group 1 to store the User Code, which is one of the IDs in 000-999 (d) Key in the User Code "2 4 6 8"... - Page 20 3) Example 3 -- Delete a User Code (for O/P 1, 2) : i) Delete A User Code User ID a) Key in the User Group that the User ID belongs to. “10” for the Group 1, “20” for the Group 2 b) Key in “5”...
-
Page 21: Visitor Codes (For Output 1 Only)
VISITOR CODES (FOR OUTPUT 1 ONLY) (Location 40) The Visitor Codes are temporary user codes for Output 1 (mainly for door strike in access control). They can be programmed as “One Time Codes” or “Codes with Time Limit”. The Visitor Codes will be cleared automatically after use if they are one time codes, or, when the allowed time expires. - Page 22 EXAMPLES: Example 1: Set a “One Time Visitor Code” with the number of “1 2 6 8” for the Output 1 (a) Visitor Code Programming, (b) The Visitor ID, (c) An One Time Code, (d) The Visitor Code, (e) Entry Confirmation Example 2: Set a “Visitor Code”...
-
Page 23: Duress Codes (For Outputs 1 & 2)
DURESS CODES (FOR OUTPUTS 1 & 2) (Locations 41 & 42) Duress Codes are prepared for those Important Persons in case of DURESS while he is operating the access control keypad. The duress code operates like a normal User Code for Output 1 or 2, and at the same time activates the Duress Output without any indication. -
Page 24: Operation And Function Of The Duress Code
EXAMPLES: Example 1: Set a “Duress Code” with the number of “3 3 6 9” for Output 1 (a) Duress Code for Output 1, (b) Duress Code ID, (c) The Duress Code, (e) Entry Confirmation Example 2: Set a “Duress Code” with the number of “2 3 9 8 0” for Output 2 (a) Duress Code for Output 2, (b) Duress Code ID, (c) The Duress Code, (e) Entry Confirmation Example 3: Delete an Output 1 “Duress Code”... -
Page 25: Output Modes & Timing For Output 1 And 2
OUTPUT MODE & TIMING FOR OUTPUT 1 and 2 (Locations 51 & 52) The two relay outputs are programmable for Start/Stop or Timing modes. Apart from door access control, alarm arm-disarm control, they are also universal timers for automatic operators in industry with their 99,999 seconds (over 24 hours) programmable timer. -
Page 26: System Real-Time-Clock
SYSTEM REAL-TIME-CLOCK (Location 55) This 24 hour real-time-clock provides the daily time base for starting and stopping the function of inhibition to relay output 1 (mainly for electric door lock strike). No real-time-clock setting is required if daily start-stop inhibition at Location 56 is not enabled. -
Page 27: Start & Stop Times For Daily Inhibition Of Output 1
START & STOP TIMES FOR DAILY INHIBITION OF OUTPUT 1 (Location 56) Setting with start and stop times into the keypad, the real-time inhibition period for output 1 will recycle daily until the time settings are cleared. This function works with the real-time-clock. Set up the real-time at Location 55 is necessary. For safety reason, the Egress Button is designed always valid. - Page 28 Programming and Operation Examples: (i) Set the starting and stopping time for the real-time inhibition period a) Set Inhibition Period from 12:30 PM (today) – 1:30 PM (same day) for lunch time: 56 1230 1330 # b) Set Inhibition Period from 6:30 PM (today) – 8:15 AM (next day) for office close: 56 1830 0815 # NOTE: 1) The start and stop time figures are 24 hours basis.
-
Page 29: Personal Safety And System Lock-Out
PERSONAL SAFETY AND SYSTEM LOCK-UP (Location 60) LOCATION LOCK-UP OPTIONS VALIDATION 1 to 2 Digits (1) LOCATION Key in Location (2) LOCK-UP OPTIONS The Options are represented by the following Numbers. They are described below: --- After 10 successive false User Code trials, the keypad locks during 60 seconds. -- (Default) --- After 10 successive false User Code trials, activates the Duress output to switch to (-) ground.The Duress Output can be released with any user Code in the User Group 1 or Super... -
Page 30: User Code Entry Mode - Auto Or Manual
USER CODE ENTRY MODE – Auto or Manual (Location 70) LOCATION ENTRY MODES VALIDATION (1) LOCATION Key in Location (2) USER CODE ENTRY MODES Two modes 1 and 2 are available for User Code entry options. --- Auto Entry Mode Auto Entry Mode requires no pressing of the # key after code entry for code checking. -
Page 31: Output Operation Announcer
OUTPUT OPERATION ANNOUNCER (Location 72) LOCATION FUNCTION MODES VALIDATION (1) LOCATION Key in Location (2) FUNCTION MODES FOR OUTPUT ANNOUNCER Output announcer gives notification beep on the operation status of the outputs. There are two notification modes available for the selection.The notification is also OFF while the Pacifier Tone OFF mode in the Location 71 is selected. -
Page 32: Door Forced Open Warning & Timing
DOOR FORCED OPEN WARNING & TIMING (Location 80) LOCATION FUNCTION MODES VALIDATION (1) LOCATION Key in Location (2) FUNCTION MODES FOR DOOR FORCED OPEN WARNING The Door Forced Open Warning function works with a Door Position Sensing switch equipped on the door (usually a magnetic contact). -
Page 33: Intelligent Egress Button - An Unique Feature Of A Contemporary Keypad
INTELLIGENT EGRESS BUTTON – AN UNIQUE FEATURE OF THE KEYPAD INTRODUCTION Most of the keypads for access control are just for controlling “Going In” from outside. It is not enough for today’s access control systems. In fact, controlling “Going Out” is also very important in some public passage areas those are not allowed to use locks or digital keypads for stopping of “Going Out”... - Page 34 High Traffic Passage: A short buffer time may be necessary for opening a door outward after pressing the egress button for those exits open to a high traffic passage. An egress button with short delay and warning beeps helps the user to pay attention to the people passing by to prevent hitting them when the door is pushed outward.
-
Page 35: Egress Delay , Warning And Alarm
EGRESS DELAY , WARNING AND ALARM (Location 90) LOCATION CONFIGURATIONS DELAY TIME VALIDATION (1) LOCATION Key in Location (2) CONFIGURATIONS OF THE EGRESS WARNING Key in the number to enable 1 of the 6 configurations described below: --- Momentary Contact Mode without Warning -- (Default) Press the Button once. - Page 36 NOTE: 1) Momentary Contact -- The Egress Delay starts to count when the egress button is momentarily pressed. Output 1 activates automatically (door is released) when the delay time reaches. Holding Contact -- The user MUST hold the egress button in contact for the whole period of the Egress Delay time until Output 1 activates.
-
Page 37: Operation Modes
OPERATION MODES (Location 94) The keypad is programmable for keypad mode to work stand-alone for door control directly or for server mode to work with a split-decoder for high security access control. LOCATION OPERATION MODES VALIDATION (1) LOCATION Key in Location (2) OPERATION MODES –... -
Page 38: Programming - General Users
PROGRAMMING MAKE SIMPLE – For General Users This is a multi purpose keypad. It has many functions for user’s selection. For those general users taking the keypad for door strike only, most of the features can be kept in their Default values. Only the User Codes and a private Master Code are required to program. -
Page 39: Programming Summary Chart
PROGRAMMING SUMMARY CHART ENTRY LIMITS & CODE FACTORY FUNCTION CODE ENTRY LOCATION DEFAULT OPTIONS Master Code 4-8 Digits MASTER CODE Super User Code 4-8 Digits SUPER USER CODE CODE 1 - MEDIA: 2---Private User Code User Code s for O/P 1 5---Deletion of User Code CODE2 CODE3... - Page 40 Mode = 1, FUNCTION MODE: Pacifier Tone ON-OFF 0---OFF Pacifier Tone FUNCTION MODE 1---ON FUNCTION MODE: Mode = 1 0---NO Notification 1 Second FUNCTION MODE 1---1 Second Long Beep Long Beep Output Announcer 2---2 Short Beeps FUNCTION MODE: Mode = 1, Standby LED Flashing 0---OFF FUNCTION MODE...
-
Page 41: Application Examples
APPLICATION EXAMPLES 1) STAND ALONE DOOR LOCK K301A ELECTRIC LOCK NOTE: Connect the 1N4004 as close as possible to the lock in parallel with the lock power terminals of the lock to absorb the back EMF to prevent it from damaging the keypad. The 1N4004 is not required if the electric lock is AC operated. -
Page 42: 2) Inter-Lock System Using Two Keypads
2) INTER-LOCK SYSTEM USING TWO KEYPADS K301A K301A An inter-lock system needs two door controllers. This application example uses two keypads with simple cross wire connection on their "Output 1 Inhibit" and "Inter-lock Control Output" terminals. It is necessary to link up the "(-) GND" terminals of the two keypads as common ground to achieve the inter-lock logical functions.
