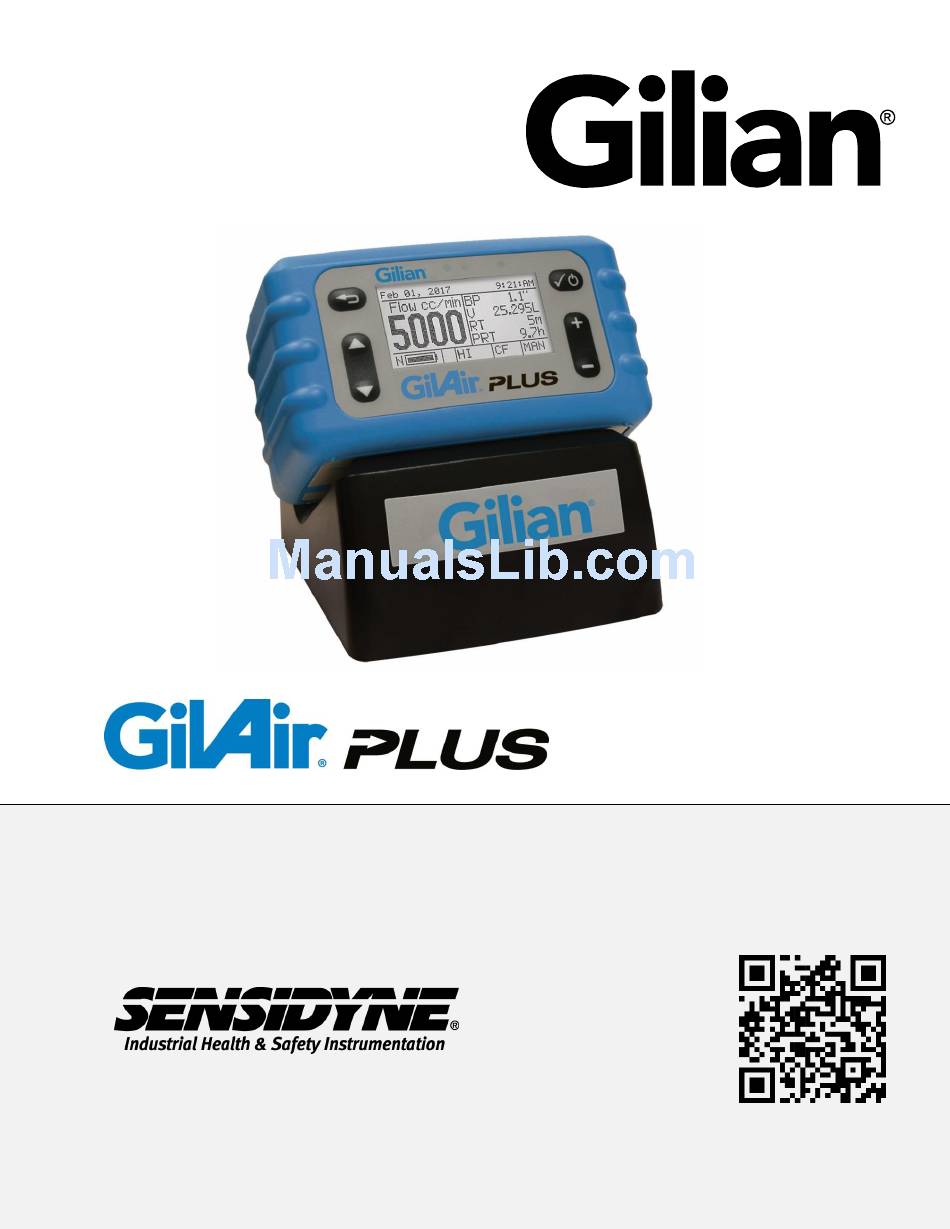

Quick-Start Guide
GilAir Plus Basic, PN 610-0901-01-R
GilAir Plus Datalog, PN 610-0901-02-R
GilAir Plus STP, PN 610-0901-03-R
GilAir Plus Datalog w/Bluetooth, PN 610-0901-05-R
GilAir Plus STP w/Bluetooth, PN 610-0901-06-R
Circle N, Suite 100 • St. Petersburg, FL 33716 USA
th
1000 112
(800) 451-9444 / +1 (727) 530-3602
www.Sensidyne.com •info@Sensidyne.com
REF 360-0135-01 (Rev E)
© 2010 Sensidyne, LP
Scan QR code to download software
and RF Regulatory Certifications
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for GilAir Plus PN 360-0132-01
- Page 1 Quick-Start Guide GilAir Plus Basic, PN 610-0901-01-R GilAir Plus Datalog, PN 610-0901-02-R GilAir Plus STP, PN 610-0901-03-R GilAir Plus Datalog w/Bluetooth, PN 610-0901-05-R GilAir Plus STP w/Bluetooth, PN 610-0901-06-R Circle N, Suite 100 • St. Petersburg, FL 33716 USA 1000 112 (800) 451-9444 / +1 (727) 530-3602 www.Sensidyne.com •info@Sensidyne.com...
- Page 2 Page 2 How to Use this Guide This Quick-Start Guide introduces basic operation and use of the GilAir Plus air sampling pump. Operation Manual (PN 360-0132-01) includes complete operation instructions, options, and notes. Always adhere to warnings, instructions, and procedures included in the Operation Manual.
- Page 3 Page 3 Set Flow Rate From the Main Menu, select Flow Set using the keys. Press the INC/DEC keys to set desired flow rate, then press the POWER/ENTER key to enter the desired flow rate. Note: Flow range select must be in Lo if the flow is less than 445 cc/min and in Hi for rates from 450 to 5100 cc/min.
-
Page 4: Specifications
User Programming The GilAir Plus has the capacity to create, store, and execute up to 16 user sampling program sequences. Each program can specify the control mode, set point flow or pressure, and a sequence of timed steps including time of day to operate, on and off periods, and a multi-cycle capability.
