Summary of Contents for Rear view safety MobileMule 2100

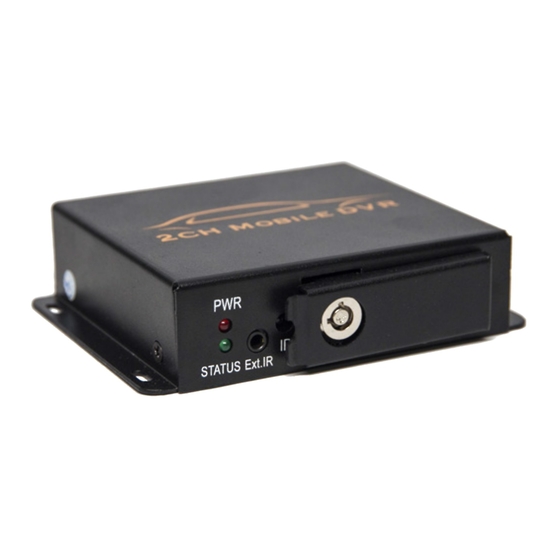

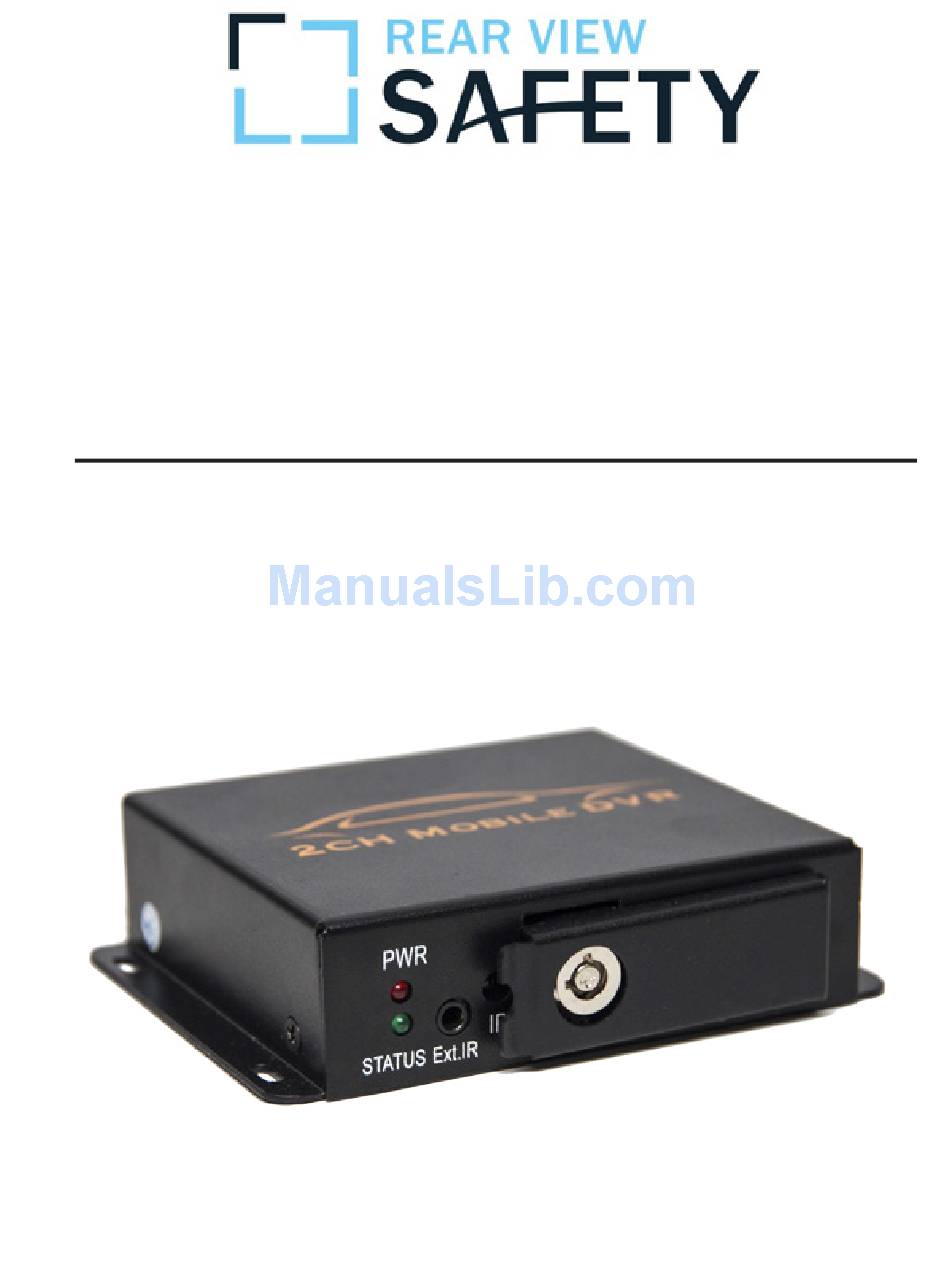

- Page 1 MobileMule™ 2100 2 Channel Mobile DVR Manual...
-
Page 2: Table Of Contents
Mobile Mule™ 2100 Content Features: Attention This is a SD card DVR works with 2 CCTV cameras. The wide power range support this device works in house and vehicle. Accessories Max. 128GB SD card memory makes recording time longer. Device instruction Recording mode: power up, motion detection, manually Connection Attention... -
Page 3: Device Instruction
MobileMule™ 2100 Manual MobileMule™ 2100 Manual Device instruction Remote controller Front panel Item Function Snap shot/switch files Power Switch files IR receiver Switch channel/Volume down Lock Switch channel/Volume up Confirm/start recording MENU enter into Menu/back to last menu MENU STOP PLAY DEL. -
Page 4: Connection
MobileMule™ 2100 Manual MobileMule™ 2100 Manual Connection Connection Connect with cameras Camera 2 DC 9V-30V Cam 1 Cam 2 AV OUT Alarm DC 9V-30V Cam 1 Cam 2 AV OUT Alarm * Power input range: 9V-30V Camera 1 Video Audio Alarm input instruction Connect with extension IR receiver DC 9V-30V... -
Page 5: Icons Instruction
MobileMule™ 2100 Manual MobileMule™ 2100 Manual Icons instruction Set up Preview mode: press “ ” or “ ” to switch camera view How to set up Camera 1 Preview mode Video 1. Press “ ” or “ ” button to select different items CAM1 2. -
Page 6: Video Setting
2 Channel DVR Manual 2 Channel DVR Manual Video setting Record setting M ENU Ch1 Setting ME NU REC. Setting 30fps Frame Rate Quality High File Save Overwrite Section 5min Manual REC. Mode Quality: High/Middle/Low selectable. The memory cost is also high if you choose high quality M E NU Ch2 Setting... -
Page 7: Sd Card
2 Channel DVR Manual 2 Channel DVR Manual SD card information System setting ME NU M ENU System Setting Card Info. Language English total Size 10sec Alarm Period Remain Size 0. 0% Timestamp Remain File Num. Reset Format Format Format Format Version 1. -
Page 8: Playback
MobileMule™ 2100 Manual MobileMule™ 2100 Manual Playback Select record file Select folder: File Name Date Start Time Record files saved in different folders which created by date. 045345- 2 2013/ 12/08 04: 53:44 One date for one folder only. So,please select the folder by date, 045345-1 2013/12/08 04:53: 44... -
Page 9: Parameters
2 Channel DVR Manual 2 Channel DVR Manual Parameters: Playing Item Description Data Video input 2 channel VOLUME Video output 1 channel Video Resolution D1 @ 640x480 for each Frame 5/15/30 fps for each Compression MPEG-4 Audio input 2 channel Audio Audio output 1 channel... -
Page 10: F.a.q
MobileMule™ 2100 Manual F.A.Q. 1. SD card can not read by DVR A.: Please use original type 1GB-128GB SDHC card 2. No video output on monitor once DVR power up A.: Please check connection between TV and DVR 3. No audio out when playing back video A.: Please check connection between TV and DVR.
