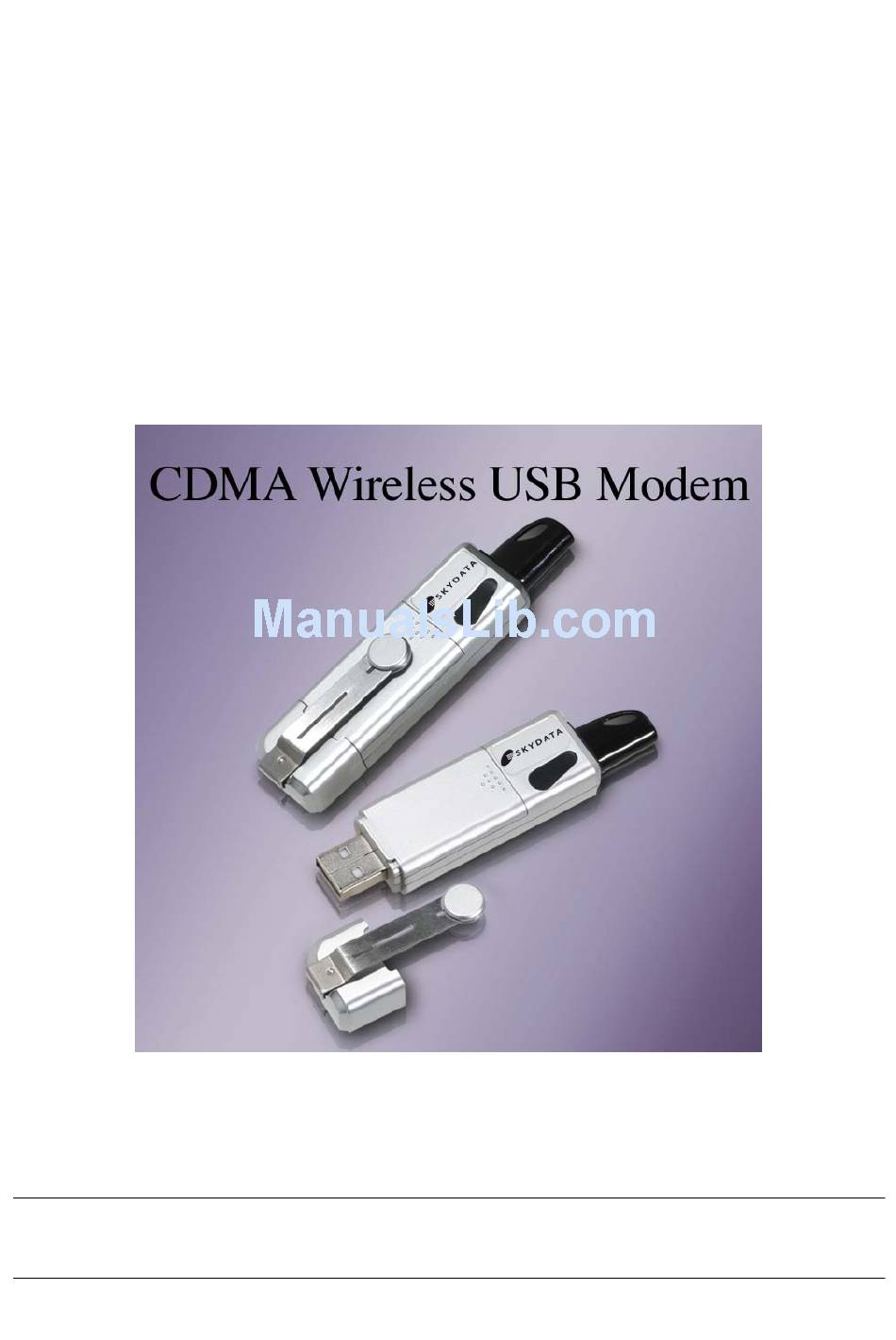

- Page 1 USB MODEM User’s Manual Model : SKD-U100 Ver. USB-100-2.2-B 180-166, Gajwa-dong, Seo-gu, Incheon City, Korea. SAMWOO Enterprise Co.,Ltd...
-
Page 2: Table Of Contents
Contents 1. CDMA USB Modem Installation.............. 3 1.1 Setup .............................3 1.2 Please Insert Modem........................6 2. Using the CDMA USB Modem Application Software ......14 2.1 Internet (Data Connection)......................16 2.2 SMS ............................17 2.3 Phone Book......................20 2.4 Setting........................23 <Read this manual carefully before operating the instrument>... -
Page 3: Cdma Usb Modem Installation
1. CDMA USB Modem Installation 1.1 Setup Insert installation CD (supplied with SAMWOO Enterprise Voice/Data Modem) into the CD- ROM drive. This will automatically start the installation and install the required drivers plus SAMWOO Enterprise Voice/Data Modem Application software. Do not connect SAMWOO Enterprise Communication Voice/Data Modem into your laptop/PC yet. - Page 4 The Install SKYDATA Setup Wizard screen will be appeared, Click ‘Next’ button to start installation <Read this manual carefully before operating the instrument>...
- Page 5 Click ‘Install’ <Read this manual carefully before operating the instrument>...
-
Page 6: Please Insert Modem
Click “Finish” button when the Installation Completed and remove the installation CD. 1.2 Please Insert Modem On Windows 2000 As inserting Modem on Windows 2000, there will not be any window and users can run applications after the device is detected. On Windows XP As inserting Modem on Windows XP, you can see "Find New Hardware"... - Page 7 Click <Next> Button <Read this manual carefully before operating the instrument>...
- Page 8 Click ‘Continue Anyway’ button. <Read this manual carefully before operating the instrument>...
- Page 9 Click ‘Finish’ button when the wizard has finished installing the software for SAMWOO Enterprise USB Compositive Device. Click ‘Next’ button <Read this manual carefully before operating the instrument>...
- Page 10 Click ‘Continue Anyway’ button. <Read this manual carefully before operating the instrument>...
- Page 11 Click ‘Finish’ button when the wizard has finished installing the software for : SAMWOO Enterprise, SKD-U100 Click ‘Next’ button <Read this manual carefully before operating the instrument>...
- Page 12 Click ‘Continue Anyway’ button. <Read this manual carefully before operating the instrument>...
- Page 13 Click ‘Finish’ button. <Read this manual carefully before operating the instrument>...
-
Page 14: Using The Cdma Usb Modem Application Software
2. Using the CDMA USB Modem Application Software This installation will be placed on your desktop for the SAMWOO Enterprise Voice/Data Modem Application software and the SKYDATA Icon as below will appear on your computer. Note: If the modem is connected to the Laptop/PC via serial port, the user will have to select the serial port initially when the User Interface software starts up. - Page 15 <Feature on the Display Screen> Icon Explain To connect to the internet, click this icon. To use send or receive SMS Message. To finish SKYDATA. Display signal sensitivity Antenna Bar. Display Incoming Voice Message. Display no read Voice Message. Set environment of the USB Modem. <Read this manual carefully before operating the instrument>...
-
Page 16: Internet (Data Connection)
2.1 Internet (Data Connection) Click <Internet> Icon, then Click <Start> Button <Read this manual carefully before operating the instrument>... -
Page 17: Sms
If Internet connection OK, It appears<successful connection> message. You want stop, Click <Stop> Button 2.2 SMS Click <SMS> Icon, It appears <New Message> screen. <Read this manual carefully before operating the instrument>... - Page 18 (1) SMS Transmission Do write message, then input <Receiver Mobile Number>, then Click <Send> Button. <Read this manual carefully before operating the instrument>...
- Page 19 (2) SMS Inbox: It can check <New Message> Delete, Delete All: Delete the Received Messages. Show: Read the Received Messages. (3) SMS Out Box: <Read this manual carefully before operating the instrument>...
-
Page 20: Phone Book
Delete, Delete All: Delete Out Box Messages. Show: Read Out Box Messages 2.3 Phone Book Click <Phone Book> Icon, It can be seen UIM Category <Read this manual carefully before operating the instrument>... - Page 21 (1) Add New Click <Add New> Button, Fulfill <Name & Number>, then Click <OK>. Delete: Delete the existed Number (2) Edit: <Name & Number> can be revised directly. <Read this manual carefully before operating the instrument>...
- Page 22 (3) Advanced Option Copy To Clipboard: <Name & Phone No List> can be copied to Clipboard. Export: <Name & Phone No List> can be saved by file. Import: <Name & Phone No List> can be read by file. Delete All: Delete All <Name & Phone No List> <Read this manual carefully before operating the instrument>...
-
Page 23: Setting
2.4 Setting (1) Internet Click <Setting> Icon, <No 1 Setting> is basic setting status. <Read this manual carefully before operating the instrument>... - Page 24 If you check <No 2>, can access to Internet and Browser can be run automatically. (2) Sound Alert on SMS: Setting Bell of Incoming SMS Alert Volume on SMS: Setting Bell Volume on SMS <Read this manual carefully before operating the instrument>...
- Page 25 (3) Misc. Setting Language: Selection of Language (4) Setting of PIN <Read this manual carefully before operating the instrument>...
- Page 26 Enable : Pin Code Number (Ex:1234) Disable : Pin Code Number (Ex:1234) If 3 times fail PIN Code inputting, UIM will be locked, then move to <PUK Code> level. Remained 3: This means that 3 times trial for SIM Card Authentication. Customer cannot try for 3 times fail more.
- Page 27 If UIM locks, SKYDATA should be separated from PC, then re-insert SKYDATA to PC. <PUK Code & New PIN Code> come to the screen. Remained 10: It marks that Trial count for SIM Card Authentication. <Read this manual carefully before operating the instrument>...
