Summary of Contents for FlaktWoods CPdb

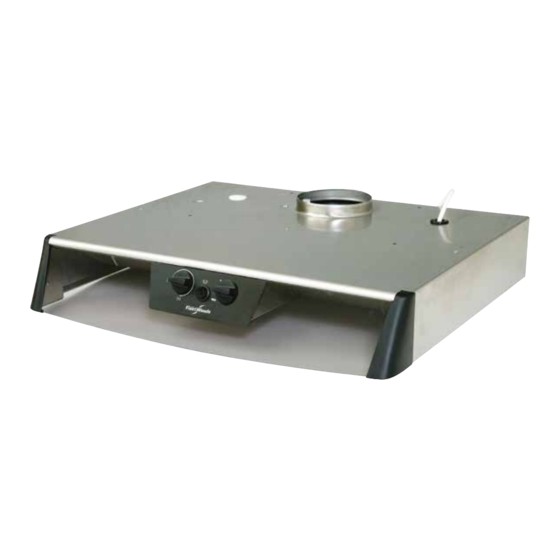

- Page 1 Cooker hood CPd Air ComforT » Technical Manual Housing venTilATion...
-
Page 2: Table Of Contents
Replacing of the low energy lamp ............3 General ......................3 Operating of CPDA and CPDJ ..............4 Operating of CPDB, CPDC, CPDG, CPDH, CPDK ......5 InstAllAtIon (for InstAllers And servICe Personnel) Installation height ..................6 Main supply ....................6 General ...................... -
Page 3: Maintenance (For The User)
Technical manual Cooker hood CPD mAIntenAnCe CleAnInG of Cooker hood Do not use abrasive sponge or cloth. CleAnInG of GreAse fIlter Note! Do not use the cooker hood without grease filter fitted. alt. Check the grease filter every week. Clean if needed. rePlACInG of the loW enerGy lAmP GenerAl there is a fire risk if cleaning is not carried... -
Page 4: Operating Of Cpda And Cpdj
Cooker hood CPD Technical manual mAIntenAnCe oPerAtInG of CPdA And CPdj Handle for boosting Lighting Fläkt Woods 8757 GB 2016.12.05 Specifications are subject to alteration without notice... -
Page 5: Operating Of Cpdb, Cpdc, Cpdg, Cpdh, Cpdk
Technical manual Cooker hood CPD mAIntenAnCe oPerAtInG of CPdb, CPdC, CPdG, CPdh And CPdk Handle for boosting Lighting Handle for fan speed NORMAL Fläkt Woods 8757 GB 2016.12.05 Specifications are subject to alteration without notice... -
Page 6: Installation (For Installers And Service Personnel)
Cooker hood CPD Technical manual InstAllAtIon (for InstAllers And servICe Personnel) InstAllAtIon heIGht mAIn suPPly min 400 mm All cooker hoods has to be connected directly or indirectly via the heat recovery unit/exhaust fan to earth. If the supply cord is damaged, it must be replaced by the manu- facturer, its service agent or similarly qualified persons in order to avoid hazard. -
Page 7: Cpda
Technical manual Cooker hood CPD InstAllAtIon (for InstAllers And servICe Personnel) CPdA Intended for multiple-unit dwellings with a central extract air fan or a heat recovery unit. Suitable for both new production and replacement of older cooker hoods. InstAllAtIon betWeen kItChen CAbInets 300 mm min 500 mm InstAllAtIon beneAth kItChen CAbInets... -
Page 8: Cpdb
Cooker hood CPD Technical manual InstAllAtIon (for InstAllers And servICe Personnel) CPdb Replacement hood for older exhaust air fan JBDD-aa with capacitor box, manufactured before 2007. J B D D - a J B D D - a ( e a r l i e r... -
Page 9: Cpdg
Technical manual Cooker hood CPD InstAllAtIon (for InstAllers And servICe Personnel) CPdG With transformer, fits for example the new JBDD and JBFG. (Fits JBDD-aa-1-2 but also as replacement cooker hood for controlling older exhaust air fans and units, for example JBDB, JBDC and RDAA.) InstAllAtIon beneAth kItChen CAbInets InstAllAtIon betWeen kItChen CAbInets 1 7 6... -
Page 10: Cpdh
Cooker hood CPD Technical manual InstAllAtIon (for InstAllers And servICe Personnel) CPdh Replacement hood for older heat recovery units RDKG with bypass. (Fits RDKG-a-2-c-d-1). Remove the old cooker hood. CPdk For heat recovery unit RDKG. (Fits RDKG-a-b-c-d-2). Fläkt Woods 8757 GB 2016.12.05 Specifications are subject to alteration without notice... -
Page 11: Cpdj
Technical manual Cooker hood CPD InstAllAtIon (for InstAllers And servICe Personnel) CPdj For heat recovery unit RDKR or RDKS. R D K S R D K S It is important to seal the grommet by putting back the small piece of sealing material. The picture illustrates a right hand unit. -
Page 12: Electrical Connections (For Installers And Service Personnel)
Cooker hood CPD Technical manual eleCtrICAl ConneCtIons (for InstAllers And servICe Personnel) CPdG Note! Electrical connections have to be made by authorized personnel. exhAust fAn jbdb exhAust fAn jbdC Not for Also for conversion kit JBDB conversion kit JBDC JBDB-99-05-0 JBDB-99-05-0 JBDA-99-031 JBDA-99-031... -
Page 13: Cpd(A, B, C, G) - Basic Ventilation
Technical manual Cooker hood CPD Adjustment CPdA, CPdb, CPdC And CPdG – bAsICventIlAtIon 30 + 1xC 12,5 15 30 + 2xC 30 + 4xC 8 9 10 Air flow q l/s ∆p Fläkt Woods 8757 GB 2016.12.05 Specifications are subject to alteration without notice... -
Page 14: Cpd(A, B, C, G) - Forced Ventilation
Cooker hood CPD Technical manual Adjustment CPdA, CPdb, CPdC And CPdG – forCed ventIlAtIon When adjusting the forced air flow the fan speed must be increased up to the forced flow. b = 5 a = 25 Air flow q, l/s ∆p... -
Page 15: Cpd(H, K) - Basic Ventilation
Technical manual Cooker hood CPD Adjustment CPdh And CPdk – bAsIC ventIlAtIon The basic air flow in the hood is adjusted by removing any number of plugs in the cover plate. 9 10 11 12 13 14 15 16 17 Air flow q, l/s 2, 4, 6, 8 och 10 = number of open holes in the cover plate. -
Page 16: Cpd(H, J, K,) - Forced Ventilation
Cooker hood CPD Technical manual Adjustment CPdh And CPdk - forCed ventIlAtIon Damper blade without basic flow valve (sealed damper blade) When adjusting the forced air flow the fan speed must be increased up to the forced flow. b = 7 Air flow q, l/s ∆p Fläkt Woods... -
Page 17: Spare Parts Cpd(A, B, C, G, H, J, K)
Cooker hood CPD sPAre PArts CPdA, CPdb, CPdC, CPdG, CPdh, CPdj And CPdk Cut the power before start working with the unit. All work has to be carried out by qualified personnel in order to avoid hazard. Intended for CPd... -
Page 18: Declaration Of Conformity
Cooker hood CPD Technical manual deClArAtIon of ConformIty Bilaga II A Declaration of Conformity In accordance with: EU Directive for Machinery, 2006/42/EC EU EMC Directive, 2004/108/EC EU Low voltage Directive, LVD 2006/95/EC Manufacturer Fläkt Woods AB Fläktgatan 1 551 84 Jönköping Herewith declares that: Product Type:... -
Page 19: Disposal Of Product And Packaging Materials
– The units casing may contain condense- or mineral wool insulation sandwiched between the inner and outer shell. – The remaining parts shall be sorted as metallic. – Lamps and fluorescent lights. See www.flaktwoods.com/ecodesign for recycling instructions. Fläkt Woods 8757 GB 2016.12.05 Specifications are subject to alteration without notice... - Page 20 Clean- vent ® are well-known and trusted by customers all over the world to deliver high quality and energy efficient solutions. » To learn more about our offering and get in contact with your nearest sales representative please visit www.flaktwoods.com...
