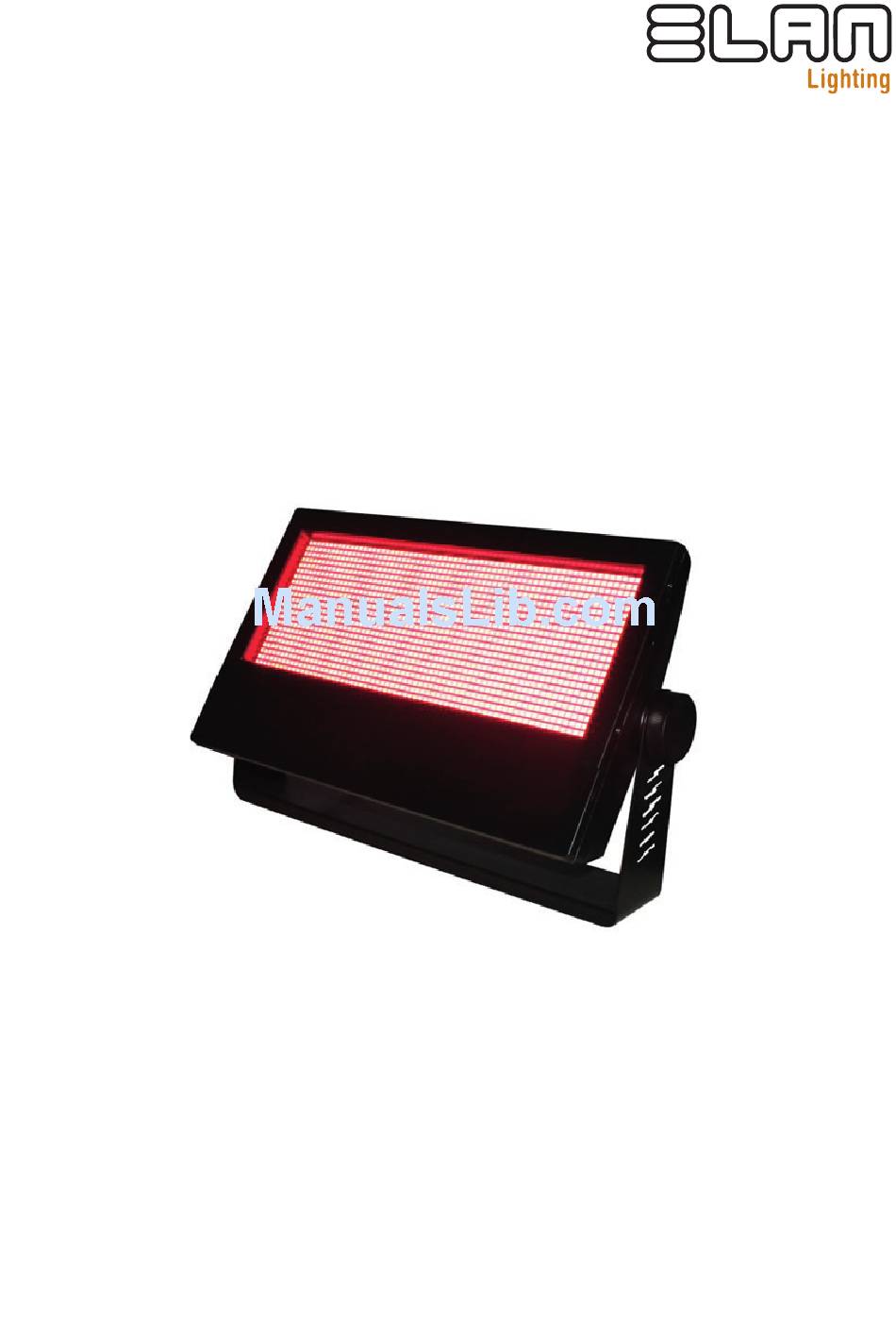

STROBE-1000-LED-RGB+W
USER'S MANUAL
Thank you for purchasing a product from our STROBE-1000-LED-RGB+W. Every suit has
been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing, please
contact Acson Comercial or your local supplier for further instructions. Do not return this unit
without any warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Elan STROBE-1000-LED-RGB+W
- Page 1 STROBE-1000-LED-RGB+W USER’S MANUAL Thank you for purchasing a product from our STROBE-1000-LED-RGB+W. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
-
Page 2: Table Of Contents
Main Features ..........................5 DMX Quick Reference ........................5 The STROBE-1000-LED-RGB+W Pin-Up Picture .................6 4. Setup ...............................7 Fuse Replacement ..........................7 Connecting A Bunch of STROBE-1000-LED-RGB+W Fixtures .............7 Data/DMX Cabling .........................7 Cable Connectors ..........................7 To build your own DMX Terminator ....................7 3-Pin / 5-Pin ...........................8 Take It To The Next Level: Setting Up DMX Control ...............8... -
Page 3: Getting Started
This manual contains important information regarding safety protocols that must be strictly adhered to at all times. Unpacking • 1 x STROBE-1000-LED-RGB+W • 1 x Base Plate • Safety Cable, An Eyebolt & Set of Mounting Brackets •... -
Page 4: Safety Instructions
2. Safety Instructions Please read these instructions carefully they include the important information about the installation usage and maintenance of this products Please note Certain people with epilepsy and photosensitivity may suffer a seizure if exposed to flashing or strobe lighting. If strobe lighting is to be used in a production, warnings should be posted at the front of house or entrance doors to the theater as well as in a program, if distributed. -
Page 5: Meet The Strobe-1000-Led-Rgb+W Fixture
3. Meet the STROBE-1000-LED-RGB+W Fixture Main Features • Flash duration can be set from 0-650ms in DMX • Super bright output via 1260 0.8w RGBW LEDs mode • Intense built-in strobe programs + random strobe • 7000Hz LED scan rate •... -
Page 6: The Strobe-1000-Led-Rgb+W Pin-Up Picture
Figure 1: The STROBE-1000-LED-RGB+W Pin-Up Picture 1. 1260pcs Bright LEDs 2. Locking Knobs 3. Durable Cast Aluminum Housing 4. Mounting Bracket Figure 2: The Rear Connections 1. Natural Convection Heat Sink Cooling 2. Cooling Fans 6. 3/5-Pin DMX512 Out 3. AC Power In 7. -
Page 7: Setup
Always replace with the same type and rating of fuse. Fuse Replacement CAUTION! The STROBE-1000-LED-RGB+W utilizes a high-output switch-mode power supply with an internal fuse. Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable,however it is an advanced procedure suited to qualified individuals. Should your STROBE-1000- LED-RGB+W fuse require replacement, please contact your dealer for instructions. -
Page 8: 3-Pin / 5-Pin
3-Pin / 5-Pin If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. They are widely available over the internet and from specialty retailers If you’d like to build your own, the chart below details a proper cable conversion: Conductor 3-Pin Female(Output) -
Page 9: Mounting & Rigging
5. Operating Adjustments The Control Panel All the goodies and different modes possible with the STROBE-1000-LED-RGB+W are accessed by using the control panel on the front of the fixture. There are 4 control buttons below the LCD display which allow you to navigate through the various control panel menus. -
Page 10: Control Panel Menu Structure
The LCD control panel display shows the menu items you select from the menu map on page #10. When a menu function is selected, the display will show immediately the first available op- tion for the selected menu function. To select a menu item, press <ENTER>. To navigate through the LCD control panel, use the <UP/DOWN>... -
Page 11: Dmx Mode
Channel 4 (4ch DMX mode) Channel 7 (7ch DMX mode) Channel 8 (8ch DMX mode) Channel Mode Channel 16 (16ch DMX mode) Pixel 4 (4ch DMX pixel control) Pixel 8 (8ch DMX pixel control) Config Key Lock Menu buttons lock after 30sec of inactivity (push more than once to Key Mode temporarily unlock buttons). -
Page 12: Additional Features
Auto Mode: 1. Press the <UP/DOWN> buttons until you reach Auto. 2. Push the <ENTER> button. 3. Use the <UP/DOWN> buttons to select from Mode 1 to Mode 6. 4. Press the <ENTER> button to confirm. Auto Program Speed: 1. Press the <UP/DOWN> buttons until you reach Speed. 2. -
Page 13: Dmx Values In-Depth
3. Using the <UP/DOWN> buttons to select Celsius degree or Fahrenheit degree Test Mode: 1. Press the <UP/DOWN> buttons until you reach Test LED. 2. Push the <ENTER> button. 3. Now, you can choose to test all of the LEDs at once, or individually test each of its 9 segments. Use the <UP/DOWN>... - Page 14 DMX Values In-Depth (8-Channel Mode) Value Function 000 <--> 255 Master Dimmer (0-100%) 000 <--> 255 Red segment Intensity (0-100%) 000 <--> 255 Green segment Intensity (0-100%) 000 <--> 255 Blue segment Intensity (0-100%) 000 <--> 255 White segment Intensity(0-100%) 000 <-->...
- Page 15 DMX Values In-Depth (7-Channel Mode) Value Function 000 <--> 255 Dimmer (0% <--> 100%) 000 <--> 255 Flash Duration (0% <--> 100%) 000 <--> 255 Strobe Rate (0-30Hz) DMX Values In-Depth (1-Channel Mode) Value Function 000 <--> 255 Dimmer (0% <--> 100%) DMX Values In-Depth (4-Channel Pixel Mode) Value Function...
-
Page 16: Troubleshooting
6. Troubleshooting Symptom Solution If it is stopped or dimmer than normal, the unit may Fixture Auto- have shut itself off due to high heat. This is to protect Shut Off the fixture from overheating. Check to ensure fixture is operating under correct No Light Output mode, IE sound active/auto/DMX/Etc., if applicable. -
Page 17: Tech Specs
Tech Specs Power Operating Voltage 220-240VAC 50/60Hz Power Consumption 800W Max, 5A, pf: .75 Light Source 630RGB LEDs，630 white leds, 50,000 hrs. Optical Beam Angle 140 degree Luminous 38,000 lm Thermal Max.Operating Temp. 104 degrees F (40 degrees C) ambient Control Protocol USITT DMX-512... - Page 18 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
