Knox KN-DC20MP Instruction Manual

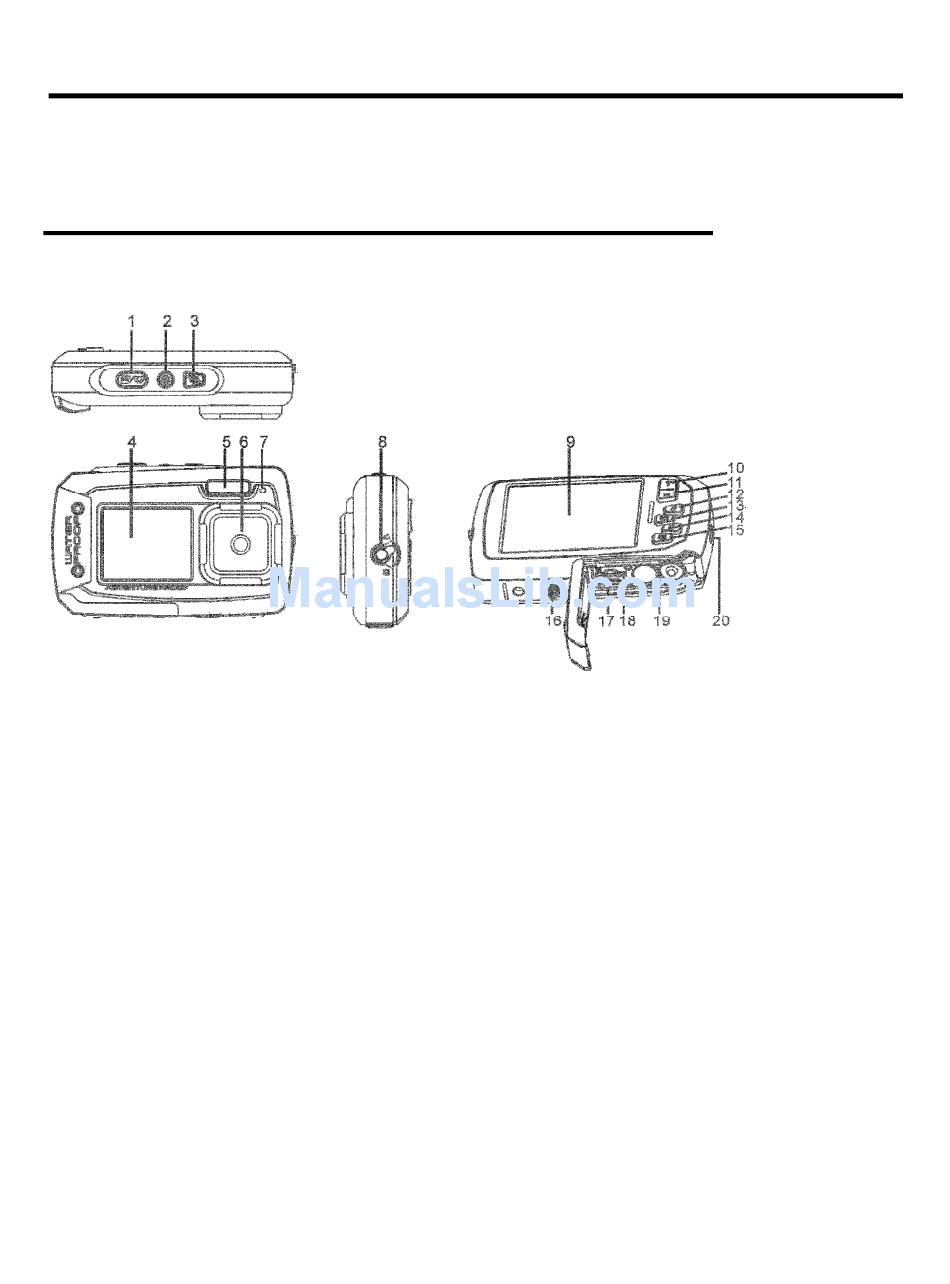

Camera Interface, Inputs, and Outputs
1) Shutter - Press this button to take photographs or to start /stop recording a video clip, or to confirm
changes in menu mode
2) Power on/off button – Hold for at least 2 seconds to switch on or off the camera or press once to
display or hide the status icon on LCD.
3) Monitor switching button - Press this button to switch between the front monitor and the back
monitor.
4) Front monitor - Use the front monitor for taking self-portrait shots
5) Flash - Use the built-in flash to give the subject extra lighting when shooting in the dark (the best
shooting distance is within 1.5m).
6) Lens - Captures the image.
a. Note: Keep the lens clean. Dirt and fingerprints will affect the quality of the picture.
7) Busy indicator - When the indicator is blinking, the camera is busy.
8) Macro/normal switch -
a. Macro mode: Select this mode to take close-up photographs (distance 11cm - 18cm)
b. Normal mode: Select this mode to take photographs from 0.5m - infinity.
9) Main screen - Display photographs, video clips, camera setting and menu.
10) Up/Tele -
a. In Preview mode - press this button for zooming in.
b. In Menu mode - press this button to move up the selection bar.
c. In Image Playback mode - press this button for enlarging the photo.
d. In Video Playback mode - press it to start/pause the video.
Advertisement
Table of Contents
Summary of Contents for Knox KN-DC20MP
- Page 1 Knox KN-DC20MP Instruction Manual Camera Interface, Inputs, and Outputs 1) Shutter - Press this button to take photographs or to start /stop recording a video clip, or to confirm changes in menu mode 2) Power on/off button – Hold for at least 2 seconds to switch on or off the camera or press once to display or hide the status icon on LCD.
- Page 2 11) Down/Wide – a. In Shooting mode: press this button to zoom out. b. In Menu mode: press this button to move down the selection bar. c. In Image Playback mode: press this button to reduce the photo size. d. In Video Playback mode: press this button to enter thumbnail mode 12) Left / Flash light –...
- Page 3 On Screen Status Icons 1) Mode - Shows the current operating mode: a. Photo mode. b. Video mode. 2) Flash a. Force flash: The flash will be on under any environment. b. Auto flash: The camera determines if the flash should be used or not. c.
-
Page 4: Camera Operation
Camera Operation 1) Installing the Batteries Open the battery door. • Insert 2 x AAA alkaline batteries into the camera compartment. • Close the battery door. • Note: Make sure that the batteries are inserted in the right directions (as marked in the diagram •... - Page 5 5) Taking Photographs Turn on the camera. • Depending on the distance to the object being photographed, use the macro switch to adjust the • distance. Set the macro switch to macro mode ( ) if you wish to take a close-up photograph. (11cm– •...
- Page 6 10) Playing Back Photographs Press the Playback ( ) button to enter the Playback mode. • The last picture or video clip taken will be displayed. Press the W ( ) to enter the thumbnail • mode. Press the Left /Right /Up/Down button to select the desired picture, and press the Shutter button to view.
-
Page 7: Specifications
14) Deleting Photographs and Video Clips You can delete a single photograph / video clip, or delete all the photographs / video clips in the memory card. Press the Playback ( ) button to enter the playback mode. • Press the Left or Right button to select the photograph/video clip to be deleted. •... -
Page 8: Troubleshooting
Troubleshooting Problem Cause Solution Low battery power. Replace or install the batteries Cannot turn on the camera Batteries placed at wrong polarities. correctly. Format the memory card in setup Photos will not be saved when The memory card hasn’t been mode of the camera.
